- Page 1 CABINET PARTS REFRIGERATOR For Model: MFF2258VEB2 (Black) 7−09 Litho In U.S.A. (rrm) (psw) Part No. W10284359 Rev.A...
-
Page 2: Cabinet Parts

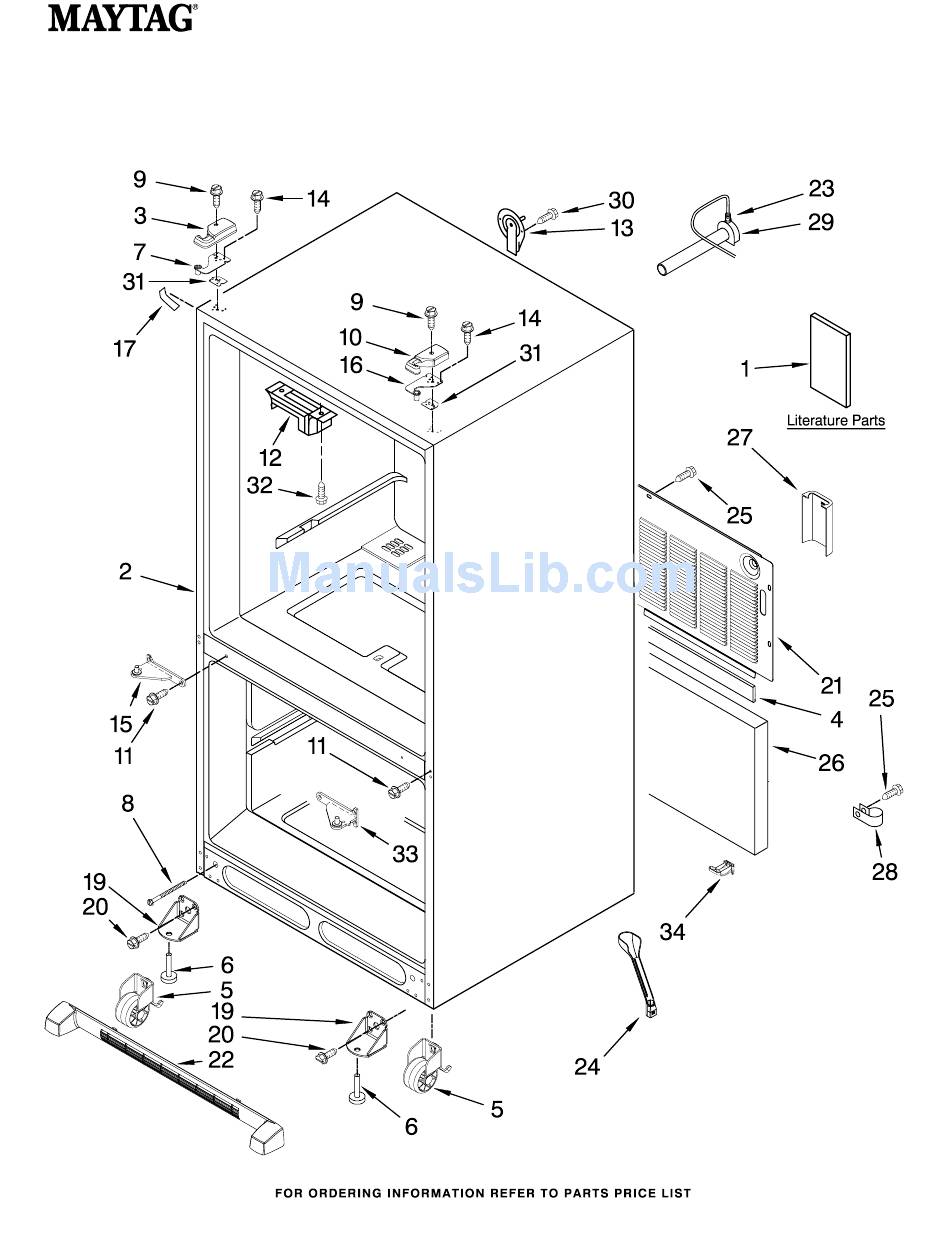

CABINET PARTS For Model: MFF2258VEB2 (Black) Illus. Part Illus. Part Illus. Part DESCRIPTION DESCRIPTION DESCRIPTION 12992602 Screw Literature Parts 23 M0114003SP Clip, Speed Cover, Right Hinge W10175446 Use & Care Guide 24 W10210988 Tube, Drain 12962302B Black W10260549 Energy Guide... -
Page 3: Freezer Liner Parts
FREEZER LINER PARTS For Model: MFF2258VEB2 (Black) W10284359... - Page 4 FREEZER LINER PARTS For Model: MFF2258VEB2 (Black) Illus. Part DESCRIPTION Liner (Not A Seviceable Part) A3189392 Gasket, Foam 12932103 Guide, Fill Tube 12804901 Cover, Light 5 W10128551 Motor, Evaporator 12570701V Socket, Light 12002355 Thermistor 12815301 Cover, Thermistor 9 W10194422V Bulb, Light...
-
Page 5: Freezer Door Parts
FREEZER DOOR PARTS For Model: MFF2258VEB2 (Black) Illus. Part DESCRIPTION Door, Freezer 12977837BQ Black Handle, Door W10123794N Black Gasket, Door W10164037 Black 12991703 Screw, Handle 13001201 Mount, Handle W10284359... -
Page 6: Refrigerator Liner Parts
REFRIGERATOR LINER PARTS For Model: MFF2258VEB2 (Black) Illus. Part Illus. Part Illus. Part DESCRIPTION DESCRIPTION DESCRIPTION 12806601V Housing, Light Liner (Not A 12861601 Switch, Energy Serviceable Part) 9 W10194422V Bulb, Light (2) Saver 12806303 Module, Light 12570701V Socket, Light (2) -
Page 7: Refrigerator Door Parts
REFRIGERATOR DOOR PARTS For Model: MFF2258VEB2 (Black) W10284359... - Page 8 REFRIGERATOR DOOR PARTS For Model: MFF2258VEB2 (Black) Illus. Part DESCRIPTION Door, Left 12978073BQ Black Door, Right 12978076BQ Black 3 12804701SP Door, Dairy 4 12369502SP Tray, Dairy Bucket, Door 12801901V Small (2) 12801902V Medium (1) 12840003K Gallon (Wide) 12840005V Gallon (Deep)
-
Page 9: Unit Parts
UNIT PARTS For Model: MFF2258VEB2 (Black) W10284359... - Page 10 UNIT PARTS For Model: MFF2258VEB2 (Black) Illus. Part Illus. Part Illus. Part DESCRIPTION DESCRIPTION DESCRIPTION 12990701 Screw 12992301 Screw 12726402 Evaporator Kit Following Parts Not Illustrated 12825803 Blade, Fan (Incl. Evaporator 3 W10210983 Basepan and Optional Parts Not Included #12726402, Heat 12990511 Screw Shield &...
-
Page 11: Shelf Parts
SHELF PARTS For Model: MFF2258VEB2 (Black) W10284359... - Page 12 SHELF PARTS For Model: MFF2258VEB2 (Black) Illus. Part Illus. Part Illus. Part DESCRIPTION DESCRIPTION DESCRIPTION 13 12656601SP Glide, Left 13048301 Housing, Control 12530701 Rail, Center 14 12656602SP Glide, Right 13048401 Slide, Control Crisper 15 12990302SP Screw, Glide (4) Endcap, Pantry...
-
Page 13: Icemaker Parts
ICEMAKER PARTS For Model: MFF2258VEB2 (Black) W10284359... - Page 14 ICEMAKER PARTS For Model: MFF2258VEB2 (Black) Illus. Part DESCRIPTION 2256086 Bracket, Ice Maker 2 B5705331SP Tube, Plastic 10526702 Clamp 489276 Screw 5 W10219716 Valve−Inlet 12868001 Arm−Shut Off 12582501 Cover, Front 8 A3223101SP Inert, Tube 9 W10122527 Mold & Heater Assembly (Also...
-
Page 15: Optional Parts
OPTIONAL PARTS For Model: MFF2258VEB2 (Black) Illus. Part Illus. Part Illus. Part DESCRIPTION DESCRIPTION DESCRIPTION PAINT, TOUCH−UP (1/2oz.) PAINT, BULK (1 qt.) TORX SCREW WRENCH 1117510 Torx Key 72017 White 799344 White (Uncut) 72032 Black 799344 Black (Uncut) 4392901 Biscuit...
