- Page 1 TOP AND CONSOLE PARTS ELECTRIC DRYER For Model: LER4634BQ0 (Designer White) 1−95 Litho in U.S.A. (dhb) Part No. 4377359...

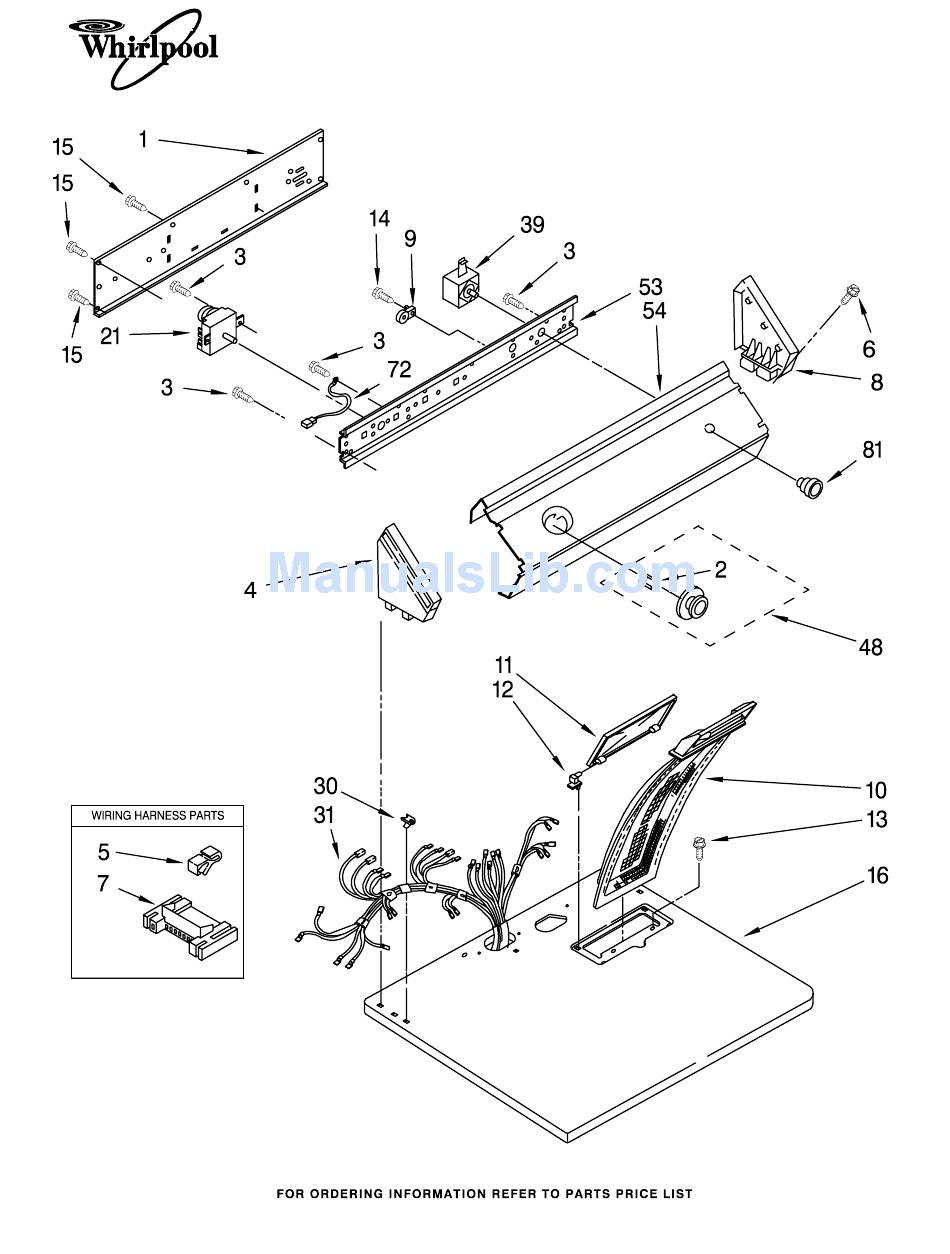

- Page 2 TOP AND CONSOLE PARTS For Model: LER4634BQ0 (Designer White) Illus. Part Illus. Part Illus. Part DESCRIPTION DESCRIPTION DESCRIPTION 1 3397545 Panel, Rear 8 3358516 Cap, End (R.H.) 21 3393934 Timer, 60 Hz. Console 9 3388706 Resistor 357213 Nut, Push−In (2)
-
Page 3: Cabinet Parts
CABINET PARTS For Model: LER4634BQ0 (Designer White) 4377359... - Page 4 CABINET PARTS For Model: LER4634BQ0 (Designer White) Illus. Part Illus. Part Illus. Part DESCRIPTION DESCRIPTION DESCRIPTION 279393 Terminal Block 2 3393008 Screw, 10−16 x 1/2 690363 Lock, Front 5 3396795 Cover, Terminal Kit For Top (2) Terminal Block Block Upper Front...
- Page 5 BULKHEAD PARTS For Model: LER4634BQ0 (Designer White) Illus. Part Illus. Part Illus. Part DESCRIPTION DESCRIPTION DESCRIPTION 694283 Lint Chute Assembly 15 3390291 Thermostat, 24 3387134 Thermostat, 4 3388703 Washer, Support High Limit 250 F Internal−Bias 90767 Screw, 8 x 3/8 (121.1 C) (60 Hz.)
