- Page 1 TOP AND CONSOLE PARTS ELECTRIC DRYER For Models: LER4624BW2, LER4624BN2, LER4624BQ2 (White) (Almond) (Desinger White) 2−95 Litho in U.S.A. (dhb) Part No. 4377380...

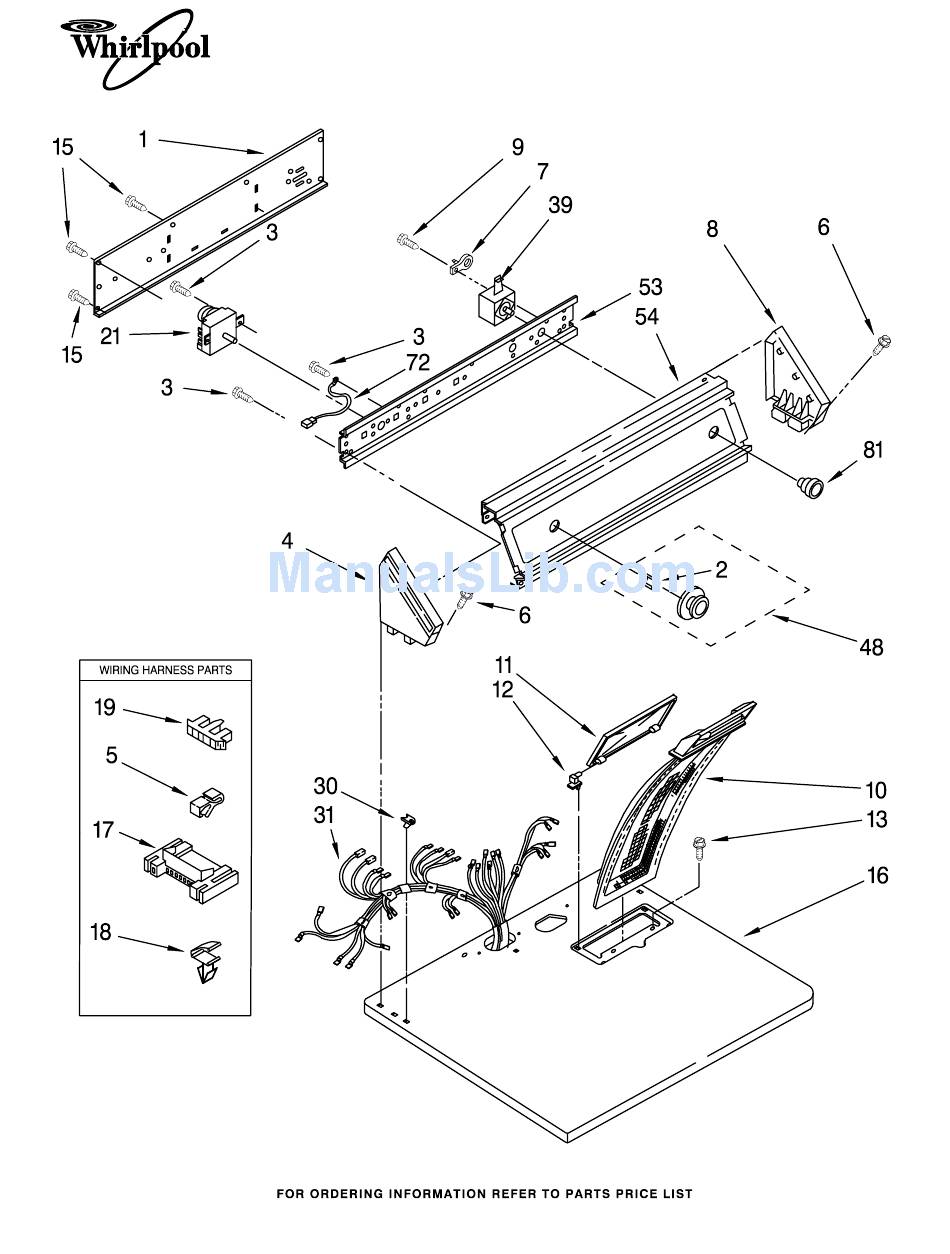

- Page 2 TOP AND CONSOLE PARTS For Models: LER4624BW2, LER4624BN2, LER4624BQ2 (White) (Almond) (Desinger White) Illus. Part Illus. Part Illus. Part DESCRIPTION DESCRIPTION DESCRIPTION 3397545 Panel, Rear 3395382 Switch, Cover, Lint Screen Console Push−To−Start 688150 White 3396145 Timer Knob 688805 Clip 689310 Almond...
-
Page 3: Cabinet Parts
CABINET PARTS For Models: LER4624BW2, LER4624BN2, LER4624BQ2 (White) (Almond) (Desinger White) 4377380... - Page 4 CABINET PARTS For Models: LER4624BW2, LER4624BN2, LER4624BQ2 (White) (Almond) (Desinger White) Illus. Part Illus. Part Illus. Part DESCRIPTION DESCRIPTION DESCRIPTION 279393 Terminal Block 98234 Clip, Ground 3393008 Screw, 10−16 x 1/2 Kit For 690363 Lock, Front 230131 Cable, Door (2)
- Page 5 BULKHEAD PARTS For Models: LER4624BW2, LER4624BN2, LER4624BQ2 (White) (Almond) (Desinger White) Illus. Part Illus. Part Illus. Part DESCRIPTION DESCRIPTION DESCRIPTION 3390291 Thermostat, 694283 Lint Chute Assembly 690997 Ring, Tri High Limit 250 3388703 Washer, Support 3399506 Shaft, L.H. (121.1 C) (60 Hz.) 90767 Screw, 8 x 3/8 3399507 Shaft, R.H.
