Summary of Contents for Genesis GJS450

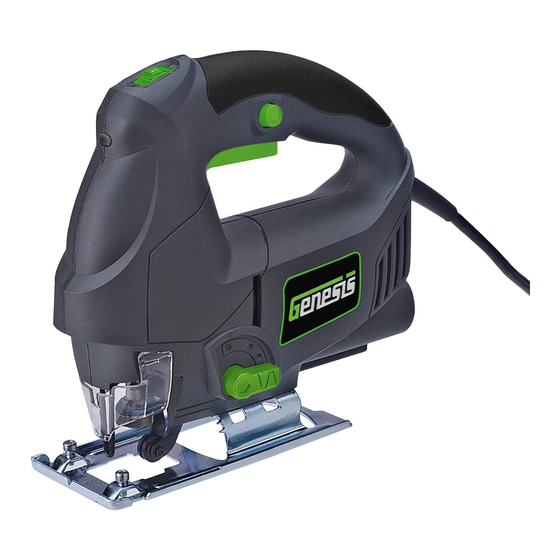

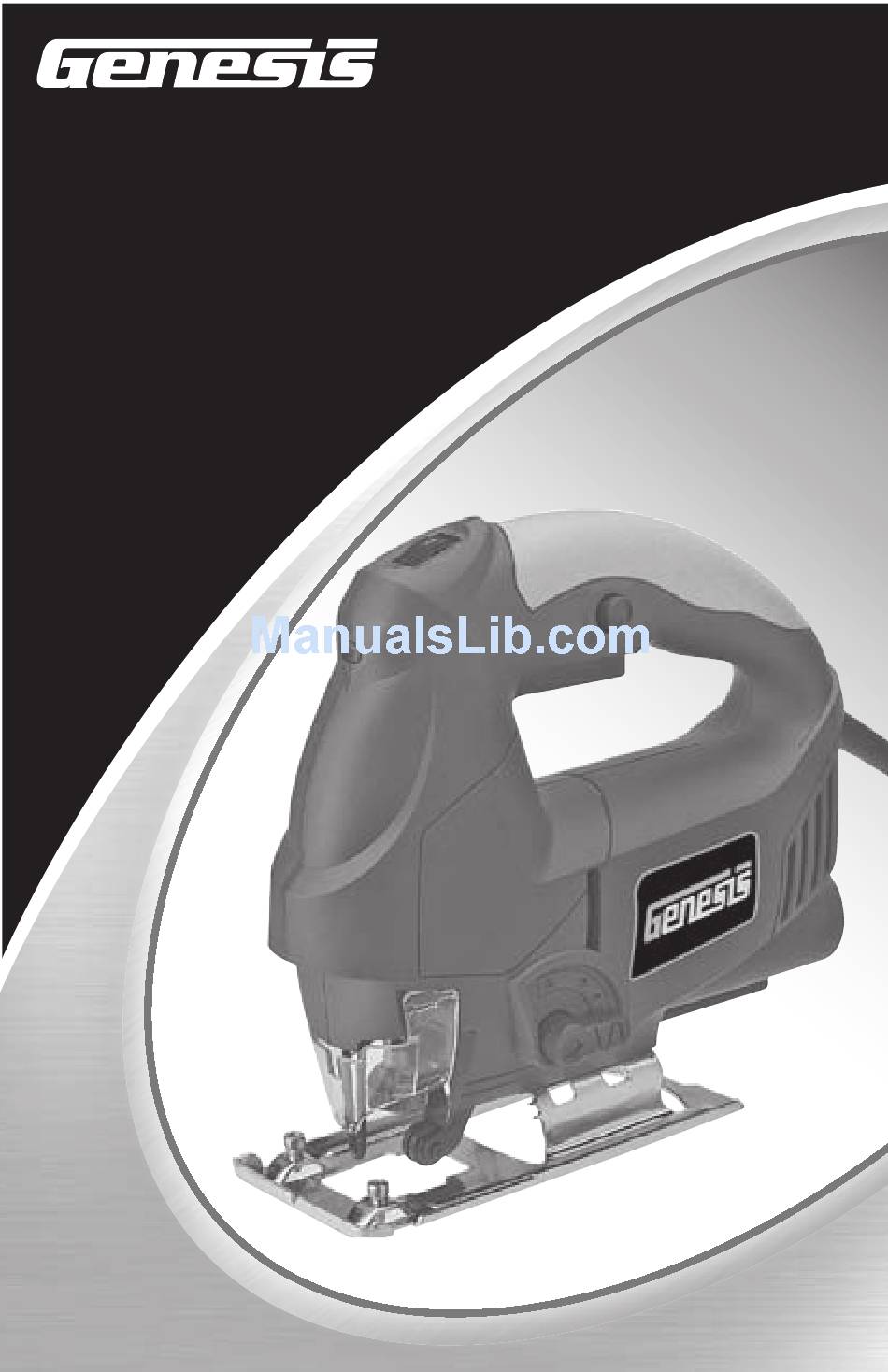

- Page 1 Variable Speed Jig Saw Operator’s Manual Scie sauteuse à vitesse variable Manuel d’utilisation Sierra de vaivén de velocidad variable Manual del Operario GJS450...
-
Page 2: Specifications
Variable Speed Jig Saw 4.5 Amp Operator’s Manual Specifications: • Model: GJS450 • Rated Power: 120V~/60Hz, 4.5 Amp • No Load Speed: 500- 3,000 SPM • Orbital Action: 4 Stage • Blade Type: T-Shank • Cutting Capacity In Wood: 2-1/2” (65 mm) •... -
Page 3: Electrical Safety
• Use safety equipment. Always wear eye protection. Safety equipment such as dust mask, non-skid safety shoes, hard hat, or hearing protection for appropriate conditions will reduce personal injuries. Variable Speed Jig Saw Operator’s Manual GJS450... - Page 4 • Use recommended accessories. using accessories and attachments not recommended by the manufacturer or intended for use on this type tool may cause damage to the Variable Speed Jig Saw Operator’s Manual GJS450...
- Page 5 AnD UnDErSTAnD ALL WArningS, CAUTiOnS AnD OPErATing inSTrUCTiOnS BEFOrE USing THiS EQUiPMEnT. Failure to follow all instructions listed below may result in electric shock, fire and/or serious personal injury. SAVE THESE INSTRUCTIONS Variable Speed Jig Saw Operator’s Manual GJS450...
-
Page 6: Extension Cords
• Do not cut hollow pipe. • Check for the proper clearance beyond the work piece before cutting so that the blade will not strike the floor, work bench, and etc • Make sure the blade is NOT contacting the work piece before the switch is turned on. Variable Speed Jig Saw Operator’s Manual GJS450... - Page 7 Always use properly fitting niOSH/OSHA approved respiratory protection appropriate for dust exposure, and wash exposed areas with soap and water. SAVE THESE INSTRUCTIONS Variable Speed Jig Saw Operator’s Manual GJS450...
- Page 8 Failure to do so could result in serious personal injury. Contents in Package: Description Jig Saw Rip Guide T -Shank Blades Vacuum Adaptor Allen Wrench Operator’s Manual Variable Speed Jig Saw Operator’s Manual GJS450...
-
Page 9: Operation
5. Release the Collet Lever. The blade should now secured in the Blade Collet. BLADE COLLET 6. Lower the chip shield completely. COLLET LEVER ROLLER GUIDE Variable Speed Jig Saw Operator’s Manual GJS450... -
Page 10: To Remove The Blade
“I” through “III” designate increasing levels of orbital action. Just as with blade speed, selecting the proper orbital action is largely a matter of operator experience and experimentation on scrap. The chart shown below is intended as a guideline only. Variable Speed Jig Saw Operator’s Manual GJS450... -
Page 11: Blade Selection
To adjust the bevel cutting angles 1. using Allen wrench provided, loosen the two base pivot screws until the base can be moved. Variable Speed Jig Saw Operator’s Manual GJS450... - Page 12 Scroll cuts can be made with the jig saw by guiding the direction of the cut with applied pressure on the handle. WArning: Excessive side pressure to the blade could result in broken blades or damage to the material being cut. Variable Speed Jig Saw Operator’s Manual GJS450...
-
Page 13: Maintenance
Toll-free Help Line for possible solutions. THIS PRODUCT IS NOT WARRANTED IF USED FOR INDUSTRIAL OR COMMERCIAL PURPOSES. TOLL-FrEE HELP LinE 888-552-8665 for questions about this or any other GeNeSIS Product, please call Toll-free: www.richpowerinc.com Or visit our website: Variable Speed Jig Saw Operator’s Manual... - Page 16 Richpower Industries, Inc. 736 Hampton Road Williamston, SC USA www.richpowerinc.com...
