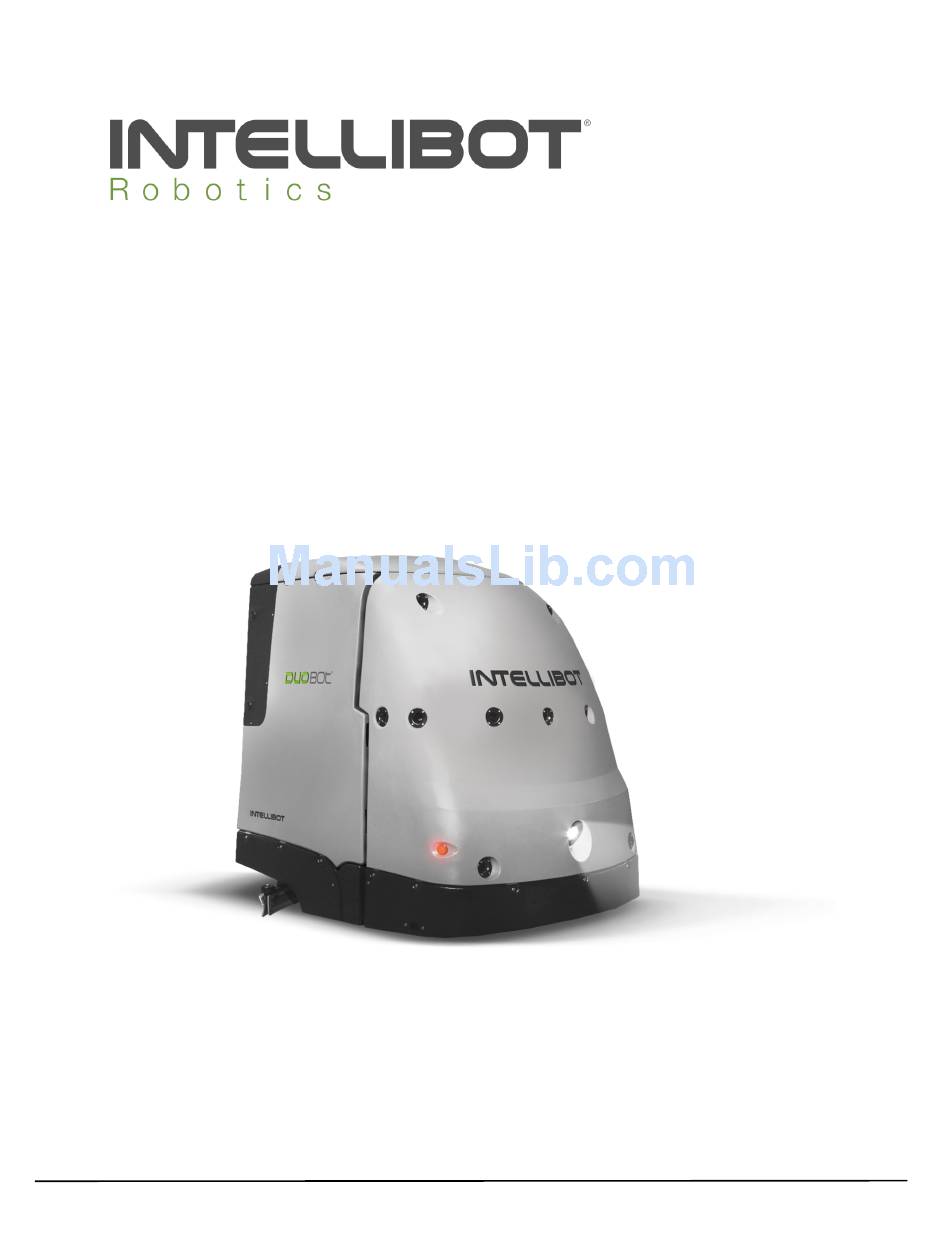

- Page 1 Quick Reference Guide Quick Reference Guide DuoBot Floor Scrubber Intellibot Robotics, LLC 5410 SW Macadam Ave Suite 100 Portland, Oregon 97239 © 2013 Intellibot Robotics, LLC All Rights Reserved v3 Page 1...
-
Page 2: Table Of Contents
Operator Control Panel Overview Start Up Steps Clearing Obstacles Manual Clean Hands-Free Spot Clean Hands-Free Area Clean Cleaning Patterns Map Clean (optional) Completing Daily Cleaning Routine Parking and Charging Exchanging Battery Packs © 2013 Intellibot Robotics, LLC All Rights Reserved v3 Page 2... -
Page 3: Introduction
It is important to follow all instructions and any warnings contained within this guide. Ignoring them could result in personal injury or damage to the DuoBot that may not be covered by the limited warranty. -
Page 4: Machine Images
Quick Reference Guide Sonars Drain hose and drain valve Handle bar Filter and canisters Battery pack door Electronics box Safety touch shield © 2013 Intellibot Robotics, LLC All Rights Reserved v3 Page 4... -
Page 5: Operator Control Panel Overview
This is the preferred method to pause the machine. The emergency stop button is best reserved for emergencies. Parking Brake: To the left is locked, to the right is released. © 2013 Intellibot Robotics, LLC All Rights Reserved v3 Page 5... -
Page 6: Start Up Steps
3. Touch the “Log In” button. 4. Help Button: For help at any time, touch this button to show Hint Bubbles, which explains what each one does. © 2013 Intellibot Robotics, LLC All Rights Reserved v3 Page 6... - Page 7 Once you enter your operator code, a series of screens will appear that will prompt you through the preparation steps prior to cleaning. Install filters. © 2013 Intellibot Robotics, LLC All Rights Reserved v3 Page 7...
- Page 8 Quick Reference Guide Attach canister filters. Check tank. Fill tank with water to prescribed line. Add no more than 3-6 oz. of non-foaming cleaner (e.g. neutral cleaner). Check squeegee blades. © 2013 Intellibot Robotics, LLC All Rights Reserved v3 Page 8...
-
Page 9: Clearing Obstacles
Cleaning Options There are two operating modes for the DuoBot: Manual and Hands Free. Manual allows you to control all cleaning functions including speed and water flow. Hands Free allows you to let go while the machine cleans the area automatically. -
Page 10: Manual Clean
5.5 feet and 60 feet wide. There must be two walls, one on the left and one on the right, at the start of Spot Clean for it to accurately measure the width of the area to clean. © 2013 Intellibot Robotics, LLC All Rights Reserved v3 Page 10... - Page 11 2. Select the distance to clean with the “+” and “-“ buttons to set the cleaning length from 20 to 200 feet. 3. 3. Touch “GO” and the machine will start cleaning. © 2013 Intellibot Robotics, LLC All Rights Reserved v3 Page 11...
-
Page 12: Hands-Free Area Clean
Below is the same pattern with “Return to Start” enabled. Notice the red octagon moved to the starting location. The gray circle shows where the cleaning finished. © 2013 Intellibot Robotics, LLC All Rights Reserved v3 Page 12... -
Page 13: Cleaning Patterns
Side T Left Return L Right L Right Return Cross Left Cross Left Return T Left T Left Return Cross Right Cross Right Return T Right T Right Return © 2013 Intellibot Robotics, LLC All Rights Reserved v3 Page 13... - Page 14 5. To stop cleaning, touch the “Stop.” The machine will ask you to confirm that you want to stop cleaning. If not, the machine will be paused and can be resumed. © 2013 Intellibot Robotics, LLC All Rights Reserved v3 Page 14...
-
Page 15: Map Clean (Optional)
1. Position the machine at starting point that is associated with a specific map. 2. Choose “MAP” from the menu. 3. Select appropriate map from list. 4. Touch “Go.” © 2013 Intellibot Robotics, LLC All Rights Reserved v3 Page 15... -
Page 16: Completing Daily Cleaning Routine
Inspect filter(s) and replace as necessary. Important: Insure O-rings remain on the interior lip of blue canisters. 1. Remove wire basket and clean. 2. Rinse out tank. © 2013 Intellibot Robotics, LLC All Rights Reserved v3 Page 16... -
Page 17: Parking And Charging
8. Push battery pack into place until handle latch locks. Important! The DuoBot should be inspected and serviced by a factory-trained and certified Intellibot service technician every 250 hours. Call Intellibot Customer Assistance (1-888-837-0002) to schedule service. © 2013 Intellibot Robotics, LLC All Rights Reserved v3...
