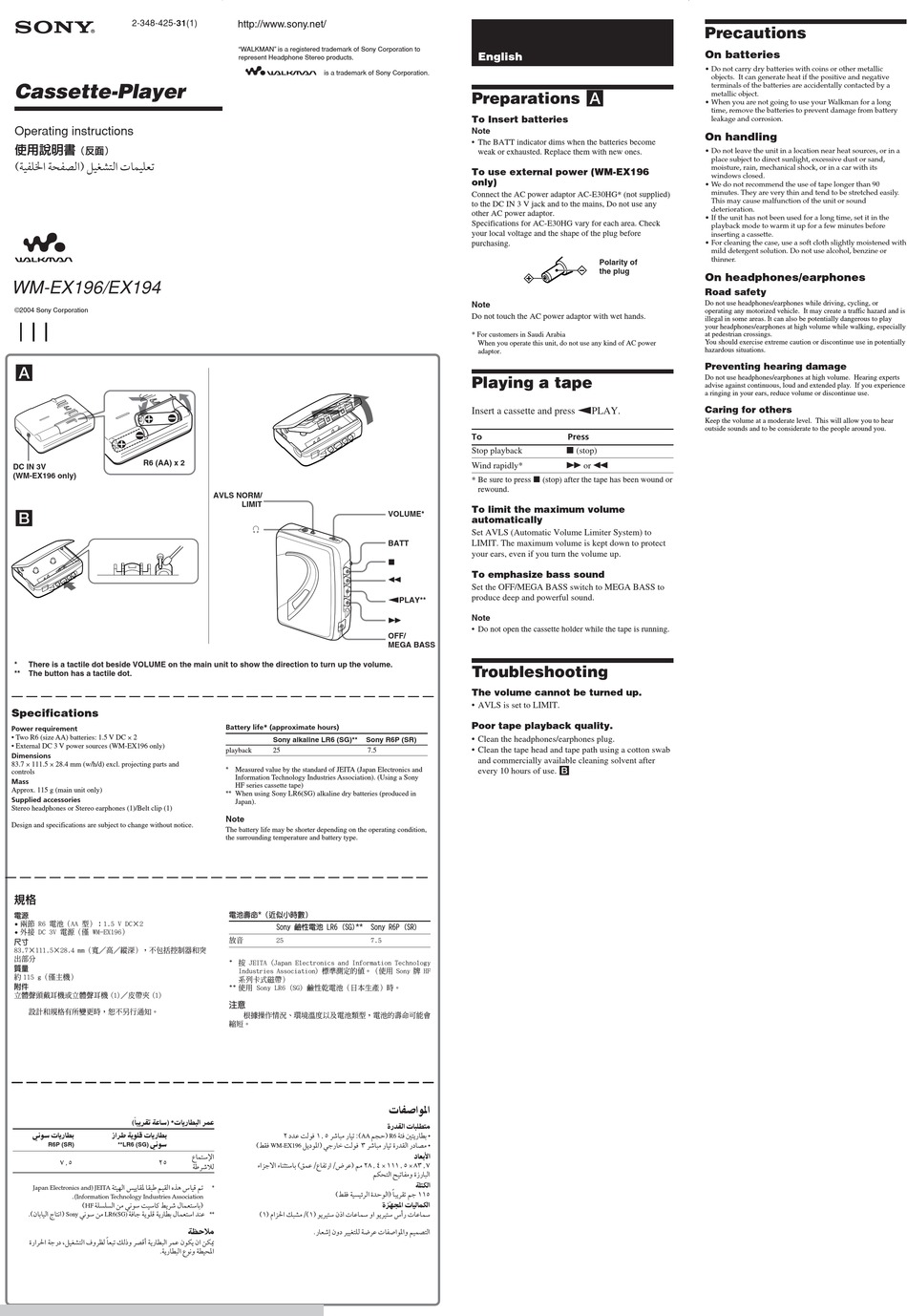

Sony WM-EX196 Operating Instructions

2-348-425-31(1)
Cassette-Player

Operating instructions

WM-EX196/EX194
©2004 Sony Corporation
A
R6 (AA) x 2
DC IN 3V
(WM-EX196 only)
B
* There is a tactile dot beside VOLUME on the main unit to show the direction to turn up the volume.
** The button has a tactile dot.
Specifications
Power requirement
• Two R6 (size AA) batteries: 1.5 V DC × 2
• External DC 3 V power sources (WM-EX196 only)
Dimensions
83.7 × 111.5 × 28.4 mm (w/h/d) excl. projecting parts and
controls
Mass
Approx. 115 g (main unit only)
Supplied accessories
Stereo headphones or Stereo earphones (1)/Belt clip (1)
Design and specifications are subject to change without notice.
•
•
¯
*
¯ ¯
¯
R6P (SR) **LR6 (SG)
Japan Electronics and) JEITA
(Information Technology Industries Association
HF
Sony LR6(SG)
"WALKMAN" is a registered trademark of Sony Corporation to
represent Headphone Stereo products.
is a trademark of Sony Corporation.
AVLS NORM/
LIMIT
i
Battery life* (approximate hours)
Sony alkaline LR6 (SG)** Sony R6P (SR)
playback 25 7.5
* Measured value by the standard of JEITA (Japan Electronics and
Information Technology Industries Association). (Using a Sony
HF series cassette tape)
** When using Sony LR6(SG) alkaline dry batteries (produced in
Japan).
Note
The battery life may be shorter depending on the operating condition,
the surrounding temperature and battery type.
¯
AA
WM-EX196
*
**
English
Preparations A
To Insert batteries
Note
• The BATT indicator dims when the batteries become
weak or exhausted. Replace them with new ones.
To use external power (WM-EX196
only)
Connect the AC power adaptor AC-E30HG* (not supplied)
to the DC IN 3 V jack and to the mains, Do not use any
other AC power adaptor.
Specifications for AC-E30HG vary for each area. Check
your local voltage and the shape of the plug before
purchasing.
Note
Do not touch the AC power adaptor with wet hands.
* For customers in Saudi Arabia
When you operate this unit, do not use any kind of AC power
adaptor.
Playing a tape
Insert a cassette and press nPLAY.
To
Stop playback
Wind rapidly*
* Be sure to press x (stop) after the tape has been wound or
rewound.
To limit the maximum volume
VOLUME*
automatically
Set AVLS (Automatic Volume Limiter System) to
LIMIT. The maximum volume is kept down to protect
BATT
your ears, even if you turn the volume up.
x
To emphasize bass sound
m
Set the OFF/MEGA BASS switch to MEGA BASS to
produce deep and powerful sound.
nPLAY**
Note
M
• Do not open the cassette holder while the tape is running.
OFF/
MEGA BASS

Troubleshooting

The volume cannot be turned up.
• AVLS is set to LIMIT.
Poor tape playback quality.
• Clean the headphones/earphones plug.
• Clean the tape head and tape path using a cotton swab
and commercially available cleaning solvent after
every 10 hours of use. B
R6 •
•
× ×
Precautions
On batteries
• Do not carry dry batteries with coins or other metallic
objects. It can generate heat if the positive and negative
terminals of the batteries are accidentally contacted by a
metallic object.
• When you are not going to use your Walkman for a long
time, remove the batteries to prevent damage from battery
leakage and corrosion.
On handling
• Do not leave the unit in a location near heat sources, or in a
place subject to direct sunlight, excessive dust or sand,
moisture, rain, mechanical shock, or in a car with its
windows closed.
• We do not recommend the use of tape longer than 90
minutes. They are very thin and tend to be stretched easily.
This may cause malfunction of the unit or sound
deterioration.
• If the unit has not been used for a long time, set it in the
playback mode to warm it up for a few minutes before
inserting a cassette.
• For cleaning the case, use a soft cloth slightly moistened with
mild detergent solution. Do not use alcohol, benzine or
thinner.
Polarity of
the plug
On headphones/earphones
Road safety
Do not use headphones/earphones while driving, cycling, or
operating any motorized vehicle. It may create a traffic hazard and is
illegal in some areas. It can also be potentially dangerous to play
your headphones/earphones at high volume while walking, especially
at pedestrian crossings.
You should exercise extreme caution or discontinue use in potentially
hazardous situations.
Preventing hearing damage
Do not use headphones/earphones at high volume. Hearing experts
advise against continuous, loud and extended play. If you experience
a ringing in your ears, reduce volume or discontinue use.
Caring for others
Keep the volume at a moderate level. This will allow you to hear
outside sounds and to be considerate to the people around you.
Press
x (stop)
M or m
