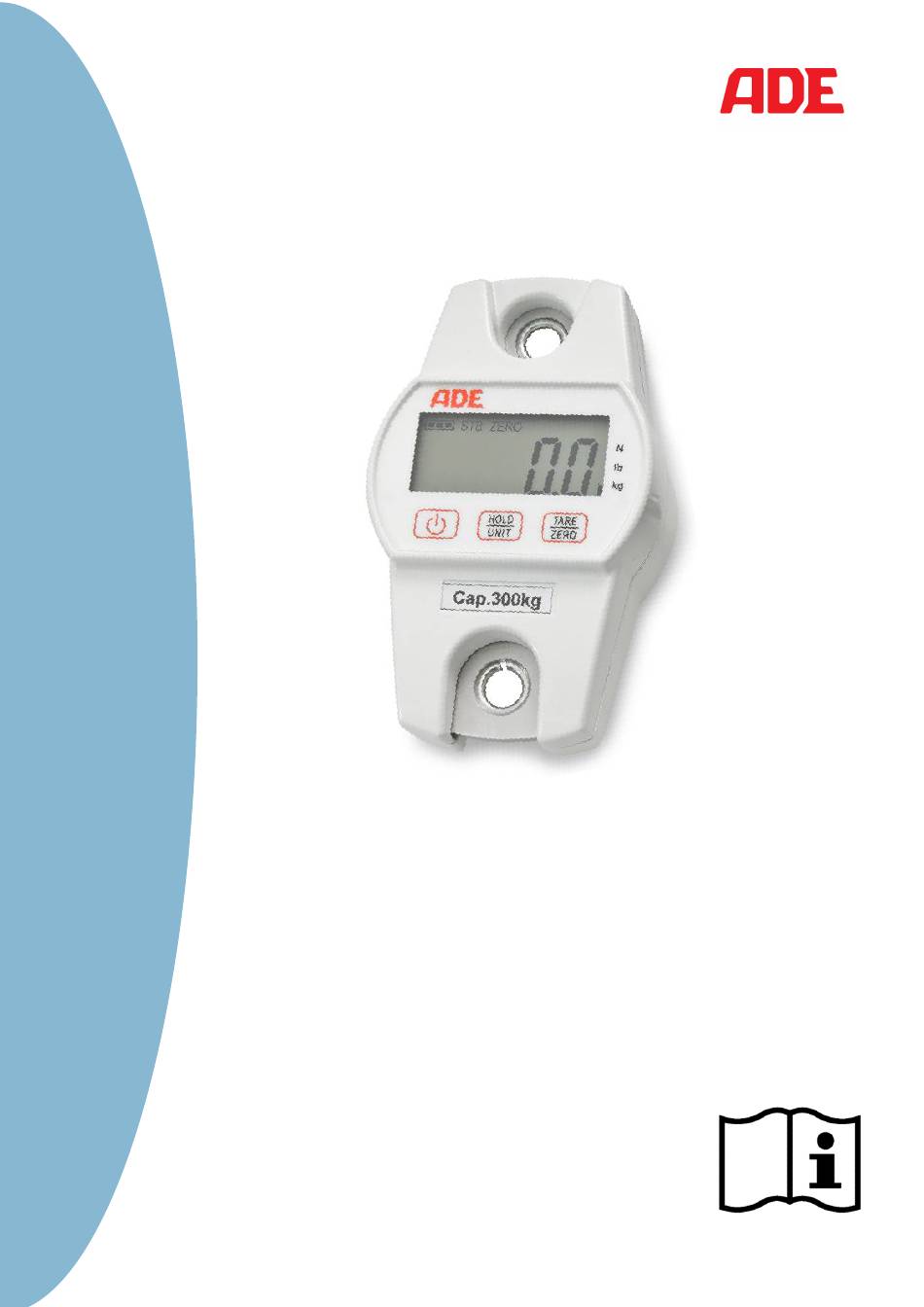

- Page 1 Operating Manual International Range Electronic Lifter Scales M703600 M703600-01 M703600+M703600-01-210817-Rev008-UM-en...
-
Page 2: Table Of Contents
Unit Switch ............................5 Zero ..............................6 Settings ............................... 6 Trouble-shooting & Cleaning ........................ 7 Cleaning: ............................. 7 Warranty – Liability: ..........................7 Storage and Transport ........................8 Disposal ............................... 8 Technical Data ............................8 Declaration of CE Conformity ....................... 9 M703600+M703600-01-210817-Rev008-UM-en... -
Page 3: Safety Instructions
Keep the instructions for use for future reference. Before weighing Your ADE scale is a quality product. Before weighing please read this manual thoroughly and strictly follow the instruction. Keep it properly for future use. Safety Guide For utmost performance and precise measurement, please follow carefully operation and maintenance instructions herein mentioned. -
Page 4: Loading The Scale
By pressing the HOLD key the display will be frozen, even if the weight value will change meanwhile. Keys and Functions Power On Press for 1 second for startup, battery tests and self-calibration. Display shows self-calibration message during loading and automatic zeroing. Power Off Press for 1 second to power off scale. Display shows power-off message. M703600+M703600-01-210817-Rev008-UM-en... -
Page 5: Tare Function
“HOLD” shows and display is frozen. Press again to resume display. “HOLD” hides and display resume refreshing. Unit Switch Press for 1 second to switch measuring unit between kg, lb and N. If scale is tared, or held, unit switching is not allowed. M703600+M703600-01-210817-Rev008-UM-en... -
Page 6: Zero
(15sec), 30 (30sec), 60 (60sec), on (never). Once backlight is set to 5, 15, 30, or 60, ff it turns off corresponding to the seconds after stability has been reached. When Backlight is set to off, it is completely disabled. M703600+M703600-01-210817-Rev008-UM-en... -
Page 7: Trouble-Shooting & Cleaning
Do not use any aggressive cleaning fluids. Warranty – Liability: ADE will repair or replace this product within a period of 1 year from date of delivery applying to defects occurred due to poor material or workmanship (presentation of invoice is necessary). All moveable parts –... -
Page 8: Storage And Transport
Stable and no action within 3 min. Overload 100% (covering full range) + 9e Max. Safety Load 120% (covering full range) Ultimate Load 300% (covering full range) Temp. (Op.) - 10°C ~ + 40°C Humidity (Op.) ≤90% at 20°C M703600+M703600-01-210817-Rev008-UM-en... -
Page 9: Declaration Of Ce Conformity
Declaration of CE Conformity ADE products correspond to the strict European Standards to manufacture and distribute professional weighing and measuring equipment. Declaration of conformity by the manufacturer These scales have been manufactured in accordance with the harmonised European standards. They conform to the regulations of the EC-directives listed below: ... - Page 10 M703600+M703600-01-210817-Rev008-UM-en...
- Page 11 M703600+M703600-01-210817-Rev008-UM-en...
- Page 12 Dealer: M703600+M703600-01-210817-Rev008-UM-en...
