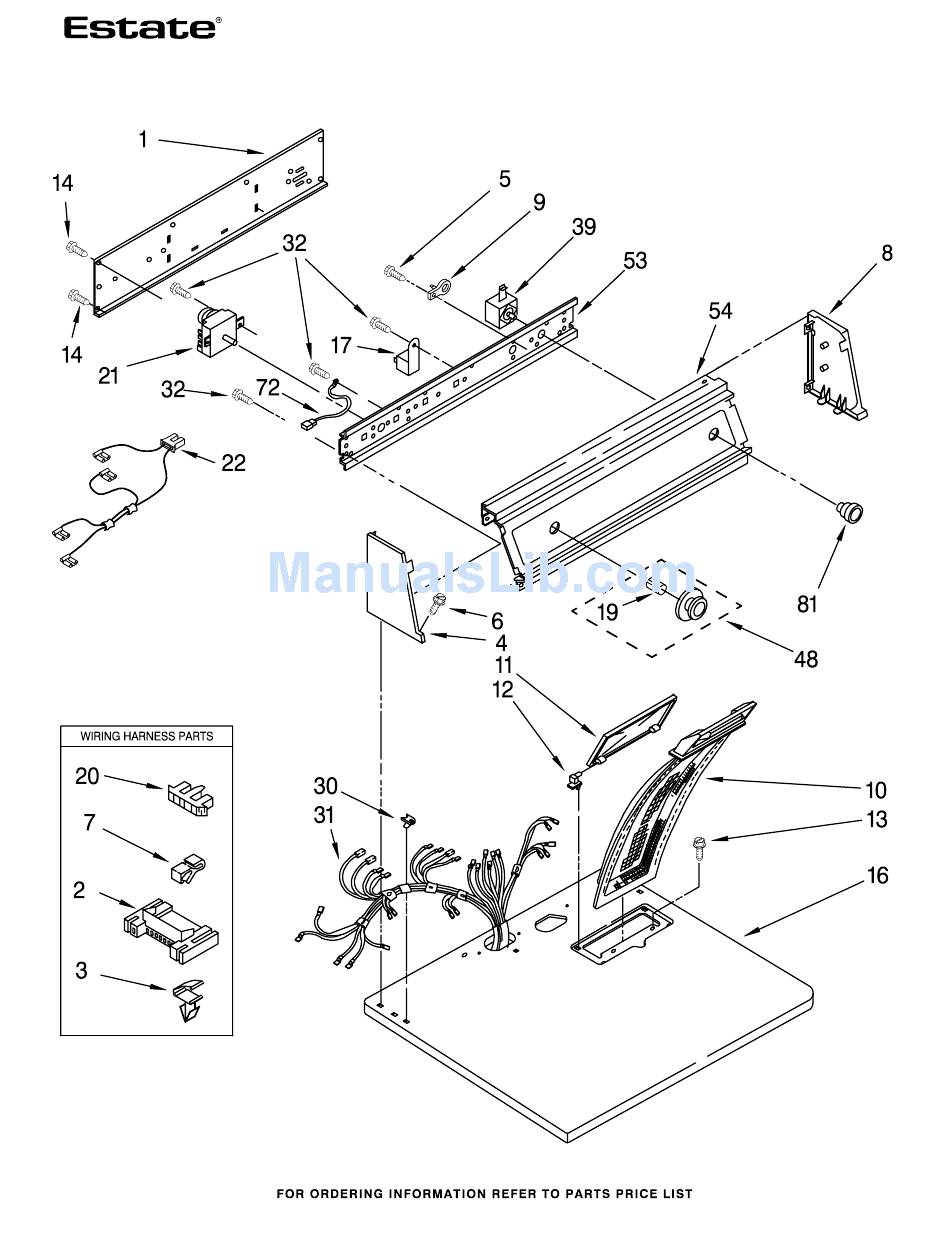

- Page 1 TOP AND CONSOLE PARTS ELECTRIC DRYER For Model: TEDS680DQ1 (Designer White) 2−96 Litho in U.S.A. (tpm) Part No. 4377649...
- Page 2 TOP AND CONSOLE PARTS For Model: TEDS680DQ1 (Designer White) Illus. Part Illus. Part Illus. Part DESCRIPTION DESCRIPTION DESCRIPTION 339229 Hinge, R.H. 3397545 Panel, Rear 357213 Nut, Push−In (2) 339230 Hinge, L.H. Console 3399659 Harness, Wiring 688983 Screw, 8−18 x 5/8 3395683 Connector 3390646 Screw, 8−18 x 5/16...
-
Page 3: Cabinet Parts
CABINET PARTS For Model: TEDS680DQ1 (Designer White) 4377649... - Page 4 CABINET PARTS For Model: TEDS680DQ1 (Designer White) Illus. Part Illus. Part Illus. Part DESCRIPTION DESCRIPTION DESCRIPTION Cabinet 349464 Seal & Bearing 343641 Screw, 10−16 x 1/2 (Includes Illus. Assembly 237979 Spring, Door (2) Nos. 5,7,16,41 279393 Terminal Block 3396795 Cover, Terminal &...
- Page 5 BULKHEAD PARTS For Model: TEDS680DQ1 (Designer White) Illus. Part Illus. Part Illus. Part DESCRIPTION DESCRIPTION DESCRIPTION 3398064 Element, Heater 3399507 Shaft, R.H. 348368 Lint Chute Assembly (For 240 Volt 3397588 Roller, Support 90767 Screw, 8 x 3/8 Installation) 348197 Washer, Support 3399848 Thermal Cut−Off...
