Summary of Contents for Estate TEDS680BW1

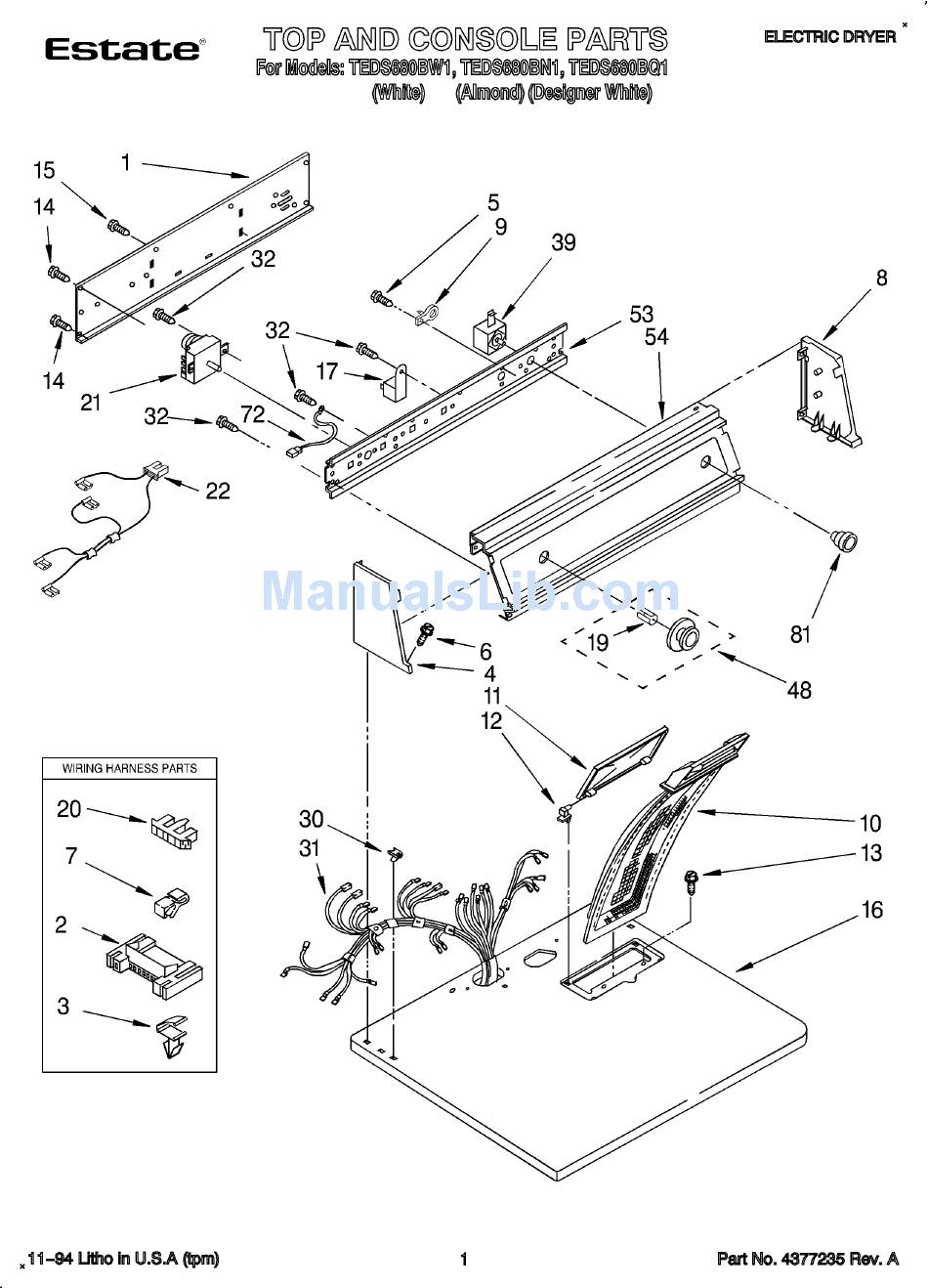

- Page 2 3397545 Panel, Rear Console 3395683 Connector (Motor) 3394427 Clip, Harness 3358016 Cap, End (L.H.) 3358018 FOR MODEL TEDS680BQ1 3390647 Screw, 8-18 x 1/2 3353145 Screw, Console 689180 Clip, Retainer 3357998 Cap, End (R.H.) 3358000 FOR MODEL TEDS680BQ1 3388706 Resistor, Timer 349639 Screen, Lint Cover, Lint Screen...
- Page 3 350938 Primer, Gray PAINT, BULK (1 qt.) 799344 White (Uncut) 978883 Almond (Uncut) Following May Be Purchased DO-IT-YOURSELF REPAIR MANUALS LIT677818 Dryer...
- Page 5 690236 Wire, Ground (Motor) 343641 Screw, 10-16 x 1/2 3393657 Restrainer, Belt 237979 Spring, Door (2) 3396795 Cover, Terminal Block 694091 Screw 3396805 Panel, Rear 3388229 Clip, Toe Panel (2) 3357011 Screw, 10-16 x 1/2 347207 Switch, Door 98129 Screw, 6-20 x 1-3/8 (2) 691581 Lever, Door Switch 693994...
- Page 6 697776 Screw, 10-32 x 1/2 (External Ground) 279318 Terminal, Tinned & Brass (3) (Includes Illus. 40)
- Page 8 348368 Lint Chute Assembly 98460 Nut, Push-In (2) 686889 Pad, Cabinet 90767 Screw, 8 x 3/8 3398671 Thermal Cut-Off (Hi-Limit Thermostat Illus. No.15 Included) 347139 Seal, Lint Chute 3388703 Washer, Support 694089 Wheel, Blower 695081 Housing, Blower 3398161 Clip 343641 Screw, 10-16 x 1/2 695547 Box, Heater...
