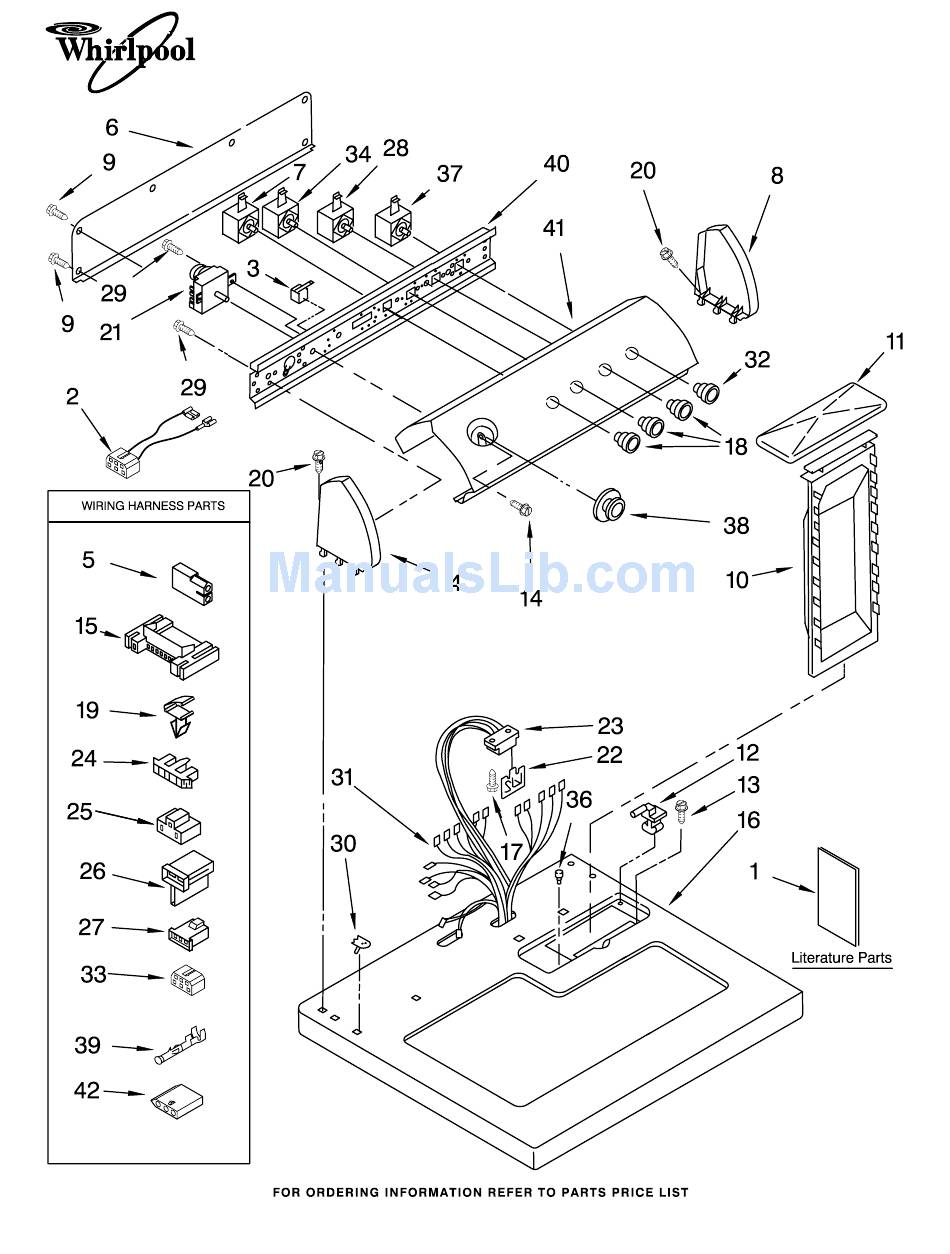

- Page 1 TOP AND CONSOLE PARTS 29"GAS DRYER For Models: LGQ9558KQ1, LGQ9558KT1 (Designer White) (Biscuit) 10−02 Litho in U.S.A. (djc) Part No. 8179789...
- Page 2 TOP AND CONSOLE PARTS For Models: LGQ9558KQ1, LGQ9558KT1 (Designer White) (Biscuit) Illus. Part Illus. Part Illus. Part DESCRIPTION DESCRIPTION DESCRIPTION 349639 Handle & Lint Literature Parts 3403498 Connector, LIT3978906 Instructions, Screen Assembly 3−Position Cover, Lint Screen (Gas Valve) Installation 8283378 White LIT8527926 Use &...
-
Page 3: Cabinet Parts
CABINET PARTS For Models: LGQ9558KQ1, LGQ9558KT1 (Designer White) (Biscuit) 8179789... - Page 4 CABINET PARTS For Models: LGQ9558KQ1, LGQ9558KT1 (Designer White) (Biscuit) Illus. Part Illus. Part Illus. Part DESCRIPTION DESCRIPTION DESCRIPTION 697776 Screw, 10−32 x 5/8 98234 Clip, Ground (2) Plug, Front Panel (External Ground) 690363 Lock, Front Top (2) 3394975 White 343641 Screw, 10−16 x 1/2...
- Page 5 BULKHEAD PARTS For Models: LGQ9558KQ1, LGQ9558KT1 (Designer White) (Biscuit) 8179789...
- Page 6 BULKHEAD PARTS For Models: LGQ9558KQ1, LGQ9558KT1 (Designer White) (Biscuit) Illus. Part DESCRIPTION 348368 Lint Chute Assembly 489463 Screw, 8−18 x 5/8 3388703 Washer−Support 347139 Seal, Lint Chute 90767 Screw, 8−18 x 3/8 487909 Screw, 8−15 x 1/2 3392519 Fuse, Thermal...
-
Page 7: Burner Assembly
8318272 BURNER ASSEMBLY For Models: LGQ9558KQ1, LGQ9558KT1 (Designer White) (Biscuit) USE WITH TYPE 1 − NATURAL AND TYPE 4 LIQUEFIED PROPANE AND BUTANE GASES BA−150 8179789... - Page 8 8318272 BURNER ASSEMBLY For Models: LGQ9558KQ1, LGQ9558KT1 (Designer White) (Biscuit) USE WITH TYPE 1 − NATURAL AND TYPE 4 LIQUEFIED PROPANE AND BUTANE GASES Illus. Part DESCRIPTION 8318272 Burner Assembly 60 Hz. (Type 1) (White Rodgers) 688617 Tube, Burner 694298 Bracket, Ignitor 686590 Ignitor 3393909 Screw &...
