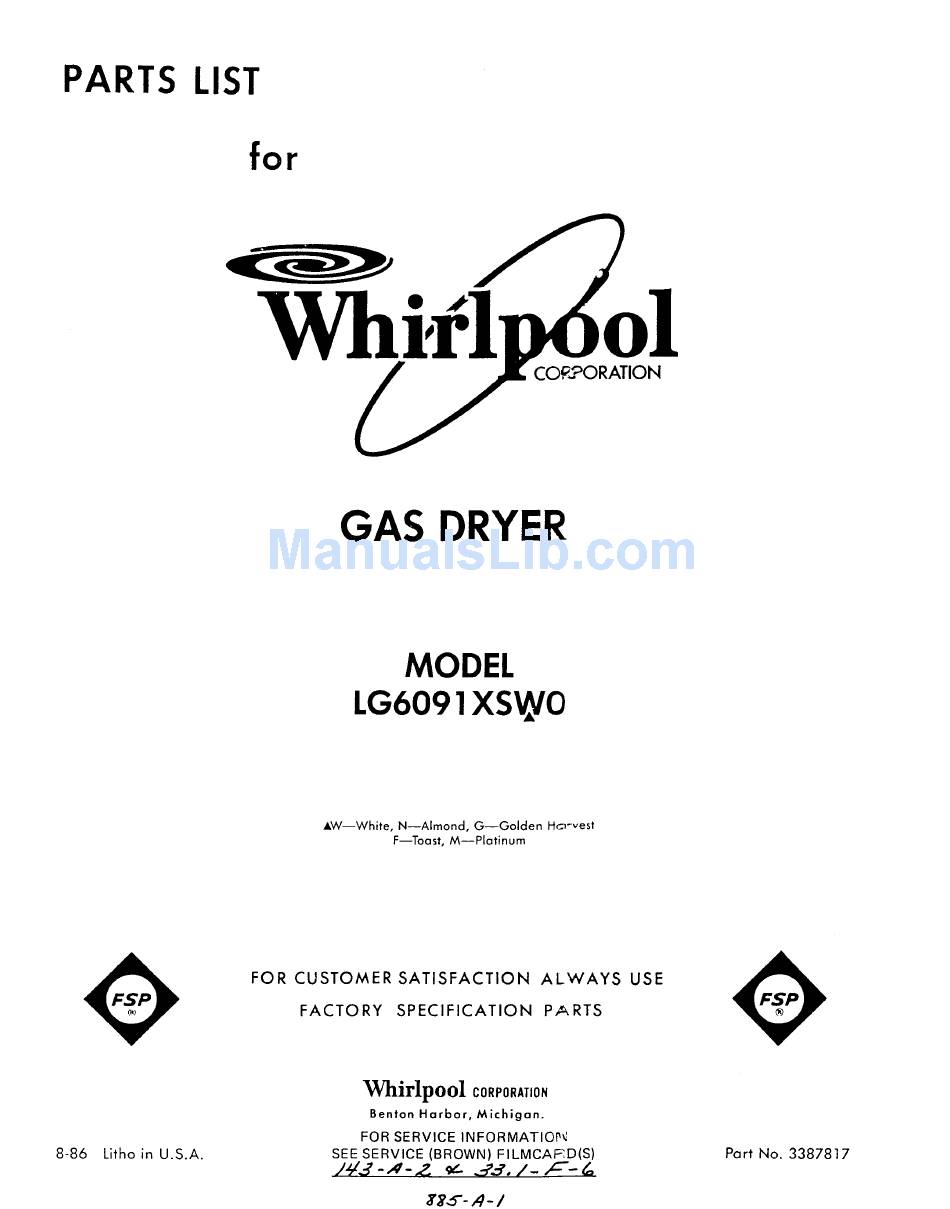

Summary of Contents for Whirlpool LG6091XSW0
- Page 3 386367 Panel, Rear Console 343641 Screw, 10-16 x 1/2 355326 Screw, 13-16 x 5/8 63789 Cap, End (L.H.) 358472 Stop, Push-In (2) 63795 Cap, End (R.H.) 339392 Screen, Lint Cover, Lint Screen 688150 White 689310 Almond 689313 Golden Harvest 695022 Toast 695023 Platinum...
- Page 4 72110 Golden Harvest 72112 Toast 72113 Platinum PAINT PRESSURIZED SPRAY (13 oz.) 350930 White 350956 Almond 261890 Golden Harvest 285365 Toast 285366 Platinum 350938 Primer, Gray 350941 Leveler (Thinner) PAINT,BULK (1 qt.) 799344 White (Uncut) 978883 Almond (Uncut) 261891 Golden Harvest (Uncut) 285367 Toast (Uncut) 285368...
- Page 6 688412 Clip, Harness 343641 Screw, 10-16 x 1/2 690989 Screw, 10-32 x 1/2 238614 Bumper (2) 690893 Cover, Block 342043 Screw, 10-32 x 1/2 347736 Panel, Rear 690236 Wire, Ground (Motor) 693994 Screw, Hex Washer Head (7) 347207 Switch, Door 98129 Screw, 6-20 x 7/8 (2) 693995...
- Page 7 349464 Seal & Bearing Assembly 132848 Screw, 10-24 x 1 22965 Strap, Ground 685762 Seal, Door 344020 Cord, Power 364089 Wire, Ground 297092 Clip, Hinge (2) Panel, Toe 237035 White 689537 Almond 689539 Golden Harvest 694999 Toast 695000 Platinum 238088 Hinge, Top (2) 694054 Valve, 60 Hz.
- Page 9 686215 Lint Chute Assembly 687128 Screw, 10-16 x 1/2 98460 Nut, Push-In 90767 Screw, 8A x 3/8 694511 Fuse, Thermal 660039 Thermostat, 150~F (66~C) 341146 (Alt.) 695499 Wheel, Blower (Includes Illus. 20) 695081 Housing, Blower 337272 Clip 343641 Screw, 10-16 x 1/2 685458 Box, Heater 660036...
- Page 11 694670 Burner Assembly 60 Hz. (Type 1, 2 & 3) (White Rodgers) 688617 Tube, Burner 694298 Bracket, Ignitor 660991 Ignitor 686590 (Alt.) 686953 Screw & Washer (8-32 x 5/8) 343641 Screw, 10-16 x 1/2 693986 Base, Burner 339527 Screw, 8-32 x 3/8 (2) Orifice, Burner 234826 Type...
