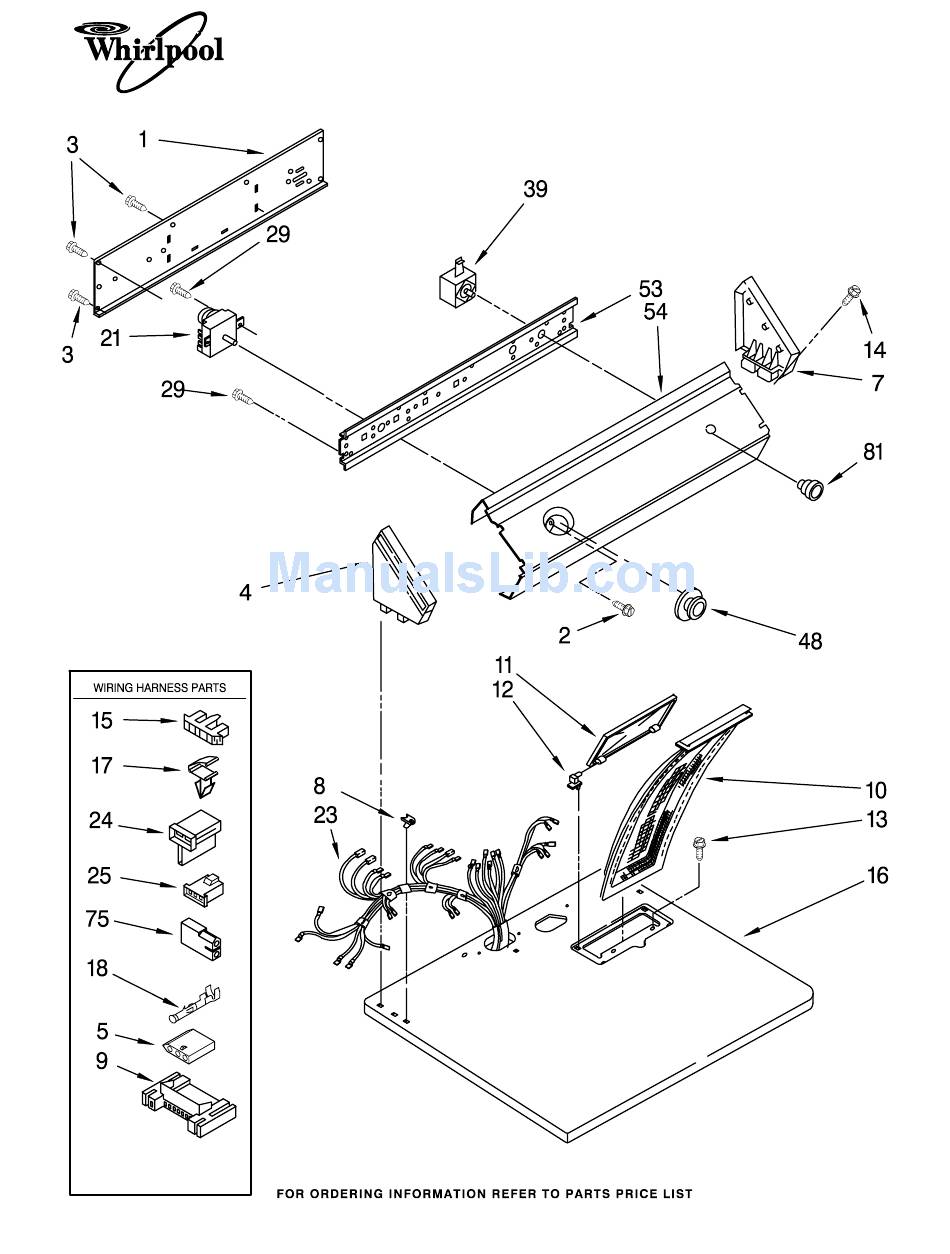

- Page 1 TOP AND CONSOLE PARTS GAS DRYER For Models: LGR4634EQ3, LGR4634EZ3 (Designer White) (Designer Almond) 9−98 Litho in U.S.A. (djc) Part No. 4377865...
- Page 2 Part DESCRIPTION LITERATURE PARTS LIT3406071 Use & Care Guide LIT3405338 Instructions, Installation LIT3406688 Label, Wiring Diagram For Models: LGR4634EQ3, LGR4634EZ3 (Designer White) (Designer Almond) Illus. Part DESCRIPTION 339229 Hinge, R.H. 339230 Hinge, L.H. 688983 Screw, 8−18 x 5/8 388326 Screw, Console...
-
Page 3: Cabinet Parts
CABINET PARTS For Models: LGR4634EQ3, LGR4634EZ3 (Designer White) (Designer Almond) 4377865... - Page 4 (Includes Illus. Nos. 5, 7, 15, 16 & 57) 3399580 White 3399581 Almond 98234 Clip, Ground (2) 690363 Lock, Front Top (2) CABINET PARTS For Models: LGR4634EQ3, LGR4634EZ3 (Designer White) (Designer Almond) Illus. Part DESCRIPTION Front Panel Assembly 3403574 White...
-
Page 5: Burner Assembly
3402844 BURNER ASSEMBLY For Models: LGR4634EQ3, LGR4634EZ3 (Designer White) (Designer Almond) USE WITH TYPE 1 − NATURAL, TYPE 2 − MIXED, TYPE 3 − MANUFACTURED AND TYPE 4 − LIQUEFIED PROPANE AND BUTANE GASES BA−141 4377865... - Page 6 3402844 BURNER ASSEMBLY For Models: LGR4634EQ3, LGR4634EZ3 USE WITH TYPE 1 − NATURAL, TYPE 2 − MIXED, TYPE 3 − MANUFACTURED AND TYPE 4 − LIQUEFIED PROPANE AND BUTANE GASES Illus. Part (Designer White) (Designer Almond) DESCRIPTION 3402844 Burner Assembly 60 Hz.
- Page 7 347139 Seal, Lint Chute 3387134 Thermostat, Internal−Bias 3977358 Drum Hole Plug 694089 Wheel, Blower 4377865 BULKHEAD PARTS For Models: LGR4634EQ3, LGR4634EZ3 (Designer White) (Designer Almond) Illus. Part DESCRIPTION 3405016 Housing, Blower 3398161 Clip 489463 Screw, 8−18 x 5/8 3394343 Box, Heater...
