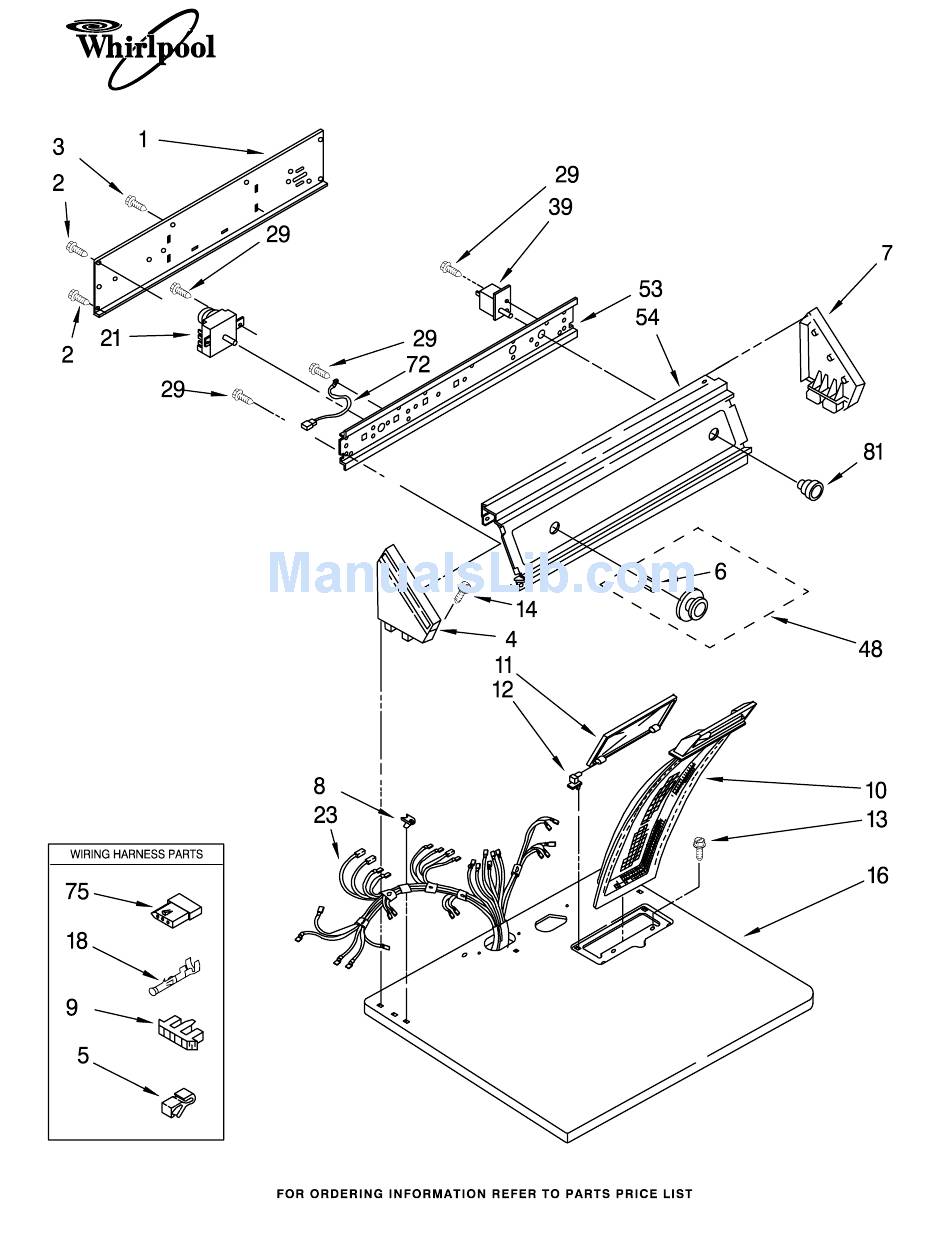

- Page 1 TOP AND CONSOLE PARTS GAS DRYER For Models: LGR4624BW0, LGR4624BN0 (White) (Almond) Part No. 4377133 3−94 Litho in U.S.A. (tpm)
- Page 2 TOP AND CONSOLE PARTS For Models: LGR4624BW0, LGR4624BN0 (White) (Almond) Illus. Part Illus. Part Illus. Part DESCRIPTION DESCRIPTION DESCRIPTION 1 3397545 Panel, Rear Cover, Lint Screen 660936 Switch, Console 688150 White Push−To−Start 693994 Screw, Hex 689310 Almond 692021 (Alt.) Washer Head 339229 Hinge, R.H.
-
Page 3: Cabinet Parts
CABINET PARTS For Models: LGR4624BW0, LGR4624BN0 (White) (Almond) 4377133... - Page 4 CABINET PARTS For Models: LGR4624BW0, LGR4624BN0 (White) (Almond) Illus. Part Illus. Part Illus. Part DESCRIPTION DESCRIPTION DESCRIPTION 697776 Screw, 10−16 x 1/2 238456 Hinge, Door(R.H.) 694670 Burner Assembly, 343641 Screw, 10−16 x 1/2 238460 Hinge, Door(L.H.) 60 Hz. 693995 Screw, Hex Head...
-
Page 5: Burner Assembly
694670 BURNER ASSEMBLY For Models: LGR4624BW0, LGR4624BN0 (White) (Almond) USE WITH TYPE 1 − NATURAL, TYPE 2 − MIXED, TYPE 3 − MANUFACTURED AND TYPE 4 − LIQUEFIED PROPANE AND BUTANE GASES BA−110−D 4377133... - Page 6 694670 BURNER ASSEMBLY For Models: LGR4624BW0, LGR4624BN0 (White) (Almond) USE WITH TYPE 1 − NATURAL, TYPE 2 − MIXED, TYPE 3 − MANUFACTURED AND TYPE 4 − LIQUEFIED PROPANE AND BUTANE GASES Illus. Part DESCRIPTION 694670 Burner Assembly 60 Hz.
- Page 7 BULKHEAD PARTS For Models: LGR4624BW0, LGR4624BN0 (White) (Almond) Illus. Part Illus. Part Illus. Part DESCRIPTION DESCRIPTION DESCRIPTION 694283 Lint Chute 685458 Box, Heater 690997 Ring, Tri Assembly 15 3388697 Thermostat, 347364 Shaft, L.H. 343641 Screw, 10−16 x 1/2 205 F (96C) 339489 Shaft, R.H.
