Traynor DynaBlock 400 Manual page 4

1 2 1
Tuner
Input
Passive Active
MODEL TYPE: YS1100
A-Z1422 / 2v0
DESIGNED & MANUFACTURED BY YORKVILLE SOUND • TORONTO, CANADA
15

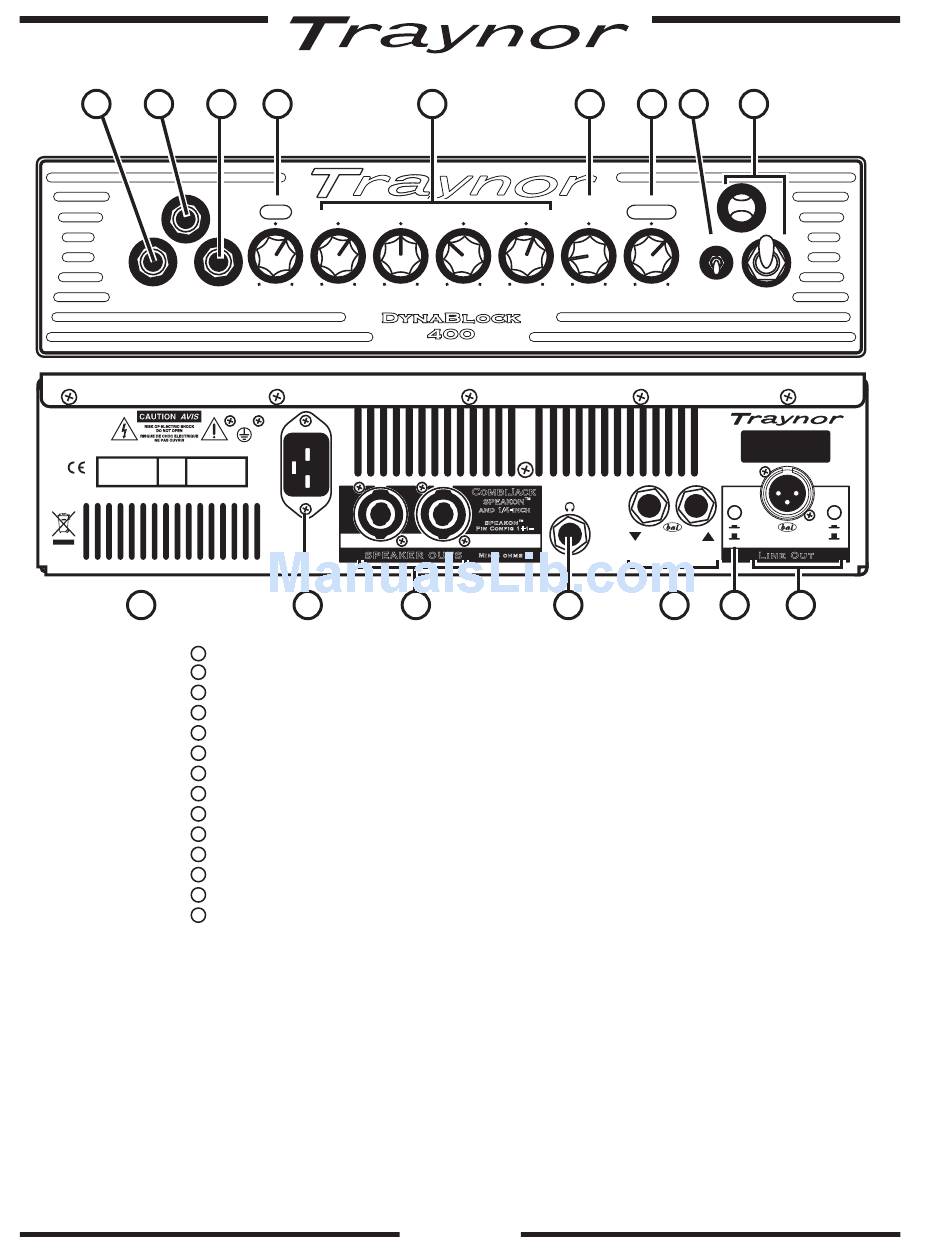

0dB/Passive and -9dB/Active Inputs and Clip LED – ¼-inch phone jacks
1
Tuner Jack – ¼-inch phone jacks.
2
Gain Control
3
Tone Controls – Bass, Low-Mid, Hi-Mid and Treble.
4
Low Expander Control
5
Master Volume Control
6
Mute Button
7
Power Switch and Lamp
8
Line Out XLR and Lift/GND Button
9
Line Out EQ Switch
10
Effects Send and Return – ¼-inch phone jacks
11
Phones Jack – ¼-inch TRS jack
12
Speaker Outs – two combi 1/4-inch / Speakon™ jacks
13
Tweeter Defeat/Active Switch (DynaBlock400 Combos only)
14
3 4
Gain Bass Low Mid
SPEAKER OUTS
14 13
5
Low
Hi Mid Treble
Expander
CombiJack
Phones
SPEAKON™
and 1/4-inch
SPEAKON™
Pin Config 1+1–
Min 4 ohms
12
2
6 7 8
Master
Mute Power
EQ
Post
Send Rtn
Pre
Line Out
EFFECTS
11 10 9
GND
Lift
GND
