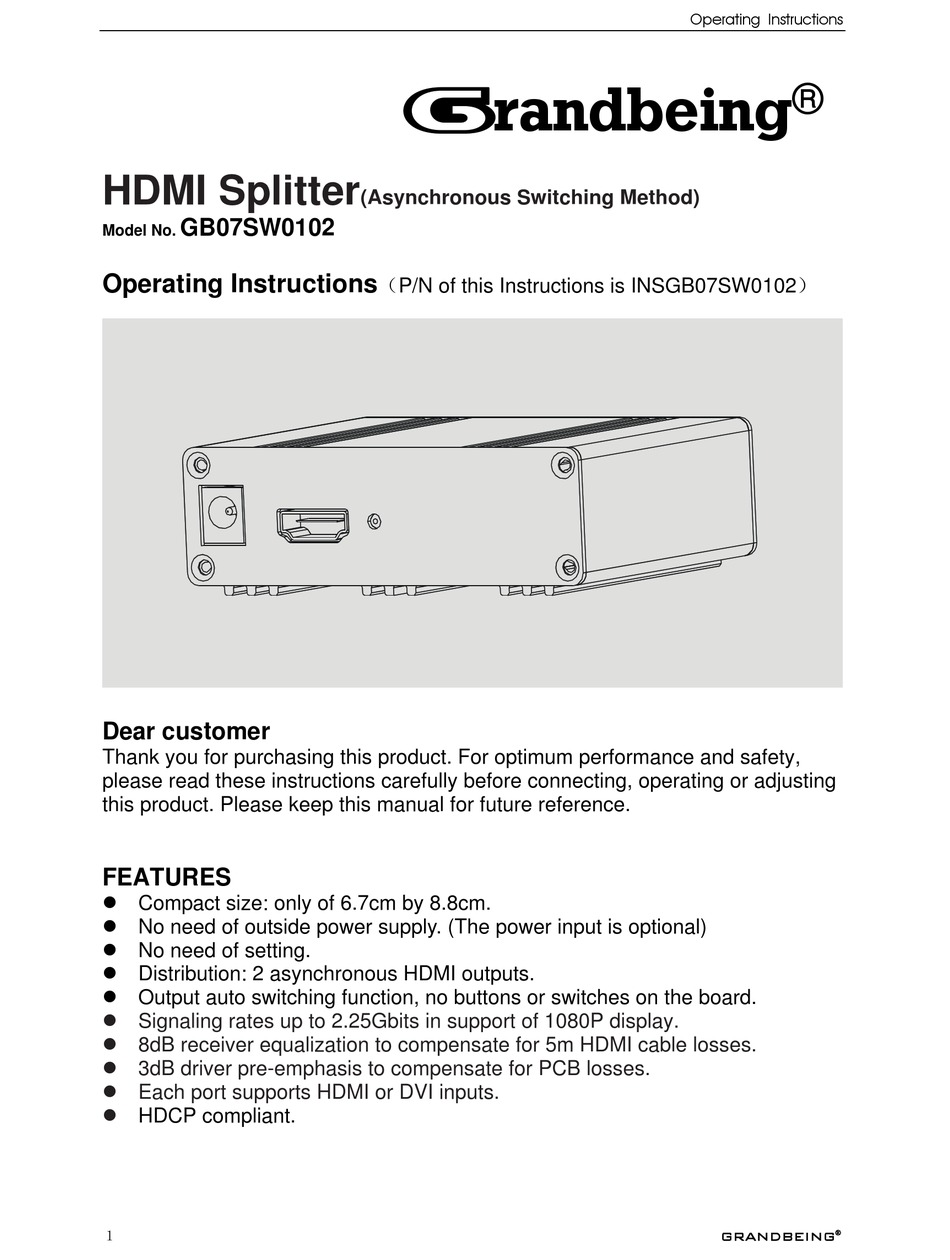

HDMI Splitter
GB07SW0102
Model No.
Operating Instructions
Dear customer
Thank you for purchasing this product. For optimum performance and safety,
please read these instructions carefully before connecting, operating or adjusting
this product. Please keep this manual for future reference.
FEATURES
Compact size: only of 6.7cm by 8.8cm.
No need of outside power supply. (The power input is optional)
No need of setting.
Distribution: 2 asynchronous HDMI outputs.
Output auto switching function, no buttons or switches on the board.
Signaling rates up to 2.25Gbits in support of 1080P display.
8dB receiver equalization to compensate for 5m HDMI cable losses.
3dB driver pre-emphasis to compensate for PCB losses.
Each port supports HDMI or DVI inputs.
HDCP compliant.
１
Grandbeing
(Asynchronous Switching Method)
（P/N of this Instructions is INSGB07SW0102）
Operating Instructions
®
®
GRANDBEING
Advertisement
Table of Contents
Related Manuals for Grandbeing GB07SW0102
Summary of Contents for Grandbeing GB07SW0102
- Page 1 Operating Instructions ® Grandbeing HDMI Splitter (Asynchronous Switching Method) GB07SW0102 Model No. Operating Instructions （P/N of this Instructions is INSGB07SW0102） Dear customer Thank you for purchasing this product. For optimum performance and safety, please read these instructions carefully before connecting, operating or adjusting this product.
- Page 2 Operating Instructions NOTICE Grandbeing Inc. reserves the right to make changes in the hardware, packaging and any accompanying documentation without prior written notice. TABLE OF CONTENTS Introduction Package Contents Panel Descriptions Connecting Operating Specifications Typical Application Maintenance Product Service Warranty...
- Page 3 It switches the HDMI input to two asynchronous outputs. These two outputs are asynchronous and auto switching.(Smart function) GB07SW0102 has the ability of equalization and amplification to ensure HDMI signal’s transmission through long cable without quality loss. GB07SW0102 offers solutions for residential consumers, HDTV retail and show...
-
Page 4: Specifications
（such as：HD-DVD、PS3、STB etc.） into GB07SW0102. 2) Connect the HDMI outputs into GB07SW0102. ( such as : HD-LCD、HD-DLP） 3) Power on the input source. 4) Power on the display you want to show. (Keep the unused display power off, otherwise it may interfere the normal display.) （Remark：The power adapter is needed when the signal source has no sufficient power... - Page 5 HDMI LCD HDMI Signal Source （ Such Input Output1 as HD-DVD） GB07SW0102 Display2： Such as Output2 HDMI Projector Chart 1 MAINTENANCE Clean this unit with a soft, dry cloth. Never use alcohol, paint thinner or benzine to clean this unit.
- Page 6 WARRANTY If your product does not work properly because of a defect in materials or workmanship, Grandbeing Company (referred to as “the warrantor”) will, for the （Parts (1) Year， Labor(90) Days） length of the period indicated as below, which starts with the date of original purchase (“Limited Warranty period”), at its option...
- Page 7 3) PARTS AND SERVICE, WHICH ARE NOT COVERED BY THIS LIMITED WARRANTY, ARE YOUR RESPONSIBILITY. Customer Services Directory Grandbeing Technology Co., Ltd Address: 6C, Jialitai Building, No. 6 Yanshan Road, Nanshan District Shenzhen , P.R. China Post Code:518067 Tel:86-755-26678449 Fax:86-755-26678549 Email:sales@grandbeing.com, sales@grandbeing.biz,...
