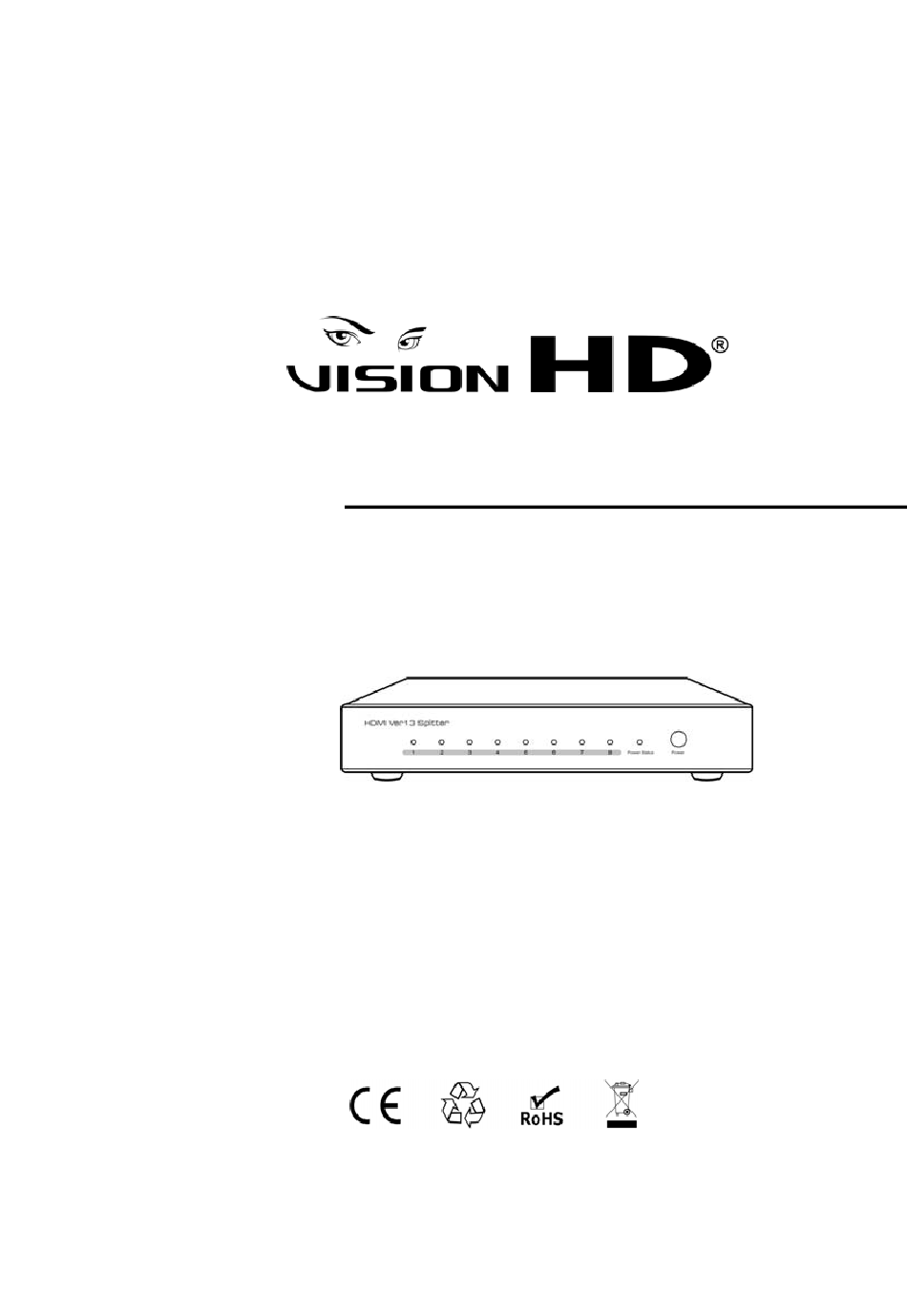

- Page 1 SP0108-U01 Model No Operating Instructions Thanks for purchasing our product. Please be sure to read this instruction manual carefully before using our product.
- Page 2 Introduction Grandbeing’s SP0108-U01 is a eight-way HDMI splitter. It distributes one input HDMI signal to eight identical HDMI outputs. These eight outputs are synchronized. SP0108-U01 has the ability of pre-emphasis and equalization. Series connection of SP0108-U01 achieves long distance transmission of HDMI signal of more than 15 meters.
-
Page 3: Hdmi Splitter
Easy to Use: Install in seconds, no need of setting. Distribution: Eight identical HDMI outputs. HDMI V1.3B. Notice Grandbeing Inc. reserves the right to make changes in the hardware, packaging and any accompanying documentation without prior written notice. Page 1... - Page 4 Warning To reduce the risk of fire, electric shock or product damage: 1. Do not expose this apparatus 6. Clean this apparatus to rain, moisture, dripping or only with dry cloth. splashing and that no objects filled with liquids, such as vases, shall be placed on the apparatus.
- Page 5 Package Contents ■ ① Main unit. P/N_SP0108-U01. ② 5VDC Power Supply.P/N_VDC0504. ③ Operating Insrtuctions.P/N_INSSP0108-U01. NOTE: Cables are optional. Connections and Operations ■ Connect the HDMI input sources into SP0108-U01. ( Input cables are optional) Connect the HDMI output equipments into SP0108-U01. ( Output cables are optional) Insert the DC side of 5v power supply into SP0108-U01 and then connect...
- Page 6 VGA: 640x480,800x600,1024x768,1280x1024 Video Format Supported DTV/HDTV: 480i/576i/480p/576p/720p/1080i/1080P HDMI 1.3 video and audio (support HDMI output DTS-HD) 〉 50m (If needed, HDMI extender is Maximum Transmission Distance optional) Vertical Frequency Range 60Hz Power Consumption 10 Watts (max.) Power Supply 5VDC Dimensions 235mmL x 132mmW x 32mmH Mass 0.8 Kgs...
- Page 7 Back Panel ① Power input. ② EDID Setting. ③ HDMI output port. ④ HDMI input port. ⑤ UTPOUT Ports. Typical Application ■ Page 5...
-
Page 8: Maintenance
Maintenance ■ Clean this unit with a soft, dry cloth. Never use alcohol, paint thinner or benzine to clean this unit. Product Service ■ ● Provided Service Damage Requiring service: The unit should be serviced by qualified service personnel if: The DC power supply cord or AC adaptor has been damaged;... -
Page 9: Warranty
Warranty If your product does not work properly because of a defect in materials or workmanship, Grandbeing Company (referred to as “the warrantor”) will, for the length of the period indicated as below, （Parts (1) Year， Labor(90) Days）which starts with the date of original purchase (“Limited Warranty period”), at its option either (a) repair your product with new or refurbished... - Page 10 damage, modification, or service by anyone other than a Factory Service Center or other Authorized Service, or damage that is attributable to acts of God. There are no express warranties except as listed under “limited warranty coverage”. The warrantor is not liable for incidental or consequential damages resulting from the use of this product, or arising out of any breach of this warranty.
- Page 11 Grandbeing Technology Co., Ltd. Address: 6C, Jialitai Building, No. 6 Yanshan Road, Nanshan District Shenzhen, P.R. China Tel: 86-755-26678449 Fax: 86-755-26678549 Post Code: 518067 www.grandbeing.biz...
