Glentek SMA8730 Operation & Service Manual

Brushless amplifier system
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
OPERATION
&
SERVICE MANUAL
Model SMA8730
Brushless Amplifier System

Advertisement

Table of Contents
loading

Related Manuals for Glentek SMA8730

Summary of Contents for Glentek SMA8730

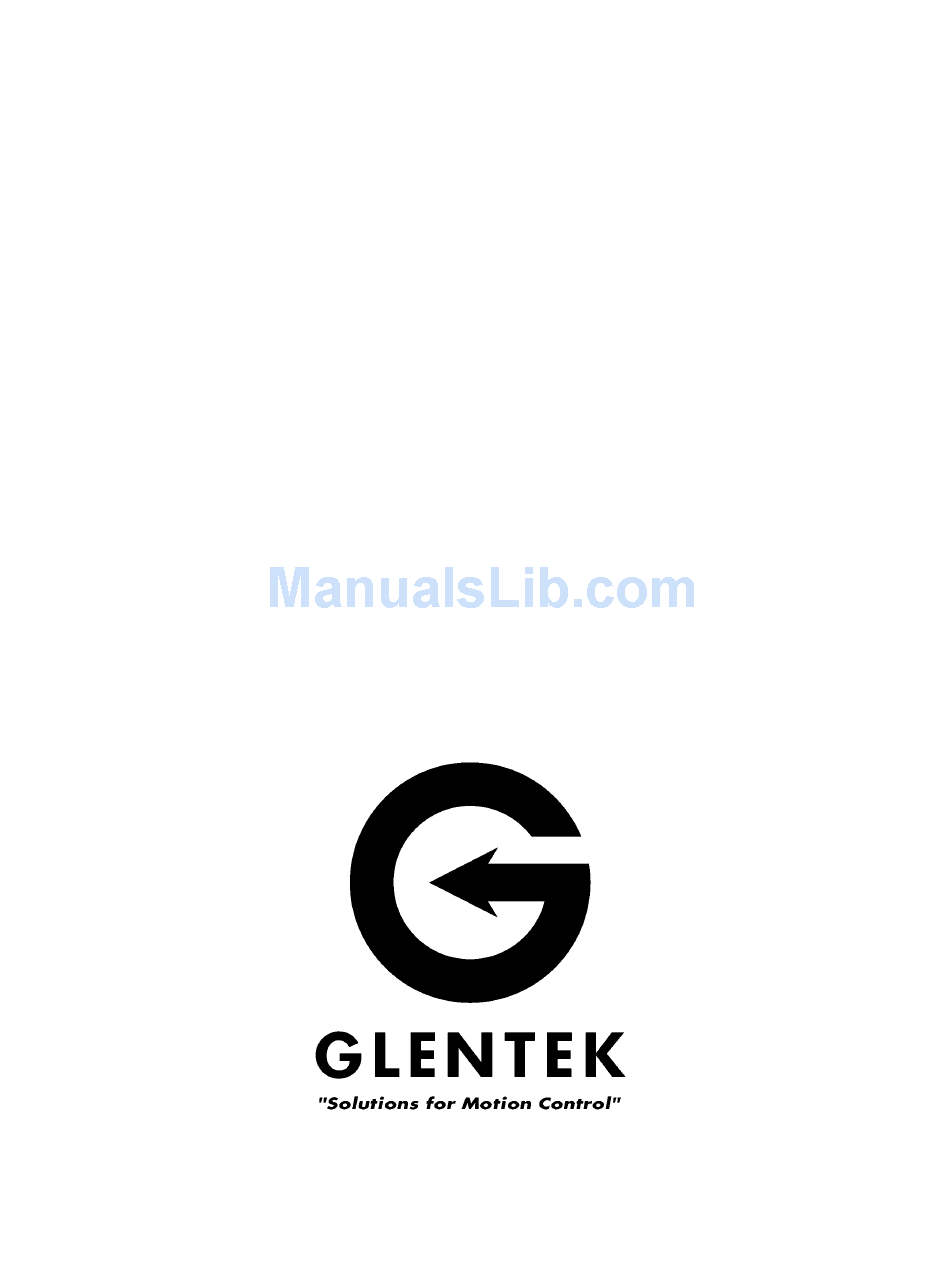

  • Page 1 OPERATION & SERVICE MANUAL Model SMA8730 Brushless Amplifier System...

  • Page 2: Table Of Contents

    4.3.1 RFI/EMI and Wiring Technique ..............14 4.3.2 Wire Size and Type ..................15 4.3.3 Connector Size and Type ................15 4.3.3.1 The Power and Motor connector of the Amplifier Module ....15 GLENTEK Inc., 208 Standard Street, El Segundo, California 90245, U.S.A. (310) 322-3026...
  • Page 3 6.4.1 Encoder to Sine Mode Amplifier Calibration Procedure - Velocity Mode ..26-27 6.4.2 Encoder to Sine Mode Amplifier Calibration Procedure - Current Mode..28 6.5 Calibration Setup Record..............29 GLENTEK Inc., 208 Standard Street, El Segundo, California 90245, U.S.A. (310) 322-3026...
  • Page 4 SMA8730-1 Encoder to Sine Amplifier Module Installation (8030-1036) ..................38 Appendix B: Personality Module (Pre-Amp) SMA8730 Encoder to Sine Mode Installation Schematic (8000-2432)..40-41 SMA8730 Encoder to Sine Mode Assembly Drawing (8000-2430) ..42-43 GLENTEK Inc., 208 Standard Street, El Segundo, California 90245, U.S.A. (310) 322-3026...

  • Page 5: Introduction

    With over three decades in the servo-motor/amplifier business, we have a vast pool of applications knowledge waiting to assist you. Thank you for selecting Glentek for your motion-control needs. It is our goal to save you time and money, and to provide you with a superior product.

  • Page 6: Chapter One: Description, Features And Specifications

    Following is a brief description of this personality module and its mode(s) of operation: 1.1.1 Standard Encoder to Sine Mode (SMA8730-1A-1) - In this mode of operation, the brushless motor is commutated by hall sensors and an encoder, or an encoder which contains three commutation signals (comm.
  • Page 7 Instantly shuts down the amplifier in the event of Circuit Breaker a short across the motor leads or a ground fault (HS/ECB): condition. (i.e. amplifier exceeds 100A for 10 microseconds) GLENTEK Inc., 208 Standard Street, El Segundo, California 90245, U.S.A. (310) 322-3026...
  • Page 8 These circuits constantly monitor the amplifier and over temperature: power-supply voltages, and the motor and amplifier-heatsink temperatures. They will shut down the amplifier in the event of any out-of- specification condition. GLENTEK Inc., 208 Standard Street, El Segundo, California 90245, U.S.A. (310) 322-3026...

  • Page 9: Specifications

    40/-0.5V max. Terminated by 10,000W. Typical for all digital inputs: Digital inputs have hysteresis with thresholds at 1/3 and 2/3 of +5V or +15V depending on range select jumper. GLENTEK Inc., 208 Standard Street, El Segundo, California 90245, U.S.A. (310) 322-3026...

  • Page 10: System

    (1M ohm / volt). 1.3.2 Mechanical: Model L x W x H Weight (inches) (lbs) SMA8730-1A-1 (Amplifier Module) 4.25 x 8.81 x 14.50 15.00 GLENTEK Inc., 208 Standard Street, El Segundo, California 90245, U.S.A. (310) 322-3026...

  • Page 11: Chapter Two: Theory Of Operation

    (B+) voltage exceeds a specified limit. Also, there are circuits which limit the motor from running in either or both directions. GLENTEK Inc., 208 Standard Street, El Segundo, California 90245, U.S.A. (310) 322-3026...

  • Page 12: Chapter Three: Model Numbering

    Code for your specific application. Note: Whenever possible, it is very desirable to have the motor sent to Glentek for initial system checkout at the factory, this tends to eliminate many field problems. GLENTEK Inc., 208 Standard Street, El Segundo, California 90245, U.S.A. (310) 322-3026...

  • Page 13: Amplifier Module

    SMA8730 - YYY - 1A - 1 - ZZ Amplifier Model Number Power Supply Configuration Code 00 = 110-130VAC 01 = 208-240VAC Custom Configuration Code 02 = SPECIAL (Factory assigned) GLENTEK Inc., 208 Standard Street, El Segundo, California 90245, U.S.A. (310) 322-3026...

  • Page 14: Chapter Four: Installation Procedure

    Additional RFI suppression may be obtained by placing inductors in each motor lead near the amplifier. Consult a Glentek applications engineer for inductor recommen- dations. Glentek stocks a complete line of inductors for virtually every application. IMPORTANT: The signal wiring to hall-sensors and encoder, and the signal inputs to the amplifier are susceptible to noise pickup.

  • Page 15: Wire Size And Type

    • Screw Size/Spacing: #8-32 on .435 centers. • Terminal Style: PC (Printed Circuit Pin) . • Terminal Orientation: V (Vertical) . • Number of Screw Terminals: 08 (8 screw positions). GLENTEK Inc., 208 Standard Street, El Segundo, California 90245, U.S.A. (310) 322-3026...

  • Page 16: The Signal Connector

    • Mating connector for J5: molex ® 2695 Series (P/N: 22-01-3067). • Crimp Terminals for the above mating connector: molex ® Crimp Terminals (P/N: 08-55-0102): • 15 microinch select gold plated. • brass. GLENTEK Inc., 208 Standard Street, El Segundo, California 90245, U.S.A. (310) 322-3026...

  • Page 17: Amplifier Module Connections(Sma8730-1A-1)

    Goes low for a fault, or inhibits the amplifier when forced low. COMMON J1-12 Digital common. RESET IN J1-13 Resets fault latch. MTR TEMP J1-14 Motor over temperature switch input. MODE 2 J1-15 Factory use only GLENTEK Inc., 208 Standard Street, El Segundo, California 90245, U.S.A. (310) 322-3026...

  • Page 18: Signal Connections For The Encoder To Sine Mode Pre-Amp - J4 And J5

    Hall Sensor 2. Check motor data for phasing HALL 3 J5-D Hall Sensor 3. Check motor data for phasing J5-E Common for Hall Sensors J5-F Common for Hall Sensors GLENTEK Inc., 208 Standard Street, El Segundo, California 90245, U.S.A. (310) 322-3026...

  • Page 19: Chapter Five: Configuration

    5.1 Introduction: Each amplifier has several configuration options. This chapter describes these options and how to implement them. If desired, Glentek will be happy to pre-configure your amplifiers. NOTE: Each amplifier module is configured and shipped according to the model number (instructions to construct a model number is in chapter three) when the order is placed.

  • Page 20: 5V Logic Level Configuration

    Common for Hall Sensors may be needed if you have a large one hook overshoot when monitoring tach out. This switch should remain off unless instructed to turn on by a Glentek engineer. 5.3.4 Tach - Reverse Configuration (Default: S1-5=ON):...

  • Page 21: Hall 60/120

    TACH PULSE WIDTH SETTING FACTORY SET 5.3.10 Linear Motor (S3) Settings: Dip Switch Name (DEFAULT) SETTINGS (S3) S3-1 S3-2 TRAP ONLY (FORCED HALL) S3-3 S3-4 S3-5 RANGE S3-6 S3-7 S3-8 GLENTEK Inc., 208 Standard Street, El Segundo, California 90245, U.S.A. (310) 322-3026...

  • Page 22: Trap Only - Forced Hall

    CHAPTER FIVE: CONFIGURATION 5.3.11 Trap Only - Forced Hall (Default: S3-2=OFF) : The SMA8730 can be configured to run in Trap Mode. To do this, switch S3-2 ON for linear motor and S3-3, S3-4, S3-5 ON for rotary motor. 5.3.12 Range (Default: S3-5=OFF): The CPLD on the SMA8730 contains either two different encoder resolutions or two different pole pitches.

  • Page 23: Encoder Configuration

    S3-5 4000 4096 5000 8000 8192 TRAP INDEX 1250 2000 2048 2500 4000 4096 1250 2000 2048 2500 4000 4096 5000 8000 8192 10000 16000 16384 1000 1024 GLENTEK Inc., 208 Standard Street, El Segundo, California 90245, U.S.A. (310) 322-3026...

  • Page 24: Chapter Six: Start Up And Calibration

    Required Equipment: Oscilloscope, voltmeter & battery box. The battery box serves as a step input voltage command, applying and removing a flashlight battery can also be used for this function. Glentek sells a battery box, BB-700, which is ideal for this function. 6.2 Initial Start Up: When applying power to start up your amplifier system for the first time, we recommend you follow this procedure.
  • Page 25 J5 until they are in phase. (note: there are six possible combinations) Remove input signal and remove power from unit. Return dipswitches to original position(s), as recorded on step #1. GLENTEK Inc., 208 Standard Street, El Segundo, California 90245, U.S.A. (310) 322-3026...

  • Page 26: Encoder To Sine Mode Amplifier Calibration

    Turn the Current Limit pot (RV6) to mid position and the Loop Gain pot (RV7) full CCW. Apply the main power and fan power. GLENTEK Inc., 208 Standard Street, El Segundo, California 90245, U.S.A. (310) 322-3026...
  • Page 27 Connect an oscilloscope to ABS I (J1-7) and a battery box to Signal 2 Input. The voltage at J1-7 is a function of motor current: 1V=10A for SMA8730. While applying a step input voltage, adjust the Current Limit pot (RV6) for the desired peak current.

  • Page 28: Encoder To Sine Mode Amplifier Calibration Procedure - Current Mode

    (or vice-versa). Then, turn the Loop Gain pot (RV7) back to full CW. 7. Remove the battery box, and repeat step 3. 8. Calibration complete. Reconnect the signal wires. GLENTEK Inc., 208 Standard Street, El Segundo, California 90245, U.S.A. (310) 322-3026...

  • Page 29: Calibration Setup Record

    S2-7 RESET(PULL UP/DN) S2-6 LIMIT(ACTIVE HI/LOW) S2-5 INHIBIT(ACTIVE HI/LOW) S2-4 RESET(ACTIVE HI/LOW) S2-3 MTR TEMP(ACTIVE HI/LOW) S2-2 +15/+5 S2-1 Date data taken: Serial number S/N:______________ Model number SMA8730-________________________________ GLENTEK Inc., 208 Standard Street, El Segundo, California 90245, U.S.A. (310) 322-3026...

  • Page 30: Chapter Seven: Maintenance, Repair And Warranty

    CHAPTER SEVEN: MAINTENANCE, REPAIR AND WARRANTY Chapter Seven: Maintenance, Repair, and Warranty 7.1 Maintenance: Glentek amplifiers do not require any scheduled maintenance, although it is a good idea to occasionally check for dust build-up or other contamination. 7.2 Amplifier Faults:...

  • Page 31: Under Voltage Fault

    The following is a list of possible causes: 1. Binding or stalling of motor shaft due to excessive mechanical overload. 2. Overload of amplifier output to motor. 3. Large reflected load inertia. GLENTEK Inc., 208 Standard Street, El Segundo, California 90245, U.S.A. (310) 322-3026...

  • Page 32: Over Temp Fault

    The fault latch may be reset by pushing the Reset button, activating the Reset input J1-13 or by removing power and allowing the filter capacitor(s) to discharge. Note that the fault latch will not reset unless the fault has been cleared. GLENTEK Inc., 208 Standard Street, El Segundo, California 90245, U.S.A. (310) 322-3026...

  • Page 33: Amplifier Failure

    Return the unit by the best means possible. The method of freight chosen will directly affect the timeliness of its return. Glentek also offers a 24-48 hr. repair service in the unlikely event that your system is down and you do not have a replacement amplifier module.

  • Page 34: Warranty

    Glentek's liability is limited to repair or replacement of defective parts.

  • Page 35: Appendix A: Amplifier Drawings

    SMA8730 Appendix A Amplifier Drawings GLENTEK Inc., 208 Standard Street, El Segundo, California 90245, U.S.A. (310) 322-3026...

  • Page 36: Sma8030 Brushless Power Board Installation Schematic (8030-1037)

    SMA8730 APPENDIX A: AMPLIFIER DRAWINGS GLENTEK Inc., 208 Standard Street, El Segundo, California 90245, U.S.A. (310) 322-3026...

  • Page 37: Sma8030 Brushless Power Board Assembly Drawing (8030-1032)

    SMA8730 APPENDIX A: AMPLIFIER DRAWINGS GLENTEK Inc., 208 Standard Street, El Segundo, California 90245, U.S.A. (310) 322-3026...

  • Page 38: Sma8730-1 Encoder To Sine Amplifier Module Installation (8030-1036)

    SMA8730 APPENDIX A: AMPLIFIER DRAWINGS GLENTEK Inc., 208 Standard Street, El Segundo, California 90245, U.S.A. (310) 322-3026...
  • Page 39 SMA8730 Appendix B Personality Module GLENTEK Inc., 208 Standard Street, El Segundo, California 90245, U.S.A. (310) 322-3026...

  • Page 40: Sma8730 Encoder To Sine Mode Installation Schematic (8000-2432)

    SMA8730 APPENDIX B: PERSONALITY MODULE GLENTEK Inc., 208 Standard Street, El Segundo, California 90245, U.S.A. (310) 322-3026...
  • Page 41 SMA8730 APPENDIX B: PERSONALITY MODULE GLENTEK Inc., 208 Standard Street, El Segundo, California 90245, U.S.A. (310) 322-3026...

  • Page 42: Sma8730 Encoder To Sine Mode Assembly Drawing (8000-2430)

    SMA8730 APPENDIX B: PERSONALITY MODULE GLENTEK Inc., 208 Standard Street, El Segundo, California 90245, U.S.A. (310) 322-3026...
  • Page 43 SMA8730 APPENDIX B: PERSONALITY MODULE GLENTEK Inc., 208 Standard Street, El Segundo, California 90245, U.S.A. (310) 322-3026...
  • Page 44 Permanent Magnet DC Brushless Servo Motors • Continuous Torques to 1100 in. lb. • Peak Torques to 2200 in. lb. MANUAL #: 8030-1041 (A) DATE: 11 May 2000 208 Standard Street, El Segundo, California 90245, USA. Telephone: (310) 322-3026 Fax: (310) 322-7709 www.glentek.com...
