1
Introduction
The LM34919EVAL evaluation board provides the design engineer with a fully functional buck regulator,
employing the constant on-time (COT) operating principle. This evaluation board provides a 5V output
over an input range of 8V to 40V. The circuit delivers load currents to 600 mA, with current limit set at a
nominal 700 mA. The board is populated with all components except R5, C9 and C10. These components
provide options for managing the output ripple as described later in this document.
The board's specification are:
Input Voltage: 8V to 40V
Output Voltage: 5V
Maximum load current: 600 mA
Minimum load current: 0A
Current Limit: 640 mA to 730 mA
Measured Efficiency: 92.7% (V
Nominal Switching Frequency: 800 kHz
Size: 2.6 in. x 1.6 in. x 0.5 in
All trademarks are the property of their respective owners.
SNVA250A – June 2007 – Revised April 2013
Submit Documentation Feedback
AN-1650 LM34919 Evaluation Board
= 8V, I
= 300 mA)
IN
OUT

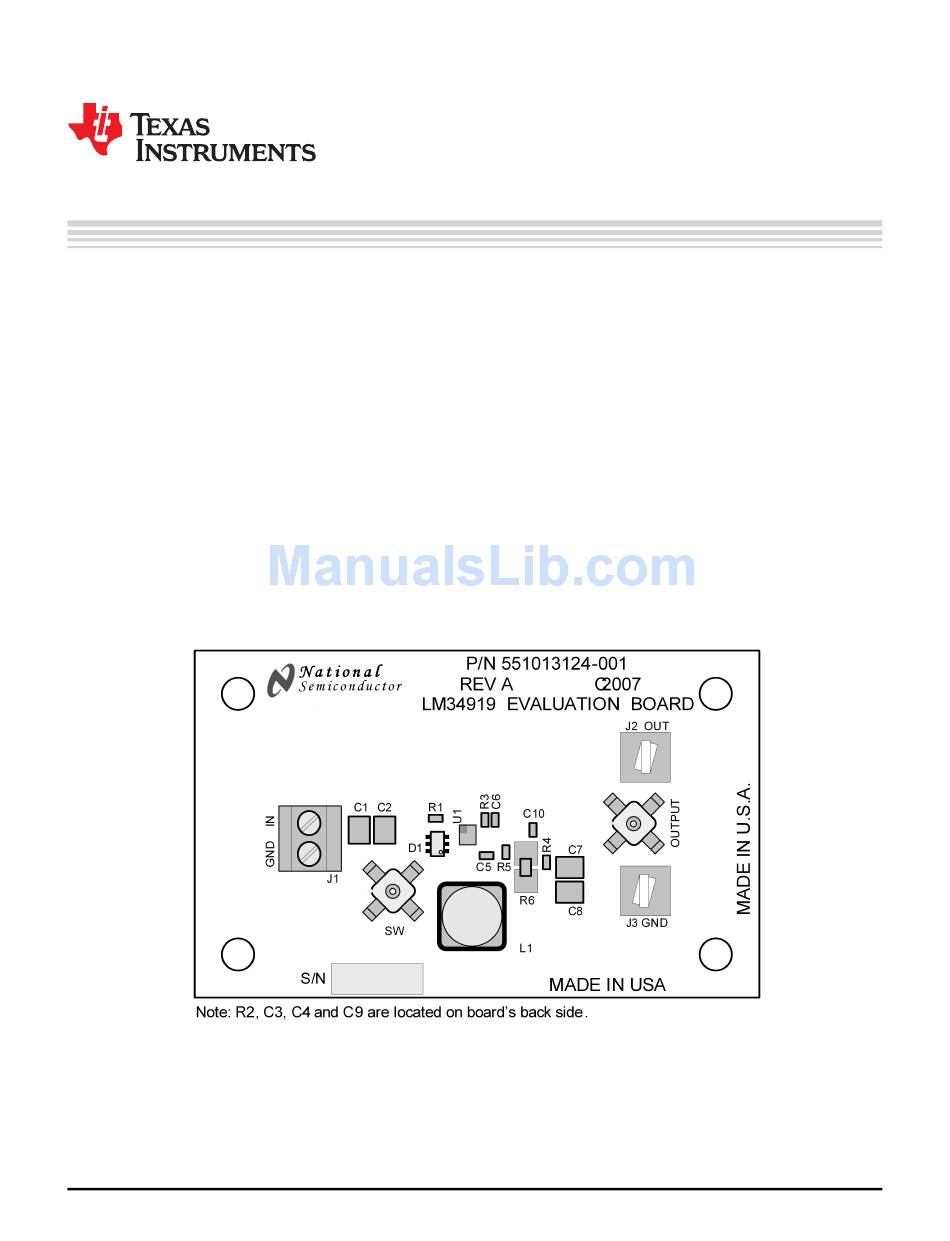

Figure 1. Evaluation Board - Top Side
Copyright © 2007–2013, Texas Instruments Incorporated
User's Guide
SNVA250A – June 2007 – Revised April 2013
AN-1650 LM34919 Evaluation Board
1

Advertisement

loading
Need help?

Need help?

Do you have a question about the AN-1650 LM34919 and is the answer not in the manual?

Questions and answers

Summary of Contents for Texas Instruments AN-1650 LM34919

  • Page 1 Size: 2.6 in. x 1.6 in. x 0.5 in Figure 1. Evaluation Board - Top Side All trademarks are the property of their respective owners. SNVA250A – June 2007 – Revised April 2013 AN-1650 LM34919 Evaluation Board Submit Documentation Feedback Copyright © 2007–2013, Texas Instruments Incorporated...
  • Page 2 If the application can accept this ripple level, this is the most economical solution. The circuit is shown in Figure 2 Figure AN-1650 LM34919 Evaluation Board SNVA250A – June 2007 – Revised April 2013 Submit Documentation Feedback Copyright © 2007–2013, Texas Instruments Incorporated...
  • Page 3 50-100 mVp-p triangle waveform at their junction. That triangle wave is then coupled to the FB pin through C9. The following procedure is used to calculate values for R5, C10 and C9: SNVA250A – June 2007 – Revised April 2013 AN-1650 LM34919 Evaluation Board Submit Documentation Feedback Copyright © 2007–2013, Texas Instruments Incorporated...
  • Page 4 In this evaluation board, the minimum load current is provided by the feedback resistors allowing the board’s minimum load current at V to be specified at zero. AN-1650 LM34919 Evaluation Board SNVA250A – June 2007 – Revised April 2013 Submit Documentation Feedback Copyright © 2007–2013, Texas Instruments Incorporated...
  • Page 5 Panasonic ERJ3RQFR39 0603 0.39Ω Resistor Unpopulated 0603 Resistor Vishay CRCW08050000Z 0805 0Ω Jumper Switching Regulator LM34919 10 Bump DSBGA SNVA250A – June 2007 – Revised April 2013 AN-1650 LM34919 Evaluation Board Submit Documentation Feedback Copyright © 2007–2013, Texas Instruments Incorporated...
  • Page 6 Circuit Performance Figure 6. Efficiency vs Load Current Figure 7. Efficiency vs Input Voltage Figure 8. Output Voltage Ripple AN-1650 LM34919 Evaluation Board SNVA250A – June 2007 – Revised April 2013 Submit Documentation Feedback Copyright © 2007–2013, Texas Instruments Incorporated...
  • Page 7 Circuit Performance www.ti.com Figure 9. Switching Frequency vs. Input Voltage Figure 10. Load Current Limit vs Input Voltage SNVA250A – June 2007 – Revised April 2013 AN-1650 LM34919 Evaluation Board Submit Documentation Feedback Copyright © 2007–2013, Texas Instruments Incorporated...
  • Page 8: Typical Waveforms

    Trace 3 = inductor Current Trace 2 = SW Pin Vin = 24V, Iout = 20 mA Figure 12. Discontinuous Conduction Mode AN-1650 LM34919 Evaluation Board SNVA250A – June 2007 – Revised April 2013 Submit Documentation Feedback Copyright © 2007–2013, Texas Instruments Incorporated...
  • Page 9: Pc Board Layout

    PC Board Layout www.ti.com PC Board Layout Figure 13. Board Silkscreen Figure 14. Board Top Layer SNVA250A – June 2007 – Revised April 2013 AN-1650 LM34919 Evaluation Board Submit Documentation Feedback Copyright © 2007–2013, Texas Instruments Incorporated...
  • Page 10 PC Board Layout www.ti.com Figure 15. Board Second Layer (Viewed from Top) AN-1650 LM34919 Evaluation Board SNVA250A – June 2007 – Revised April 2013 Submit Documentation Feedback Copyright © 2007–2013, Texas Instruments Incorporated...
