AN-1993 LM3406HV Evaluation Board with 2 Wire
1
Introduction
The LM3406HV is a buck regulator controlled current source designed to drive a series string of high
power, high brightness LEDs (HBLEDs) such as the Luxeon™ K2 Emitter at forward currents of up to
1.5A. The converter's output voltage adjusts as needed to maintain a constant current through the LED
array.
All trademarks are the property of their respective owners.
SNVA407B – August 2009 – Revised May 2013
Submit Documentation Feedback

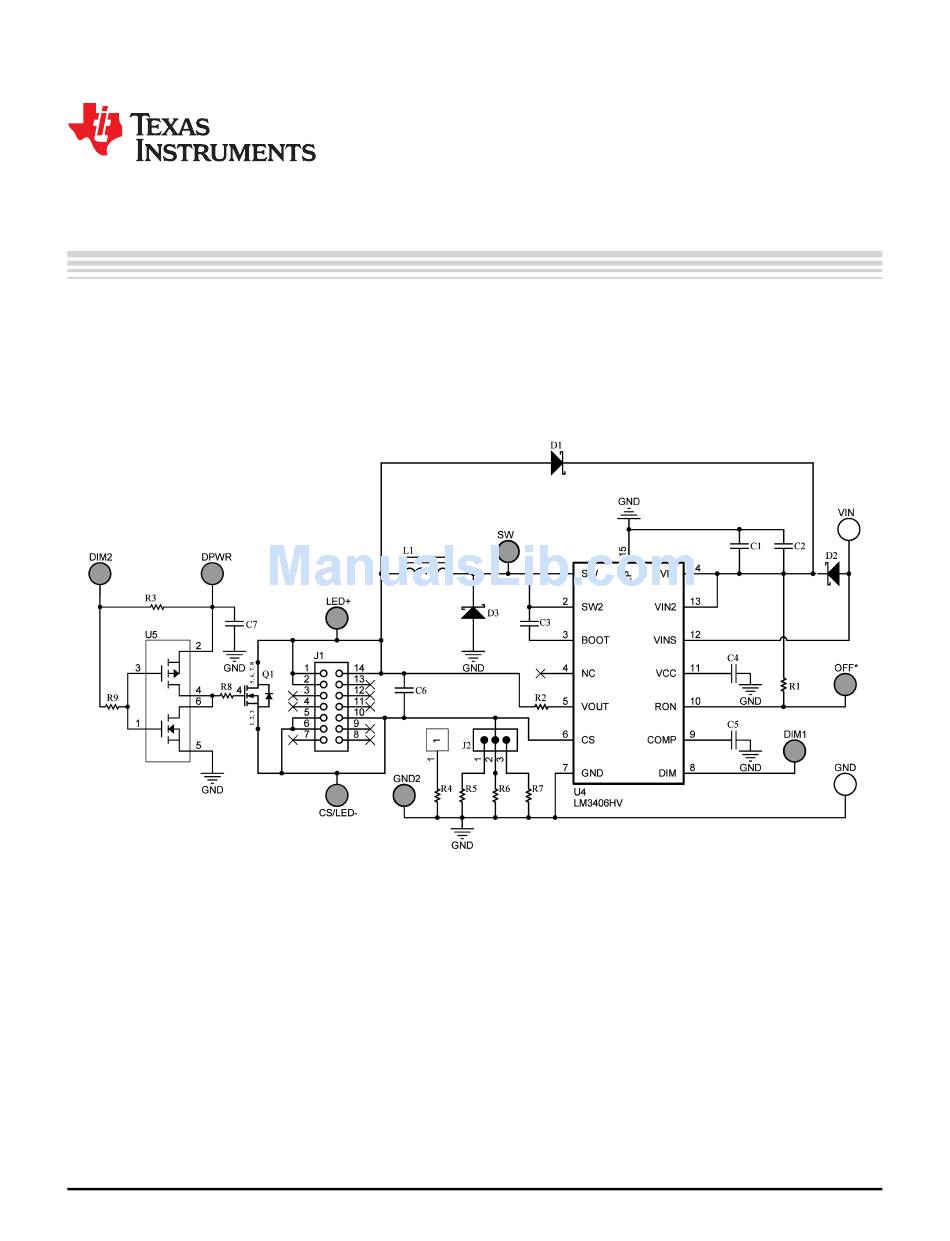

Figure 1. Complete Circuit Schematic
AN-1993 LM3406HV Evaluation Board with 2 Wire Dimming
Copyright © 2009–2013, Texas Instruments Incorporated
User's Guide
SNVA407B – August 2009 – Revised May 2013
Dimming
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AN-1993 LM3406HV and is the answer not in the manual?

Questions and answers

Related Manuals for Texas Instruments AN-1993 LM3406HV

Summary of Contents for Texas Instruments AN-1993 LM3406HV

  • Page 1 Figure 1. Complete Circuit Schematic All trademarks are the property of their respective owners. SNVA407B – August 2009 – Revised May 2013 AN-1993 LM3406HV Evaluation Board with 2 Wire Dimming Submit Documentation Feedback Copyright © 2009–2013, Texas Instruments Incorporated...

  • Page 2: Setting The Led Current

    J2 should be removed, and R6 changed according to the following equation: AN-1993 LM3406HV Evaluation Board with 2 Wire Dimming SNVA407B – August 2009 – Revised May 2013 Submit Documentation Feedback Copyright ©...
  • Page 3 MOSFET dimming. The output capacitor should be removed to take full advantage of parallel MOSFET dimming. SNVA407B – August 2009 – Revised May 2013 AN-1993 LM3406HV Evaluation Board with 2 Wire Dimming Submit Documentation Feedback Copyright © 2009–2013, Texas Instruments Incorporated...

  • Page 4: Low Power Shutdown

    BOOT LM3406HV VOUT COMP Figure 4. Schottky Diode Protection for Open-Circuit AN-1993 LM3406HV Evaluation Board with 2 Wire Dimming SNVA407B – August 2009 – Revised May 2013 Submit Documentation Feedback Copyright © 2009–2013, Texas Instruments Incorporated...

  • Page 5: Bill Of Materials

    Keystone 1598–2 Keystone , DIM1, DIM2, DPWR, GND2, LED+, OFF*, VIN, 575–8 Terminal 575–8 Keystone SNVA407B – August 2009 – Revised May 2013 AN-1993 LM3406HV Evaluation Board with 2 Wire Dimming Submit Documentation Feedback Copyright © 2009–2013, Texas Instruments Incorporated...

  • Page 6: Typical Performance Characteristics

    Number of InGaN LEDs in Series Output Current 16.0 32.0 48.0 64.0 80.0 INPUT VOLTAGE (V) AN-1993 LM3406HV Evaluation Board with 2 Wire Dimming SNVA407B – August 2009 – Revised May 2013 Submit Documentation Feedback Copyright © 2009–2013, Texas Instruments Incorporated...
  • Page 7 DIM1 Response (Falling) 0.5A/DIV 0.5A/DIV 20V/DIV 20V/DIV DIM1 5V/DIV 5V/DIV DIM1 2 és/DIV 2 és/DIV SNVA407B – August 2009 – Revised May 2013 AN-1993 LM3406HV Evaluation Board with 2 Wire Dimming Submit Documentation Feedback Copyright © 2009–2013, Texas Instruments Incorporated...
  • Page 8 Start Up using OFF Terminal Shutdown using OFF Terminal 0.5A/DIV 0.5A/DIV 20V/DIV 20V/DIV 2V/DIV 2V/DIV 2 ms/DIV 2 és/DIV AN-1993 LM3406HV Evaluation Board with 2 Wire Dimming SNVA407B – August 2009 – Revised May 2013 Submit Documentation Feedback Copyright © 2009–2013, Texas Instruments Incorporated...
  • Page 9 Layout www.ti.com Layout Figure 5. Top Layer and Top Overlay SNVA407B – August 2009 – Revised May 2013 AN-1993 LM3406HV Evaluation Board with 2 Wire Dimming Submit Documentation Feedback Copyright © 2009–2013, Texas Instruments Incorporated...
  • Page 10 Layout www.ti.com Figure 6. Bottom Layer and Bottom Overlay AN-1993 LM3406HV Evaluation Board with 2 Wire Dimming SNVA407B – August 2009 – Revised May 2013 Submit Documentation Feedback Copyright © 2009–2013, Texas Instruments Incorporated...
