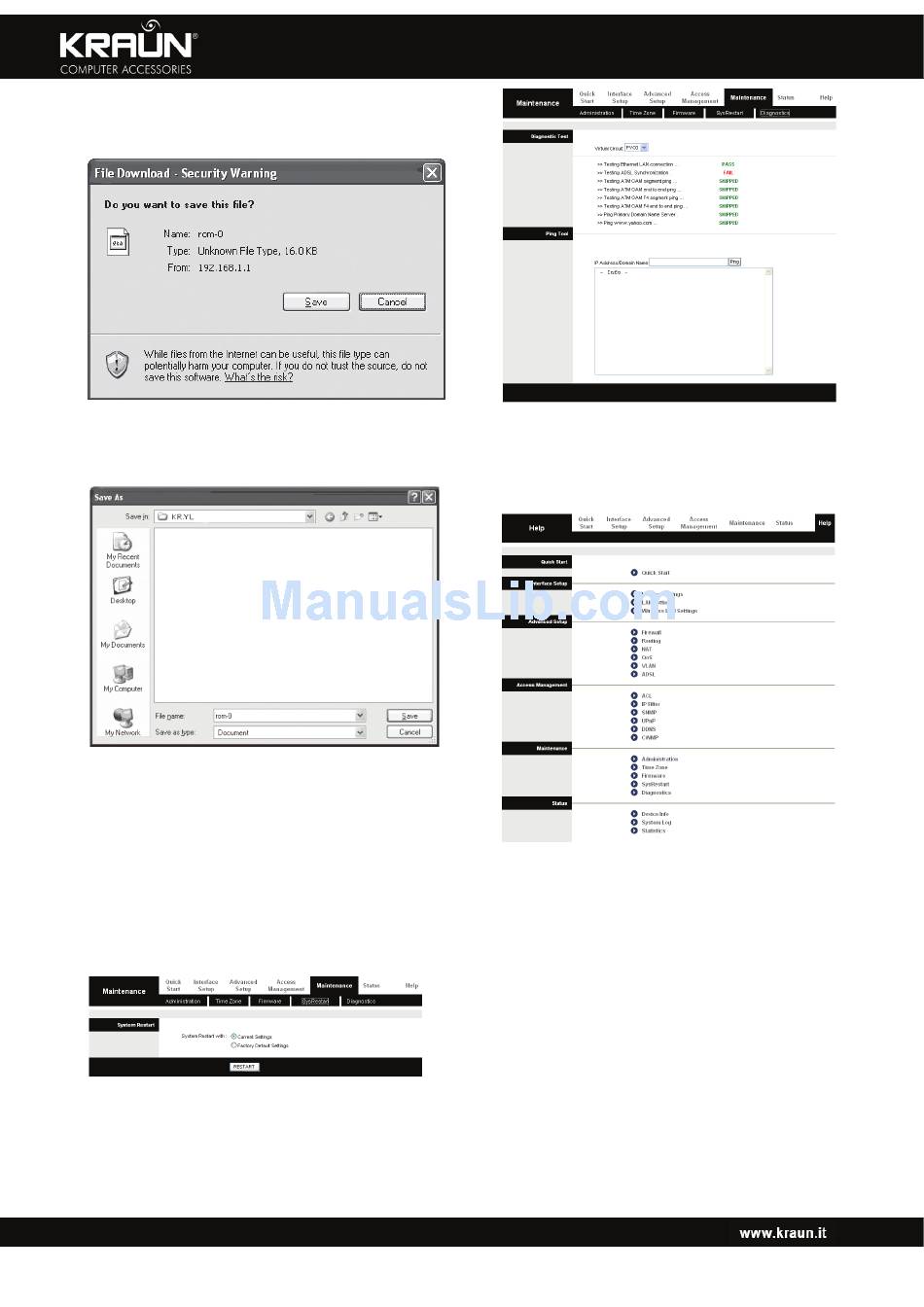

Step 1: Click the ROMFILE SAVE button (shown in Figure 4-45),
click Save button in the next screen (shown in Figure 4-46) to
proceed.
Figure 4-46
Step 2: Save the file as the appointed file (shown in Figure 4-47).
Figure 4-47
To restore the Router's settings:
Step 1: Click the Browse button to locate the update file for the
device, or enter the exact path in "New Romfile Location" field.
Step 2: Click the UPGRADE button to complete.
4.6.4 System Restart
Choose "Maintenance->System Restart", you can select to
restart the device with current settings or restore to factory
default settings in the screen (shown in Figure 4-48).
Figure 4-48
4.6.5 Diagnostic
Choose "Maintenance->Diagnostic", you can view the test
results for the connectivity of the physical layer and protocol
layer for both LAN and WAN sides in the screen (shown in
Figure 4-49).
Figure 4-49

4.7 Help

Choose "Help", you can view the help information for
configuration of any function.
Figure 4-50
Note: Click the tab, and you will be able to get the
corresponding information.
