- Page 1 User Manual...
- Page 2 CHAUVET®. Any other product names, logos, brands, company names, and other trademarks featured or referred to within this document are the property of their respective trademark holders. CHAUVET® owns the content of this User Manual in its entirety, including but not limited Copyright Notice to pictures, logos, trademarks, and resources.
-
Page 3: Table Of Contents
Table of Contents Table of Contents 1. Before You Begin ............................1 What is Included ................................1 Claims ......................................1 Manual Conventions ..................................1 Symbols ....................................... 1 Product at a Glance ..............................2 Safety Notes ................................. 2 Personal Safety .................................... 2 Mounting and Rigging .................................. - Page 4 Table of Contents Product Maintenance ..............................15 Technical Specifications ............................. 16 Returns ..................................17 Contact Us ..............................17 -ii- Ovation™ F-165WW User Manual Rev. 2...
-
Page 5: Before You Begin
Failure to report damage to the carrier immediately may invalidate your claim. In addition, keep the box and contents for inspection. For other issues, such as missing components or parts, damage not related to shipping, or concealed damage, file a claim with CHAUVET® within 7 days of delivery. Manual Conventions Convention Meaning 1–512... -
Page 6: Product At A Glance
· In case of a serious operating problem, stop using this product immediately! In the unlikely event that your CHAUVET® product may require service, contact CHAUVET® Technical Support. LEDs gradually decline in brightness over time, mostly because of heat. Packaged in... -
Page 7: Introduction

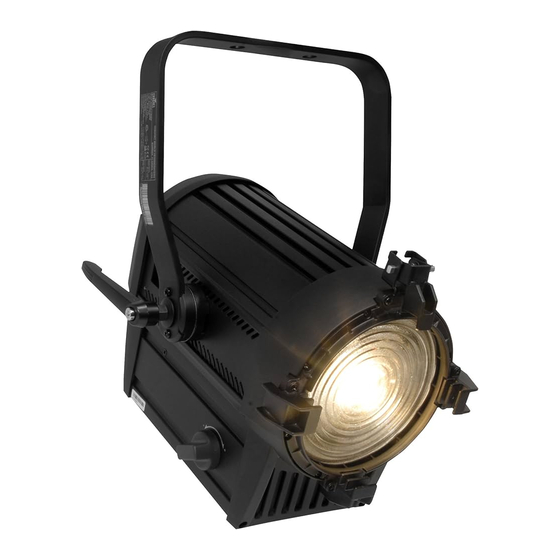

Introduction 2. Introduction The Ovation™ F-165WW is a warm white Fresnel-style LED lighting fixture with 16-bit Description dimming resolution for smooth fades. It delivers a beautiful flat, even field of light. Its motorized zoom with a range between 14° to 55° is controlled either manually or via DMX. -
Page 8: Overview
Introduction Overview Gel Frame Holder Front View Side View Dimmer Adjustment Handle Knob Menu Buttons Zoom Adjustment Knob powerCON® Output powerCON® Input Display Fuse Holder 3- and 5-pin 3- and 5-pin Rear View DMX In DMX Out Ovation™ F-165WW User Manual Rev. 2... -
Page 9: Dimensions
Introduction Dimensions 11 in 283 mm 16.5 in 418 mm 10 in 255 mm Ovation™ F-165WW User Manual Rev. 2... -
Page 10: Setup
The listed current rating indicates the maximum current draw during normal operation. For more information, you may download Sizing Circuit Breakers from the CHAUVET® website www.chauvetprofessional.com. Always connect this product to a protected circuit with an appropriate electrical ground to avoid the risk of electrocution or fire. -
Page 11: Power Linking
If you are not familiar with or need more information about DMX standards, master/slave connectivity, or the DMX cables needed to link this product to a DMX controller, download Primer from CHAUVET® website: www.chauvetprofessional.com. Ovation™ F-165WW User Manual Rev. 2... -
Page 12: Mounting
Orientation in any position; however, make sure there is adequate room for ventilation, configuration, and maintenance. CHAUVET® recommends using the following general guidelines when mounting this Rigging product. · When selecting an installation location, consider easy access to this product for operation, programming adjustments, and routine maintenance. -
Page 13: Operation
Operation 4. Operation Control Panel Button Function Description <MENU> Exits from the current menu or function <ENTER> Activates the currently displayed menu option or sets the selected value in the current function <UP> Scrolls up the list of menu options or increases the numeric value when in a function <DOWN>... -
Page 14: Menu Map
Operation Menu Map Main Level Programming Levels Description D.000–D.100 Selects the amount of light output (0–100%) STAT ZOOM Z.000–Z.100 Adjusts the zoom (14° to 55°) Receives DMX signals from the DMX controller SLAV Receives DMX signals from the master ADDR D.001–D.512 Sets the DMX starting address MOTR... -
Page 15: Dmx Values
Operation DMX Values Channel Function Value Percent/Setting 000 ó 255 0–100% Dimmer Channel Function Value Percent/Setting 000 ó 255 0–100% Dimmer 000 ó 255 0–100% Dimmer Fine STD.P Channel Function Value Percent/Setting 000 ó 255 0–100% Dimmer 000 ó 255 0–100% Dimmer Fine 000 ó... -
Page 16: Dimmer - Menu Control
Operation Dimmer - Menu To adjust the light output of the Ovation™ F-165WW, select the dimmer setting as follows. Control 1. Go to the STAT main level. 2. Go to the DIM programming level. 3. Select the desired dimmer setting D.000–D.100 (0–100% light output). Dimmer - Manual Manually adjust the light output by using the dimmer adjustment knob, as follows. -
Page 17: Reset
Operation Reset To reset the Ovation™ F-165WW to the factory default settings, follow the instructions below. 1. Go to the SET main level. 2. Select the REST programming level and then the display becomes blank. Enter the passcode as described in Passcode. After successfully entering the passcode, REST blinks on the display during the reset process. -
Page 18: Master/Slave Mode
Operation Master/Slave Mode The Master/Slave mode allows a single Ovation™ F-165WW (the “master”) to control the actions of one or more Ovation™ F-165WW units (the “slaves”) without the need of a DMX controller to control the slaves. The master will be set to operate in Master mode (MAST), while the slaves will be set to operate in Slave mode (SLAV). -
Page 19: Technical Information
Technical Information 5. Technical Information Dust build-up reduces light output performance and can cause overheating. This can Product lead to reduction of the light source’s life and mechanical wear. To maintain optimum Maintenance performance and minimize wear, clean this product at least twice a month. However, usage and environmental conditions contribute to increased cleaning frequency. -
Page 20: Technical Specifications
Technical Information Technical Specifications Dimensions and Length Width Height Weight Weight 16.5 in (418 mm) 11 in (283 mm) 10 in (255 mm) 14.6 lb (6.6 kg) Note: Dimensions in inches rounded to the nearest decimal digit. Power Power Supply Type Range Voltage Selection Switching (internal) -
Page 21: Returns
Be prepared to provide the model number, serial number, and a brief description of the cause(s) for the return. Clearly label the package with an RMA number. CHAUVET® will refuse any product returned without an RMA number.
