Elba ED-B7610ES(WH) Owner's Manual

Tumble dryer
Hide thumbs
Table of Contents

Advertisement

Quick Links

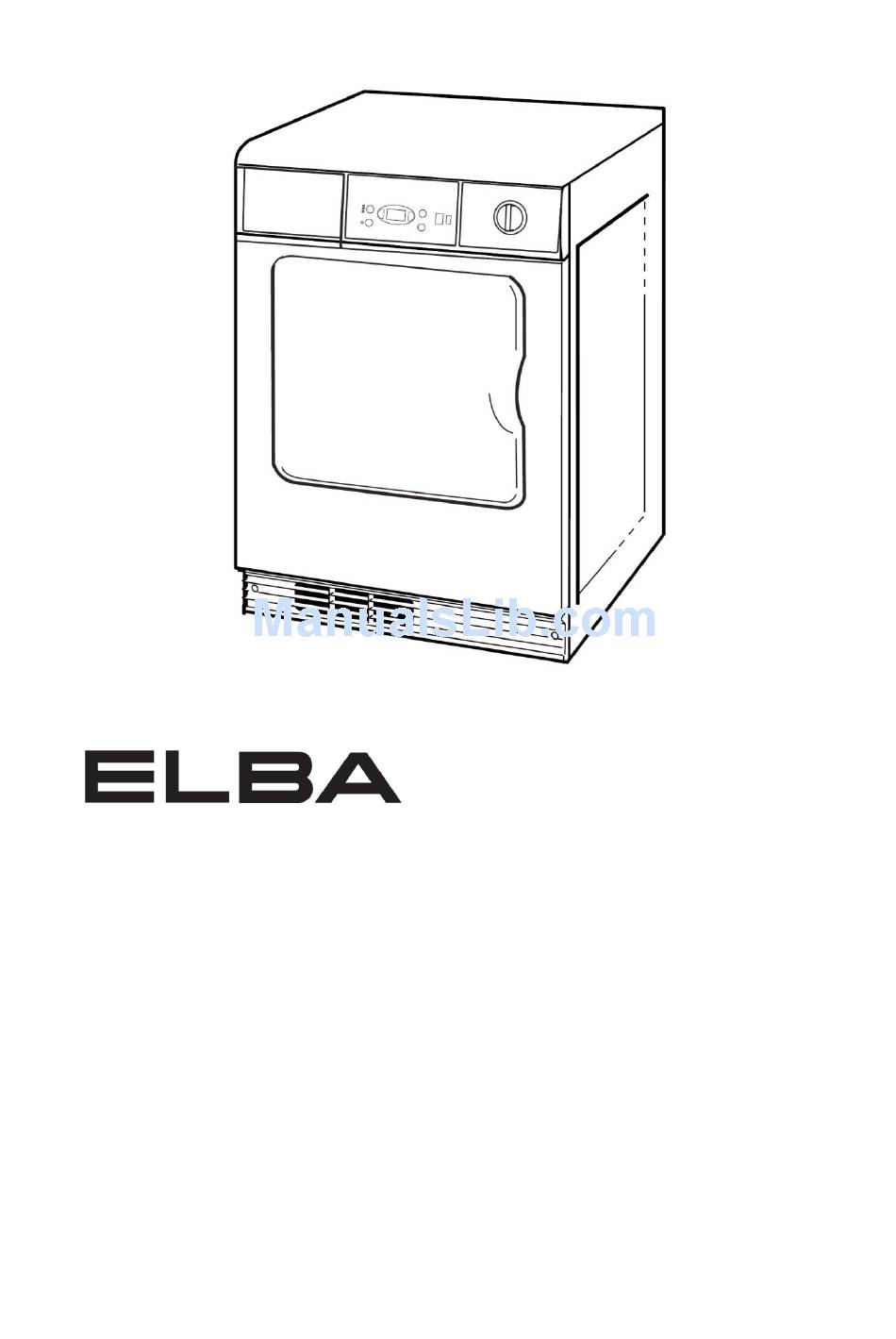

TUMBLE DRYER

MODEL: ED-B7610ES(WH)
Owner's Manual
Please read this manual carefully before
operating your set.
Retain it for future reference.
Record model number and serial number
of the set.
See the label attached on the set and
quote this information to your dealer
when you require service.
For The Warranty Terms & Conditions, Please Refer To Warranty Certificate

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ED-B7610ES(WH) and is the answer not in the manual?

Questions and answers

Related Manuals for Elba ED-B7610ES(WH)

Summary of Contents for Elba ED-B7610ES(WH)

  • Page 1: Tumble Dryer

    TUMBLE DRYER MODEL: ED-B7610ES(WH) Owner’s Manual Please read this manual carefully before operating your set. Retain it for future reference. Record model number and serial number of the set. See the label attached on the set and quote this information to your dealer when you require service.

  • Page 2: Safety Precautions

    REMOVE ALL PACKING MATERIALS FROM THIS PRODUCT BEFORE USING IT. THIS APPLIANCE MUST BE INSTALLED IN LEVEL. PLEASE ENSURE THE ELECTRICITY SUPPLY TO THIS APPLIANCE IS DISCONNECTED BEFORE INSTALLING. Please read this instruction carefully. It is advisable to keep this instruction manual in a safe place for future reference.

  • Page 3: Final Installation

    INSTALLATION Position the tumble dryer so that the plug remains accessible after installation. Do not block the vent at the front or base of the dryer, as this will impair the working of the machine. This appliance must not be installed behind a lockable door, a sliding door or a door with hinges on the opposite side to that of the tumble dryer.

  • Page 4: Product Description

    PRODUCT DESCRIPTION A. Heat Setting Button Press to select appropriate heat setting. Some programs have limited choice of heat setting. High is used for drying cottons and linens; half heat is used for drying synthetics and delicates; cool does not apply any heat. B.
  • Page 5 OPERATION PROCEDURE AND FUNCTIONS This sensing tumble dryer has a full moisture sensing system to choose the level of dryness required on your laundry. Alternatively you can select a timed drying cycle. PROGRAMS P1 – Extra Dry: Laundries are extra dry and can be put away. P2 –...
  • Page 6 PREPARATION Check care labels inside the garments. CARE LABELS YOU MAY FIND ON YOUR FABRICS: 1) Do not tumble dry woolen or wool mixture articles unless the article has labeled as being suitable. This should avoid shrinkage. 2) Place delicate articles, e.g. tights, scarves inside a pillowcase. 3) To avoid the need to iron easy-care polyester / cotton items, it is better to only dry small loads (half fill drum).

  • Page 7: Operation

    OPERATION 1) Open the door. 2) Load clothes loosely into the drum. Load sheets first, starting with one corner. 3) Close the door and dry your hands. 4) Plug in the machine and press the Activate button. The Display Window will illuminate. If no further buttons are pressed, the display will go into sleep mode after 1 minute.

  • Page 8: Cleaning And Maintenance

    NEVER SWITCH THE DRYER OFF AND LEAVE A HOT LOAD IN THE DRUM DUE TO THE RISK OF FIRE. CLEANING AND MAINTENANCE ALWAYS CLEAN THE FILTER AFTER EACH USE. FAILURE TO DO SO COULD CAUSE THE SAFETY CUTOUT TO OPERATE. 1.

  • Page 9: Troubleshooting

    TROUBLESHOOTING If the laundries are not dry after normal drying time: 1) Check that you used the correct heat setting. 2) Check that the lint filter has been cleaned. A blocked filter will restrict the airflow. 3) Check that your dryer is heating – the area below the door should feel warm to the touch after the first 10-15 minutes of its program.

  • Page 10: Important User Information

    IMPORTANT USER INFORMATION This tumble dryer is intended for DOMESTIC USE ONLY. Adequate ventilation must be provided to avoid back flow of gases into the room from appliances burning other fuels, including open fires. Exhaust air must not be discharged into a flue which is used for exhausting fumes from appliances burning gas or other fuel.

  • Page 11: This Appliance Must Be Earthed

    DO NOT use a two-way adaptor, or extension lead. The dryer must be connected to its own socket. DO NOT block the air inlets at the front, base, rear and side of your dryer. DO NOT allow fluff to accumulate around the tumble dryer. DO NOT exceed the recommended maximum load.
  • Page 12 4213 194 10001...
