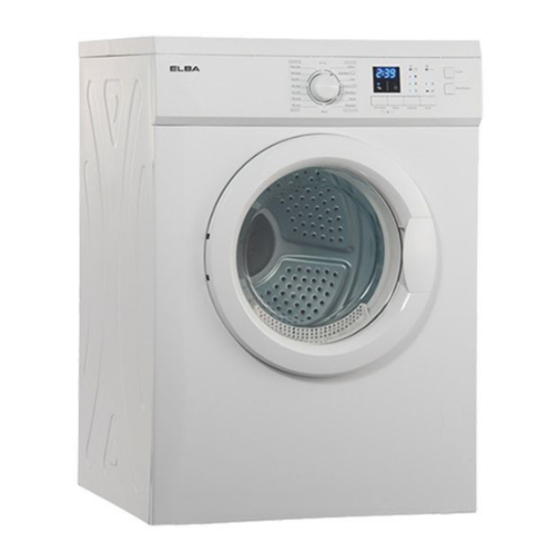

Elba ED-F7160(WH) Owner's Manual
  1. Manuals
  2. Brands
  3. Elba Manuals
  4. Dryer
  5. ED-F7160(WH)
  6. Owner's manual

Elba ED-F7160(WH) Owner's Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

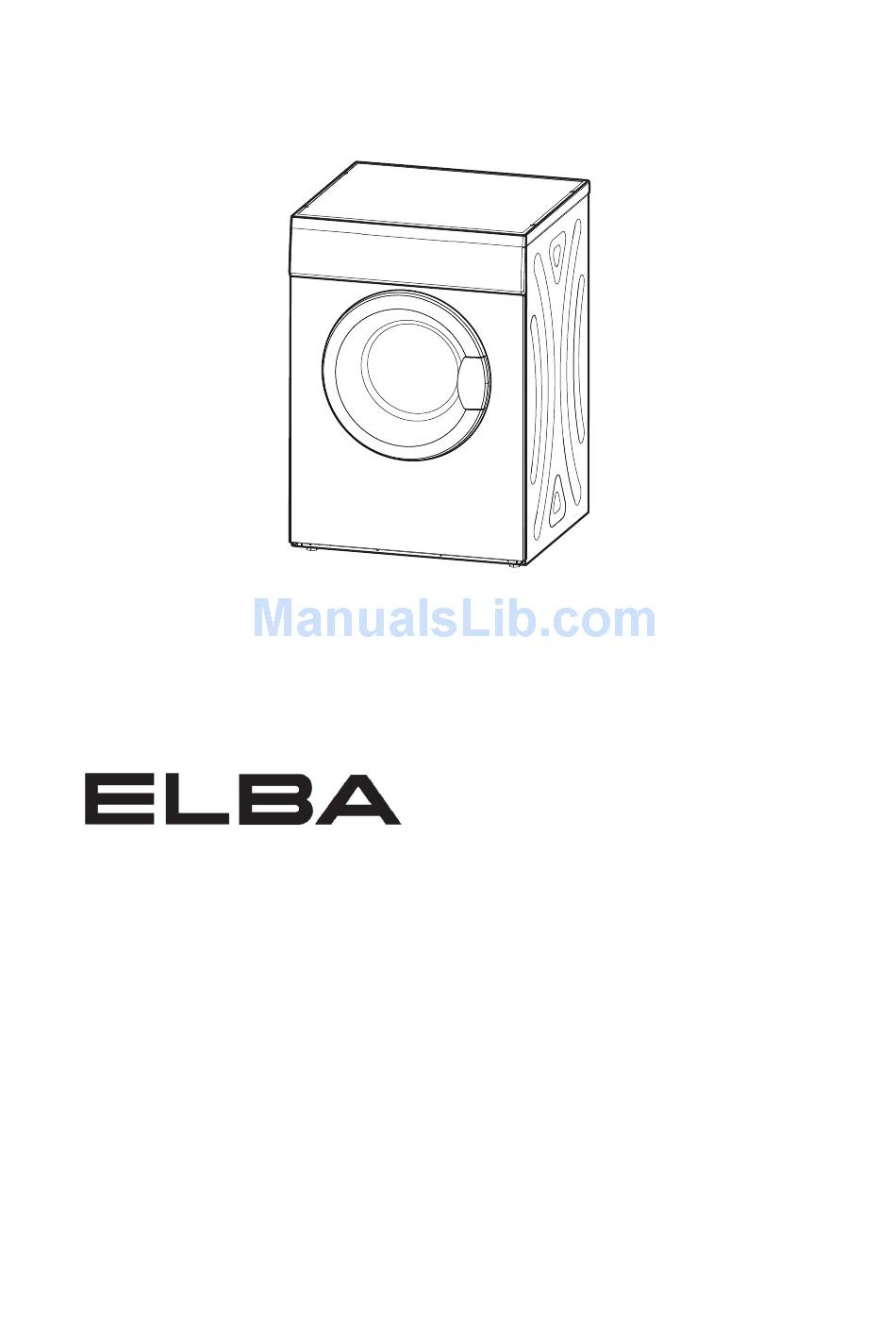

TUMBLE DRYER

MODEL: ED-F7160(WH)
Owner's Manual
Please read this manual carefully before
operating your set.
Retain it for future reference.
Record model number and serial number
of the set.
See the label attached on the set and
quote this information to your dealer
when you require service.
For The Warranty Terms & Conditions, Please Refer To Warranty Certificate

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ED-F7160(WH) and is the answer not in the manual?

Questions and answers

Related Manuals for Elba ED-F7160(WH)

Summary of Contents for Elba ED-F7160(WH)

  • Page 1: Tumble Dryer

    TUMBLE DRYER MODEL: ED-F7160(WH) Owner’s Manual Please read this manual carefully before operating your set. Retain it for future reference. Record model number and serial number of the set. See the label attached on the set and quote this information to your dealer when you require service.

  • Page 2: Safety Precautions

    REMOVE ALL PACKING MATERIALS FROM THIS PRODUCT BEFORE USING IT. THIS APPLIANCE MUST BE INSTALLED IN LEVEL. PLEASE ENSURE THE ELECTRICITY SUPPLY TO THIS APPLIANCE IS DISCONNECTED BEFORE INSTALLING. Please read this instruction carefully. It is advisable to keep this instruction manual in a safe place for future reference.

  • Page 3: Rear Venting

    INSTALLATION Position the tumble dryer so that the plug remains accessible after installation. Do not block the back of the dryer, as this will impair the working of the machine. Leave a space of 10cm between the rear of the tumble dryer to the wall. This appliance must not be installed behind a lockable door, a sliding door or a door with hinges on the opposite side to that of the tumble dryer.
  • Page 4 SAFETY PRECAUTIONS Install or store the appliance where it will not Keep area around the exhaust opening be direct exposed to water or sun, this may and adjacent surrounding areas free from cause permanent damage or malfunction of the accumulation of lint, dust and dirt. An the appliance.
  • Page 5 Do not dry laundry that contain rubber, plastic It is prohibited to open the door before the or similar materials such as padded bras, drying program had finished as it will cause tennis shoes, galoshes, bath mats, rugs, bibs, injury from being scalded by hot steam or baby pants, raincoat, plastic bags or pillows over heated by the appliance.
  • Page 6 PREPARATION Please pay attention to use the appliance if the labels inside the garments cannot be dried or contain the symbols as follows: 1. To avoid the need to iron easy-care polyester / cotton items, it is better to only dry small loads (half fill drum) with small and large articles together.

  • Page 8: Product Description

    Note: 1. The dryer will blow cold wind for final cool down for 3 minutes before finishing the laundry cycle done. 2. If anti-crease program is selected, the anti-crease process will prolonged to 2 hours, otherwise it keeps 30 minutes (by default). 3.

  • Page 9: Control Panel Descriptions

    CONTROL PANEL DESCRIPTIONS 1. On/Off Turn on or turn off the tumble dryer. 2. Start/Pause Starts or Pause the selected program. 3. Buzzer Press the Buzzer button to select the “ On” or “ Off” buzzer function. The buzzer will prompt from the dryer when the drying cycle has completed. 4.

  • Page 10: Operation

    6. Anti-Crease Press the Anti-Crease button to select the function. At the end of the drying cycle, the anti-crease operation time is 30 minutes by default with this function, the anti- crease operation will prolonged to 120 minutes. The anti-crease sign “ ”...

  • Page 11: Cleaning And Maintenance

    NEVER SWITCH THE DRYER OFF AND LEAVE A HOT LOAD IN THE DRUM DUE TO THE RISK OF FIRE. CLEANING AND MAINTENANCE ALWAYS CLEAN THE LINT FILTER AFTER EACH USE. FAILURE TO DO SO COULD CAUSE THE SAFETY CUTOUT TO OPERATE. 1.

  • Page 12: Cleaning The Cabinet And Drum

    CLEANING THE CABINET AND DRUM Use a soft damp cloth wipe when cleaning the cabinet and drum. 1. Not to rinse with water directly. 2. Not to use scouring pad to clean the drum. 3. Not to use any abrasive powders or corrosive substances which could damage the surface.

  • Page 13: Troubleshooting

    TROUBLESHOOTING If the laundry is not dried after normal drying program. 1. Check that the lint filter has been cleaned. A blocked filter will restrict the airflow. 2. If the cut-out continues to operate after checking the above points, you should contact the after sales service centre.

  • Page 14: Other Error

    OTHER ERROR Error Description Criteria Action code Temperature Sensor Temperature Please contact technician for service. is open or short Sensor error TECHNICAL SPECIFICATION Model ED-F7160(WH) Drying Capacity 7.0KG Voltage 220–240V Frequency 50/60Hz Rated Power 2,000W Rated Current Ambient Temperature 5°C ~ 35°C Product Dimension (mm) 595 (W) x 840 (H) x 550 (D) Carton Dimension (mm)

  • Page 15: Important User Information

    IMPORTANT USER INFORMATION This tumble dryer is intended for DOMESTIC USE ONLY. Adequate ventilation must be provided to avoid back flow of gases into the room from appliances burning other fuels, including open fires. Exhaust air must not be discharged into a flue which is used for exhausting fumes from appliances burning gas or other fuel.
  • Page 16 DO NOT use a two-way adaptor, or extension lead. The dryer must be connected to its own socket. DO NOT block the air inlets at the front, base, rear and side of your dryer. DO NOT allow fluff to accumulate around the tumble dryer. DO NOT exceed the recommended maximum load.
