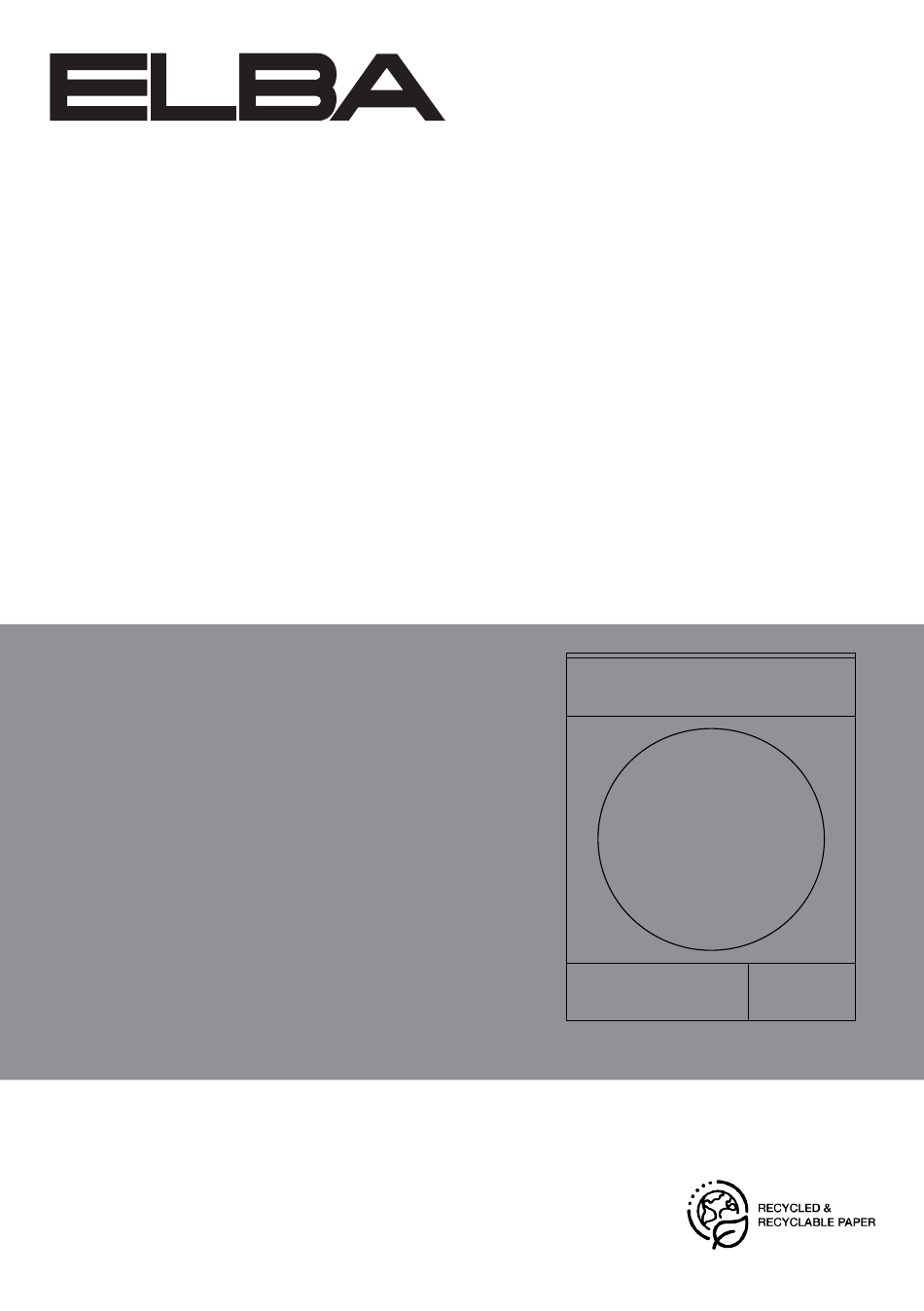

- Page 1 EBD 850 V Dryer User Manual 2960313943_EN/251223.1245...
- Page 2 Please read this user manual first! Dear Customer, WARNING! Thank you for prefering a Elba product. We hope that your product which has been • Warning against hot surfaces. manufactured with high quality and technology will give you the best results. We advise you...
- Page 3 1 Important instructions for safety and environment WARNING! NOTE Always have the installation and • This section contains safety repairing procedures carried instructions that will help protect out by the Authorized Service. from risk of personal injury or Manufacturer shall not be held property damage.
- Page 4 1.1.1 Electrical safety DANGER! DANGER! • Do not use extension cords, multi- plugs or adaptors to connect the • Electrical safety instructions dryer to power supply in order to should be followed while electrical decrease the risk of fire and electric connection is made during the shock.
- Page 5 DANGER! DANGER! Points to be taken into • Never stop your dryer before the consideration for fire hazard: programme completes. If you must Below specified laundry or items do this, remove all laundry quickly must not be dried in the dryer and lay them out to dissipate the considering fire hazard.
- Page 6 1.2 Mounting over a washing machine WARNING! • A fixing device should be used between the two machines when installing the • Never attempt to repair the dryer dryer above a washing machine. The by yourself. Do not perform any fitting device must be installed by the repair or replacement procedures authorized service agent.
- Page 7 1.4 Child safety 1.8 Technical Specifications • Packaging materials are dangerous for the children. Keep packaging materials away from children. Height (Min. / Max.) 85,6 cm / 86,6 cm* • Electrical products are dangerous for the children. Keep children away from the Width 59,7 cm product when it is operating.
- Page 8 2 Your Dryer 2.2 Package Contents 2.1 Overview 1. Water 6. Water drain Filling hose * Container* 2. Filter drawer 7. Pure spare Water* sponge* 3. User Fragrance Manual Capsules Group* 1. Top panel 4. Drying 2. Control panel 9. Brush* basket* 3.
- Page 9 3 Installation DANGER! Before the calling the nearest Authorized • Do not place the product on top of the Service for the installation of the dryer, ensure power cable. that electrical installation and water drain is appropriate referring to the user’s manual. •...
- Page 10 NOTE • Exhaust of humid air from the dryer into the room should be considered. It may damage the walls and furniture in the room. • The ventilation hose can be routed outdoors via a window or it can be 1.
- Page 11 4 Preparation • For models with a condenser unit: clean the condenser once in a month or after every 30 operations regularly. . 4.1 Laundry suitable for drying in the • Clean the filter periodically.Read the dryer Maintenance and cleaning of filters for Always obey the instructions given on the detalied information.
- Page 12 5 Operating the product 5.1 Control Panel On/Off / Program selection button 3. End Time button Start / Pause button 4. Dryness level 5. Buzzer volume / Time Level 5.2 Symbols Filter Child-proof Mute On/O Timer Filter drawer / Tank Heat exchanger temperature cleaning...
- Page 13 5.4 Program selection and consumption chart Programmes Programme Description You may dry your cotton laundry to be ironed in Cottons Iron Dry this program to have them slightly damp for ease 1000 of ironing. (Shirt, T-shirt, tablecloth, etc.) It dries single layer, casual cotton textiles in the Cottons Eco 1000 most economical way.
- Page 14 You can dry both cotton and synthetic laundry Mix/Daily with this programme.Sports and fitness clothes 1000 may be dried with this program. It is a long-term program that you can use for the clothes (baby clothes, towels, underwear, etc. cotton) you require hygeine. Hygiene is provided Hygiene+ with high temperature.
- Page 15 Allergy UK is the brand of the NOTE British Allergy Association. Seal of Approval is created to guide • You can add or remove laundry within people that require end time. Displayed time is the sum of recommendation about a normal drying time and end time.
- Page 16 NOTE NOTE • When the child lock is activated, the child • Adding or removing laundry during drying may be repeated as many times as you lock warning indicator on the screen wish. But this operation continuously turns on. interrupts the drying operation, and thus •...
- Page 17 NOTE • If the laundry is not removed after the program is completed, the wrinkle prevention function activates for 2 hours to prevent the laundry inside the machine to get wrinkled. The program tumbles the laundry with 10-minute intervals to prevent them from wrinkling.
- Page 18 6 Maintenance and cleaning seat. NOTE Lint filter Lint and fibres released from the laundry to the • Clogging may arise on the filter surface air during the drying cycle are collected in the after using your machine for some time; if “Lint Filter”.
- Page 19 7 Troubleshooting Filter cleaning warning symbol/LED is on/flashing. Fibre filter might not be cleaned. >>> Clean the filter. The filter slot might be clogged with lints. >>> Clean the filter slot. Drying operation takes too long. A layer of fluff might have accumulated clogging up the lint filter Fibre filter pores might be clogged.
- Page 20 8 Electrical Connection WARNING! Make sure that you have an earthed power Do not operate without the top cover fitted. outlet socket rated at 13 amps (minimum). Risk of injury. 8.1 Attention! When installed, the socket must be reachable after installation, or a separate switch (which IMPORTANT! can disconnect the two poles) must be used in the installation.
