Hardware Installation

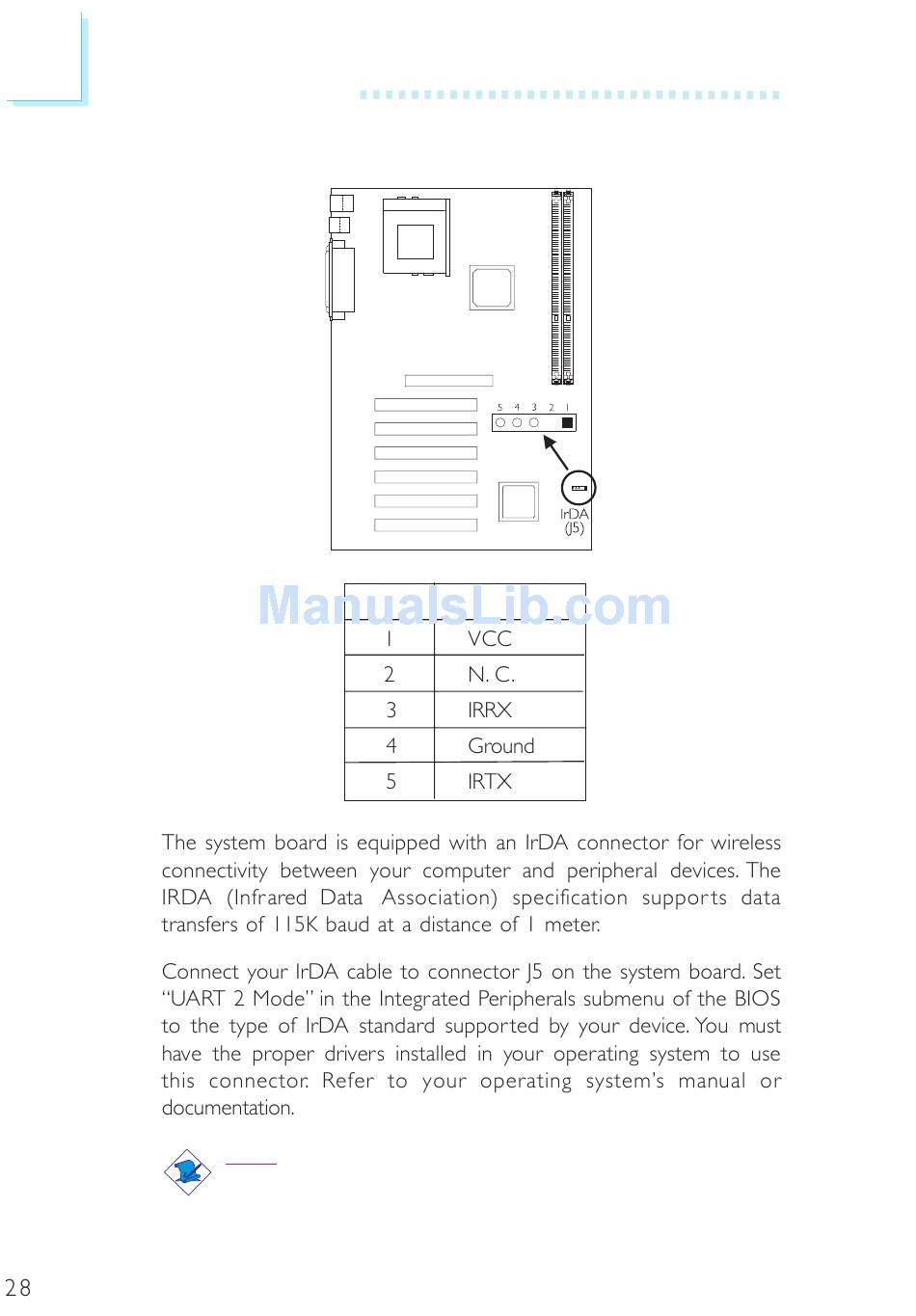

2.7.7 IrDA Connector

Pin
Note:
The sequence of the pin functions on some IrDA cable may be
reversed from the pin function defined on the system board.
Make sure to connect the cable to the IrDA connector
according to their pin functions.
Function
