Summary of Contents for EnGenius ENH900EXT

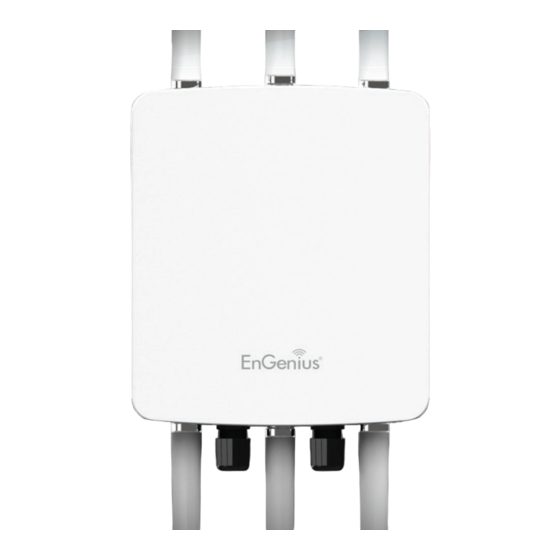

- Page 1 Business Solutions User Manual ENH900EXT version 1.0 Dual Band Long Range Wireless N900 Outdoor Access Point...
- Page 2 IMPORTANT To install this Access Point please refer to the Quick Installation Guide included in the product packaging.
-
Page 3: Table Of Contents
Computer Settings ..............12 WDS Link Settings ............... 43 Hardware Installation ............... 15 Guest Network Settings ............44 Mounting the ENH900EXT ............ 16 Chapter 8 Management ............45 Chapter 3 Configuring Your Access Point ......18 Management VLAN Settings ..........46 Default Settings ................. -
Page 4: Chapter 1 Product Overview
Chapter 1 Product Overview... -
Page 5: Key Features/Introduction
Features and specifications subject to change without notice. Trademarks and registered trademarks are the property of their respective owners. For United States of America: Copyright © 2013 EnGenius Technologies, Inc. All rights reserved. -
Page 6: System Requirements
• Windows OS (XP, Vista, 7), Mac OS, or Linux-based operating systems mobile devices in common outdoor areas. • Web-Browsing Application (i.e.: Internet Explorer, Firefox, Safari, or The ENH900EXT is easy to install in virtually any location another similar browser application) with its included PoE (Power over Ethernet) injector for quick outdoor installation. -
Page 7: Package Contents
Package Contents The ENH900EXT package contains the following items* • ENH900EXT • 3 detachable 5dBi 2.4 GHz Omni-directional Antenna • 3 detachable 7dBi 5 GHz Omni-directional Antenna • Power Adapter (48V/0.8A) • PoE Injector (EPE-48GR) • Grounding Cable • Pole Mount Bracket • Wall Mount Base • Mounting Screw Set • Quick Installation Guide • Technical Support Card *(all items must be in package to issue a refund):... -
Page 8: Technical Specifications
Technical Specifications WDS Detail Standard: WDS AP IEEE802.11a/n on 5 GHz WDS Bridge IEEE802.11b/g/n on 2.4 GHz WDS Station IEEE802.3at Antenna Management 6 External N-type Antenna Auto Channel Selection Multiple SSID: 16 SSIDs, 8 SSIDs per Radio 3 x detachable 5 dBi 2.4 GHz Omni-directional Antennas BSSID 3 x detachable 7 dBi 5 GHz Omni-directional Antennas SNMP V1/V2c/V3 Physical Interface MIB I/II, Private MIB 2 x 10/100/1000 Gigabit Ethernet Port with PoE support VLAN Tag / VLAN Pass-through LAN1 Port: IEEE802.3at PoE Input Clients Statistics... - Page 9 Security RF Specification (Aggregated Value) WEP Encryption-64/128/152 bit Channel Data Rate Tx Power Rx Sensitivity WPA/WPA2 Personal (WPA-PSK using TKIP or AES) 802.11b 2.4GHz 1Mbps WPA/WPA2 Enterprise (WPA-PSK using TKIP or AES) 2Mbps Hide SSID in beacons 5.5Mbps MAC address filtering, up to 50 MACs 11Mbps Wireless STA (Client) connection list Https Support 802.11g 2.4GHz 6Mbps...
-
Page 10: Physical Interface
4 LAN Port 2 (802.3af PSE Output): Ethernet port for RJ-45 cable. 5 LED Indicators: LED lights for Power, LAN Port 1, LAN Port 2, 2.4 GHz Connection and 5 GHz Connection. 6 Ground 7 Mounting Holes: Using the provided hardware, the ENH900EXT can be attached to a wall or pole. -
Page 11: Chapter 2 Before You Begin
Chapter 2 Before You Begin... -
Page 12: Computer Settings
Computer Settings Windows XP / Windows 7 2b. In Windows 7, click View Network Status and Tasks in In order to use the ENH900EXT, you must first configure the the Network and Internet section, then select Change TCP/IPv4 connection of your Windows OS computer system. adapter settings. 1. Click the Start button and open the Control Panel. - Page 13 ENH900EXTand Subnet mask, then click OK. Note: Ensure that the IP address and Subnet mask are on the same subnet as the device. For example: ENH900EXT IP address: 192.168.1.1 PC I P a ddress: 1 92.168.1.2 – 1 92.168.1.255 PC subnet mask: 255.255.255.0...
- Page 14 4. In Configure IPv4, select Manually. 1. Go to System Preferences (Which can be opened in the 5. Enter an IP address that is different from the ENH900EXT Applications folder or selecting it in the Apple Menu). and Subnet mask then press OK.
-
Page 15: Hardware Installation
Ensure that the 2.4GHz/5GHz WLAN light is on (it will be green for both 5G and 2.4G). c) Ensure that (Computer/ENH900EXT Power Outlet Connection) light is on (it will be green). d) Once all three lights are on, proceed to set up the Note: The Access Point supports both IEEE 802.3at PoE... -
Page 16: Mounting The Enh900Ext
Mounting the ENH900EXT Using the provided hardware, the ENH900EXT can be attached to a wall or a pole. To attach the ENH900EXT to a wall using wall 3. Place the lock and flat washers on the four hex cap screws mounting kit. and drive the screws to attach the bracket to the back of the Access Point. - Page 17 To attach the ENH900EXT to a pole using the provided pole mounting kit: 1. Place the lock and flat washers on the four hex cap screws 3. Thread the open end of the Pole Strap through the two and drive the screws to attach the bracket to the back of tabs on the Pole Mount Bracket .
-
Page 18: Chapter 3 Configuring Your Access Point
Chapter 3 Configuring Your Access Point... -
Page 19: Default Settings
3. If successful, you will be logging in and see the Chrome) and enter the IP Address http://192.168.1.1 ENH900EXT User Menu. Note: If you have changed the default LAN IP Address of the Access Point, ensure you enter the correct IP Address. -
Page 20: Chapter 4 Building A Wireless Network
Chapter 4 Building a Wireless Network... -
Page 21: Access Point Mode
The ENH900EXT has the ability to operate in various modes. This chapter describes the operating modes of the ENH900EXT. Access Point Mode In Access Point Mode, ENH900EXT behaves likes a central connection for stations or clients that support IEEE 802.11a/b/g/n networks. The stations and clients must be configured to use the same SSID (Service Set Identifier) and security password to associate with the ENH900EXT. The ENH900EXT supports up to eight SSIDs at the same time for secure access. - Page 22 The ENH900EXT can be used as a centralized Outdoor Access Point with which other EnGenius Wireless N 2.4 or 5 GHz Outdoor Client Bridges can associate; leveraging the long-range capability of their internal high-gain directional antennas, resulting in a very cost-effective solution to expand a company network over a multiple building campus. ENH202 ENH202 Client Bridge Client Bridge ENH900EXT Client Access Point Client 2.4 GHz 2.4 GHz Client Client Client 5 GHz 5 GHz...
-
Page 23: Wds Ap Mode
WDS AP Mode The ENH900EXT also supports WDS AP mode. This operating mode allows wireless connections to the ENH900EXT using WDS technology. In this mode, configure the MAC addresses in both Access Points to enlarge the wireless area by enabling WDS Link settings. WDS supports up to four AP MAC addresses. ENH900EXT ENH900EXT WDS AP WDS AP 5 GHz... -
Page 24: Wds Bridge Mode
In WDS Bridge Mode, the ENH900EXT can wirelessly connect different LANs by configuring the MAC address and security settings of each ENH900EXT device. Use this mode when two wired LANs located a small distance apart want to communicate with each other. The best solution is to use the ENH900EXT to wirelessly connect two wired LANs, as shown in the following diagram. -
Page 25: Wds Station Mode
WDS Station Mode Expands the WDS by receiving a wireless signal/service and sharing through the Ethernet port. ENH900EXT WDS AP on both 5 GHz & 2.4 GHz ENH900EXT ENH900EXT WDS Station WDS Station ENH900EXT WDS Station... -
Page 26: Client Bridge Mode
Client Bridge Mode In the Client Bridge mode, the ENH900EXT functions like a wireless network adaptor. This allows the ENH900EXT to share the acquired wireless network access (via another device in Access Point mode) with wired devices connected via Ethernet to it (typically via a networked switch). -
Page 27: Chapter 5 Status
Chapter 5 Status... -
Page 28: Main Status
Main Status Save Changes Device Status This page lets you save and apply the settings shown under Clicking the Device Status link under the Overview menu Unsaved changes list, or cancel the unsaved changes and shows the status information about the current operating revert them to the previous settings that were in effect. - Page 29 Mask, and DNS Address. • The Wireless LAN Information 2.4 GHz/5 GHz section shows wireless information such as Operating Mode, Frequency, and Channel. Since the ENH900EXT supports multiple-SSIDs, information about each SSID, the ESSID and security settings, are displayed Note: Profile Settings are only applicable in Access Point...
-
Page 30: Connection
Information menu displays the list of clients associated menu. This page displays the current status of the WDS link, to the ENH900EXT’s 2.4 GHz/5 GHz, along with the MAC including WDS Link ID, MAC Address, Link Status and RSSI. -
Page 31: Chapter 6 Network
Chapter 6 Network... -
Page 32: Basic Ip Settings
Basic IP Settings IPv4/IPv6 Settings IP Network Setting: Select whether the device IP address This page allows you to modify the device’s IP settings. will use the static IP address specified in the IP address field or be obtained automatically when the device connects to a DHCP server. IP Address: The IP Address of this device. Subnet Mask: The IP Subnet mask of this device. -
Page 33: Spanning Tree Protocol Setting
Spanning Tree Protocol (STP) Setting This page allows you to modify the Spanning Tree settings. Spanning Tree Status: Enables or disables the Spanning Enabling Spanning Tree protocol will prevent network loops Tree function. in your LAN network. Hello Time: Specifies Bridge Hello Time in seconds. This value determines how often the device sends handshake packets to communicate information about the topology throughout the entire Bridged Local Area Network. -
Page 34: Chapter 7 2.4G/5G Wireless
Chapter 7 2.4G/5G Wireless... -
Page 35: Wireless Settings
Wireless Wireless Settings Device Name: Enter a name for the device. The name you type appears in SNMP management. This name is not the SSID and is not broadcast to other devices. Band Steering: Enable Band Steering to send 802.11n clients to the 5GHz band, where 802.11b/g clients cannot go, and leaves the 802.11b/g clients in 2.4GHz to operate at their slower rates. -
Page 36: 2.4 Ghz/5 Ghz Wireless Network
Data Rate: Select a data rate from the drop-down list. The data rate affects throughput of data in the ENH900EXT. Select the best balance for you and your network but note that the lower the data rate, the lower the throughput,... - Page 37 RTS/CTS Threshold: Specifies the threshold package size for RTC/CTS. A small number causes RTS/CTS packets to be sent more often and consumes more bandwidth. Client Limits: Limits the total number of clients. Aggregation: Merges data packets into one packet. This option reduces the number of packets, but also increases packet sizes.
-
Page 38: 2.4 Ghz/5 Ghz Ssid Profile
2.4 GHz/5 GHz SSID Profile Current Profile: You can configure up to eight different SSIDs (4 in WDS AP mode). If multiple client devices will be accessing the network, you can arrange the devices into SSID groups. Click Edit to configure the profile and check whether you want to enable extra SSID. SSID: Specifies the SSID for the current profile. -
Page 39: Wireless Security
Wireless Security The Wireless Security section lets you configure the Auth Type: Select Open System or Shared Key. ENH900EXT’s security modes: WEP, WPA-PSK, WPA2-PSK, Input Type: WPA-PSK Mixed, WPA, WPA2, and WPA Mixed. It is strongly ASCII: Regular Text (recommended) recommend that you use WPA2-PSK. -
Page 40: Wireless Mac Filtering
MAC address to restrict permission to Deny MAC in the list, or Allow MAC in the list. access the ENH900EXT. The default setting is: Disable MAC Address: Enter the MAC address of the wireless client. Wireless MAC Filter. -
Page 41: Wireless Advanced
Wireless Advanced WPA-PSK (WPA Pre-Shared Key) Encryption: Wireless Traffic Shaping Traffic shaping regulates the flow of packets leaving an interface to deliver improved Quality of Service. Encryption: Select the WPA encryption type you would like. Please ensure that your wireless clients use the same settings. Passphrase: Wireless clients must use the same Key to Enable Traffic Shaping: Check this option to enable associate the device. -
Page 42: Wps Mixed-Enterprise: Ap/Wds Ap Mode
WPA Mixed-Enterprise: Access Point / WDS AP mode Group Key Update Interval: Specifies how often, in seconds, the group key changes. Radius Accounting: Enable or disable accounting feature. Radius Accounting Server: Enter the IP address of the Radius accounting server. Radius Accounting Port Enter the port number used for connections to the Radius accounting server. -
Page 43: Wds Link Settings
WDS Link Settings 2.4 GHz/5 GHz WDS Link Settings Using WDS (Wireless Distribution System) will allow a network administrator or installer to connect to Access Points wirelessly. Doing so will extend the wired infrastructure to locations where cabling is not possible or inefficient to implement. -
Page 44: Guest Network Settings
Guest Network Settings Ending IP Address: The last IP Address in the range of addresses assigned by the DHCP server. Adding a guest network allows visitors to use the Internet Fast Handover without giving out your office or company wireless security key. -
Page 45: Chapter 8 Management
Chapter 8 Management... -
Page 46: Management Vlan Settings
LAN. Note: If you reconfigure the Management VLAN ID, you Note: Only applicable in Access Point and WDS AP may lose your connection to the ENH900EXT. Verify modes. that the DHCP server supports the reconfigured VLAN ID and then reconnect to the ENH900EXT using the new IP address. -
Page 47: Wi-Fi Multi Media
Wi-Fi Multi Media (WMM) Class (AC) over the other, such as giving voice or video priority over email. This feature provide QoS (Quality of Service) for prioritizing multimedia traffic. WMM prioritization achieves the goal of minimizing delay in a wireless network for time-sensitive applications. WMM Parameters: According to version 1.1 of the WMM specifications by the Wi-Fi Alliance, defines four Access Category (AC_BE, AC_BK, AC_VI, AC_VO) labels in order to provide more favorable network access for applications that are less tolerant of packet delay. -
Page 48: Advanced Settings
Advanced Settings SNMP Settings Location: Specifies the location of the device. Community Name (Read Only): Specifies the password This page allows you to assign the Contact Details, Location, for the SNMP community for read only access. Community Name, and Trap Settings for a Simple Network Management Protocol (SNMP). -
Page 49: Cli Settings/Email Alert
CLI Settings Email Alert You can use the Email Alert Feature to send messages to the configured email address when particular system events occur. Note: Do NOT use your personal email address as it can unnecessarily expose your personal email login credentials. Use a separate email account made for this feature instead CLI: Enable CLI allows you to type commands instead of choosing them from a menu or selecting an icon. - Page 50 Username: Enter the username for the email account that will be used to send emails. Password: Enter the password for the email account that will be used to send emails. SMTP Server: Enter the IP address or hostname of the outgoing SMTP server.
-
Page 51: Time Zone
This page allows you to set the internal clock of the End: Select the day, month, and time when day- ENH900EXT. light savings times ends. Manually Set Date and Time: Manually specify the date and time. -
Page 52: Auto Reboot Settings
Auto Reboot Setting: Enables or Disables the Auto Reboot function. Frequency of Auto Reboot: To specify how often you wish to reboot the ENH900EXT by Min, Hour, Day or Week. Timer: Select the day and enter the time you would like to reboot automatically. -
Page 53: Wi-Fi Scheduler
Wi-Fi Scheduler Day(s): Place a checkmark in the boxes for the desired days or select the All Week radio button to select all seven days Wi-Fi Scheduler can be created for use in enforcing rules. of the week. For example, if you wish to restrict web access to Mon-Fri Duration: The Start time is entered in two fields. The first from 3pm to 8pm, you could create a schedule selecting box is for hours and the second box is for minutes. -
Page 54: Tools
(via IP). This page allows you to analyze the connection quality of Traceroute Target: Enter the IP address or domain name the ENH900EXT and trace the routing table to a target in you wish to trace. the network. Start Traceroute: Click Start Traceroute to begin the trace route operation. - Page 55 Speed Test Parameters / LED Control LED Control This page allows you to control LED on/off for Power, LAN Power: Enables or Disables the Power LED indicator. interface, 2.4 G/5 G WLAN interface. LAN: Enables or Disables the LAN LED indicator. WLAN-2.4 GHZ: Enables or Disables the WLAN-2.4 GHZ LED indicator.
-
Page 56: Account/Firmware
Account Firmware This page allows you to change the ENH900EXT username Firmware Upgrade and password. By default, the username is: admin and the This page allows you to upgrade the firmware of the password is: admin. The password can contain from 0 to ENH900EXT. -
Page 57: Backup/Restore
ENH900EXT incorrectly, you can use the Reset Restore to Default: Click Reset button to restore the button in the Revert to Factory Default Settings section ENH900EXT to its factory default settings. to restore all the configurations of the ENH900EXT to the original default settings. -
Page 58: Log
System Log Remote Log The ENH900EXT automatically logs (records) events This page allows you to setup the Remote Log functions of possible interest in its internal memory. To view the for the ENH900EXT. logged information, click the Log link under the System Manager menu. -
Page 59: Logout/Reset
Logout Reset Click Logout in Management menu to logout. In some circumstances, it may be required to force the device to reboot. Click on Reset to reboot the ENH900EXT. -
Page 60: Appendix
Appendix... -
Page 61: Fcc Interference Statement
Appendix A Federal Communication Commission Interference Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. -
Page 62: Ce Interference Statement
Appendix B - CE Interference Statement Europe – EU Declaration of Conformity This device complies with the essential requirements of the R&TTE Directive 1999/5/EC. The following test methods have been applied in order to prove presumption of conformity with the essential requirements of the R&TTE Directive 1999/5/EC: • EN60950-1 Safety of Information Technology Equipment • EN50385... - Page 63 This device is a 5GHz wideband transmission system (transceiver), intended for use in all EU member states and EFTA countries, except in France and Italy where restrictive use applies. In Italy the end-user should apply for a license at the national spectrum authorities in order to obtain authorization to use the device for setting up outdoor radio links and/or for supplying public access to telecommunications and/or network services.
- Page 64 Français [French] Par la présente [nom du fabricant] déclare que l’appareil [type d’appareil] est conforme aux exigences essentielles et aux autres dispositions pertinentes de la directive 1999/5/CE. Italiano [Italian] Con la presente [nome del costruttore] dichiara che questo [tipo di apparecchio] è conforme ai requisiti essenziali ed alle altre disposizioni pertinenti stabilite dalla direttiva 1999/5/CE.
