Summary of Contents for Hitachi RAS-X18CBT

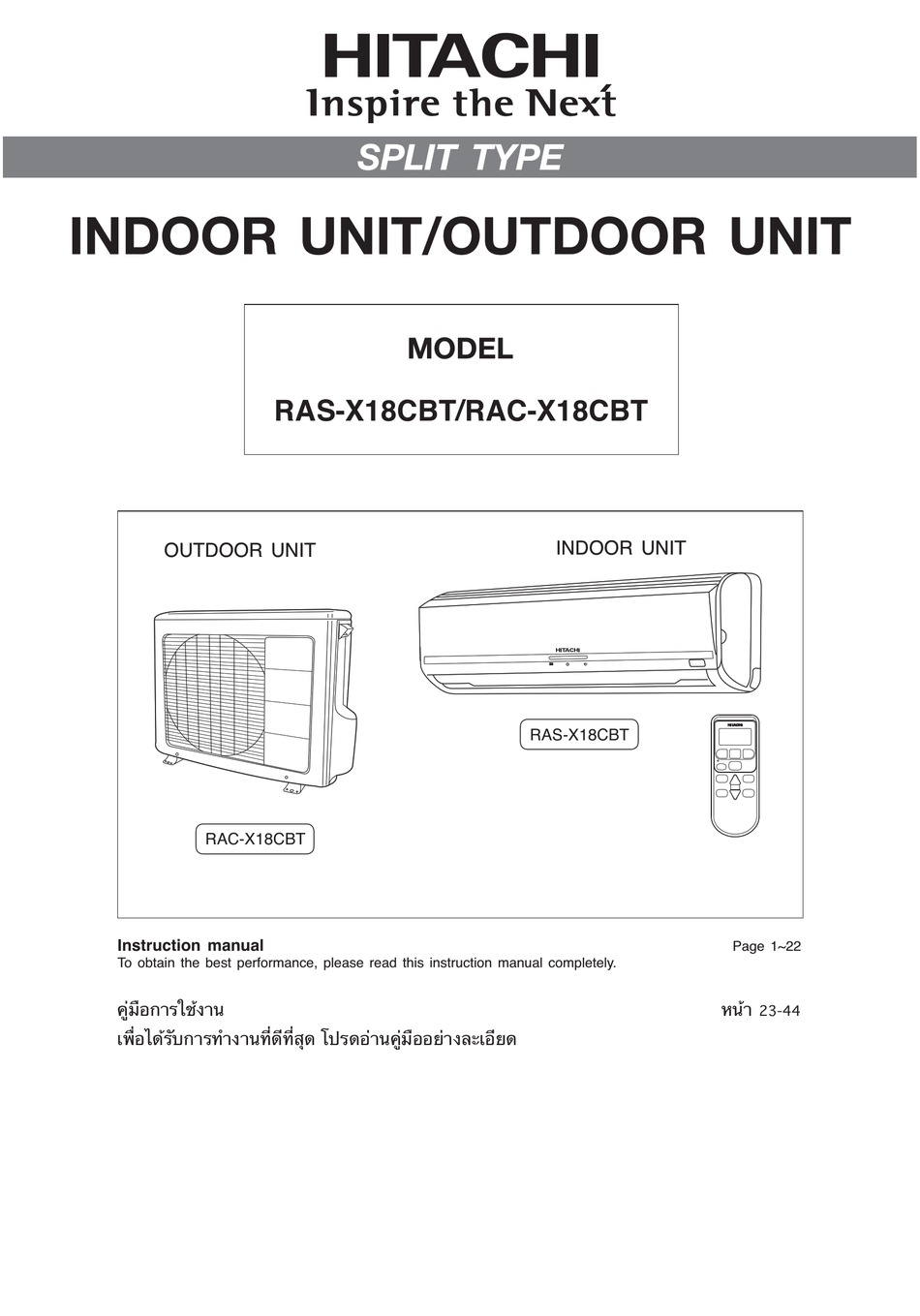

- Page 1 RAS-X18CBT/RAC-X18CBT RAS-X18CBT RAC-X18CBT Instruction manual Page 1~22 To obtain the best performance, please read this instruction manual completely. U = S I N?]& # N5 G5 N 23-44 Z:S b I ^0 ? M 6 N?3g N #N53Q b 0 Q 3 Q b F T 0 \7?0I N 5 U = S I I> N #ALZIQ > 0...
-
Page 2: Safety Precaution
SAFETY PRECAUTION Please read the “Safety Precaution” carefully before operating the unit to ensure correct usage of the unit. ● Pay special attention to signs of “ Warning” and “ Caution”. The “Warning” section contains matters which, ● if not observed strictly, may cause death or serious injury. The “Caution” section contains matters which may result in serious consequences if not observed properly. - Page 3 PRECAUTIONS DURING OPERATION The product shall be operated under the manufacturer speciÀ cation and ● not for any other intended use. Do not attempt to operate the unit with wet hands, this could cause fatal ● accident. Do not direct the cool air coming out from the air-conditioner panel to face ●...
-
Page 4: Names And Functions Of Each Part
(Refer page 6) OUTDOOR UNIT DRAIN PIPE Condensed water drain to outside. CONNECTING CORD AIR INLET (BACK, LEFT SIDE) AIR OUTLET MODEL NAME AND DIMENSIONS MODEL WIDTH (mm) HEIGHT (mm) DEPTH (mm) RAS-X18CBT 1030 RAC-X18CBT – 4 –... - Page 5 INDOOR UNIT INDICATORS TIMER LAMP This lamp lights when the timer is working. HITACHI OPERATION LAMP This lamp lights during operation. FILTER LAMP When the device is operated for a total of about 200 hours, the FILTER lamp lights to indicate that it is time to clean the À...
-
Page 6: Names And Functions Of Remote Control Unit
NAMES AND FUNCTIONS OF REMOTE CONTROL UNIT REMOTE CONTROLLER This controls the operation of the indoor unit. The range of control is about 7 meters. If indoor lighting is controlled electronically, the range of control may be shorter. This unit can be À xed on a wall using the À xture provided. Before À xing it, make sure the indoor unit can be controlled from the remote controller. -
Page 7: Cooling Operation
COOLING OPERATION Use the device for cooling when the outdoor temperature is 21-43°C. If humidity is very high (over 80%) indoors, some dew may form on the air outlet grille of the indoor unit. Press the button so that the display indicates (COOL). -
Page 8: Dehumidifying Operation
DEHUMIDIFYING OPERATION Use the device for dehumidifying when the room temperature is over 16°C. When it is under 15°C, the dehumidifying function will not work. Press the (DEHUMIDIFY) button. Dehumidifying operation starts with a beep. The FAN SPEED is set at LOW automatically. The FAN SPEED button does not work. -
Page 9: Circulation Operation
CIRCULATION OPERATION Press the button so that the display indicates (CIRCULATE). Circulating operation starts with a beep. Press the FAN SPEED button and select the desired FAN SPEED (the display indicates your choice). Press the temperature control button to set to the desired temperature. -
Page 10: How To Set The Sleep Timer
HOW TO SET THE SLEEP TIMER Press the (SLEEP) button, and the display changes as shown below. Mode Indication 1 hour 2 hours 3 hours 7 hours Sleep timer Sleep timer off Sleep Timer: The device will continue working for the designated number of hours and then turn off. -
Page 11: How To Set The Timer
HOW TO SET THE TIMER ■ ON Timer and OFF Timer are available. ■ Operation stop at setting time OFF Timer Reservation OFF TIME setting ● Select the OFF TIME by pressing the (OFF) Button. ● Setting time will change according to the below sequence when you press the button. -
Page 12: Adjusting The Air Deflectors
ADJUSTING THE AIR DEFLECTORS Adjustment of the conditioned air in the upward and downward directions. According to “Dehumidifying” or “Cooling” operation, the horizontal air deÁ ector is automatically set to the proper angle suitable for each operation. The deÁ ector can be swing up and down and also set to the desired angle using the “... -
Page 13: How To Exchange The Batteries In The Remote Controller
HOW TO EXCHANGE THE BATTERIES IN THE REMOTE CONTROLLER When using the remote control, there is no response from the air conditioner unit and or the remote control has fading and dim displays, the batteries in the remote control device need to be removed and replaced with new ones Remove the cover as shown in the À... -
Page 14: Suitable Room Temperature
THE IDEAL WAYS OF OPERATION Suitable Room Temperature Install curtain or blinds Warning It is possible to reduce heat Freezing temperature entering the is bad for health and a room through waste of electric power. windows. Ventilation Effective Usage Of Timer At night, please use the “OFF or ON timer Caution operation mode”, together with your wake up... - Page 15 FOR USER’S INFORMATION The Air Conditioner And The Heat Source In The Room Caution If the amount of heat in the room is above the cooling capability of the air conditioner (for example: more people entering the room, using heating equipments and etc.), the preset room temperature cannot be achieved.
-
Page 16: Attaching The Air Purifying Filters
ATTACHING THE AIR PURIFYING FILTERS CAUTION Cleaning and maintenance must be carried out when À lter lamp lights. Before cleaning, stop operation and switch off the power supply. Open the front panel ● Pull up the front panel by holding it at both sides with both hands. -
Page 17: Maintenance
MAINTENANCE CAUTION Cleaning and maintenance must be carried out when À lter lamp lights. Before cleaning, stop operation and switch off the power supply. 1. PRE-FILTER Clean the pre-À lter, as it removes dust inside the room. In case the pre-À lter is full of dust, the air Á... - Page 18 Washable Front Panel ● Remove the front panel and wash with clean water. Wash it with a soft sponge. After using neutral detergent, wash thoroughly with clean water. ● When front panel is not removed, wipe it with a soft dry cloth.
-
Page 19: Regular Inspection
CAUTION Cleaning and maintenance must be carried out only by qualiÀ ed service personnel. Before cleaning, stop operation and switch off the power supply. MAINTENANCE AT BEGINNING OF LONG OFF PERIOD ● Run the unit by setting the operation mode to (CIRCULATION), the temperature to 16°C and the fan speed to HI for about half a day on a À... - Page 20 AFTER SALE SERVICE AND WARRANTY WHEN ASKING FOR SERVICE, CHECK THE FOLLOWING POINTS. CONDITION CHECK THE FOLLOWING POINTS ● Is the fuse all right? ● Is the voltage extremely high or low? When it does not operate ● Is the circuit breaker “ON”? ●...
- Page 21 Please note: On switching on the equipment, particularly when the room light is dimmed, a slight brightness Á uctuation may occur. This is of no consequence. The conditions of the local Power Supply Companies are to be observed. Note Avoid to use the room air conditioner for cooling operation when the outside temperature is below ●...
- Page 22 MEMO ............................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................–...
