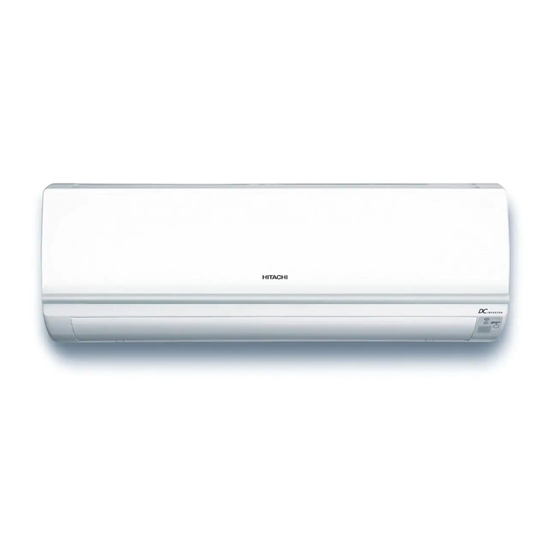

Hitachi RAS-X10CCK Instruction Manual
Hide thumbs Also See for RAS-X10CCK:

Advertisement

SPLIT TYPE AIR CONDITIONER
INDOOR UNIT/OUTDOOR UNIT
OUTDOOR UNIT
RAC-X10CCK
RAC-X13CCK
RAC-X18CCK
Instruction manual
To obtain the best performance and ensure years of trouble free use, please read this instruction manual completely.
MODEL
RAS-X10CCK/RAC-X10CCK
RAS-X13CCK/RAC-X13CCK
RAS-X18CCK/RAC-X18CCK
– 1 –
- 1 -
- 1 -
INDOOR UNIT
RAS-X10CCK
RAS-X13CCK
RAS-X18CCK
Page 1~20
21~40

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the RAS-X10CCK and is the answer not in the manual?

Questions and answers

Summary of Contents for Hitachi RAS-X10CCK

  • Page 1 SPLIT TYPE AIR CONDITIONER INDOOR UNIT/OUTDOOR UNIT MODEL RAS-X10CCK/RAC-X10CCK RAS-X13CCK/RAC-X13CCK RAS-X18CCK/RAC-X18CCK OUTDOOR UNIT INDOOR UNIT RAC-X10CCK RAC-X13CCK RAS-X10CCK RAS-X13CCK RAS-X18CCK RAC-X18CCK Instruction manual Page 1~20 To obtain the best performance and ensure years of trouble free use, please read this instruction manual completely.
  • Page 2 -  -...
  • Page 3: Safety Precaution

    SAFETY PRECAUTION Please read the “ Safety Precaution ” carefully before operating the unit to ensure correct usage of the unit. • Pay special attention to signs of “ Warning ” and “ Caution ” . The “ Warning ” section contains matters which,if •...
  • Page 4 PRECAUTIONS DURING OPERATION • The product shall be operated under the manufacturer specification and not for any other intended use. • Do not attempt to operate the unit with wet hands, this could cause fatal accident. • When operating the unit with burning equipments, regularly ventilate the room to avoid oxygen insufficiency.
  • Page 5 (Refer page 7) OUTDOOR UNIT DRAIN PIPE Condensed water drain to outside. CONNECTING CORD AIR INLET (BACK, LEFT SIDE) AIR OUTLET MODEL NAME AND DIMENSIONS MODEL WIDTH(mm) HEIGHT(mm) DEPTH(mm) RAS-X10CCK, RAS-X13CCK、RAS-X18CCK RAC-X10CCK、RAC X13CCK 700(+59) 258(+48) RAC-X18CCK 750(+91) 288(+47) - 5 -...
  • Page 6: Operation Indicator

    ATTACHING AND REMOVING FRONT PANEL • While gripping both the left and right hand edges [recessed in the front housing] of the front panel, lift up to open the front panel. • After completion of job, slightly lift up the front panel and pull down to close the front panel.
  • Page 7 NAMES AND FUNCTIONS OF EACH PART REMOTE CONTROLLER • This controls the operation of the indoor unit. The range of control is about 7 meters. If indoor lighting is controlled electronically, the range of control may be shorter, in some cases, the control signal may not be received. This unit can be fixed on a wall using the fixture provided.
  • Page 8: Cooling Operation

    COOLING OPERATION Use the device for cooling when the outdoor temperature is -10 to 43°C. If humidity is very high (over 80%) indoors, some dew may form on the air outlet grille of the indoor unit. Press the FUNCTION selector so that the display indicates (COOL).
  • Page 9: Dehumidifying Operation

    DEHUMIDIFYING OPERATION Use the device for dehumidifying when the room temperature is over 16°C. When it is under 15°C, the dehumidifying function will not work. Press the FUNCTION selector so that the display indicates (DEHUMIDIFY). Press the (FAN SPEED) button to select LOW and SILENT. START Press the (START/STOP) button.
  • Page 10: Fan Operation

    FAN OPERATION You can use the device simply as an air circulator. Use this function to dry the interior of the indoor unit at the end of summer. Press the FUNCTION selector so that the display indicates (FAN). Press the (FAN SPEED) button.
  • Page 11: Timer Reservation

    TIMER RESERVATION ON Timer and OFF Timer are available. Operation stop at setting time Timer Reservation OFF TIME setting • Select the OFF TIME by pressing the (OFF) Button. • Setting time will change according to the below sequence when you press the button. 1 hour interval Timer off ON TIME setting...
  • Page 12: Eco Operation

    ECO OPERATION Energy saving operation by changing set temperature and by limiting the maximum power consumption value. By pressing the (ECO) button during Dehumidifying or Cooling operation, the air conditioner performs the “ECO” operation. Press (ECO) button during operation. " is displayed on the LCD. •...
  • Page 13 HOW TO SET THE SLEEP TIMER By pressing (SLEEP) button during DEHUMIDIFYING, COOLING or FAN operation, the unit shifts the room temperature and reduces the fan speed. Mode Indication 1 hour 2 hours 3 hours 12 ho urs Sleep Timer Sleep timer off Sleep Timer: The device will continue working for the desired number of SLEEP...
  • Page 14 ADJUSTING THE AIR DEFLECTORS Adjustment of the conditioned air in the upward and downward directions. The horizontal air deflector is automatically set to the proper angle suitable for each operation. The deflector can be swung up and down continuously and also set to the desired angle using the “...
  • Page 15 THE IDEAL WAYS OF OPERATION Suitable Room Temperature Install curtain or blinds I t i s p o s s i b l e Warning to reduce heat Freezing temperature entering the room is bad for health and a through windows. waste of electric power.
  • Page 16 FOR USER ’ S INFORMATION The Air Conditioner And The Heat Source In The Room Caution If the amount of heat in the room is above the cooling capability of the air conditioner (for example: more people entering the room, using heating equipments and etc.), the preset room temperature cannot be achieved.
  • Page 17 MAINTENANCE OF THE UNITS CAUTION Ensure that the unit is not in operation and all power supply has been disconnected before cleaning the units. Dust Filter Screen Dust filter screens are installed to remove the indoor dust particles hence they should be kept clean at all times. They should be cleaned at each machine operation cycle of approximately 100 hours.
  • Page 18: Cleaning The Front Panel

    CLEANING THE FRONT PANEL Front panel can easily get dirty. Use a soft cloth to wipe it. If the front panel is excessively dirty, wipe the front panel with a soft cloth either wet with warm water or containing a mild detergent after which, wipe dry the front panel with a soft dry cloth.
  • Page 19 AFTER SALE SETVICE AND WARRANTY WHEN ASKING FOR SERVICE, CHECK THE FOLLOWING POINTS. CONDITION CHECK THE FOLLOWING POINTS • Is the fuse all right? • When it does not operate Is the voltage extremely high or low? • Is the circuit breaker “ ON ” ? •...
  • Page 20 This product conforms with the protection requirements of council directives //EEC relating to electromagnetic compatibility and //EEC relating to electrical equipment designed for use within certain voltage limits. Please note: On switching on the equipment, particularly when the room light is dimmed, a slight brightness flsuctuation may occur.
  • Page 21 RAS-X10CCK/RAC-X10CCK RAS-X13CCK/RAC-X13CCK RAS-X18CCK/RAC-X18CCK RAC-X10CCK RAC-X13CCK RAS-X10CCK RAS-X13CCK RAS-X18CCK RAC-X18CCK - 21-...
  • Page 22 - 22 -...
  • Page 23 - 23 -...
  • Page 24 灑 不要讓小孩單獨操作使用機器。除非在監督責任人的指導下,確保他們能安全正確的使用機器。 請確保小孩遠離機體,不要機體玩耍,以免發生危險。 - 24 -...
  • Page 25 隔塵網 吹 吹 RAS-X10CCK, RAS-X13CCK、RAS-X18CCK RAC-X10CCK、RAC X13CCK RAC-X18CCK...
  • Page 26 檢查左右及中間位置是否已完全合上 提示 如長時間不使用冷氣機,請切斷 電源或拔下插頭。 應急開關 應急開關 應急開關 應急開關 應急開關...
  • Page 27 遙控器各部分名稱和功能 遙控器 此遙控器用以控制室內機的運轉。控制範圍大約為7米,如果用電子方法控制室內照明的話,控制 範圍可能變小,特殊情況,可能導致遙控器信號無法到達。 此機器使用提供的安裝板固定在墻壁上,請在固定它之前,務必確認可以使用遙控器控制室內機。 請小心操作遙控器。避免跌落或者受潮。 信號傳送 傳送信號 POWERFUL按鍵 當信號傳送時, 可以選擇進入強勁運 此信號將閃亮。 轉模式。 (31页) 功能選擇按鍵 風速按鍵 可以選擇機器運 可以調節風速。 轉模式,每次按 鍵,模式將循環 開機/停止按鈕 進入製冷 ,除 可以選擇開機或者停 濕 ,送風 。 止機器。 ECO按鍵 上下搖擺按鈕 可以選擇進入節 可以調節水平導風板 能模式。 (32页) 的角度。 (34页) 睡眠按鍵 溫度調節按鈕 可以設定睡眠定 時器。 可以提高或者降低設...
  • Page 28 製冷運轉 製冷運轉 按壓功能選擇接鈕后顯示 製冷 (風速) (自動) (高) (中) (低) (寧靜) (高) :風速強勁 (中) :風速平穩 (低) :較安靜 (寧靜) : 非常安靜 在不同條件下,設定溫度與室溫有少許差異 按壓 (開始/停止)按鈕,發出提示音后製冷運轉開始。再次按壓 開始 這個按鈕將停止運轉,另設定溫度高於當前室溫冷氣機也不啟動(運 停止 轉指示燈始終點亮)。製冷運轉需要將設定溫度盡可能設定低於當前 房間溫度 設定將保存在遙控器內存中,下次可以直接按壓 (開始/停止)按鈕 - 28 -...
  • Page 29 按壓功能選擇鍵,遙控器液晶將顯示 按壓 (風速)按鈕選擇低速或者寧靜 開始 按壓 (開始/停止)按鈕 停止 需要設定運轉模式時,請使用功能選擇鍵 選擇適宜的溫度 除濕功能的目標溫度將略低於設定的室溫 - 29 -...
  • Page 30 送風運轉 可以使用此功能進行空氣循環,也可以在夏季結束后使用此功能乾燥室內機內部。 按壓功能選擇按鍵后顯示 (送風) 按壓 (風速)按鈕。 (高) :風速強勁 (中) :風速平穩 (低) :較安靜 (寧靜) : 非常安靜 開始 按壓 (開始/停止)按鈕,風扇開始運轉并發出提示音。 再次按壓此按鈕將停止運轉。 停止 風扇速度(自動) 製冷運轉時風扇速度設定為自動 運轉開始,將以高風速使房間溫度達到與設定的溫度 • 製冷運轉時 房間溫度到達與設定溫度后,風扇將自動調整為低風速 • - 30 -...
  • Page 31 強勁運轉 按壓 (強勁)按鈕將調整除濕,製冷,送風運轉至最大功率。 • 在強勁運轉時,室內機吹出的空氣將較冷。 • 按壓 (強勁)按鍵在運轉時 將顯示在遙控器液晶上 • " " 運轉 強勁運轉將運行60分鐘,之後將自動回復到強勁 運轉之前的設定狀態。 按壓 (開始/停止)按鈕。 • 或者再次按壓 (強勁)按鈕。 將從遙控器液晶上消失。 • " " 注 意 選擇節能模式后,強勁運轉將被取消。 • 在強勁運轉時,冷氣機的能力將不會增加 • -如果冷氣機已經運轉在最大功率輸出狀態。 自動重啟之後,強勁運轉將被取消,以之前的設定開始運轉。 • - 31 -...
  • Page 32 節能運轉 節能運轉是通過改變設定溫度和限制最大功率以實現。 在製冷或者除濕運轉時通過按壓 (節能)按鈕, 冷氣機將進入“節能運轉” 在運轉時按壓 (節能)按鈕。 將在遙控器液晶上顯示。 • 運轉 節能運轉開始,通過改變設定溫度及限制運轉 • 功率。 按壓 (開始/停止)按鈕。 再次按壓 (節能)按鈕。 從液晶上消失。 • 注意事項 如果功率消耗已經是很小時,節能功能不再降低功率消耗。 • 開啟(強勁)功能后,節能運轉將取消。 • 自動重啟之後,節能運轉將被取消,以之前的設定進行運轉。 • - 32 -...
  • Page 33 睡眠定時器的使用方法 在製冷,除濕,送風運轉時按壓 (睡眠)按鈕,冷氣機將調整房間溫度和重設風扇轉速。 模式 指令 1小時 2小時 3小時 12小時 睡眠定時器 定時器關閉 睡眠 睡眠定時器:冷氣機將在設定時間到達后停止運轉 定時器信息將顯示在遙控器液晶上,室內機定時燈也將點亮 并有提示音。 取消睡眠運轉 按壓 (開始/停止)按鈕 冷氣機將停止運轉。 ● 一直按壓 (睡眠)按鈕直到定時器關閉, 和 小時數字在遙控器液晶上消失。 室內機發出提示音並且室內機定時燈關閉。 ● 睡眠定時器被取消。 ● 注 意 如果開啟定時器或者關閉定時器已經設定,睡眠定時器設定時將代替開啟或關閉定時器的設定。 - 33 -...
  • Page 34 風向板的調節方法 風向板的上下方向調整 水平導風板在各種運轉狀態時被自動設定在合適的角度, 導風板可以使用 (上下搖擺)按鍵調整上下擺動或者 需要的角度。 • 如果 按壓 (上下搖擺)按鈕一次,水平導風板將上 下擺動,如再次按壓這個按鈕,導風板將停止在當前位置。 水平導風板的調整角度可以參照右圖。 • • 運轉停止的時候,水平導風板將搖擺至出風口關閉的位置。 警 告 • 製冷運轉時,不要長時間搖擺水平導風板,可能造成導風板 結露。 風向板的左右方向調整 • 如果按壓 (左右搖擺)按鈕一次, 導風板將左右 左右 擺動,如再次按壓這個按鈕,導風板將停止在當前位置。 遙控器 注 意 - 34 -...
  • Page 39 較低風速運轉時...
