Dimplex AC3 Installation And Operating Instructions

Air Curtain
Model AC3 and Model AC45
IMPORTANT
These instructions should be read and carefully retained
by the user.
The installation of this appliance should be carried out by a
competent electrician and be in accordance with the current
IEE wiring regulations. Tools required are an electrical
screwdriver with a 3mm wide blade, a No 2 posidriver, a
7mm AF open ended or box spanner, an 8mm AF open
ended spanner.

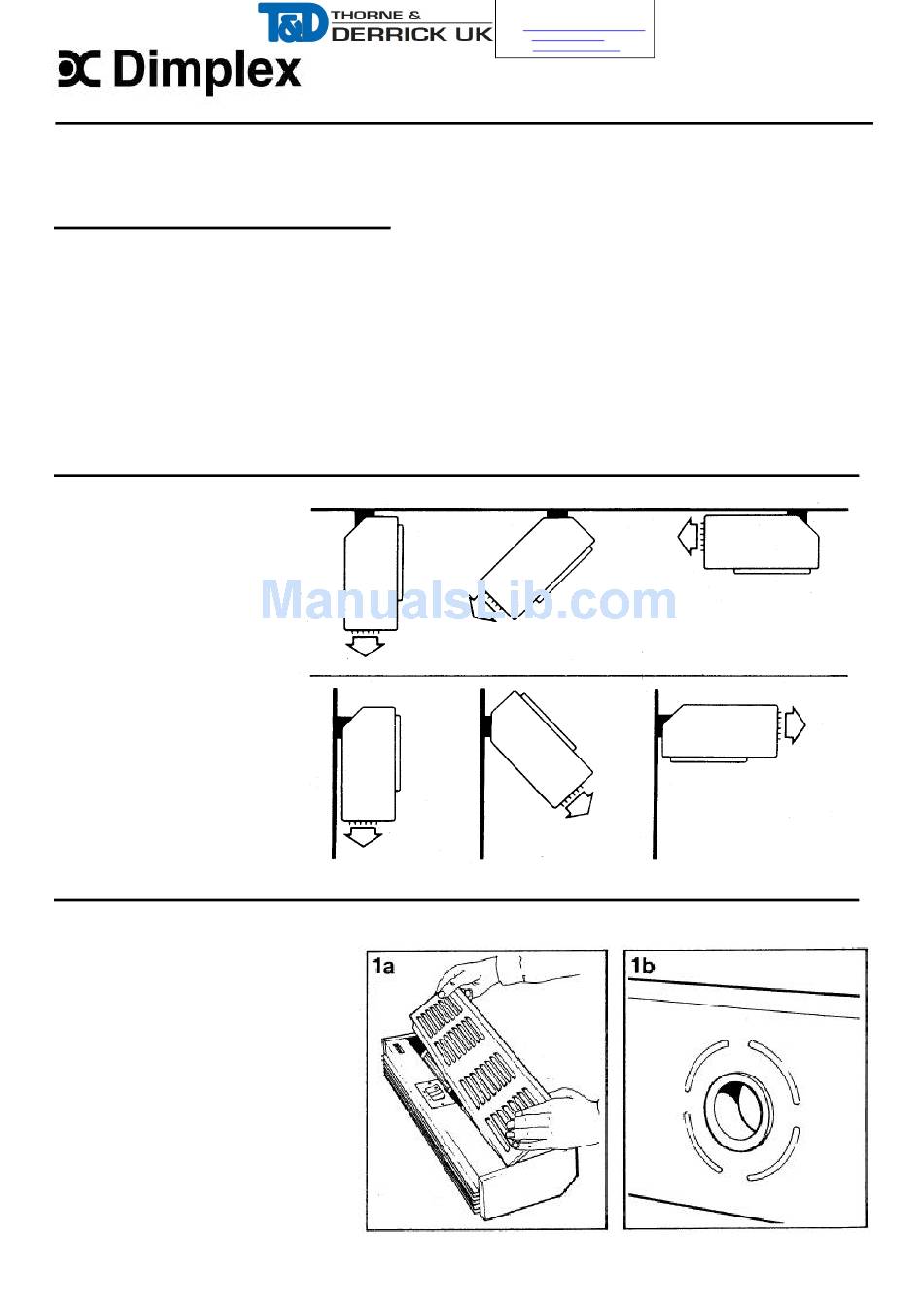

Fixing Positions
Ceiling
mounting
Wall
mounting
Heaters may be mounted end to
end for wide doorways.
Installation
1 (a) Remove front louvered panel by
removing two screws on top flange.
1 (b) If the electricity supply to the heater
is required via conduit entry or through
the remote control switch, it will be
necessary to remove the knockout
around the cable entry bush to provide
a 2Omm d iameter hole.
Tel: +44 (0)191 490 1547
Fax: +44 (0)191 477 5371
Email: northernsales@thorneandderrick.co.uk
Website: www.heattracing.co.uk
www.thorneanderrick.co.uk
Installation and Operating
Instructions
DO NOT COVER OR OBSTRUCT
grille.
Special instructions on fitting the heater to
a wall or ceiling:-
Solid brick or concrete block walls must be drilled and
plugged with Rawlplug No 10 size FIBRE inserts. The plug
must be located in the solid part of the wall, not just in the
plaster layer.
For panelled internal walls or ceilings, it is best to locate
the studding, position the heater fixing bracket accordingly
and use No 10 size wood screws. If it is not possible to
locate the studding, use type M5 Rawlplug INTERSETS,
making the 10mm holes with a drill rather than a bradawl or
a screwdriver.
the air inlet or outlet
