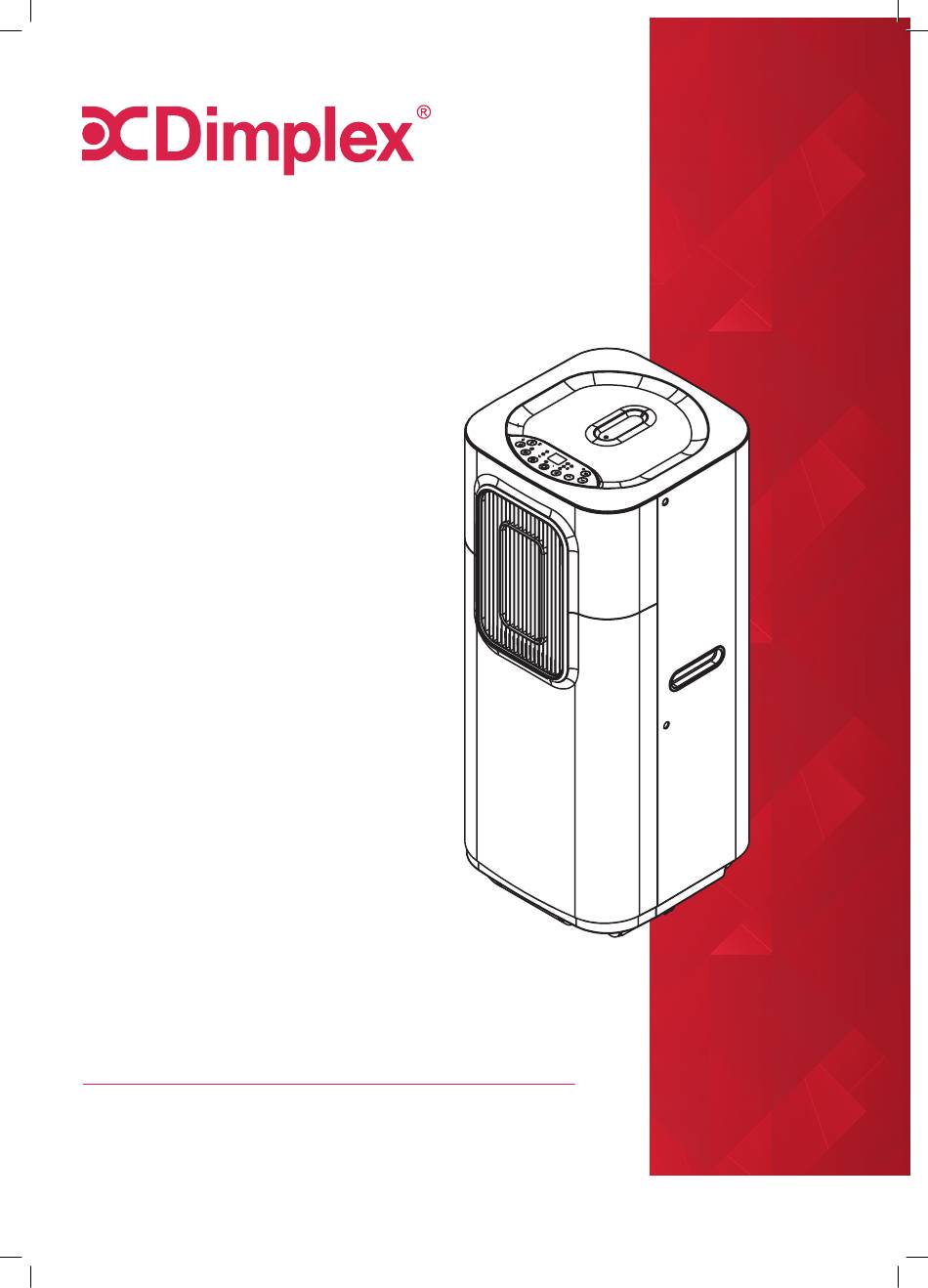

- Page 1 INSTRUCTION MANUAL Portable Air Conditioner Model: DPAC1201 For domestic household use only.
-
Page 2: Specification
Specification Model no. DPAC1201 Power supply 220~240V/50Hz Cooling Capacity (kW) 12000 BTU/ 3.5KW Heating Capacity (kW) 8,500BTU/ 2.5KW Power/Ampere consumption for cooling* 1350W/6.0A Power/Ampere consumption for heating* 980W/4.5A Compressor Rotary Refrigerant R290/ 200g Fan speeds Timer 1-24 hours Working temperature... -
Page 3: Before Use
Before use These symbols on your device mean: • This appliance is filled with Propane gas R290. Follow strictly the manufacturer’s instruction concerning use and repairs! • Before using the machine, read carefully the entire instruction manual. • Do not install, operate or store the device in a room smaller than 11m General Cautions FOR INDOOR USE ONLY. • Do not use in cabinet, closet, boats, caravans or similar locations. • Do not use the unit in swimming pools, washrooms or similar wet areas. •... - Page 4 • Avoid over-twisting, -coiling, -pulling the power cord, never use nylon or iron wire to tie the power cord. • Make sure that the plug and socket remain visible and accessible at all the time. • Do not use extension cords. •...
- Page 5 Safety relating to refrigerant R290: • Read these warnings carefully. • This appliance contains the refrigerant R290. R290 is a refrigerant that complies with the relevant European Directives. Never perforate the refrigerant circuit. R290 is flammable (GWP3)! • Do not use means to accelerate the defrosting process or to clean, other than those recommended by the manufacturer.
- Page 6 Parts Front Back 1. Control panel 2. Remote control 3. Air outlet 4. Air inlet 5. Exhaust air outlet 6. Air inlet 7. Water stopper/ drainage point 8. Air inlet 9. Cord storage 10. Air inlet Accessories 1. Flat Type Adaptor - for insertion over hose & connected with window shield 2.
-
Page 7: Installation
Installation The unit is a portable air conditioner that may be moved from room to room. Before using your air conditioner, you will need to install the exhaust pipe so that the condensed heat from the appliance are released onto an outside, open-air area. To install the exhaust pipe, feed the end of the tube through any available window and secure it into place using the included adapter. - Page 8 Apply the velcro over the window frame. pply the velcro over the window frame. 3. Apply the velcro over the window frame. Apply the velcro over the window frame. shield over the velcro. 4. Apply the window shield over the velcro. Apply the window shield over the velcro.
- Page 9 Install the adapters and hose to the unit : • Use only the hose provided and clip exhaust hose to the back of the air conditioner • Avoid kinks and bends in the exhaust hose as this will cause expelled moist air to build up causing the unit to overheat and shut down. Fig 5 &...
- Page 10 Installation of the carbon filter 1. Remove the plastic filter from the unit. 2. Remove the active carbon filter from its plastic bag. 3. Place the active carbon filter onto the unit. 4. Replace the plastic filter on to the unit.
-
Page 11: Operation
Operation Control Panel 18 17 16 15 14 13 8 10 “ Sleeping” mode soft touch button DEHUMIDIFY(DRY) mode indicator “Timer” soft touch button Heating mode indicator Speed (ventilation) soft touch button Automatic mode indicator Indicator for compressor operation Display window ON/OFF (power) soft touch button Low fan speed indicator “Full Water”... - Page 12 3. The unit will shut down automatically after the SLEEP function running for 12 hours. 4. P lease note, the sleep function is not available while the machine is working in AUTO 5. When the machine is in Sleep function, the Fan Speed would turn to be LOW speed. or FAN (ventilation) mode. Wi-Fi Function To set up the Wi-Fi function, download the Glen Dimplex Connect app, and follow the step-by-step instructions.
- Page 13 E2 Copper head sensor breaks down (on the discharge tube), please replace it. Should any malfunction occur, please contact our GDI support team. Glen Dimplex Ireland Service: Telephone: 01 8424 833 Email: serviceireland@glendimplex.com Glen Dimplex Ireland UC, Airport Road, Cloghran, Co. Dublin Remote control Put on unit top with Battery type CR2032 (1pc), NOT included.
- Page 14 Drainage During the process of cooling, some water will be extracted from the air into the unit. If the reservoir is full, both the compressor and motor will stop and the units will buzz (you can press any button to stop the buzzing). The (W.F) Water Full indicator will flash when full. To make the cooling work again, please empty the water by one of the following ways: 1.
-
Page 15: Maintenance
Maintenance Always unplug the air conditioner from the mains before cleaning. To maximize the efficiency of the air conditioner clean regularly. Cleaning the housing • Use a soft, damp cloth to wipe the body clean. • Never use aggressive chemicals, gasoline, detergents, chemically treated cloths, or other cleansing solutions. -
Page 16: Fault Check List
Fault check list The air conditioner does not run. • Is the air conditioner plugged in? • Is there a power failure? • Is the comp / ‘full water’ indicator flashing? • Is the room temperature below the set temperature? The machine seems to do little. - Page 20 Customer Care: 01 8424 833 serviceireland@glendimplex.com www.glendimplexireland.com © Glen Dimplex. All rights reserved. Material contained in this publication may not be reproduced in whole or in part, without prior permission.
