CONFERENCE SYSTEM

TABLE OF CONTENTS

1. SAFETY PRECAUTIONS .............................. 2
2. GENERAL DESCRIPTION ............................ 4
3. FEATURES .................................................... 4
Please follow the instructions in this manual to obtain the optimum results from this unit.
We also recommend that you keep this manual handy for future reference.

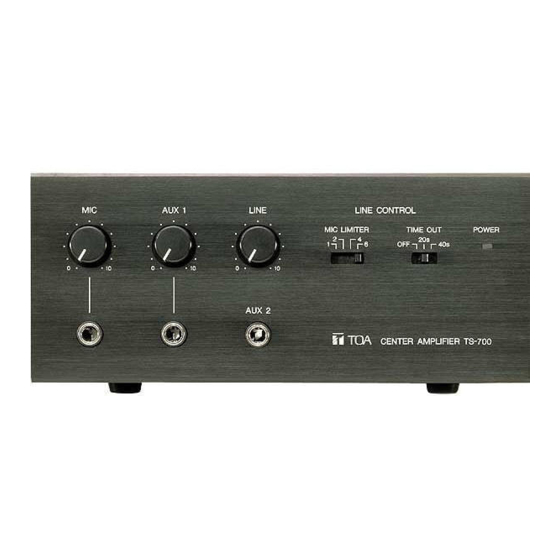

CENTER AMPLIFIER
CHAIRMAN UNIT
DELEGATE UNIT
TS-700
and Delegate Unit ......... 6
INSTRUCTION MANUAL
TS-701
TS-702
5.1. Using The Conference Unit ..................... 7
(Chairman Unit TS-701Onry) ................. 7
5.3. Mic-off Function ...................................... 8
5.5. Recording .............................................. 10
7. SYSTEM EXPANSION ................................ 13
8. BLOCK DIAGRAM ...................................... 15
9. SPECIFICATIONS ....................................... 16
10. DIMENSIONAL DIAGRAM ........................ 17
11. TROUBLESHOOTING .............................. 19
TS-700
TS-701
TS-702

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TS-700 and is the answer not in the manual?

Questions and answers

Related Manuals for Toa TS-700

Summary of Contents for Toa TS-700

  • Page 1: Table Of Contents

    (Chairman Unit TS-701Onry) ....7 4. NOMENCLATURE 5.3. Mic-off Function ........8 4.1. Center Amplifier TS-700 Front Panel ..4 5.4. Limiting The Number of Simultaneously 4.2. Center Amplifier TS-700 Rear Panel ..5 Usable Delegate Units (TS-702) ..9 4.3.

  • Page 2: Safety Precautions

    AC outlet and contact your nearest TOA dealer. Make no further • Use the unit only with the voltage specified on the attempt to operate the unit in this condition as this unit.
  • Page 3 • Avoid installing the unit in humid or dusty locations, • Contact your TOA dealer as to the cleaning. If dust in locations exposed to the direct sunlight, near the is allowed to accumulate in the unit over a long...

  • Page 4: General Description

    2. GENERAL DESCRIPTION The conference system can be easily installed by merely connecting the center amplifier (TS-700) to the conference units (TS-701 chairman unit and TS-702 delegate unit) using the supplied cable. It can be put away quickly after the conference is finished.

  • Page 5: Center Amplifier Ts-700 Rear Panel

    4.2. Center Amplifier TS-700 [Rear panel] 100-120V 220-230V operation operation Chime volume control [CHIME] Recording output terminal [REC OUT] (Phone jack) Adjusts the volume of the chime sounded when Connects to the AR-71B alternating recording the chairman unit's priority button is pressed.

  • Page 6: Delegate Unit Ts-702 Front Panel

    4.4. Delegate Unit TS-702 [Front panel] Speaker Outputs the speaker's voice. Adjust the volume with the center amplifier's LINE volume control. The speaker is temporarily disabled while the microphone in-use indicator is on. Gooseneck microphone Keep your mouth 10–15 cm away from the microphone when speaking. Because the orientation of the microphone can be changed, set the microphone in the best position.

  • Page 7: Operations

    5. OPERATIONS 5.1. Using The Conference Unit 1. Press the TALK button. The microphone in-use indicator lights, and the microphone can be used. 2. Speak into the microphone. 3. Press the TALK button again after speech completion. (The microphone in-use indicator is extinguished.) 5.2.

  • Page 8: Mic-Off Function

    The break time can be set for either 20 or 40 seconds using the center amplifier's mic-off setting switch (TIME OUT). Set the switch to OFF if this function is unnecessary. Center amplifier (TS-700) front panel The OFF position disables...

  • Page 9: Limiting The Number Of Simultaneously Usable Delegate Units (Ts-702)

    Using the center amplifier's speaker restriction switch (MIC LIMITER), the number of simultaneously-usable delegate units (TS-702) can be limited. Set the switch to 1, 2, 4 or 6 depending on the conference scale. MIC LIMITER Center amplifier (TS-700) front panel Sets the number of delegate units that can be used simultaneously.

  • Page 10: Recording

    AR-71B Center amplifier Center amplifier (TS-700) rear panel (TS-700) rear panel 2. Connect a set of headphones into the recorder's monitor output to confirm that the contents of the conference are being recorded correctly. Adjust the recorder's recording level control.

  • Page 11: Installations And Connections

    Note that the system does not operate if the cords are connected in reverse orientation. Space the conference units 1.5 – 2 m apart. Center amplifier (TS-700) rear panel Conference unit rear panel Conference unit rear panel...
  • Page 12 5. Press the chairman unit's PRIORITY button to sound a single-tone chime and adjust its volume with the chime volume control located on the center amplifier rear panel. Chime volume control (CHIME) Priority button (PRIORITY) TS-701 Center amplifier (TS-700) rear panel Chairman unit TS-701 Delegate unit Delegate unit TS-702 TS-702 6.

  • Page 13: System Expansion

    Lock screw MAIN MAIN (EXPANSION) (EXPANSION) Center amplifier (TS-700) rear panel 2. Using the extension cord, connect the center amplifier's line 1 or line 2 terminal to the expansion amplifier's line 1 terminal. Extension cord YR-700 To line 1 To line 1 or line 2...
  • Page 14 4. Connect the conference units. Up to 35 units can be connected per expansion amplifier. One each of the expansion amplifier can be connected to the center amplifier's line 1 and line 2 terminals. Expansion amplifier Center amplifier Expansion amplifier rear panel rear panel rear panel...

  • Page 15: Block Diagram

    35 V Lines 1 and 2 Recording output LINE Number of AUX1 speakers AUX1 Center amplifire TS-700 AUX2 CHIME 125 V 2 A (100 – 120 V operation) Chime Priority control 250 V T800 mA (220 – 230 V operation)

  • Page 16: Specifications

    9. SPECIFICATIONS [TS-700] Power Source 100 V/120 VAC changeable, 50/60 Hz (100 – 120 V operation) 220 V/230 VAC changeable, 50/60 Hz (220 – 230 V operation) Power Consumption Max. 135 W 600 Ω, –60 dBV, unbalanced Input Microphone AUX 1 10 kΩ, –20 dBV, unbalanced...

  • Page 17: Dimensional Diagram

    10. DIMENSIONAL DIAGRAM (Unit: mm) [Center Amplifier TS-700] [Chairman Unit TS-701]...
  • Page 18 [Delegate unit TS-702] [Connection cord] (Supplied with the TS-701 and TS-702) [Extension cord YR-700] (Option)

  • Page 19: Troubleshooting

    Connect 1 m cable to conference speaker. connected. unit, 2 m cable to center amplifier, and extension cord to junction box. Center amplifier's (TS-700) line Set line volume control to volume control (LINE) is set to appropriate position. minimum position.
  • Page 20 133-12-497-4B...
