Related Manuals for Shure Axient

Summary of Contents for Shure Axient

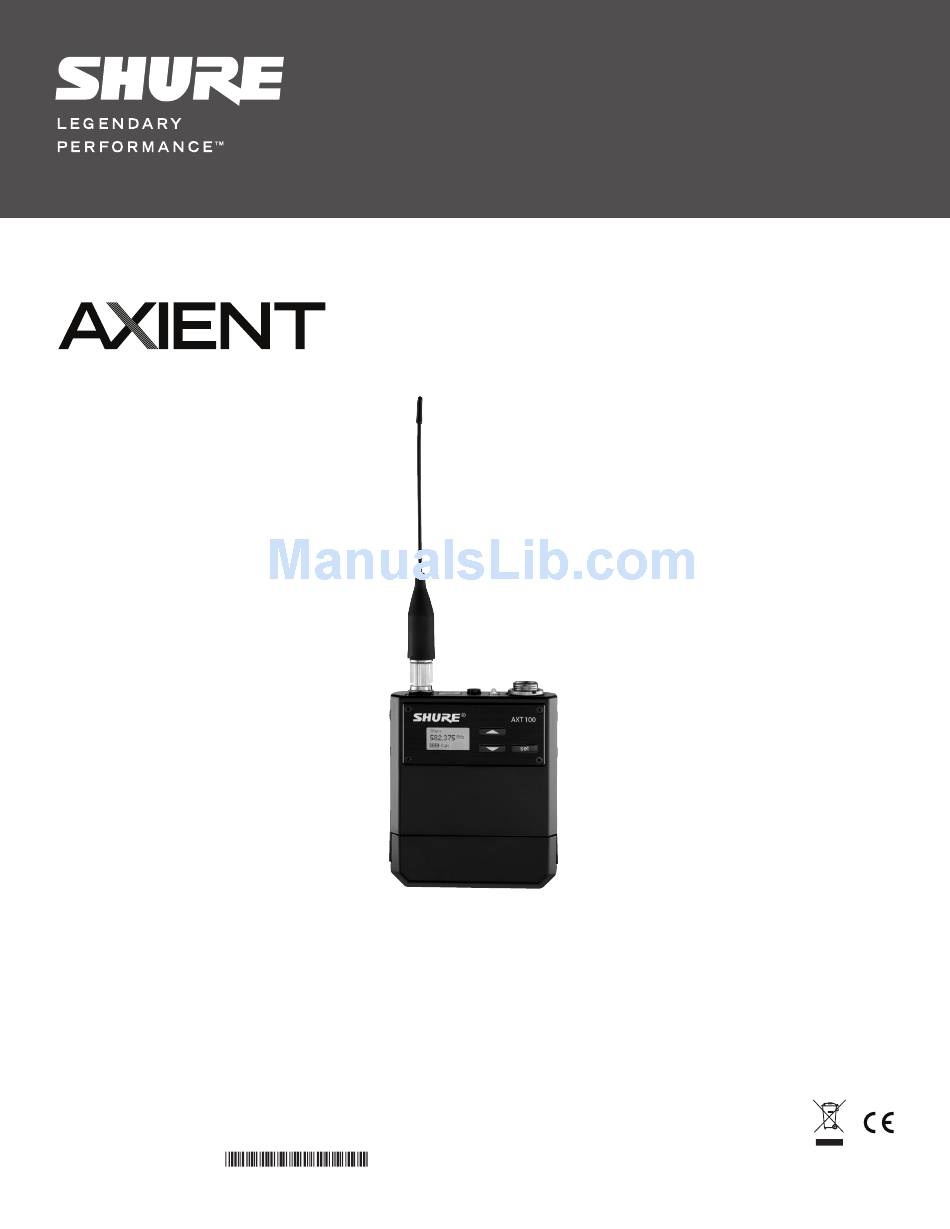

  • Page 1 AXT100 Bodypack Transmitter ©2011 Shure Incorporated Printed in USA 27B15017 (Rev. 2)
  • Page 2 • Do not short circuit; may cause burns or catch fire • Do not charge or use battery packs with other than specified Shure products • Dispose of battery packs properly. Check with local vendor for proper disposal of used battery packs...

  • Page 3: Transmitter Overview

    Linked transmitter is within range of a ShowLink Access Point • Compatible with all Shure wireless microphones that have a TA4F connector. • Shure lithium-ion rechargeable battery delivers up to 8 hours of runtime from a • LEMO connector version (AXT100LEMO3) available for use with LEMO...

  • Page 4: Battery Runtime

    Batteries Battery Runtime The transmitter is powered by a Shure lithium-ion rechargeable battery. Battery runtime varies according to the transmitter’s operating mode. High power settings will reduce battery runtime. Caution: Turn off the transmitter before changing batteries. Remaining battery runtime is shown on the display in hours and minutes (accurate to within 15 minutes).

  • Page 5: Parameter Menus

    Firmware Updates Firmware is embedded software used to control features and the user interface. Periodically, new versions of firmware are available for download from www.shure.com/wwb to incorporate additional features and enhancements. New versions of the firmware can be downloaded to AXT400 Receiver using the Firmware Update Manager tool available in WWB6 software and installed on the transmitter using the infrared ports on the transmitter and receiver.
  • Page 6 470 to 530 10/100 Gain Adjustment Range -10 to +40 dB (in 1 dB steps) 470 to 530 10/50 Battery Type Shure AXT910 (Rechargeable Li-Ion) 518 to 578 10/100 Battery Life Up to 8 hours (low power mode) 518 to 578 10/50 Dimensions 77 mm x 66 mm x 17 mm (3.0 in.

  • Page 7: System Gain

    The table below offers a comparison of the output gain at the XLR output for AXT400 and UR4 receivers for each transmitter model. Use the information in the table to achieve consistent gain levels when using systems comprised of both Axient series and UR series components.
  • Page 8 Licensing: A ministerial license to operate this equipment may be required in certain areas. Consult your national authority for possible requirements. Changes or modifica- tions not expressly approved by Shure Incorporated could void your authority to operate the equipment. Licensing of Shure wireless microphone equipment is the user’s responsibility, and licensability depends on the user’s classification and application, and on the selected frequency.
  • Page 9 United States, Canada, Latin Europe, Middle East, Africa: Asia, Pacific: America, Caribbean: Shure Asia Limited Shure Europe GmbH Shure Incorporated 22/F, 625 King’s Road Jakob-Dieffenbacher-Str. 12, 5800 West Touhy Avenue North Point, Island East 75031 Eppingen, Germany Niles, IL 60714-4608 USA...
