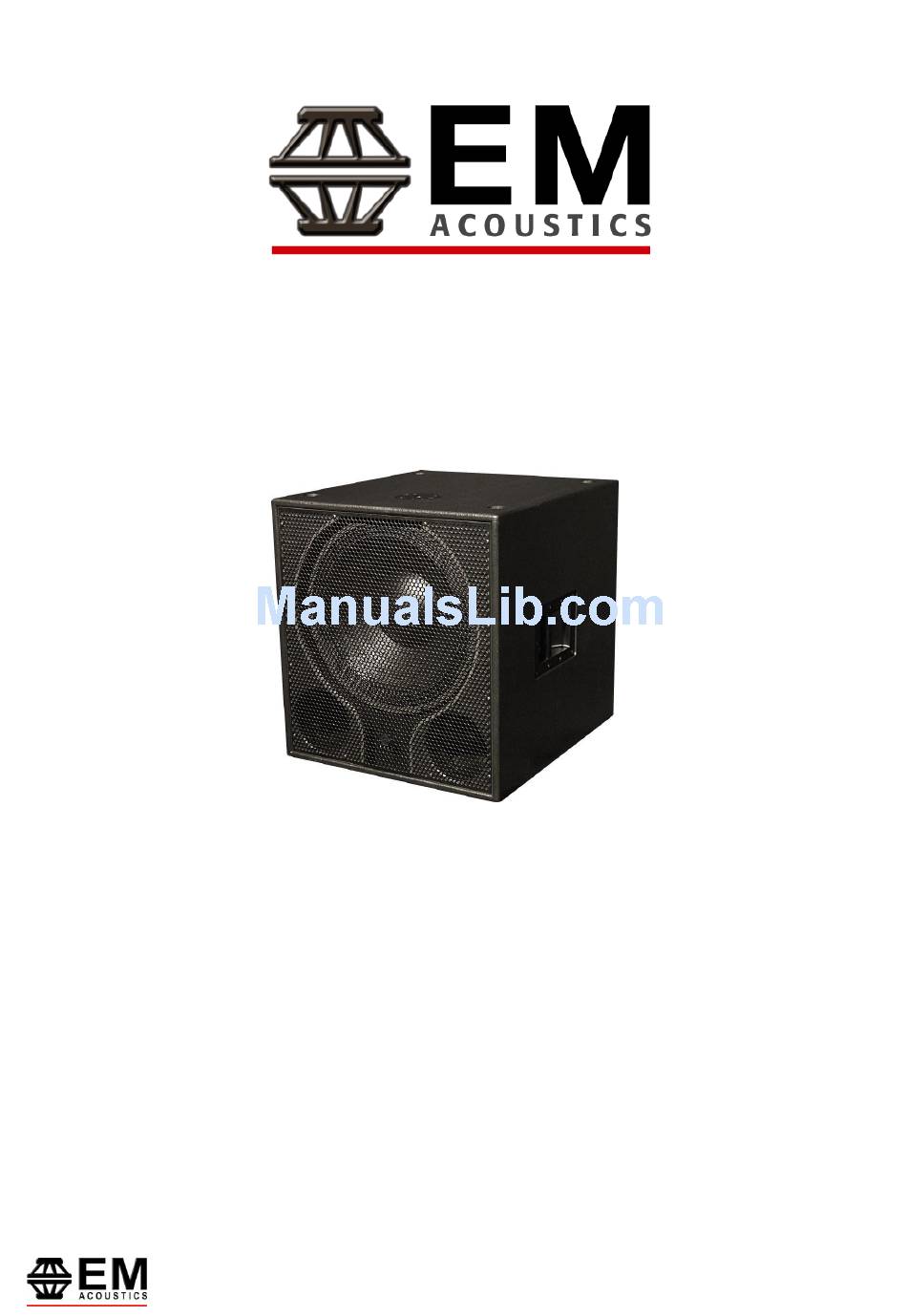

EMS-118 compact reflex subwoofer
User Manual – v1.0
EM Acoustics Loudspeakers
Building 74, Dunsfold Park
Cranleigh, Surrey
GU6 8TB, UK
Phone +44 (0) 1483 266520
Fax +44 (0) 1483 275619
www.emacoustics.co.uk
_________________________________________________________________________________________
Copyright EM Acoustics 2012
1
EMS-118 User Manual
www.emacoustics.co.uk
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for EM Acoustics EMS-118
Summary of Contents for EM Acoustics EMS-118
- Page 1 EMS-118 compact reflex subwoofer User Manual – v1.0 EM Acoustics Loudspeakers Building 74, Dunsfold Park Cranleigh, Surrey GU6 8TB, UK Phone +44 (0) 1483 266520 Fax +44 (0) 1483 275619 www.emacoustics.co.uk _________________________________________________________________________________________ Copyright EM Acoustics 2012 EMS-118 User Manual www.emacoustics.co.uk...
-
Page 2: Table Of Contents
CONTENTS Introduction Thank you ...……………………………………………………………………………………………………………………………. 3 Unpacking ……………………………………………………………………………………………………………………………….. 3 Declaration of Conformity …………………….…………………………………………………………………………………… 3 Product Overview EMS-118 compact reflex subwoofer....……………………………………………………………………………… 4 System Set-up Safety Considerations………………………………………………………………………………………………………………… 5 Cabling & Amplifier selection ……………………………………………………………………………………………………… 6 DSP Settings ..........................7 Maintenance EMS-118 Drive Unit Service ………..……………………………………………………………………………………………….7 Warranty ……………………………………………………………………………………………………………………………………………. -
Page 3: Thank You
INTRODUCTION Thank you Thank you for purchasing a product from the acclaimed EMS Series from EM Acoustics. The EMS Series products have been carefully designed and rigorously tested to ensure years of flawless operation and unprecedented sonic quality. Flexibility is the key factor with EMS products, and consequently they are at home within a wide variety of applications from live and portable applications, through to cafes, bars, nightclubs, theatres and conference centres. -
Page 4: Product Overview
The EMS-118 is suited to a wide variety of professional audio applications, from corporate and theatre use through to medium scale front of house or nightclub use. -
Page 5: System Set-Up
Loudspeaker systems are potentially dangerous objects if used incorrectly. Please ensure that you read this section fully, and contact EM Acoustics or your local dealer should you be in any doubt over correct operation procedures. Professional loudspeaker systems are capable of producing damage-inducing sound pressure levels, and hence care should be taken when setting your system up, particularly when it comes to loudspeaker placement within a venue. -
Page 6: Cabling & Amplifier Selection
Cabling and Amplifier Selection The EMS-118 is designed to be used with professional power amplifiers providing the following power outputs: EMS-118 2000W/channel into four ohms A small power amplifier working too hard is more likely to damage a loudspeaker than a large power amplifier working within its operating range! It is good practice to use an amplifier equal to the program power rating of the loudspeaker –... -
Page 7: Dsp Settings
– as the user you are given maximum flexibility to adjust for your taste. To protect the drive unit, it is also advisable to apply a high pass filter to the system to protect the EMS-118 drive unit from over- excursion from frequencies it cannot reproduce. -
Page 8: Warranty
Serial numbers must be quoted in all correspondence relating to the claim. EM Acoustics or its representatives are in no way liable for any loss or damage in transit, and hence it is recommended that the sender insure the shipment. -
Page 9: Appendix A - Technical Specifications
APPENDIX A – TECHNICAL SPECIFICATIONS EM Acoustics operates a continuous process of research and development, and as such reserves the right to alter specifications without notice. EMS-118 ENCLOSURE TYPE: single driver reflex-loaded subwoofer DIMENSIONS (HxWxD): 635 (25) x 590 (22.2) x 650 (25.6) mm/(ins) NET/SHIPPING WEIGHT: 55/58kg (121/127.6lbs)
