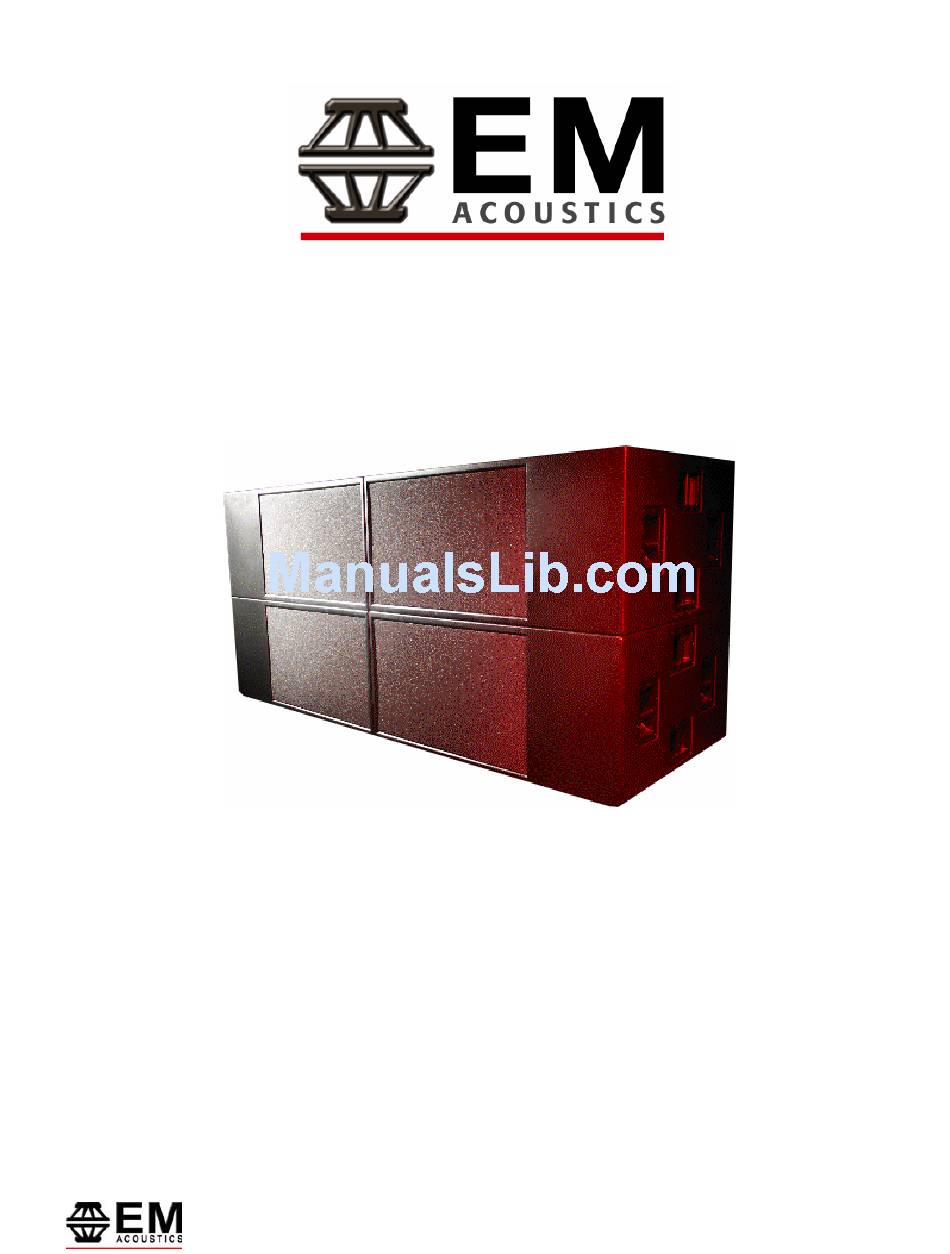

- Page 1 QUAKE MSE-118 Subwoofer User Manual – v1.0 EM Acoustics Loudspeakers Building 74, Dunsfold Park Cranleigh, Surrey GU6 8TB, UK Phone +44 (0) 1483 266520 Fax +44 (0) 1483 275619 www.emacoustics.co.uk _________________________________________________________________________________________ Copyright EM Acoustics 2006 MSE-118 Quake User Manual www.emacoustics.co.uk...
-
Page 2: Table Of Contents
CONTENTS Introduction Thank you ...……………………………………………………………………………………………………………………3 Unpacking ……………………………………………………………………………………………………………………….3 Declaration of Conformity ……………………………………………………………………………………………… . 3 Product Overview MSE-118 Quake Subwoofer enclosure ………………..……………………………………………………………...4 System Set-up Safety Considerations………………………………………………………………………………………………………..5 Cabling & Amplifier selection ……………………………………………………………………………………………..5 Quake in use Stacking …….…………………………………………………………………………………………………………………….6 Stack Placement………………………………………………………………………………………………………………. 7 Delay Times ……………………………………………………………………………………………………………………. 8 Maintenance MSE-118 Unit Service….. -
Page 3: Thank You
Unpacking Every EM Acoustics product is built to the highest standard and thoroughly tested before it leaves our factory. After unpacking your loudspeaker, please inspect it carefully for any signs of transit damage. If such damage is found, please notify the carrier at once to instigate a claim. -
Page 4: Product Overview
PRODUCT OVERVIEW The MSE-118 Quake is a high power, true horn-loaded subwoofer, designed for the ultimate in low frequency performance. By matching the utmost in drive unit technology with tireless research into the development of horn technology, Quake produces phenomenal performance from an enclosure housing only a single 18” drive unit. The substantial enclosure houses a single proprietary 18”... -
Page 5: System Setup
SYSTEM SETUP Professional loudspeaker systems are potentially dangerous objects if used incorrectly. Please ensure that you read this section fully, and contact EM Acoustics or your local dealer should you be in any doubt over correct operation procedures. Professional loudspeaker systems are capable of producing damage-inducing sound pressure levels, and hence care should be taken when setting your system up, particularly when it comes to loudspeaker placement within a venue. -
Page 6: Quake In Use
Quakes, however this section of the manual is vital to ensure you get the best out of them. Please read it carefully, and should you have any questions please do not hesitate to contact either your local EM Acoustics representative or contact us directly at info@emacoustics.co.uk. Stacking There are two basic possibilities when it comes to stacking Quakes –... -
Page 7: Stack Placement
Stack Placement In order to reduce the classic “bowling alley” effects when stacks are used in a traditional left/right format, some users prefer to array their Quakes as a single line across the front of the stage. Not only does this method give extra horn area in one place, but will provide an even dispersion rather than a strong +6dB boost on the centreline as with L/R systems. -
Page 8: Delay Times
Delay Times Quake is a long horn subwoofer, and as such the drive unit is effectively sitting some distance behind the enclosure when thinking in time. To compensate for this, your system delays should delay your mid/high enclosures back to line up with the Quakes, otherwise the response from the system will be muddy and incoherent. Exact delay times will vary depending on the product being used with the Quakes, and the physical orientation. -
Page 9: Maintenance
MAINTENANCE Your EM Acoustics loudspeakers have been rigorously tested before they leave our factory, to ensure that they give you a lifetime of flawless operation. Should any of your drive units fail and need replacing, please follow the guidelines below. -
Page 10: Warranty
Serial numbers must be quoted in all correspondence relating to the claim. EM Acoustics or its representatives are in no way liable for any loss or damage in transit, and hence it is recommended that the sender insure the shipment. -
Page 11: Appendix A - Technical Specifications
APPENDIX A – TECHNICAL SPECIFICATIONS EM Acoustics operates a continuous process of research and development, and as such reserves the right to alter specifications without notice. MSE-118 Quake Enclosure Type: exponential/hyperbolic folded horn Dimensions (HxWxD, mm/ins): 1200/47.2 x 574/22.6 x 950/37.4...
