Summary of Contents for Bauhn AS-42LED1

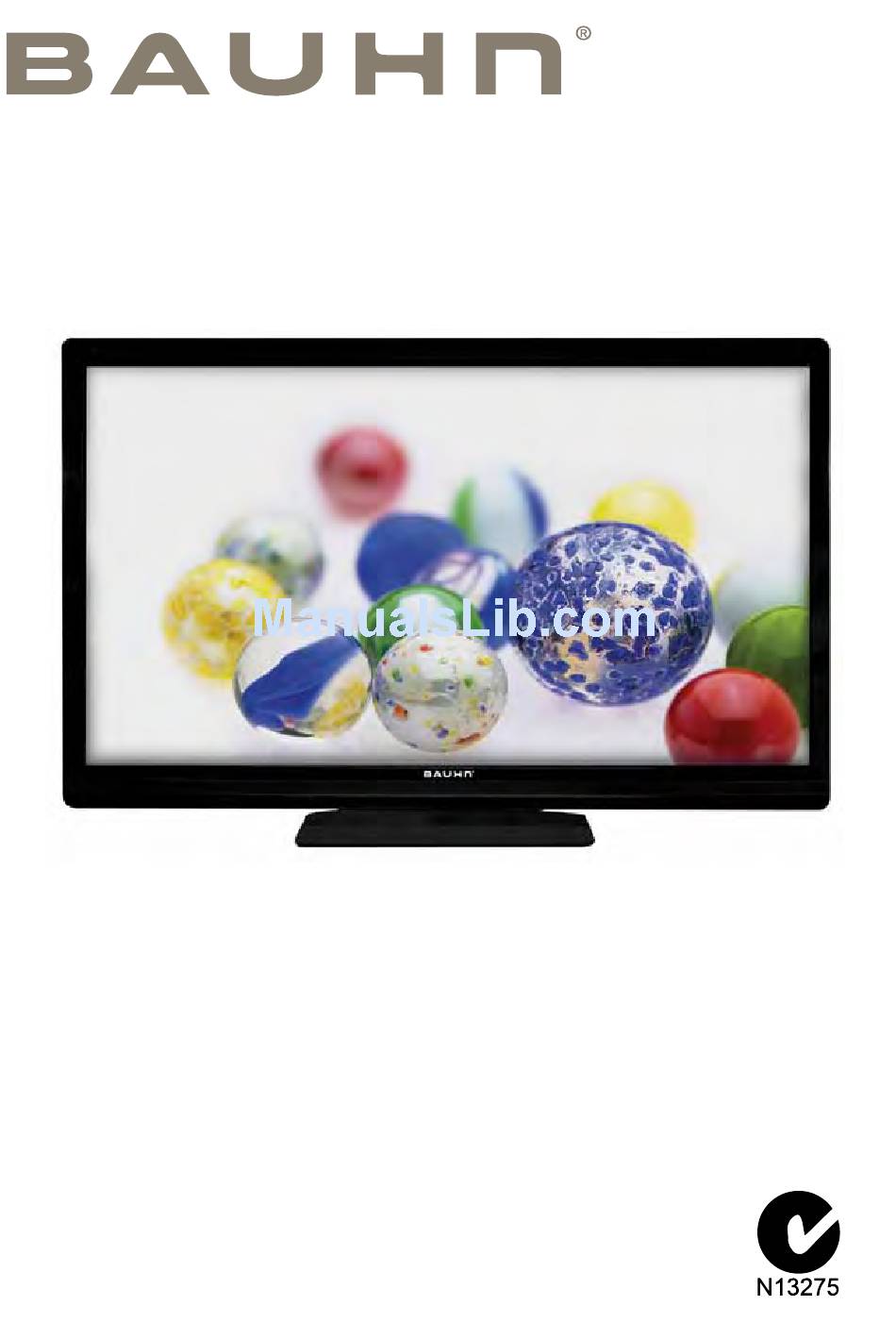

- Page 1 106cm (42”) FHD 100Hz LED TV Instruction Manual Model Number AS-42LED1 After sales support TEL: 1300 886 649...
-
Page 2: What Your 2 Years Warranty Means
106cm (42”) FHD 100Hz LED TV What your year warranty means Great care has gone into the manufacture of this product and it should therefore provide you with years of good service when used properly. In the event of product failure within its intended use over the course of the first years after the date of purchase, we will remedy the problem as quickly as possible once it has been brought to our attention. -
Page 3: Table Of Contents
Contents Pages What your 2 years warranty means............ Welcome...................... Important Safety Instructions............... Front Panel and Back Panel..............Antenna/Cable Connection & Quick reference guide....Remote Control..................Basic Operation..................FAQ’s......................Specifications..................... Base Installation/removal............... After Sales Support TEL: 1300 886 649... -
Page 4: Welcome
Welcome Section Congratulations on choosing to buy a BAUHN product. By doing so you now ® have the assurance and peace of mind that comes with purchasing a product made by one of the leading manufacturers. All products brought to you by... -
Page 5: Important Safety Instructions
Important Safety Instructions Read all of the instructions before operating the set. Keep these instructions in a safe place for further use. • If a television is not positioned in a sufficiently stable location, it can be potentially hazardous due to falling. -
Page 6: Front Panel And Back Panel
Front Panel and Back Panel NOTE: The graphics are for representation only. 1. POWER ON/OFF 2. POWER INDICATOR 3. REMOTE SENSOR 4. PROGRAM UP/DOWN BUTTON 5. VOLUME UP/DOWN BUTTON 6. MENU BUTTON 7. TV/AV BUTTON 8. SPEAKERS 1. VGA INPUT 2. -
Page 7: Antenna/Cable Connection & Quick Reference Guide
Antenna/Cable Connection There are two kinds of antenna in use. NOTE: 1. Current outdoor antenna or cable TV usually use 75 OHM coaxial antenna cable. For better reception we suggest using this kind of antenna cable. 2. Flat cable or indoor antenna are an old design, the reception may not be good enough (not recommended). -
Page 8: Remote Control
Remote Control STANDBY button Press to turn the TV on or off (standby). AUTO button Press to adjust the picture automatically in PC mode. FAV button Press to select FAV. program one by one. Media button Press to enter Media/USB mode. 5. - Page 9 For using the remote control, follow these instructions: 1. Open the back cover of the remote control, then insert two AAA batteries with polarities matching with the marks inside the battery compartment. Then, close the back cover. 2. Point the remote control towards the infra-red remote sensor on the main unit. If there is an obstacle between the main unit and remote control, the remote control may not operate properly.
-
Page 10: Basic Operation
Basic Operation Input Source Press INPUT button to display the input source list; Press the button to select the input source you want to watch; Press the ENTER button to enter the selected input source. Press the MUTE button on the remote control, this icon will display on the top-left corner of the menu. -
Page 11: Atv Source
ATV Source Video Menu Press the MENU button on the front of panel or MENU on the remote control to display the main menu. Press button to select Video in the main menu, then press the ENTER button or button to enter. 1. -
Page 12: Audio Menu
Colour Temp Press / button to select Colour Temp, then press ENTER button to enter and press / button to select. (Available color temp: Cold, Normal, Warm). Press button to select NR, then press ENTER button to enter and press / button to select. - Page 13 Balance Press / button to select Balance, then press the ENTER button to enter and press button to adjust. Treble Press / button to select Treble, then press the ENTER button to enter and press button to adjust. Bass Press / button to select Bass, then press the ENTER button to enter and press button to adjust.
- Page 14 TV Menu Press MENU button on the front of panel or MENU on the remote control to display the main menu. Press button to select TV in the main menu, then press ENTER button or button to enter. 1. Press / button to select the entry that you want to adjust.
- Page 15 Move Press / button to select the channel that you want to move. Press BLUE button on the remote control, then press / button to select the location you would like to move the channel. Press ENTER button to move. Press / button to select what you want to make a favorite channel, then press button to select fav and press ENTER button to confirm, press ENTER button again will set it to a normal...
- Page 16 Manual Search Press / button to select Manual Search, then press ENTER button to enter. Channel No. Press button to select Channel No., then press / button to adjust. Color System Press button to select Color System, then press / button to select Auto, SECAM, PAL. Sound System Press button to select Sound System, then press / button to select BG, L/L, D/K, I.
- Page 17 Setup Menu SETUP Setup Wizard Reset Press MENU button on the front of panel or MENU on the remote control to display the main menu. Press button to select Setup in the main menu, then press ENTER button or button to enter. 1.
- Page 18 Time Menu TIME Region ID PVR Schedule Press MENU button on the front of panel or MENU on the remote control to display the main menu. Press button to select Time in the main menu, then press ENTER button or button to enter.
-
Page 19: Others Menu
Time Press button to select hour, then press / button to choose the hour of current time, Chooses the minute with the similar method. Press / button to select AM or PM. NOTE: Only when you set the Time Mode -- Manual -- you can set the Current Time . WakeUp Time Press / button to select WakeUp Time, then press ENTER button to enter. - Page 20 Media/USB Press / button to select Media/USB, then press ENTER button to enter. Select Press / button to select Select, then press ENTER button to enter. More details about Media/USB, please see the Media/ USB source. Format Press / button to select Format, then press ENTER button to enter. Press ENTER button to select FAT32, EXT3 or EXT2.
- Page 21 AV Source Setup Menu Press MENU button on the front of panel or MENU on the remote control to display the main menu. SETUP Setup Wizard Reset Press button to select Setup in the main menu, then press ENTER button or button to enter.
- Page 22 YPBPR/HDMI1/HDMI2/HDMI3 SOURCE Others Menu Press MENU button on the front of panel or MENU on the remote control to display the main menu. OTHERS MEDIA Press button to select Others in the main menu, then press ENTER button or button to enter. 1.
- Page 23 PC SOURCE Press MENU button on the front of panel or MENU on the remote control to display the main menu. Press button to select PC in the main menu, then press ENTER button to enter. 1. Press / button to select the entry that you want to adjust. 2.
-
Page 24: Dtv Source
NOTES: 1. Sharpness is invalid in PC source, and it will be shown in grey. Other menu and descriptions are the same with the ATV source. 2. Audio menu and description are the same with the ATV source. 3. Setup menu and description are the same with the AV source. 4. - Page 25 Channel Press button to select Channel, then press / button to adjust. Frequency Press button to select Frequency, then press / button to adjust. NOTE: Program edit and auto search menu and description are the same with the ATV source. Setup Menu SETUP Setup Wizard...
- Page 26 Subtitle Mode Press / button to select Subtitle Mode, then press ENTER button to enter and press / button to choose Normal or Hard of Hearing. Subtitle Language Press / button to select Subtitle Language, then press ENTER button to enter and press / button to choose.
- Page 27 Picture Press / button to select Picture and press button to show all folders and picture documents. When the cursor is on the left, press the button to return back to the previous menu. Press / button to choose a picture, press ENTER button, the OSD will appear as an icon as follows: Press button to select...
- Page 28 Music MEDI A Press / button to select Music folder and press button to show all folders and music docu- ment. When the cursor is on the left, press button to return back to the previous menu. Press / button to choose the music files, the menu will appear on the left. Press ENTER button, the menu will appear as an icon below: Press button to select...
- Page 29 Movie/PVR MEDI A Press / button to select Movie and press button to show all folders and movie document. When the cursor is on the left, press button to return back to the previous menu. Press / button to choose a movie, the menu will appear. Press ENTER button, the menu will appear as follows: ALL FOLDERS During Media/USB play mode you may wish to stop the current program.
-
Page 30: Faq's
FAQ’s • Check if the fuse or circuit breaker is working. NO POWER • Plug another electrical device into the outlet to make sure it is working or turned on. • Power plug has bad contact with the outlet. • Check the signal source. • Change the colour system. -
Page 31: Specifications
Specifications Model 42” Audio output power (L+R) 8W + 8W Working voltage 100-240V~ 50/60Hz Rated power consumption 140W Screen size - diagonal 106cm Pixel format 1920 X 1080 Dimensions (W x D x H) mm 1009 X 217 X 675 mm Net weight 18.7Kg Environment Working temperature: 5C0~35C0 Working humidity: 20%~80% Storage temperature: 15C0~45C0 Storage humidity: 10%~90%... -
Page 32: Base Installation/Removal
Base installation/removal Parts Base (1pc) Bottom board (1pc) Connection bracket (1pc) M4x6 screw (7pcs) Rubber (4pcs) BT3 x 10 screw (8pcs) M5 x 12 screw (4pcs) Installation Base 1. Remove the parts from the box. M4x6 screw (7pcs) 2. F ix the connection bracket to the bottom board. Connection bracket 3. Place the base over the connection bracket and the bottom board. 4. Fix the bottom board to the base.
