42" (106 cm)
Ultra High Defi nition LED LCD TV
Model Number: ATVU42-515
INSTRUCTION MANUAL
www.tempo.org
1300 886 649
Model: ATVU42-515 Product Code: 50150 05/2015
AUS

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ATVU42-515 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Bauhn ATVU42-515

Summary of Contents for Bauhn ATVU42-515

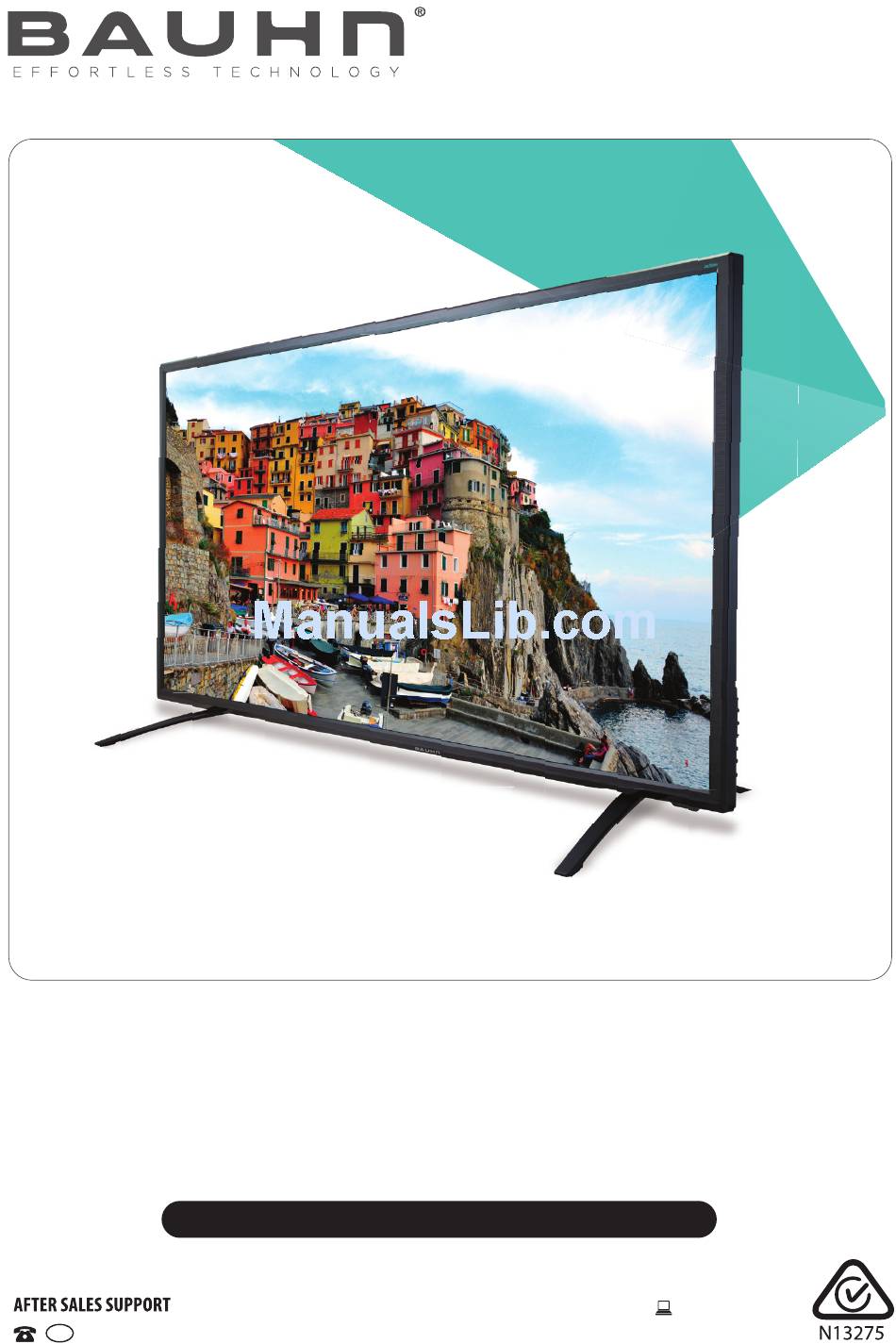

  • Page 1 42” (106 cm) Ultra High Defi nition LED LCD TV Model Number: ATVU42-515 INSTRUCTION MANUAL www.tempo.org 1300 886 649 Model: ATVU42-515 Product Code: 50150 05/2015...
  • Page 2 Welcome Congratulations on choosing to buy a BAUHN product. All products ® brought to you by BAUHN are manufactured to the highest standards ® of performance and safety and, as part of our philosophy of customer service and satisfaction, are backed by our comprehensive 1 Year Warranty.

  • Page 3: Remote Control

    14 SLEEP: Set the TV sleep timer. 15 LANG/AUDIO: Switch the available sound-track/language (DTV/DVD*). 16 S-MODE : Switch the sound mode. 17 SIZE/ZOOM: Switch Teletext size (TV).* Shrink/enlarge the picture (DVD)*. www.tempo.org 1300 886 649 Model: ATVU42-515 Product Code: 50150 05/2015...
  • Page 4 Australian channel providers. However, one teletext option, “closed captions”, is still working on most Australian television channels. This service allows you to activate subtitles while watching normal television programs that provide it. www.tempo.org 1300 886 649 Model: ATVU42-515 Product Code: 50150 05/2015...

  • Page 5: Using The Remote Control

    • Keep batteries away from children and pets. • Never throw batteries into a fire or expose them to fire or other sources of extreme heat. www.tempo.org 1300 886 649 Model: ATVU42-515 Product Code: 50150 05/2015...
  • Page 6 • Do not place objects between the remote control and the remote control sensor. • Do not use this remote control while simultaneously operating a remote control of other devices. www.tempo.org 1300 886 649 Model: ATVU42-515 Product Code: 50150 05/2015...

  • Page 7: Warranty Details

    You are also entitled to have the goods repaired or replaced if the goods fail to be of acceptable quality and the failure does not amount to a major failure. www.tempo.org 1300 886 649 Model: ATVU42-515 Product Code: 50150 05/2015...

  • Page 8: Table Of Contents

    Warranty Details General Safety Instructions Installation Controls and Connections Getting Started Basic Operations Electronic Program Guide (EPG) Recording USB Mode Menus FAQs Specifications Repair and Refurbished Goods or Parts Notice www.tempo.org 1300 886 649 Model: ATVU42-515 Product Code: 50150 05/2015...

  • Page 9: General Safety Instructions

    • To prevent damage which may result in fire or an electric shock hazard, do not expose this appliance to rain or moisture. • Do not change or modify the appliance in any way. • Only use the attachments/accessories specified by the manufacturer. www.tempo.org 1300 886 649 Model: ATVU42-515 Product Code: 50150 05/2015...
  • Page 10 • Ventilation: Install the unit at an adequate distance from the wall to ensure sufficient ventilation. If the temperature inside the unit rises, it may result in fire. www.tempo.org 1300 886 649 Model: ATVU42-515 Product Code: 50150 05/2015...
  • Page 11 • Smoke or odour: If you notice any unusual odours or smoke around the unit, immediately disconnect the unit from the outlet and contact the service centre. Failure to do so may result in fire or electric shock. www.tempo.org 1300 886 649 Model: ATVU42-515 Product Code: 50150 05/2015...
  • Page 12 TV, when the TV has been exposed to rain or moisture, does not operate normally, or has been dropped. www.tempo.org 1300 886 649 Model: ATVU42-515 Product Code: 50150 05/2015...

  • Page 13: Installation

      screwdriver to affix the stand to the panel, as illustrated on the right (3).   CAUTION!   Do not apply excessive force as this may damage the screw holes. www.tempo.org 1300 886 649 Model: ATVU42-515 Product Code: 50150 05/2015...
  • Page 14 NOTE: The screws in the package are for securing the TV stand only. If you are wall-mounting the TV, please consult a qualified installer for further instructions on bracket support and wall support. www.tempo.org 1300 886 649 Model: ATVU42-515 Product Code: 50150 05/2015...

  • Page 15: Controls And Connections

    5. MENU: Enter the settings menu 6. SOURCE: Select the input source 7. STANDBY: Turn the TV on/off NOTE: See page 8 for a detailed description of all sockets on the back panel. www.tempo.org 1300 886 649 Model: ATVU42-515 Product Code: 50150 05/2015...
  • Page 16 9 YPBPR INPUT (COMPONENT): supports both SD (Standard Definition) and HD (High Definition) picture quality 10 USB INPUTS: connect a USB storage device for PVR recording and multimedia file playback 11 HEADPHONES OUTPUT www.tempo.org 1300 886 649 Model: ATVU42-515 Product Code: 50150 05/2015...
  • Page 17 For best picture quality, we recommend connecting the TV set to an external antenna. Antenna Outdoor antenna amplifi er Indoor antenna amplifi er 75Ω Power plug antenna of antenna plug amplifi er www.tempo.org 1300 886 649 Model: ATVU42-515 Product Code: 50150 05/2015...
  • Page 18 Controls and Connections (Cont.) Composite video (CVBS) connection   AV cable (included) For basic connection, use the composite Audio L/R (white/red) and CVBS (yellow) cable to connect the unit with other devices. www.tempo.org 1300 886 649 Model: ATVU42-515 Product Code: 50150 05/2015...

  • Page 19: Hdmi Connection

    Controls and Connections (Cont.) HDMI connection HDMI cable (not included) PC/VGA connection VGA cable (not included) www.tempo.org 1300 886 649 Model: ATVU42-515 Product Code: 50150 05/2015...
  • Page 20 Use a coaxial cable to connect the unit with an amplifier or other audio decoding device for coaxial audio signal output. (Coaxial cable is not included). Component (YPbPr) connection YPbPr cable (not included) Audio cable (not included) www.tempo.org 1300 886 649 Model: ATVU42-515 Product Code: 50150 05/2015...

  • Page 21: Usb Connection

    Insert a USB memory device into the USB port for PVR recording, time-shifting and playback of video/music/photo multimedia files. (ARC) USB device (not included) Earphone connection EARPHONE cable (not included) www.tempo.org 1300 886 649 Model: ATVU42-515 Product Code: 50150 05/2015...

  • Page 22: Getting Started

    • To exit channel tuning, press the EXIT button and use the / buttons to select YES; select NO to continue tuning. • When auto searching is complete, your TV will show the first channel found. www.tempo.org 1300 886 649 Model: ATVU42-515 Product Code: 50150 05/2015...

  • Page 23: Basic Operations

    (Available sizes may vary for different input sources.) NOTE: If there is no signal, pressing this button will be ineffective and the available video size may be different for different input sources. www.tempo.org 1300 886 649 Model: ATVU42-515 Product Code: 50150 05/2015...
  • Page 24 • Press the TV/RADIO button on the remote control to switch the unit between TV and radio mode. Subtitle • Press the SUBTITLE button on the remote control to enter the subtitle menu. NOTE: The channel you are watching must support multi-subtitles. www.tempo.org 1300 886 649 Model: ATVU42-515 Product Code: 50150 05/2015...

  • Page 25: Electronic Program Guide (Epg)

    TV guide for the previous or next day and then select the RED button to schedule a recording for the selected program. • Press EXIT to exit the EPG menu. www.tempo.org 1300 886 649 Model: ATVU42-515 Product Code: 50150 05/2015...

  • Page 26: Recording

    RED button to delete the program. Scheduled Recording (in DTV mode only) See instructions under EPG on the previous page and follow the instructions on page 34 to schedule a recording. www.tempo.org 1300 886 649 Model: ATVU42-515 Product Code: 50150 05/2015...
  • Page 27 Yes to exit time-shift mode and return to live TV signal, or select No to dismiss the dialogue box. NOTE: The USB storage device will not retain recorded data after exiting the time-shift function www.tempo.org 1300 886 649 Model: ATVU42-515 Product Code: 50150 05/2015...
  • Page 28 • Ensure any USB devices connected to the TV do not use/exceed 500mA power rating. • If an “Unsupported File” message is displayed, the file format or codec is unsupported or corrupted. www.tempo.org 1300 886 649 Model: ATVU42-515 Product Code: 50150 05/2015...

  • Page 29: Usb Mode

    OK to select a function such as Previous, Next, Repeat, Rotate, Zoom In/Out, etc. from the on-sceen toolbar. NOTE: You can rotate a photo only when slide show is paused. www.tempo.org 1300 886 649 Model: ATVU42-515 Product Code: 50150 05/2015...
  • Page 30 • Use the buttons, then press OK to select a function such as Fast Backward, Fast Forward, Previous, Next, Mute, Repeat, etc. from the on- screen toolbar. www.tempo.org 1300 886 649 Model: ATVU42-515 Product Code: 50150 05/2015...
  • Page 31 • Press the button to play the next file. NOTE: To play your multimedia files, make sure you have selected the correct icon in the main media playback menu. www.tempo.org 1300 886 649 Model: ATVU42-515 Product Code: 50150 05/2015...

  • Page 32: Menus

    NOTE: When you switch on this TV for the first time, you need to select the language and the country to auto-search for all the available channels in your area. See page 14 for first time installation instructions. www.tempo.org 1300 886 649 Model: ATVU42-515 Product Code: 50150 05/2015...
  • Page 33 DTV Manual Scan • Press OK or to enter. Enter your password (factory default password is 0000). • Press to select the channel. Press OK to search. www.tempo.org 1300 886 649 Model: ATVU42-515 Product Code: 50150 05/2015...

  • Page 34: Signal Information

    • Press the FAV button to add the channel to the Favourites List. Signal Information This item is used to display signal details, such as Channel Number, Frequency, Quality and Strength. www.tempo.org 1300 886 649 Model: ATVU42-515 Product Code: 50150 05/2015...
  • Page 35 Available options: Off, Weak, Medium, Strong. MEMC (Motion Estimation Motion Compensation) Use this setting to make animation more fluid and to compensate for display motion blur. Available options: Off, Low, Medium, High www.tempo.org 1300 886 649 Model: ATVU42-515 Product Code: 50150 05/2015...
  • Page 36 NOTE: Audio description for visual representation works only with programs that contain related narration information (for people with vision impairments). S/PDIF Mode: Use this item to select the S/PDIF audio output type. Available options: Off, Auto, PCM. www.tempo.org 1300 886 649 Model: ATVU42-515 Product Code: 50150 05/2015...
  • Page 37 USB drive. • Time Shift Size: Press OK and then to select the time shift buffer size. • Free Record Limit: Press the button to select the free record time limit. www.tempo.org 1300 886 649 Model: ATVU42-515 Product Code: 50150 05/2015...

  • Page 38: System Information

    • This setting displays hardware and software version information as well as contact numbers for Customer Support Service. Software Update (USB) • This item is used to update software through a USB memory device. www.tempo.org 1300 886 649 Model: ATVU42-515 Product Code: 50150 05/2015...

  • Page 39: Lock Settings

    • Use this item to select the desired program rating. Available options: No Block, Block All, Block G and above, Block PG and above, Block M and above, Block MA and above, Block R and above. www.tempo.org 1300 886 649 Model: ATVU42-515 Product Code: 50150 05/2015...
  • Page 40 DataBase Export: Backup the data to a USB memory device. DataBase Import: Restore data from a USB memory device and then your TV will switch to STANDBY mode. www.tempo.org 1300 886 649 Model: ATVU42-515 Product Code: 50150 05/2015...

  • Page 41: Time Settings

    Auto Sleep: The item is used to select desired Auto Sleep (standby) duration. Available options: OFF, ON Time Zone: This item is used to select desired time zone. Daylight Saving: Turn on/off Daylight saving time settings. www.tempo.org 1300 886 649 Model: ATVU42-515 Product Code: 50150 05/2015...
  • Page 42 Note: When the mode is set to Once, Everyday or Weekly, you can change the start and end times and dates. Press OK to confirm the scheduling. Press the RED button to cancel the scheduling. www.tempo.org 1300 886 649 Model: ATVU42-515 Product Code: 50150 05/2015...
  • Page 43 Use this item to adjust the vertical position value from 0 to 100. Phase Use this item to adjust the phase value from 0 to 100. Size Use this item to manually adjust the size of the image from 0 to 100. www.tempo.org 1300 886 649 Model: ATVU42-515 Product Code: 50150 05/2015...

  • Page 44: Faqs

    Noise or other Electronic equipment near the unit is causing interface. interface Relocate the unit or move the equipment. www.tempo.org 1300 886 649 Model: ATVU42-515 Product Code: 50150 05/2015...
  • Page 45 Flash memory-based devices and hard disks (Music/Movie players with HDD) on the market; however, it may not be compatible with certain devices, in particular external self-powered hard disks. www.tempo.org 1300 886 649 Model: ATVU42-515 Product Code: 50150 05/2015...

  • Page 46: Specifications

    With stand: 8.07kg Weight Without stand: 7.86kg The ATVU42-515 Ultra HD LED LCD TV requires Ultra HD content and additional Ultra High Definition enabled devices (sold separately) in order to experience the Ultra HD resolution effect. At this stage, TV programming in Australia is not available in Ultra HD, and the Ultra HD resolution effect can therefore only be experienced in HDMI mode.

  • Page 47: Repair And Refurbished Goods Or Parts Notice

    Tempo (Aust) Pty Ltd ABN 70 106 100 252 PO BOX 6056 Frenchs Forest, Sydney, Australia NSW 2086 Tempo Help Desk: 1300 886 649 (Aust) (Operating Hours: Mon-Fri 08:30AM to 06:00PM EST) Email: info@tempo.org www.tempo.org 1300 886 649 Model: ATVU42-515 Product Code: 50150 05/2015...
  • Page 48 This page has been left blank intentionally. www.tempo.org 1300 886 649 Model: ATVU42-515 Product Code: 50150 05/2015...
  • Page 49 This page has been left blank intentionally. www.tempo.org 1300 886 649 Model: ATVU42-515 Product Code: 50150 05/2015...
  • Page 50 If you encounter problems with this product, or if it fails to perform to your expectations, make sure to contact our After Sales Support Centre on 1300 886 649 before returning it to the store for a refund. www.tempo.org 1300 886 649 Model: ATVU42-515 Product Code: 50150 05/2015...
