Summary of Contents for Bauhn ATV55UHDW-1024

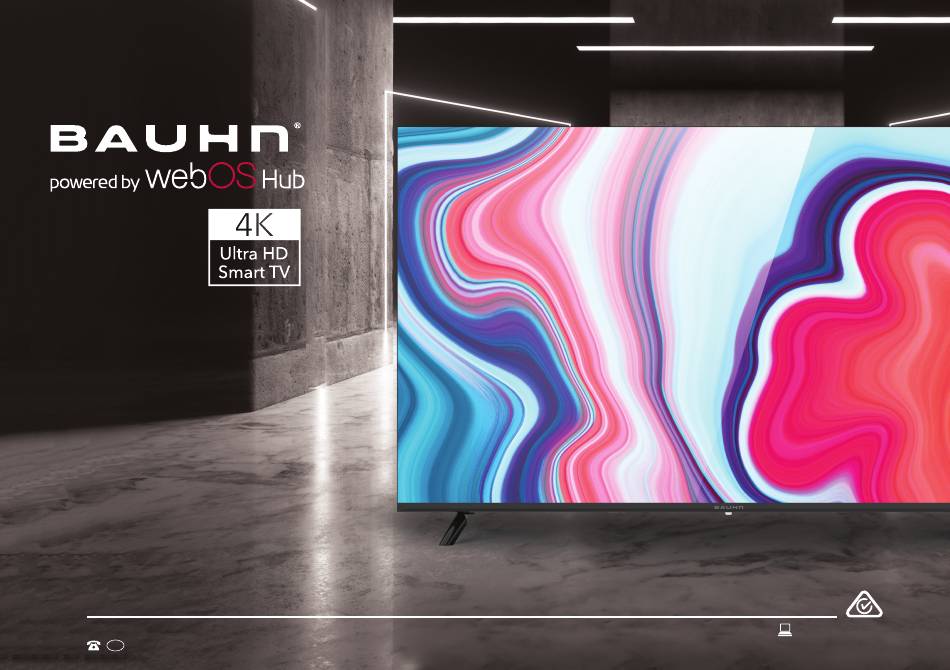

- Page 1 ” MODEL: ATV55UHDW-1024 User Manual AFTER SALES SUPPORT tempo.org/support 1300 002 534 MODEL: ATV55UHDW-1024 PRODUCT CODE: 717858 10/2024...
- Page 2 Welcome Congratulations on your purchase! This manual tells you all you need to know about using your new BAUHN product. ® Please take special note of any important safety and usage information presented with the symbol. All products brought to you by BAUHN are manufactured to the highest standards of performance and safety and, ®...
- Page 3 Contents Welcome Advanced Controls Recording (TV Setting Menus) Using Instant Recording Unpack and Prepare Picture Programme Scheduling What's in the Box Advanced Picture Settings Playback Recording Important Tips Sound Using Live Playback Attaching the Stand Advanced Sound Settings USB Mode Wall-Mounting the TV General Troubleshooting...
- Page 4 Unpack and Prepare What's in the Box See the flap of the box Before installing your new TV, check you have everything needed. for how to handle the TV without damaging it! In the box you will find: A. 55" 4K Ultra HD Smart TV B.
- Page 5 Important Tips • Place the TV on a level surface. • Place the TV away from any source that may generate heat or vibrations. • Make sure there is enough space around vents for airflow. • The remote control works up to 5 metres away from the TV. •...
- Page 6 Attaching the Stand • This TV is heavy! We recommend asking someone to help you lift it. • Unplug the TV from the power outlet before installing or removing the stand. • DO NOT place the TV standing upright without its stand attached;...
- Page 7 Wall-Mounting the TV • Unplug the TV from the power outlet before wall-mounting. • Contact a professional for assistance with wall-mounting the TV. Required 200mm • VESA Mounting Bracket • 4 x M6*10mm screws (or longer as required) The TV comes with holes on the back panel for use with wall-mounting brackets (bracket not included).
- Page 8 Connect to Power Don't forget to plug in the TV to the power outlet. Leave the power switched off until installation is finished. Make sure the TV is switched off at the power outlet until you have finished connecting your cables. Connect your Antenna Free-to-air TV in HD (High Definition) High Definition (HD) channels...
- Page 9 Controls and Connections Get to Know your TV On/Standby indicator and Remote sensor Switch the TV on or to standby Buttons on the TV • Press the button to turn the TV on. • When on, press and hold the button for 3 seconds to turn the TV to standby.
- Page 10 Ports on the TV HDMI IN 1 HDMI IN 3 HDMI IN 1 (ARC) HDMI IN Use a high-speed All-digital connection between the TV and any HDMI device. HDMI cable for Supports Ultra HD. Requires a HDMI cable (not included). best picture and sound quality.
- Page 11 DIGITAL CVBS L-AUDIO-R ANTENNA AUDIO OUT AV IN (OPTICAL) Connect to your broadband modem using an Ethernet cable (not included). DIGITAL AUDIO Connect an external digital audio device. Use an Optical cable (not included) to connect the unit with an amplifier, soundbar or OUT(OPTICAL) other audio decoding device for digital audio signal output.
- Page 12 Remote Control Setup Insert two AA size batteries according to the polarity AA size markings (+ / -) inside the compartment. Make sure the batteries batteries are correctly aligned and properly pushed into included place. Precautions When Using Batteries • Do not use old and new batteries together. •...
- Page 13 Remote Hints and Tips Using the Remote Control • Do not drop, step on or otherwise impact the remote control. This may To use the remote, point it towards the remote sensor damage the parts or lead to malfunction. at the front of the TV. The remote will not operate if its •...
- Page 14 Magic Remote : Switch the TV to On or Standby : Switch the main set top box to On or Standby Microphone AD/SAP : Press to display NUMBER BUTTONS: Key in a TV channel additional buttons/settings. Press number and hold for audio description : Display channel list : Change to the next/ LIST...
- Page 15 : Press the UP/DOWN/ LEFT/RIGHT buttons to navigate /GUIDE: Launch TV Guide SCROLL WHEEL/OK BUTTON: Scroll up/down and press to (SOURCE): Select the input confirm selection source and enter the HOME dashboard : Return to previous. Press and hold to exit : Launch the Amazon Prime Video app : Launch the Netflix app...
- Page 16 Pairing the Remote During the first time setup process,when the screen shown above appears, point the remote control towards the IR sensor of the TV and press the SCROLL WHEEL/OK button to pair the remote. If pairing is unsuccessful, turn the TV off and turn back on and pair again. To unpair the remote, when the TV is on, press and hold the buttons for 5 seconds (until the remote's LED is blinking) , and the remote will automatically unpair with the TV.
- Page 17 On-Screen Set Up Make sure the TV is plugged in at the power socket and Make sure equipment is properly connected (as shown on pages switched on. Press the button 10-11) before connecting the TV to power. to turn on the TV. On/Standby light is WHITE in standby mode.
- Page 18 LG ThinQ App You can use the LG ThinQ app to control key TV functions instead of the remote control. Note: you need an Android device running Android 4.3 or higher to use the app. 1. On your smart phone, search and download the LQ ThinQ app from the Play Store/App store (alternatively, scan the QR code below): For Android For iOS...
- Page 19 Advanced Controls (TV Setting Menus) Menu Navigation Buttons Press the Setting menu button then button to display the TV settings menu. See the guide below for all the other buttons you'll need to use to adjust and change your settings. Function Remote Button Display the quick menu...
- Page 20 Picture To access picture settings, navigate from > BUTTON > Picture Picture Mode : Enhanced brightness with lower contrast, colour depth and edges for standing out in Vivid very bright places such as storefronts. : Standard settings. Standard : Settings are optimised to reduce power consumption : Settings are optimised for watching movies.
- Page 21 Advanced settings Option Description Brightness Adjust the brightness of the picture. Colour Adjust the colour of the picture. Clarity Adjust the clarity of the picture. Apply to all inputs Apply the current picture settings to all inputs Reset Reset the picture mode settings to factory default. TV SETTING MENUS | 21...
- Page 22 Sound To access sound settings, navigate from > BUTTON > Sound Option Description Sound Mode Standard Cinema Clear Voice Cricket Music Sound Out Select sound output. Option Description Use TV Speaker Sound is played through the TV's speakers. Use Wired Speaker Sound is played through wired speakers connected to the TV.
- Page 23 Advanced Settings Option Description Balance Adjust audio output between left and right speakers. Equalizer Adjust selected frequencies. These options are available when sound mode is set to standard Apply to all inputs Select to apply settings to all inputs. Reset Reset sound settings to factory default.
- Page 24 General To access general settings, navigate from > BUTTON > General AI Service > AI Recommendation Option Description Smart Tips Suggests the TV features or settings based on the context. At the end of a program, recommend content to you according to your Next Picks viewing history and popular trends.
- Page 25 Devices Option Description TV Management View information about your TV device and change device related settings. Configure various external devices that can be used by connecting to the TV. You can also External Devices delete the connection history between external devices and the TV. HDMI Settings Change the settings of external input devices connected through HDMI.
- Page 26 System See below. Language Option Description Menu Language Select on screen display language. Primary Audio Select primary audio language. Default will be used for programmes that do Language not support multiple languages. Secondary Audio Select secondary audio language. Default will be used for programmes that Language do not support multiple languages.
- Page 27 Location Option Description Broadcast Country Select the TVs broadcast country. Postcode Enter your postcode to set the TVs broadcast location. Setting the country Set country manually. manually must be done Services Country when not connected to a Note: setting the country manually must be done when not network.
- Page 28 Safety Option Description Factory Password: 0000 Master Password: 0313 General Switch Turn on to enable lock function. TV Rating Locks Restrict watching programmes based on rating. Programme Locks Select the programmes to lock. Application Locks Select the applications to lock. Input Locks Select the inputs to lock.
- Page 29 LG Account Setup an account to use the services. Additional Settings See below. Notifications • Check alarm messages about the user settings or TV status. Home Settings Option Description Home Auto Launch Set Home to launch automatically when TV is turned on. Home Promotion Turn advertisements on the Home screen on/off.
- Page 30 Settings Help • Turn settings help on/off. Set ID • Set the TV Device ID (1-99). Reset To Initial Settings • Reset to factory default settings. Support To access support settings, navigate from > BUTTON > Support Option Description Software Update Check for system software updates and update if desired.
- Page 31 High Dynamic Range (HDR) About the HDR feature High Dynamic Range (HDR) is a picture feature on your TV that attempts to mimic the way visuals are perceived in real life by the human eye. By using this feature, the TV can reproduce greater dynamic range of luminosity by capturing and then combining several different exposures.
- Page 32 Smart TV Netflix is a streaming service that offers unlimited Before you start using apps, your TV must be connected viewing of a wide variety of award-winning TV shows, to the internet. movies and documentaries. The speed of your internet connection determines the A paid subscription is required.
- Page 33 View currently View additional Exit Web Browser Refresh Search open tabs options browser Using the web browser, you can surf the Internet on the TV similar to how you would do on a PC. NOTE: Use a wired or wireless keyboard and mouse (not provided) for an easier web browsing experience.
- Page 34 COMPATIBLE WIRELESS SPEAKERS Bluetooth Device The TV has built-in Bluetooth to stream audio to compatible Bluetooth devices. • Go to the Bluetooth menu on your TV. • On the list of available devices, select your desired Bluetooth audio device and select pair. •...
- Page 35 TV Guide TV Guide Functions o access the TV guide, press the GUIDE button on the remote. Function Remote Button GUIDE To activate the TV Channels use the Switch between TV Guide / buttons to select a channel in Programmes List / TV Scheduler / the left column, then press the Recordings BUTTON to confirm.
- Page 36 Recording Important Tips: • Back-up your personal data before plugging in your USB to the TV. We do not assume liability for any loss of data due to misuse or malfunction. • You cannot change channels while in recording mode. •...
- Page 37 Using Instant Recording • Connect a USB HDD or USB stick to the USB port on the TV. • When watching live programmes. • Press and hold the button on the remote and then set recording duration and confirm to start recording. •...
- Page 38 Using Live Playback • You cannot use a USB stick. A USB HDD with (Real-time Playback) 80GB or more of storage is required for the function to work. • Connect a USB HDD to the USB port on the TV. •...
- Page 39 USB Mode Set up You can only play Photos in the Photo category, and Insert your USB into a USB port on the TV. Music in the Music category. Make sure you select the correct category for the file you wish to play. Press the button to select 'USB' mode.
- Page 40 Troubleshooting If you experience problems with your TV, check below for advice. If you don't find a solution here, contact After Sales Support on 1300 886 649. Problem Solution Make sure that the batteries are installed with their poles (+/–) in the correct direction. Remove any obstacles between the remote control and remote control sensor on the TV.
- Page 41 Problem Solution Ensure that connection to the device is correct and that all cables are fully inserted. There is no picture/ Remove and reconnect all cables connected to the TV and the external devices. Try new cables if possible. sound or distorted Restart the connected devices by unplugging each device's power cord and then plugging it in again.
- Page 42 Problem Solution When using Wi-Fi, make sure the Wi-Fi password is entered correctly. Turn off the access point. Wait for 2 minutes and then turn them back on. Ensure that there are no obstacles between the TV and the access point. (The Wi-Fi strength can be decreased by appliances, cordless phones, stone walls/fireplaces, etc.) Reduce interference by not using or turning off other wireless devices.
- Page 43 Specifications Active screen size With stand: 1227 x 243 x 138.7 cm (diagonal) 771mm Dimensions (W x D x H) Resolution 3840 x 2160 Without stand: 1227 x 74 x 710mm Refresh rate 60Hz 11.4Kg (with stand) Aspect ratio 16:9 Weight Gross 16.9 kg...
- Page 44 Compliance and Responsible Disposal Packaging The packaging of your product has been selected from environmentally friendly materials and can usually be recycled. Please ensure these are disposed of correctly. Plastic wrapping can National Television and Computer Recycling be a suffocation hazard for babies and young children, please ensure all packaging materials are out of Scheme reach and are safely disposed of.
- Page 45 Warranty Information The product is guaranteed to be free from defects in workmanship and parts for a period of 12 months from the date of purchase. Defects that occur within this warranty period, under normal use and care, will be repaired, replaced or refunded at our discretion, solely at our option with no charge for parts and labour.
- Page 46 Repair and Refurbished Goods or Parts Notice Unfortunately, sometimes faulty products are manufactured, which need to be returned to the supplier for repair. Please be aware that if your product is capable of retaining user-generated data (such as files stored on a computer hard drive, telephone numbers stored on a mobile telephone, songs stored on a portable media player, games saved on a games console or files stored on a USB memory stick) during the process of repair, some or all of your stored data may be lost.
- Page 47 Notes...
- Page 48 Notes...
- Page 49 Online support Visit bauhn.com.au for software updates to keep your TV up-to-date, as well as the latest User Manual for information on the updated features. Warranty returns tempo.org/support Should you for any reason need to return this product for a warranty claim, make sure to include all accessories with the product.
