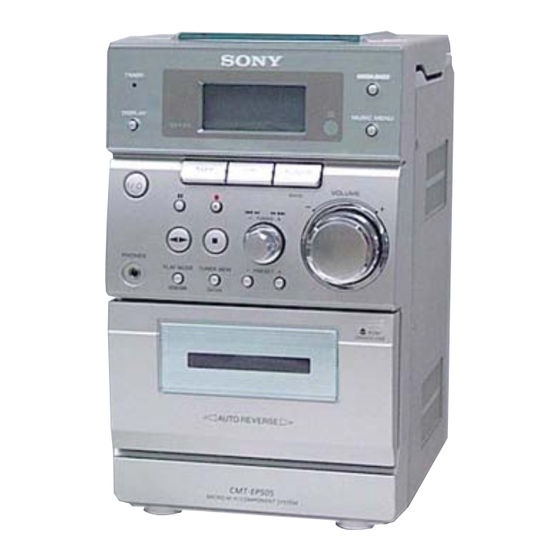

Sony HCD-EP505 Service Manual

Compact disc deck receiver.
Hide thumbs
Most useful pages: More

Advertisement

SERVICE MANUAL
Ver 1.2 2003.10
HCD-EP505 is the amplifier, CD
player, tape deck and tuner section
in CMT-EP505.
AUDIO POWER SPECIFICATIONS:
(US model only)
POWER OUTPUT AND TOTAL
HARMONIC DISTORTION:
with 8 Ω loads both channels driven, from 120 -
10,000 Hz; rates 14 W per channel minimum RMS
power, with no more than 10% total harmonic
distortion from 250 mW to rated output.
Amplifier section
Canadian model:
Continuous RMS power output (reference)
14 + 14 W
(8 Ω at 1 kHz, 10% THD)
European model:
DIN power output (rated) 11 + 11 W
(8 Ω at 1 kHz, DIN)
Continuous RMS power output (reference)
14 + 14 W
(8 Ω at 1 kHz, 10% THD)
Music power output (reference)
27 + 27 W
Other models:
The following measured at AC 230 V or AC 120 V,
50/60 Hz
DIN power output (rated) 11 + 11 W
(8 Ω at 1 kHz, DIN)
Continuous RMS power output (reference)
14 + 14 W
(8 Ω at 1 kHz, 10% THD)
Outputs
Accepts headphones of 8 Ω or
PHONES:
(stereo mini jack)
more
SPEAKER:
Accepts impedance of 8 to
16 Ω
Sony Corporation
9-873-673-03
2003J05-1
Home Audio Company
C 2003.10
Published by Sony Engineering Corporation
HCD-EP505
Model Name Using Similar Mechanism
CD
Section
CD Mechanism Type
Model Name Using Similar Mechanism
TAPE
Section
Tape Transport Mechanism Type

SPECIFICATIONS

CD player section
System
Compact disc and digital
audio system
Laser
Semiconductor laser
(λ=780 nm)
Emission duration:
continuous
Frequency response
20 Hz - 20 kHz (±0.5 dB)
Tape player section
Recording system
4-track 2-channel stereo
Frequency response
50 - 13 000 Hz (±3 dB),
using Sony TYPE I cassette
±0.15% W.Peak (IEC)
Wow and flutter
0.1% W.RMS (NAB)
±0.2% W.Peak (DIN)
Tuner section
FM stereo, FM/AM superheterodyne tuner
FM tuner section
Tuning range
87.5 - 108.0 MHz
Antenna
FM lead antenna
Antenna terminal
75 coaxial
Intermediate frequency 10.7 MHz
AM tuner section
Tuning range
Pan-American model:
530 - 1 710 kHz
(with the interval set at 10 kHz)
531 - 1 710 kHz
(with the interval set at 9 kHz)
European models:
531 -1 602 kHz
(with the interval set at 9 kHz)
COMPACT DISC DECK RECEIVER
US Model
Canadian Model
AEP Model
UK Model
E Model
Chinese Model
HCD-EP50
CS-21SC-1280
HCD-EP50
CRL3439
Other models:
531 - 1 602 kHz
(with the interval set at 9 kHz)
530 - 1 710 kHz
(with the interval set at 10 kHz)
Antenna
Supplied AM loop antenna
Intermediate frequency 450 kHz
General
Power requirements
North American model: 120 V AC, 60 Hz
European model:
230 V AC, 50/60 Hz
Argentine model:
220 - 230 V AC, 50/60 Hz
Hong Kong model:
230 V AC, 50/60 Hz
Other models:
230 V AC, 50/60 Hz
Power consumption
US model:
35 W
Canadian model:
35 W
European models:
40 W
0.5 W (in the standby mode)
Other models:
40 W
Approx. 145 × 240× 252 mm
Dimensions (w/h/d)
Mass
Approx. 3.5 kg
Supplied accessories:
AM loop antenna (1)
Remote Commander (1)
Batteries (2)
FM lead antenna (1)
Design and specifications are subject to change
without notice.

Advertisement

Table of Contents

   Summary of Contents for Sony HCD-EP505

  • Page 1: Specifications

    SERVICE MANUAL US Model Canadian Model Ver 1.2 2003.10 AEP Model UK Model E Model Chinese Model HCD-EP505 is the amplifier, CD player, tape deck and tuner section in CMT-EP505. Model Name Using Similar Mechanism HCD-EP50 Section CD Mechanism Type CS-21SC-1280...
  • Page 2: Leakage Test

    OPERATION. REPLACE THESE COMPONENTS WITH DE FONCTIONNEMENT. NE REMPLACER CES COM- SONY PARTS WHOSE PART NUMBERS APPEAR AS POSANTS QUE PAR DES PIÈCES SONY DONT LES SHOWN IN THIS MANUAL OR IN SUPPLEMENTS PUB- NUMÉROS SONT DONNÉS DANS CE MANUEL OU LISHED BY SONY.
  • Page 3: Table Of Contents

    HCD-EP505 Ver 1.1 TABLE OF CONTENTS SERVICING NOTES ..........4 GENERAL ..............5 DISASSEMBLY 3-1. Disassembly Flow ............7 3-2. Front Panel Section ............8 3-3. MAIN Board ..............8 3-4. CD Cabinet Section ............9 3-5. CD Mechanism Deck (CS-21SC-1280) ......9 3-6.
  • Page 4: Servicing Notes

    HCD-EP505 Ver 1.1 SECTION 1 SERVICING NOTES • MODEL IDENTIFICATION NOTES ON HANDLING THE OPTICAL PICK-UP – Bottom View – BLOCK OR BASE UNIT The laser diode in the optical pick-up block may suffer electro- static break-down because of the potential difference generated by the charged electrostatic load, etc.
  • Page 5: General

    HCD-EP505 Ver 1.1 SECTION 2 GENERAL This section is extracted from instruction manual. LOCATION OF CONTROLS – Front Panel – Main unit ALPHABETICAL ORDER BUTTON DESCRIPTIONS @/1 (power) wd A – M P– Z PHONES jack qk Cassette compartment qg PLAY MODE qj .
  • Page 6: Setting The Clock

    HCD-EP505 Ver 1.1 Setting the clock Remote control Turn on the system. ALPHABETICAL ORDER BUTTON DESCRIPTIONS Press CLOCK/TIMER SET on the P – Z m (rewind) M A – M remote. (fast forward) ql CD wf PLAY MODE/RDS Press . or > on the remote .
  • Page 7: Disassembly

    HCD-EP505 SECTION 3 DISASSEMBLY • This set can be disassembled in the order shown below. 3-1. DISASSEMBLY FLOW 3-2. FRONT PANEL SECTION (Page 8) 3-6. TAPE MECHANISM DECK 3-3. MAIN BOARD 3-4. CD CABINET SECTION (CRL3439) (Page 8) (Page 9) (Page 10) 3-5.
  • Page 8: Front Panel Section

    HCD-EP505 Note: Follow the disassembly procedure in the numerical order given. 3-2. FRONT PANEL SECTION 1 two screws (BTP2.6 × 10) 4 claw 3 two screws (K3 × 5) 2 two screws (BVTP3 × 10) 3 two screws (K3 × 5)
  • Page 9: Cd Cabinet Section

    HCD-EP505 3-4. CD CABINET SECTION 1 two screws 2 CD cabinet section (BTP2.6 × 8) 3-5. CD MECHANISM DECK (CS-21SC-1280) 7 vibration proof rubber 6 two spring clamps (ORG) 8 CD mechanism deck (CS-21SC-1280) 7 vibration proof rubber 6 two spring clamps...
  • Page 10: Tape Mechanism Deck (crl3439)

    HCD-EP505 3-6. TAPE MECHANISM DECK (CRL3439) 1 two screws (BVTP3 × 10) 2 tape mechanism deck (CRL3439) 1 two screws (BVTP3 × 10) 3-7. CASSETTE LID 2 claw 1 Open the cassette lid. 2 claw 3 cassette lid...
  • Page 11: Mechanical Adjustments

    HCD-EP505 SECTION 4 SECTION 5 MECHANICAL ADJUSTMENTS ELECTRICAL ADJUSTMENTS PRECAUTION PRECAUTION 1. Clean the following parts with a denatured-alcohol-moistened 1. Setting swab : MEGA BASS switch : OFF record/playback head pinch roller erase head rubber belts TAPE DECK SECTION 0 dB=0.775 V...
  • Page 12 HCD-EP505 Ver 1.1 no mark : EXCEPT AEP, UK, Chinese models TUNER SECTION 0 dB=1 µV < > : AEP, UK, Chinese models [AM] AM IF ADJUSTMENT Setting: Adjust for a maximum reading on level meter Function : TUNER T401 <T406>...
  • Page 13 HCD-EP505 Adjustment Location and Connecting Points – MAIN BOARD (Component Side) – – MAIN BOARD (Conductor Side) – T406 AM IF Adjustment (FM VT) TC401 AM Tracking Adjustment T401 (FM ANT) T402 (AM VT) AM Frequency Coverage Adjustment...
  • Page 14 HCD-EP505 MEMO...
  • Page 15: Diagrams

    HCD-EP505 Ver 1.1 SECTION 6 DIAGRAMS 6-1. BLOCK DIAGRAM – TUNER Section – (EXCEPT AEP, UK, CH) (AEP, UK) FM/AM IF AMP, X304 TC401 TC401 AM RF AMP/MIX/OSC, 4.332MHz CF406 FM TRACKING FM/AM DET, MPX U401 FMRF OUT FM DET...
  • Page 16: Block Diagram - Tape Deck Section

    HCD-EP505 Ver 1.1 6-2. BLOCK DIAGRAM – TAPE DECK Section – REC/PB REC AMP RL-CH SWITCH (Page 17) Q611 Q605 RR-CH R-CH AMP GAIN CONTROL Q603 R-CH HPRE101 (1/2) OUT1 (RECORD/PLAYBACK) BUFFER TL-CH Q613 TR-CH L-CH R-CH R-CH D603 TAPE TYPE...
  • Page 17: Block Diagram - Main Section

    HCD-EP505 Ver 1.1 6-3. BLOCK DIAGRAM – MAIN Section – INPUT SELECT SWITCH, RL-CH (Page 16) CN503 ELECTRICAL VOLUME RR-CH R-CH SPEAKER U501 (AEP, UK, CH) (EXCEPT AEP, UK, CH) IMPEDANCE TL-CH USE 8Ω TR-CH R-CH LTOUT LVRIN LVROUT POWER AMP...
  • Page 18: Block Diagram - Display/power Supply Section

    HCD-EP505 Ver 1.1 6-4. BLOCK DIAGRAM – DISPLAY/POWER SUPPLY Section – 8V (CD) REGULATOR CD BLOCK B+ Q802, 803 D802 REGULATOR CD-EN CD-EN, TU-EN CONTROL SWITCH (Page 16) Q804 (EXCEPT AEP, UK, CH) +5V REGULATOR B+ SWITCH POWER FM/AM PLL B+...
  • Page 19: Note For Printed Wiring Boards And Schematic Diagrams

    HCD-EP505 Ver 1.1 6-5. NOTE FOR PRINTED WIRING BOARDS AND SCHEMATIC DIAGRAMS • Waveforms – MAIN Board (AEP, UK, CH models) – – DISPLAY Board – Note on Printed Wiring Boards: Note on Schematic Diagram: • X : parts extracted from the component side.
  • Page 20: Printed Wiring Boards

    HCD-EP505 Ver 1.1 6-6. PRINTED WIRING BOARDS – MAIN Section (AEP, UK, CH models) – • Semiconductor Location HPRE101 Ref. No. Location Ref. No. Location REC/PB/ERACE HEAD D401 Q605 C-13 D402 Q606 D-15 Q607 F-13 D403 D404 Q608 F-14 D405...
  • Page 21: Schematic Diagram - Main Section (aep, Uk, Chinese Models) (1/3)

    HCD-EP505 Ver 1.1 6-7. SCHEMATIC DIAGRAM – MAIN Section (AEP, UK, CH models) (1/3) – • See page 19 for Waveform. • See page 32 for IC Block Diagrams. MAIN BOARD (1/3) (AEP, UK) (AM VT) T402 AM FREQUENCY T401,TC401...
  • Page 22: Schematic Diagram - Main Section (aep, Uk, Chinese Models) (2/3)

    HCD-EP505 Ver 1.1 6-8. SCHEMATIC DIAGRAM – MAIN Section (AEP, UK, CH models) (2/3) – • See page 19 for Waveforms. • See page 32 for IC Block Diagrams. MAIN BOARD (2/3) <0> 0 (0)<11.6> <0> Q620, 621 REC/PB Q605 <0>...
  • Page 23: Schematic Diagram - Main Section (aep, Uk, Chinese Models) (3/3)

    HCD-EP505 Ver 1.1 6-9. SCHEMATIC DIAGRAM – MAIN (AEP, UK, CH models) (3/3) Section – • See page 19 for Waveforms. • See page 32 for IC Block Diagrams. MAIN BOARD (3/3) U502 POWER AMP 18.5 (Page 21) Q505, 506...
  • Page 24: Printed Wiring Boards - Main Section (except Aep, Uk, Chinese Models)

    HCD-EP505 Ver 1.1 6-10. PRINTED WIRING BOARDS – MAIN Section (Except AEP, UK, CH models) – • Semiconductor Location Ref. No. Location Ref. No. Location DISPLAY D401 Q605 C-13 BOARD D402 Q606 D-15 Q607 F-13 D403 D404 Q608 F-14 E C B...
  • Page 25: Schematic Diagram - Main Section (except Aep, Uk, Chinese Models) (1/3)

    HCD-EP505 Ver 1.1 6-11. SCHEMATIC DIAGRAM – MAIN Section (Except AEP, UK, CH models) (1/3) – • See page 19 for Waveform. • See page 32 for IC Block Diagrams. MAIN BOARD (1/3) Q401 (FM VT) FM OSC BUFFER 3.3K 4.2 [0.1]...
  • Page 26: Schematic Diagram - Main Section (except Aep, Uk, Chinese Models) (2/3)

    HCD-EP505 Ver 1.1 6-12. SCHEMATIC DIAGRAM – MAIN Section (Except AEP, UK, CH models) (2/3) – • See page 19 for Waveforms. • See page 32 for IC Block Diagrams. MAIN BOARD (2/3) 2SB926 <0> <0> 0 (0) <11.6> Q620, 621...
  • Page 27: Schematic Diagram - Main Section (except Aep, Uk, Chinese Models) (3/3)

    HCD-EP505 Ver 1.1 6-13. SCHEMATIC DIAGRAM – MAIN (Except AEP, UK, CH models) (3/3) Section – • See page 19 for Waveforms. • See page 32 for IC Block Diagrams. MAIN BOARD (3/3) U502 POWER AMP (Page 25) 18.5 MAIN...
  • Page 28: Printed Wiring Board - Display Section

    HCD-EP505 Ver 1.1 6-14. PRINTED WIRING BOARD – DISPLAY Section – • Semiconductor Location Ref. No. Location (AEP, UK, HK, CH) DISPLAY BOARD D301 D302 US, CND, E51, (HK) D303 MX, AR D304 (AEP, UK, CH) LIQUID CRYSTAL DISPLAY D305...
  • Page 29: Schematic Diagram - Display Section

    HCD-EP505 Ver 1.1 6-15. SCHEMATIC DIAGRAM – DISPLAY Section – • See page 19 for Waveforms. • See page 33 for IC Block Diagram. DISPLAY BOARD CN301 (AEP, UK) (EXCEPT AEP, UK) LIQUID CRYSTAL DISPLAY SW305 SW305 13 12 PLAY MODE...
  • Page 30: Printed Wiring Board - Power Section

    HCD-EP505 Ver 1.1 6-16. PRINTED WIRING BOARD – POWER Section – • Semiconductor Location Ref. No. Location D201 POWER BOARD D202 D203 D204 D205 D206 D207 D208 D212 D213 D215 D216 D217 D218 D221 Q205 Q206 Z201 POWER TRANSFORMER (SUB)
  • Page 31: Schematic Diagram - Power Section

    HCD-EP505 Ver 1.1 6-17. SCHEMATIC DIAGRAM – POWER Section – POWER BOARD (US, CND, MX) POWER TRANSFORMER (MAIN) (EXCEPT US, CND, MX) 400µH 250V AC IN R225 3.3M 1/2W CN505 (Page 23) (US, CND, MX) MAIN BOARD ( AEP, UK, CH)
  • Page 32 HCD-EP505 Ver 1.1 • IC Block Diagrams – MAIN Board – U403 LC72131M-TL-M (AEP, UK, CH models) U501 LC75392 U401 LA1823 (EXCEPT AEP, UK, CH models) LVROUT RVROUT PHASE GND2 VCC2 MUTE PHASE PILOT DETECTOR DECODER COMP CHARGE PUMP LVRIN...
  • Page 33: Display Board

    HCD-EP505 Ver 1.1 U602 AN7312 U603 BA335 COMPARATOR RIPPLE FILTER AF AMP AMP. CH2 AMP. CH1 – DISPLAY Board – IC305 BU1924F-E2 (AEP, UK models) 12 11 10 CLOCK TEST PLL 57kHz RDS/ARI 1187.5Hz COMPARATOR 8th SWITCHED BIPHASE CAPACITOR DECODER...
  • Page 34: Ic Pin Function Description

    HCD-EP505 Ver 1.1 6-18. IC PIN FUNCTION DESCRIPTION • DISPLAY BOARD IC301 µPD780306GC-A68-8EU (SYSTEM CONTROLLER, LIQUID CRYSTAL DISPLAY DRIVER) Pin No. Pin Name Description 1 to 4 KEY2 to KEY5 Key input terminal (A/D input) ANALYZER Analyzer level detection signal input terminal (A/D input) Not used...
  • Page 35 HCD-EP505 Ver 1.1 Pin No. Pin Name Description — Ground terminal Main system clock output terminal (4.194304 MHz) Main system clock input terminal (4.194304 MHz) — Power supply terminal Sub system clock input terminal (32.768 kHz) Not used Sub system clock output terminal (32.768 kHz) Not used System reset signal input from the reset signal generator “L”: reset...
  • Page 36: Exploded Views

    HCD-EP505 Ver 1.1 SECTION 7 EXPLODED VIEWS NOTE: • -XX and -X mean standardized parts, so they • Items marked “*” are not stocked since they The components identified by mark 0 or dotted line with mark 0 are may have some difference from the original are seldom required for routine service.
  • Page 37: Front Panel Section-1

    HCD-EP505 Ver 1.1 7-2. FRONT PANEL SECTION-1 not supplied front panel section-2 supplied with X303 Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark 4-241-112-01 VOL.DECORATION RING 4-235-777-01 BELT (FR) 4-241-113-01 VOL.ROTARY KNOB 3-709-645-01 BELT SR 4-240-261-01 TUNING SWING KNOB...
  • Page 38: Front Panel Section-2

    HCD-EP505 Ver 1.2 7-3. FRONT PANEL SECTION-2 not supplied Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark 4-235-995-01 RUBBER FOOT A-4730-016-A DISPLAY BOARD, COMPLETE (E51, AR) 4-241-116-01 FRONT PANEL (AEP, UK, E51, CH, AR) A-4730-017-A DISPLAY BOARD, COMPLETE (HK)
  • Page 39: Cd Cabinet Section

    HCD-EP505 Ver 1.1 7-4. CD CABINET SECTION SW300 The components identified by mark 0 or dotted line with mark 0 are critical for safety. Replace only with part number specified. Les composants identifiés par une marque 0 sont critiquens pour la sécurité.
  • Page 40: Electrical Parts List

    HCD-EP505 Ver 1.1 SECTION 8 ELECTRICAL PARTS LIST DISPLAY NOTE: The components identified by mark • Due to standardization, replacements in the • Items marked “*” are not stocked since they 0 or dotted line with mark 0 are parts list may be different from the parts speci- are seldom required for routine service.
  • Page 41 HCD-EP505 Ver 1.1 DISPLAY Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark < SHORT > R340 1-249-437-11 CARBON 1/4W R341 1-249-429-11 CARBON 1/4W J306 1-216-864-11 SHORT CHIP 0 (AEP, UK, CH) J340 1-216-864-11 SHORT CHIP R342...
  • Page 42 HCD-EP505 Ver 1.1 DISPLAY HEADPHONE MAIN Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark RJ312 1-216-295-00 SHORT CHIP A-4729-608-A MAIN BOARD, COMPLETE (AEP, UK) A-4729-812-A MAIN BOARD, COMPLETE (CH) RJ319 1-216-295-00 SHORT CHIP A-4730-007-A MAIN BOARD, COMPLETE...
  • Page 43 HCD-EP505 Ver 1.1 MAIN Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark C416 1-104-760-11 CERAMIC CHIP 0.047uF C434 1-115-339-11 CERAMIC CHIP 0.1uF (AEP, UK, CH) (EXCEPT AEP, UK, CH) C416 1-126-963-11 ELECT 4.7uF C434 1-126-961-11 ELECT 2.2uF...
  • Page 44 HCD-EP505 Ver 1.1 MAIN Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark C449 1-163-009-11 CERAMIC CHIP 0.001uF C520 1-130-479-00 MYLAR 0.0047uF 5% (AEP, UK, CH) C521 1-130-479-00 MYLAR 0.0047uF 5% C450 1-115-339-11 CERAMIC CHIP 0.1uF C522...
  • Page 45 HCD-EP505 Ver 1.1 MAIN Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark C630 1-126-964-11 ELECT 10uF C568 1-115-339-11 CERAMIC CHIP 0.1uF C631 1-126-934-11 ELECT 220uF C569 1-126-794-11 ELECT 4.7uF C632 1-164-159-11 CERAMIC 0.1uF (AEP, UK, CH)
  • Page 46 HCD-EP505 Ver 1.1 MAIN Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark C813 1-115-339-11 CERAMIC CHIP 0.1uF (EXCEPT AEP, UK, CH) D806 8-719-991-33 DIODE 1SS133T-77 C814 1-115-339-11 CERAMIC CHIP 0.1uF D808 8-719-991-33 DIODE 1SS133T-77 (AEP, UK, CH)
  • Page 47 HCD-EP505 Ver 1.1 MAIN Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark Q611 8-729-281-53 TRANSISTOR 2SC536NP-F R410 1-216-101-00 METAL CHIP 150K 1/10W Q612 8-729-281-53 TRANSISTOR 2SC536NP-F (EXCEPT AEP, UK, CH) Q613 8-729-281-53 TRANSISTOR 2SC536NP-F R411 1-216-001-00 METAL CHIP...
  • Page 48 HCD-EP505 Ver 1.1 MAIN Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark R427 1-216-089-91 RES-CHIP 1/10W R445 1-249-429-11 CARBON 1/4W (AEP, UK, CH) (AEP, UK, CH) R428 1-216-073-91 RES-CHIP 1/10W R446 1-216-033-00 METAL CHIP 1/10W (EXCEPT AEP, UK, CH)
  • Page 49 HCD-EP505 Ver 1.1 MAIN Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark R565 1-216-089-91 RES-CHIP 1/10W R531 1-216-069-00 METAL CHIP 6.8K 1/10W R566 1-216-067-00 METAL CHIP 5.6K 1/10W R532 1-216-069-00 METAL CHIP 6.8K 1/10W R567 1-216-067-00 METAL CHIP 5.6K...
  • Page 50 HCD-EP505 Ver 1.1 MAIN Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark R638 1-216-073-91 RES-CHIP 1/10W R803 1-216-065-00 RES-CHIP 4.7K 1/10W R639 1-216-089-91 RES-CHIP 1/10W R804 1-249-429-11 CARBON 1/4W R640 1-216-117-00 METAL CHIP 680K 1/10W R805...
  • Page 51 HCD-EP505 Ver 1.1 MAIN POWER Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark < DIODE > Q206 8-729-281-53 TRANSISTOR 2SC536NP-F Z401 8-719-109-89 DIODE MTZJ-T-72-5.6B < RESISTOR > (EXCEPT AEP, UK, CH) Z801 8-719-109-93 DIODE MTZJ-T-72-6.2B R201...
  • Page 52: Revision History

    HCD-EP505 REVISION HISTORY Clicking the version allows you to jump to the revised page. Also, clicking the version at the upper right on the revised page allows you to jump to the next revised page. Ver. Date Description of Revision 2002.03...
