INSTRUCTION MANUAL
M ULT I MEDI A AU DIO A N D VI SU A L

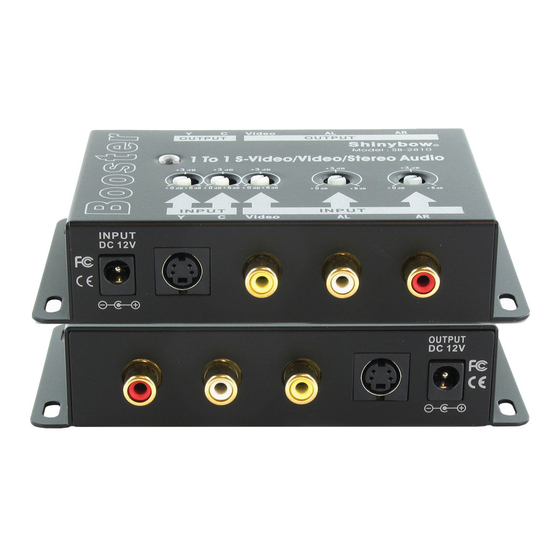

MODEL : SB-2810 (Video-RCA)
SV/CV/Audio Booster
MODEL : SB-2809 (Video-BNC)
SV/CV/Audio Booster
S-Video / Composite / Audio Booster
S-Video/Composite Video/Stereo Audio Booster Series
Thank you for purchasing the SB-2810 or the SB-2809 S-Video/CompositeVideo/Audio Signals Booster. You
will fi nd this unit easy to install and highly reliable but it is essential that you read this manual thoroughly before
attempting to use this booster.
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Shinybow USA SB-2810
Summary of Contents for Shinybow USA SB-2810
- Page 1 S-Video/Composite Video/Stereo Audio Booster Series Thank you for purchasing the SB-2810 or the SB-2809 S-Video/CompositeVideo/Audio Signals Booster. You will fi nd this unit easy to install and highly reliable but it is essential that you read this manual thoroughly before...
-
Page 2: Safety Information
SAFETY INFORMATION To ensure the best results from this product, please read this manual and all other documentation before operating your equipment. Retain all documentation for future reference. Follow all instructions printed on unit chassis for proper operation. To reduce the risk of fi re, do not spill water or other liquids into or on the unit, or operate the unit while standing in liquid. Make sure power outlets conform to the power requirements listed on the back of the unit. -
Page 3: Table Of Contents
S-Video/Composite Video/Stereo Audio Signals Boosters on the • Do not attach the power supply cabling to building surfaces. market today. The SB-2810 booster provides signal via RCA video • Use only the supplied power supply unit (PSU). Do not use the PSU if it is damaged. -
Page 4: Features
Differential Gain Error: 0.01%, Rl=150% Differential Phase Error: 0.01%, Rl=150% In/Out Terminal: SB-2810 use RCA connectors, SB-2809 use BNC female connectors Size(L,W,H): 4.09 in x 2.83 in x 1 in (104mm x 72mm x 25mm) Net Weight (Unit only): 1 lbs (0.60kg) Approx... -
Page 5: Typical Hookup And Operation
TYPICAL HOOKUP AND OPERATION SB-2809 & SB-2810 SB-2809 SB-2810 Front: Video BNC connectors Front: Video RCA connectors Input : S-Video/Composite/Audio Input : S-Video/Composite/Audio Power Input : DC 12V, @300mA Power Input : DC 12V, @300mA Rear : Video BNC connectors... -
Page 6: Limited Warranty
LIMITED WARRANTY PLEASE READ THE FOLLOWING TERMS AND CONDITIONS CAREFULLY BEFORE USING THIS HARDWARE, COMPONENTS AND SOFTWARE PROVIDED BY, THROUGH OR UNDER SHINYBOWUSA, INC (COLLECTIVELY, THE “PRODUCT”). By using installing or using the Product, you unconditionally signify your agreement to these Terms and Conditions. If you do not agree to these Terms and Conditions, do not use the Product and return the Product to SHINYBOWUSA, Inc. - Page 7 M ULT IM EDI A AUDIO AN D V IS UA L 122 Rose Ln. Suite 303 | Frisco, Texas 75034 1-877-SHINY-USA 1-877-744-6987 1-972-377-2508 sales@shinybowusa.com www.shinybowusa.com...
