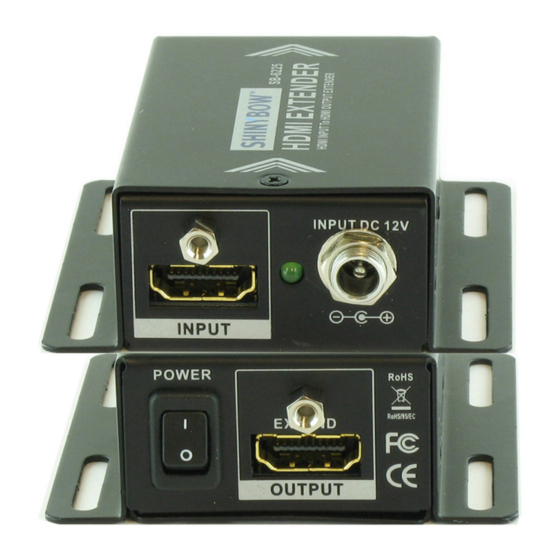

- Page 1 SB-6225 HDMI Amplifier Repeater Extender...
-
Page 2: Safety Information
SAFETY INFORMATION To ensure the best results from this product, please read this manual and all other documentation before operating your equipment. Retain all documentation for future reference. Follow all instructions printed on unit chassis for proper operation. To reduce the risk of fire, do not spill water or other liquids into or on the unit, or operate the unit while standing in liquid. Make sure power outlets conform to the power requirements listed on the back of the unit. - Page 3 HDMI HIGH QUALITY EXTENDER Series Thank you for purchasing the SB-6225 HDMI To HDMI Extender you will find this unit easy to install and highly reliable but it is essential that you read this manual throughly before attempting to use Extender.
- Page 4 FEATURES & SPECIFICATIONS FEATURES • HDMI signal Digital Video TMDS /Audio 98 ft/30M Extedner • HDMI digital Video/Audio and DVI format and HDCP compliant • Supports link speeds of up to 3.4 Gbps • Supports Digital RGB 36bits HDMI TMDS format deep color •...
-
Page 5: Typical Hookup And Operation
Outputs : 1x HDMI (Digital Video-TMDS, Digital Audio) with HDCP The SB-6225 is a transmits HDMI over CAT5/6 category cable lengths of up to 98~230 ft/30~70M which supports HDMI 480i/p, 576i/p, 720p (50/60Hz), 1080i and 1080p (50/60Hz). For best results, install between the HD DVD player and HDMI Display monitor with... -
Page 6: Limited Warranty
LIMITED WARRANTY PLEASE READ THE FOLLOWING TERMS AND CONDITIONS CAREFULLY BEFORE USING THIS HARDWARE, COMPONENTS AND SOFTWARE PROVIDED BY, THROUGH OR UNDER SHINYBOWUSA, INC (COLLECTIVELY, THE “PRODUCT”). By using installing or using the Product, you unconditionally signify your agreement to these Terms and Conditions. If you do not agree to these Terms and Conditions, do not use the Product and return the Product to SHINYBOWUSA, Inc. - Page 7 THIS PAGE IS INTENTIONALLY LEFT BLANK.
- Page 8 122 Rose Ln. Suite 303 | Frisco, Texas 75034 1-877-SHINY-USA 1-877-744-6987 1-972-377-2508 sales@shinybowusa.com www.shinybowusa.com...
