INSTRUCTION MANUAL
M ULT I MEDI A AU DIO A N D VI SU A L

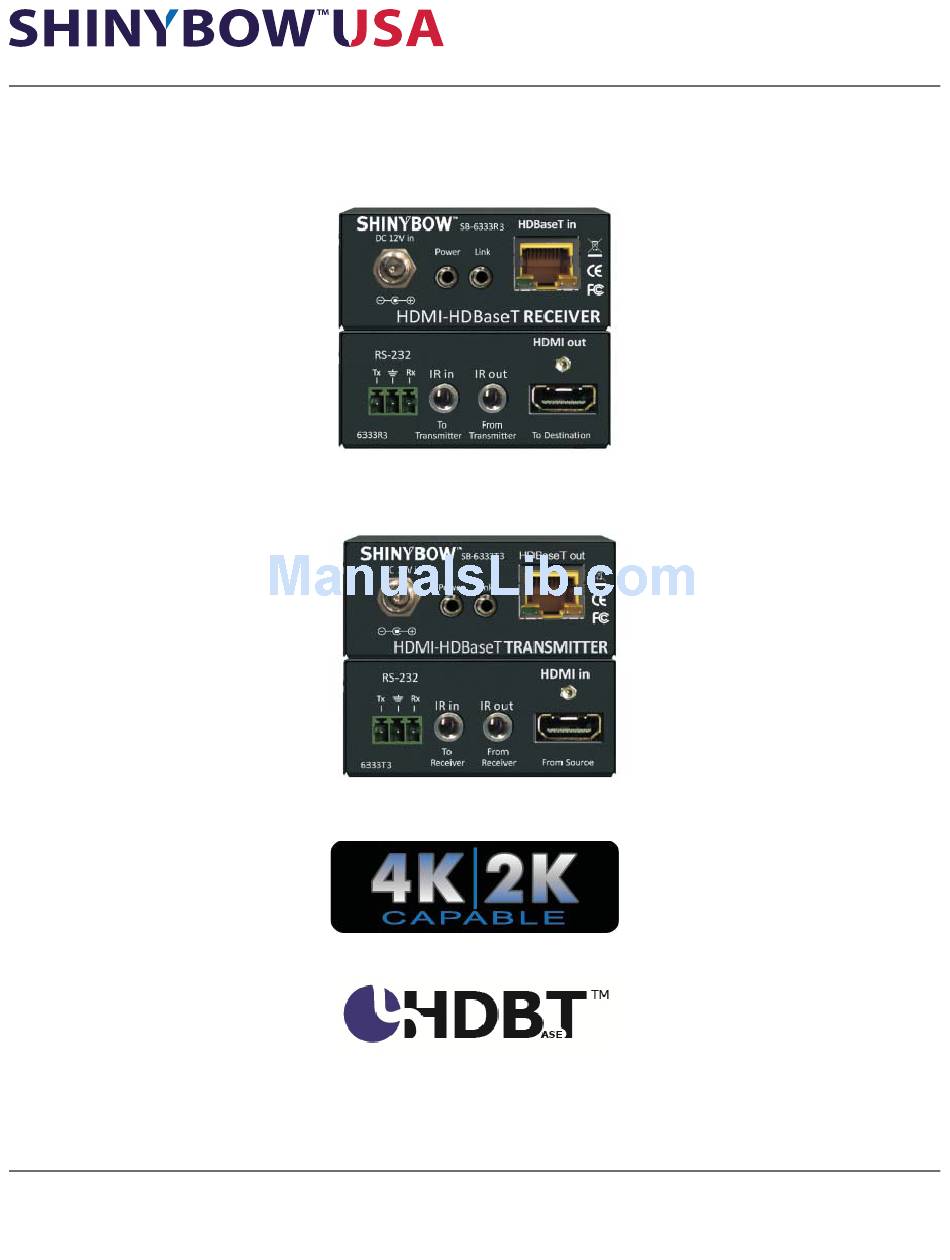

MODEL : SB-6335R3/T3 KIT
HDMI HDBaseT EXTENDER
RECEIVER
TRANSMITTER
HDMI CATx EXTENDER Series
Thank you for purchasing the SB-6333T3/R3 HDMI Over HDBaseT extender kit. You will fi nd this unit easy to
install and highly reliable but it is essential that you read this manual thoroughly before attempting to use these
extenders.
Advertisement
Table of Contents
Related Manuals for Shinybow USA SB-6335R3 KIT
Summary of Contents for Shinybow USA SB-6335R3 KIT
- Page 1 INSTRUCTION MANUAL M ULT I MEDI A AU DIO A N D VI SU A L MODEL : SB-6335R3/T3 KIT HDMI HDBaseT EXTENDER RECEIVER TRANSMITTER HDMI CATx EXTENDER Series Thank you for purchasing the SB-6333T3/R3 HDMI Over HDBaseT extender kit. You will fi nd this unit easy to install and highly reliable but it is essential that you read this manual thoroughly before attempting to use these extenders.
-
Page 2: Safety Information
SAFETY INFORMATION To ensure the best results from this product, please read this manual and all other documentation before operating your equipment. Retain all documentation for future reference. Follow all instructions printed on unit chassis for proper operation. To reduce the risk of fi re, do not spill water or other liquids into or on the unit, or operate the unit while standing in liquid. Make sure power outlets conform to the power requirements listed on the back of the unit. -
Page 3: Table Of Contents
TABLE OF CONTENTS CONTENTS SAFETY PRECAUTIONS INTRODUCTION ...............1 Please read all instructions before attempting to unpack, install or operate this equipment and before connecting the power supply. FEATURES & CONTENTS ..........2 Please keep the following in mind as you unpack and install this equipment: SPECIFICATIONS ............. -
Page 4: Features & Contents
FEATURES & CONTENTS FEATURES RECEIVER • HDBaseT HDMI Receiver over single CAT6/6A/7 category LAN cable. • HDBaseT Receiver signals HDMI, IR I/O and RS-232 I/O. • Support single category cable via using the CAT6, CAT6A and CAT7 (UTP/FTP) cable. • Support link speeds of up to 3.4 Gbps, HDMI 1.4, full HD 4K2K signal, HDCP compliant. •... -
Page 5: Specifications
SPECIFICATIONS SPECIFICATIONS RECEIVER • Type of Extender: HDBaseT Receiver for HDMI over single category LAN Cable. • Input Signals: HDMI with Digital Video(TMDS)/Audio 0.5~1.0vPP, DDC 5Vpp • HDBaseT Supports: HDMI 1.4 Standard, DVI and HDCP Compliant • Video Support: HDMI and DVI TMDS format for 1920x1200 resolution up to 3.4 Gbps Digital RGB 36bits deep color, 3D 1.4a HDMI format •... -
Page 6: Typical Hookup And Operation
TYPICAL HOOKUP AND OPERATION SB-6333x3 RECEIVER Front: RECEIVER Back: 1. HDMI Out : HDMI signal output to destination display (signal 5. HDBaseT In : HDBaseT signal input (HDMI signal from SB- from HDMI source). 6333T3) 2. IR Out : IR signal output (receive IR signal from SB-6333T3). 6. -
Page 7: Rack Mounts (Optional)
RACK MOUNT SB-6001 (OPTIONAL) SB-6333T3/R3 - 19 INCH 2U-13P RACK MOUNT Model No. : #2U-13p-M80MM SB-6333T3/R3 2U Ear mount pairs Parts No.: MEERCAT5FT1300 Model No. : 2U-13p-M80MM-COV SB-6333T3/R3 2U Ear mount pairs Parts No.: MEERCAT5RP11000 Model No. : #2U-13p-M80MM-EAR SB-6333T3/R3 2U Ear mount pairs Parts No.: MEER6300ER11001... - Page 8 RACK MOUNT SB-6001 Complete 19 inch 2U rack mount (Total 13 pcs) Install Application : SB-6333T3, SB-6333T, SB-6333R3 & SB-6333R SB-6333T/R : Wall mount accessories Model No. : #WM-1INCH-80MM SB-6333T3/R3 Wall mount pairs Parts No.: MEER6300ER11000...
-
Page 9: Ir Extender
IR EXTENDER IR RECEIVER: 1. SB-100 IR 300M Receiver Device Cable (3C) IR Receiver (SB-100) R oHS /95/E C INP UT R S -232 IR E XT. in DC 12V IR Rx RS - 232 IR EXT . SB-100 SB-100 IR Receiver Set SB-100 Maximum Distance ~ 984 feet (300 meters) 2. -
Page 10: Pin Configuration
IR EXTENDER IR EMITTER: 1. SB-101 IR 300M Transmitter Device Cable (3C) IR Transmitter (SB-101) IR out CAT6/6a/7 DC 12V IR in R oHS /95/E C IR Tx From OUTPUT Receiver Receiver SB-101 SB-101 IR Transmitter Set SB-101 Maximum Distance ~ 984 feet (300 meters) 2. -
Page 11: Limited Warranty
LIMITED WARRANTY PLEASE READ THE FOLLOWING TERMS AND CONDITIONS CAREFULLY BEFORE USING THIS HARDWARE, COMPONENTS AND SOFTWARE PROVIDED BY, THROUGH OR UNDER SHINYBOWUSA, INC (COLLECTIVELY, THE “PRODUCT”). By using installing or using the Product, you unconditionally signify your agreement to these Terms and Conditions. If you do not agree to these Terms and Conditions, do not use the Product and return the Product to SHINYBOWUSA, Inc. - Page 12 M ULT IM EDI A AUDIO AN D V IS UA L 122 Rose Ln. Suite 303 | Frisco, Texas 75034 1-877-SHINY-USA 1-877-744-6987 1-972-377-2508 sales@shinybowusa.com www.shinybowusa.com...
