INSTRUCTION MANUAL
M ULT I MEDI A AU DIO A N D VI SU A L
MODEL : SB-6335R4/T4 KIT
HDMI HDBaseT EXTENDER
HDMI HDBaseT EXTENDER Receiver with Ethernet
HDMI HDBaseT EXTENDER TRANSMITTER with Ethernet
HDMI-HDBaseT EXTENDER Series
Thank you for purchasing the SB-6335R4/T4 HDMI-HDBaseT with Ethernet Receiver & Transmitter. You will
fi nd this unit easy to install and highly reliable but it is essential that you read this manual thoroughly before
attempting to use these converters.
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Shinybow USA SB-6335R4/T4 KIT
Summary of Contents for Shinybow USA SB-6335R4/T4 KIT

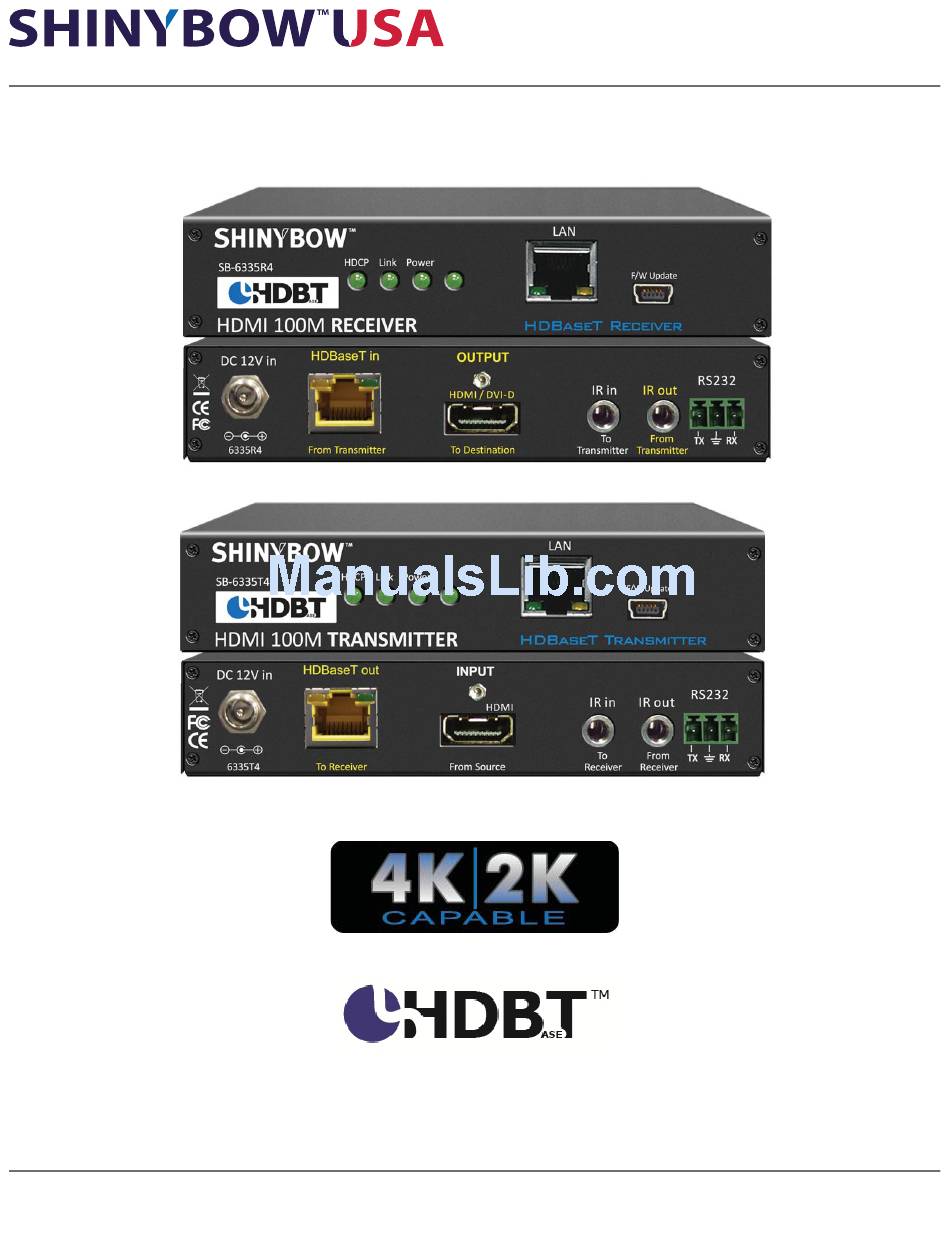

- Page 1 INSTRUCTION MANUAL M ULT I MEDI A AU DIO A N D VI SU A L MODEL : SB-6335R4/T4 KIT HDMI HDBaseT EXTENDER HDMI HDBaseT EXTENDER Receiver with Ethernet HDMI HDBaseT EXTENDER TRANSMITTER with Ethernet HDMI-HDBaseT EXTENDER Series Thank you for purchasing the SB-6335R4/T4 HDMI-HDBaseT with Ethernet Receiver & Transmitter. You will fi...
-
Page 2: Safety Information
SAFETY INFORMATION To ensure the best results from this product, please read this manual and all other documentation before operating your equipment. Retain all documentation for future reference. Follow all instructions printed on unit chassis for proper operation. To reduce the risk of fi re, do not spill water or other liquids into or on the unit, or operate the unit while standing in liquid. Make sure power outlets conform to the power requirements listed on the back of the unit. -
Page 3: Table Of Contents
TABLE OF CONTENTS CONTENTS SAFETY PRECAUTIONS INTRODUCTION ...............1 Please read all instructions before attempting to unpack, install or operate this equipment and before connecting the power supply. FEATURES & CONTENTS ..........2 Please keep the following in mind as you unpack and install this equipment: SPECIFICATIONS ............. -
Page 4: Features & Contents
FEATURES & CONTENTS FEATURES RECEIVER • HDBaseT HDMI Receiver over single CAT6/6a/7 category LAN cable. • Extend for HDMI, IR in/out, RS-232 in/out and Ethernet ports, with HDCP compliant. • Support category cable via using the CAT6, CAT6a and CAT7 UTP/FTP cable. •... -
Page 5: Specifications
SPECIFICATIONS SPECIFICATIONS RECEIVER • Type of Extender: HDBaseT Receiver for HDMI signal over one category LAN Cable • Input Signals: HDMI with Digital Video(TMDS)/Audio 0.5~1.0vPP, DDC 5Vpp • HDBaseT Supports: HDMI Standard, DVI and HDCP Compliant • Video Support: HDMI and DVI TMDS format for 1920x1200 resolution up to 3.4 Gbps Digital RGB 36bits deep color, 3D 1.4a HDMI format •... -
Page 6: Typical Hookup And Operation

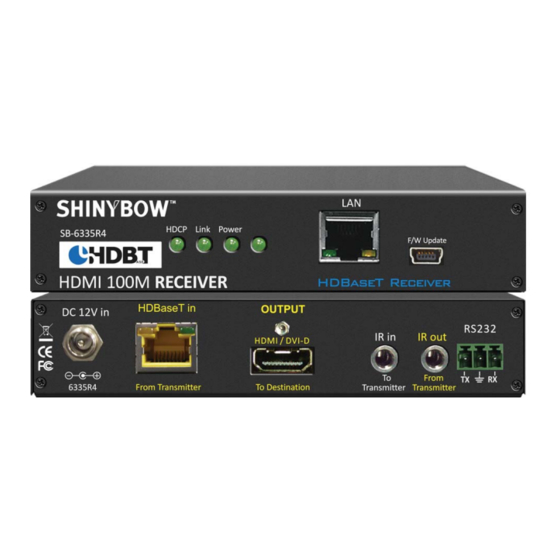

TYPICAL HOOKUP AND OPERATION - RECEIVER FRONT PANEL: SB-6335R4 1. Status via LED Show out : POWER, LINK & HDCP. 2. PoH turn OFF led. 3. 1x Ethernet series interface path to HDBaseT Transmitter. 4. 1x Firmware update port. REAR PANEL: SB-6335R4 5. - Page 7 TYPICAL HOOKUP AND OPERATION - TRANSMITTER FRONT PANEL: SB-6335T4 1. Status via LED Show out : HDCP, LINK & POWER 2. Turn OFF PoH(Power Over HDBaseT). 3. 1x Ethernet path to HDBaseT Receiver. 4. 1x Firmware update port REAR PANEL: SB-6335T4 5.
-
Page 8: Rack Mounts (Optional)
RACK MOUNT (optional) SB-6069 SB-6335T4/SB-6335R4 19 INCH 4U-10P RACK MOUNT Model No. : #4U-10p-L130MM SB-6335T4/SB-6335R4 4U Ear mount pairs Parts No.: MEER6069ER13000 Model No. : #4U-10p-L130MM-COV SB-6335T4/SB-6335R4 4U Ear mount pairs Parts No.: MEER6069ER11000 Model No. : #4U-10p-L80MM-EAR SB-6335T4/SB-6335R4 4U Ear mount pairs Parts No.: MEER6320ER11001... - Page 9 RACK MOUNT (optional) SB-6069 Complete 19 inch 4U rack mount Install (10 units) Application : SB-6335T4/SB-6335R4 SB-6335T4/SB-6335R4 : Wall mount accessories Model No. : #WM-1INCH-L80MM SB-6335T4/SB-6335R4 Wall mount pairs Parts No.: MEER6320ER11000...
-
Page 10: Ir Extender
IR EXTENDER IR RECEIVER: 1. SB-100 IR 300M Receiver Device Cable (3C) IR Receiver (SB-100) R oHS /95/E C INP UT R S -232 IR E XT. in DC 12V IR Rx RS - 232 IR EXT . SB-100 SB-100 IR Receiver Set SB-100 Maximum Distance ~ 984 feet (300 meters) 2. - Page 11 IR EXTENDER IR EMITTER: 1. SB-101 IR 300M Transmitter Device Cable (3C) IR Transmitter (SB-101) IR out CAT6/6a/7 DC 12V IR in R oHS /95/E C IR Tx From OUTPUT Receiver Receiver SB-101 SB-101 IR Transmitter Set SB-101 Maximum Distance ~ 984 feet (300 meters) 2.
-
Page 12: Limited Warranty
LIMITED WARRANTY PLEASE READ THE FOLLOWING TERMS AND CONDITIONS CAREFULLY BEFORE USING THIS HARDWARE, COMPONENTS AND SOFTWARE PROVIDED BY, THROUGH OR UNDER SHINYBOWUSA, INC (COLLECTIVELY, THE “PRODUCT”). By using installing or using the Product, you unconditionally signify your agreement to these Terms and Conditions. If you do not agree to these Terms and Conditions, do not use the Product and return the Product to SHINYBOWUSA, Inc. - Page 13 M ULT IM EDI A AUDIO AN D V IS UA L 122 Rose Ln. Suite 303 | Frisco, Texas 75034 1-877-SHINY-USA 1-877-744-6987 1-972-377-2508 sales@shinybowusa.com www.shinybowusa.com...
