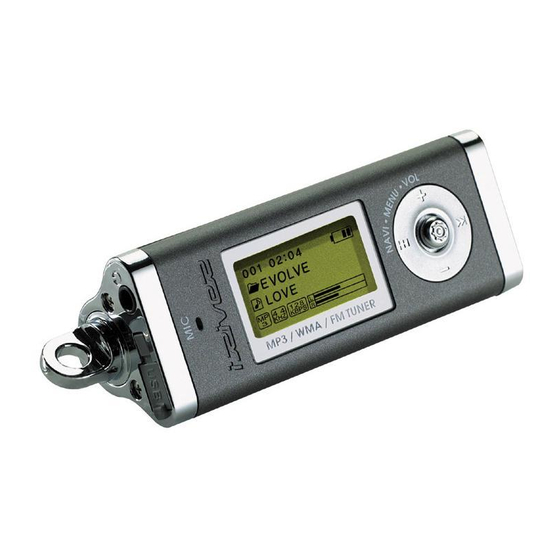

- Page 1 Instruction Manual MP3 PLAYER / FM TUNER Model iFP-120/140/180T Model iFP-120/140/180T Thank you for purchasing our product. Please read this manual carefully before use. Limited http://www.iRiver.com...
-
Page 2: Fcc Certification
FCC Certification THIS DEVICE COMPLIES WITH PART 15 OF THE FCC RULES. OPERATION IS SUBJECT TO THE FOLLOWING TWO CONDITIONS: (1) THIS DEVICES MAY NOT CAUSE HARMFUL INTERFERENCE, AND (2) THIS DEVICE MUST ACCEPT ANY INTERFERENCE, RECEIVED, INCLUDING INTERFERENCE THAT MAY CAUSE UNDESIRED OPERATION. - Page 3 Limited in the Republic of Korea and /or other countries and is used under license. Microsoft Windows Media and the Windows Logo are trademarks or registered trademarks of Microsoft Corporation in the United States and /or other countries.
-
Page 4: Table Of Contents
Contents 1. CONTROLS Front View, Side View 1... Side View 2, Top/Bottom View... LCD Window... 2. BASIC OPERATION Basic Operation... Installing Software on the PC... Downloading from the PC... Uploading to the PC... Deleting Files/Folders on the player... Deleting files on the PC... Initializing/ Making new folders/Refresh... -
Page 5: Lcd Window
CONTROLS SIDE VIEW 2 Hold TOP/BOTTOM VIEW USB Connection Port Battery Compartment Earphone CONTROLS LCD Window PLAYBACK MODE PLAY TIME HOLD THE ORDER OF SONGS BATTERY INDICATOR FOLDER NAME ARTIST/TITLE NAME VOLUME EQUALIZER OTHER INFORMATION FILE FORMAT BIT RATE SAMPLE RATE... -
Page 6: Basic Operation
BASIC OPERATION When using Navigation When using Menu 1. LCD window. 2. To select the previous music for MP3 or station for FM. 3. To increase volume 4. To select the next music for MP3 or station for FM. 5. To decrease volume 6. -
Page 7: Installing Software On The Pc
You can save MP3 files or other types of files on the PC or the Player by using the Music Manager Program. You can update the features of the player by downloading from the internet. (Log on to www.iriver.com) System Requirements - Pentium 133MHz or faster... - Page 8 INSTALLING SOFTWARE ON THE PC Caution Before connecting the USB cable to the player, stop playback. To install “New hardware” Connect the USB cable(provided) to the USB port of your computer. Type “A” : USB port on the panel of the PC Type “B”...
- Page 9 (When installation is automatically not started.) INSTALLING SOFTWARE ON THE PC Select the folder to Install. Click “NEXT”. Click “NEXT”. Generally assigned as “C Driver Program File iRiver iRiver- Manager Click “Finish” Complete the installation of “Manager”.
-
Page 10: Downloading From The Pc
DOWNLOADING FROM THE PC Activate the Manager program after connecting the USB cable between the player and the PC. Double click the Manager icon on the PC to open the Manager program. Select the folder on the PC to download to Select the folder to be saved in the player. -
Page 11: Uploading To The Pc
UPLOADING TO THE PC Activate the Manager program after connecting the USB cable between the player and the PC. Double Click the Manager icon on the PC. Select the folder to be saved on the PC. Select files in the player to save. UPLOADING TO THE PC Click the “Upload”... -
Page 12: Deleting Files/Folders On The Player
DELETING FILES/FOLDERS ON THE PLAYER To delete files Stop playback. Click the Select the files to delete by “NAVI/MENU” using VOL button. Click the “MODE” button. “File delete are you sure?” is displayed on the LCD. FILE DELETE Select “yes”by using delete. -
Page 13: Initializing/ Making New Folders/Refresh
INITIALIZING/ MAKING NEW FOLDERS/REFRESH To initialize the player To open the Manager Program Click the “format” icon or select “format” Double click the Manager icon on the PC to open the Manager program. in the file menu to format. To make a new folder Click the “New Folder”... -
Page 14: Operating The Fm Tuner
LISTENING TO MUSIC To turn on the player To play the next folder To Play To play the previous folder To change the function (MP3 Voice recording) To fast forward To stop To fast reverse To advance To turn off the player To reverse OPERATING THE FM TUNER * FM Tuner included only on model iFP-180T. - Page 15 OPERATING THE FM TUNER * FM Tuner included only on model iFP-180T. Memory Function (Save channels) Select the channel by pushing the switch to the left or the right. Push and select the again desired channels. Select CH02 Save complete Up to 20 channels can be memorized.
-
Page 16: Recording Fm
OPERATING THE FM TUNER Memory delete function (Delete saved channels) Select the channel to be deleted at preset mode. Press and hold the memory button. - The next channel will appear when channel delete is completed. Push the memory button if you want to delete the next channel also. FM Tuner reception may vary in different areas. -
Page 17: Recording Voice
RECORDING VOICE Press and hold the MODE/REC button. Press the Voice mode. Press the NAVI/MENU button(or Press the MODE/REC button and PLAY/STOP) to go to Voice recording voice recording starts. mode. RECORDING VOICE switch to select To stop recording Press the MODE/REC button. The recorded file is saved as form of VOICE000.REC. -
Page 18: 28 Navi/Menu
NAVIGATION Navigation is the function used to search tracks. You can select a song by pressing the NAVI/MENU button and using the VOL +, VOL - buttons. NAVI/MENU button Scroll down Select Folder or Scroll to Upper Folder Select upper folder Scroll down NAVIGATION Select the track... -
Page 19: Program Mode
MODE REPEAT Play a single track repeatedly. Play all tracks in the folder and stop. Play all tracks in the folder repeatedly. Play all tracks in the player repeatedly. SHUFFLE Randomly play all tracks in the player repeatedly and stop. Randomly play all tracks in the folder repeatedly and stop. -
Page 20: Program Play
PROGRAM MODE After pressing the NAVI/MENU button, select the music to program by using the VOL+, VOL - switch. White day Pop 02 Jazz 01 POP 01 Push the VOL + or VOL - switch to select a folder, then press the MEMORY/REC button to save all files in the folder. -
Page 21: Eq Mode
EQ MODE EQ MODE Press and hold the MEMORY/EQ button to display the current EQ. Every time you click this button, the EQ mode scrolls in sequential order. Note: Please refer to the Function Control (Page 48) for configuring User Defined EQ. MENU (FUNCTION CONTROLS) Function Control is subject to change with different firmware versions. -
Page 22: Menu Operation
MENU Menu Operation MAIN MENU Press and hold the NAVI/MENU button to display the menus. It is composed of 6 main menus with sub-menus. SUB MENU When you select a sub menu, you can set your preference to be displayed. Shift between Menus Press the button to move... -
Page 23: Menu(General)
MENU(GENERAL) GENERAL BEEP VOL : Configure beep sound with volume level. Set to “0” for OFF. RESUME : When activated, the player returns to the same settings after STOP or Power OFF. FADE IN : When activated, volume increases gradually at playback mode to prevent sudden loudness. - Page 24 MENU(DISPLAY) VISUALIZATION : Can display the visualization of the audio signal in play mode, the elapsed time of a track, or the free space in memory. WAVEFORM PROGRESSIVE FREE SPACE TIME Normal : display elapsed time. Remain : display remaining time. Note : If the track format is VBR, the time may not be accurate.
-
Page 25: Menu Control
MENU(CONTROL) SCAN SPEED The fast scan speed can range from 1x/2x/ 4x/6x. SCROLL SPEED Adjust scroll speed by 1x/2x/4x Vertical : The scroll goes up and down Horizontal : The scroll goes from the left to the right. SOUND BALANCE Balance your sound to the right or left or keep it in the center according to your preference. -
Page 26: Power Supply(Battery)
MENU(USER EQ) Menu (User EQ) BASS BOOST : The Bass Boost switch is from 0 to 24dB. 24dB is the maximum bass boost. TREBLE BOOST : TheTreble boost level is from o to 6dB. 6dB is the maximum treble boost. POWER SUPPLY(BATTERY) Inserting a battery Open the battery cover. -
Page 27: Trouble Shooting
TROUBLE SHOOTING Should any problem persist after you have checked these symptoms, consult your iRiver dealer or contact support at iRiver.com. Check whether the batteries have been inserted in properly. No Power Check whether the HOLD switch on the player is ON (Switch to OFF position) Check whether VOLUME is set to "0". -
Page 28: Accessories
50 dB Antenna Headphone/Earphone-Cord Antenna Dimension 31 x 28.5 x 82 mm(95mm : With Ring for Necklace) 32 g(iFP-180T) / 29 g(iFP-120/140) (without Battery) Weight 52 g(iFP-180T) / 49 g(iFP-120/140) (with Battery) Battery 1 AA size Alkaline battery Frequency range...
