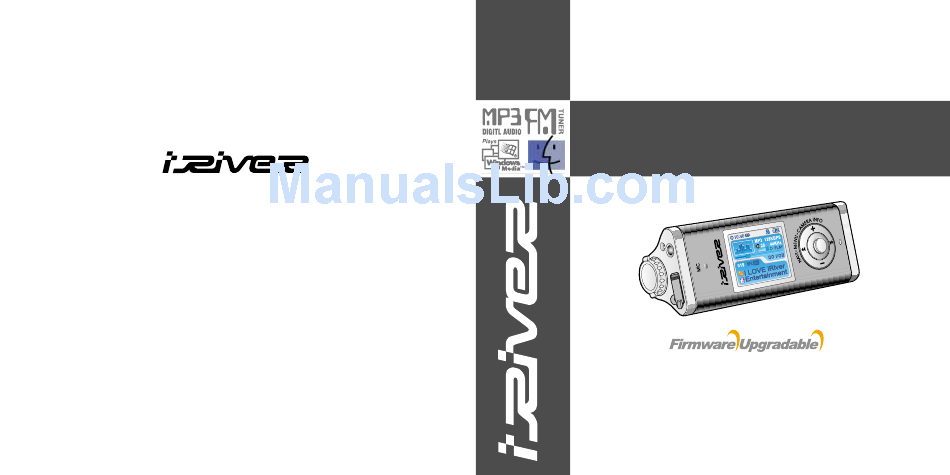

Hardware Instruction Manual
Digital Audio Player/recorder/Camera/FM Tuner
Model iFP-1000 Series
iFP-1000 Series
Thank you for your purchase.
Please read this manual carefully
before using your new player.
http://www.iRiver.com
http://www.iRiver.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the iFP-1090 and is the answer not in the manual?

Questions and answers

Related Manuals for IRiver iFP-1090

Summary of Contents for IRiver iFP-1090

  • Page 1 Hardware Instruction Manual Digital Audio Player/recorder/Camera/FM Tuner Model iFP-1000 Series iFP-1000 Series Thank you for your purchase. Please read this manual carefully before using your new player. http://www.iRiver.com http://www.iRiver.com...

  • Page 2: Table Of Contents

    FFC Certification Contents THIS DEVICE COMPLIES WITH PART 15 OF THE FCC RULES. OPERATION IS SUBJECT TO THE FOLLOWING TWO CONDITIONS: Getting started (1) THIS DEVICE MAY NOT CAUSE HARMFUL INTERFERENCE, AND (2) THIS DEVICE MUST ACCEPT ANY INTERFERENCE, RECEIVED, INCLUDING INTERFERENCE THAT MAY CAUSE UNDESIRED OPERATION.

  • Page 3: Getting Started

    Getting started Contents Internet Features About power supply This manual covers the installation and use of the player hardware. For details regarding the software operation including transferring music to the player, please see the Software Instruction Manual.
  • Page 4 GUI (Graphic User Interface) Menu System " iRiver is a registered trademark of iRiver Limited in the Republic of Korea and /or " Easy Navigation other countries and is used under license. Microsoft Windows Media and the The simple navigation makes it easy to find any song.

  • Page 5: About Power Supply

    About power supply About power supply Charging by using USB cable Battery detach/attach Connect the USB cable to the player and the PC. The iFP battery will begin charging. To detach : Press the tab to release the battery and slide it out of the player. "...

  • Page 6: Locating The Controls

    Locating the controls Contents Front View Rear View LCD screen This manual covers the installation and use of the player hardware. For details regarding the software operation including transferring music to the player, please see the Software Instruction Manual.
  • Page 7 Locating the controls Locating the controls Front view Rear view Volume +, Enlarge, Up NAVI/MENU Hold I (Next / Fast forward) Microphone Neck strap Battery Lock Earphone Rechargeble Battery Charging indicator Camera lense Volume -, Reduce, Down Camera (Previous / Fast Reverse) LCD Screen USB connection port Power on/off,...

  • Page 8: Pc Software Installation

    OGG : OGG For installation instructions for Mac OS, please see the Software Instruction Manual. IRM (iRiver Rights Management) : iRiver Rights Management is a digital music format. " Please visit our web site for details about this music format.
  • Page 9 - Manager Program for Mac The player can store MP3 files or files of any type. " You can upload files, other than music (MP3, WMA, OGG, ASF), to the PC using the iRiver Music Manager Program. Click “Next” to Install iRiver Music Manager.
  • Page 10 PC software installation Attach the player Software installation Connecting to the PC Click “Next” after confirming the Click “Install” to begin the installation. Connect the USB cable (provided) to the USB port of your computer. installation folder. USB port on the PC USB port on the Type “A”...
  • Page 11 (Windows XP) The iRiver software driver will not cause any damage to your computer. Note Windows 98SE, Windows ME, Windows 2000 O.S do not need any other device " driver installation. Install New Hardware after installing iRiver Music Manager program. "...

  • Page 12: Basic Operation

    Attach the player Basic operation Safely Removing the player from the PC Contents Click the “Stop” after selecting the device Select the “Safely Remove hardware” to remove. after clicking the “Safe To Remove Hardware” by using the right button of Basic Operation mouse.
  • Page 13 Basic operation Basic operation Turning on the player Changing functions Press and hold MODE button to appears current function on the LCD screen. Connect the earphones as shown below. Put the HOLD switch to “OFF”. " " Push the NAVI/MENU button toward to select the desired function, then click the NAVI/MENU button to enter that mode.

  • Page 14: Navigation Menu

    Basic operation Basic operation Listening to music Navigation 2 3 4 Press NAVI/MENU button and find the desired music file by pushing NAVI/MENU button to VOL + or VOL – direction. To play the files, press the NAVI/MENU button, push NAVI/MENU/VOL to direction or the PLAY/STOP button.
  • Page 15 Basic operation Basic operation Tuning FM stations Shooting To flip a picture Push NAVI/MENU/VOL to the direction to select desired station. Camera zoom in/zoom out Zoom in Selecting the FM stereo/mono Press the STEREO/PLAY/STOP button to select Stereo/Mono. Zoom out Setting the camera Select Settings...
  • Page 16 Basic operation Basic operation Viewing a picture (My Album) Customizing the function settings(Menu) You can customize this setting menu according to your preference. Press and hold NAVI/MENU button will enter the menu system. Previous Next Full screen Zooming a picture 1.

  • Page 17: Listening To Music

    Listening to music Listening to the FM radio Playing music file FM radio listening Press and hold MODE button. The current function appears on the LCD screen. Power off playback mode Function Power on/play/stop A-B repeat Push NAVI/MENU/VOL to the direction to select FM radio.
  • Page 18 Listening to the FM radio Listening to the FM radio Programming station preset automatically Programming station preset manually Automatically select stations and save them in sequential order.(It only activates while the player Press and hold MEMORY(A-B) button. is not in PRESET mode) Automatically appears memory icon and a reserved number of the preset stations.
  • Page 19 Listening to the FM radio Listening to the FM radio Deleting preset station Tuning stations automatically Select the station to be deleted at preset Press and hold the MEMORY/EQ(A-B) Press NAVI/MENU/VOL button to cancel preset mode. mode. button. Push and hold the NAVI/MENU/VOL to direction.
  • Page 20 The station will be recorded, the remaining recording time will be displayed on the LCD screen. " It is saved in the RECORD folder. " Recorded REC files can be converted to MP3 files using iRiver Manager. (Refer to iRiver Music Manager Instruction Manual) Note "...

  • Page 21: Recording Voice

    Keep the player far away enough from the source to avoid distortion in the recording. " The player can not record when the memory is full or the battery is low. " Recorded REC files can be converted to MP3 files using iRiver Manager. (Referto to Software Instruction Manual) 4-17 4-18...
  • Page 22 Digital camera Digital camera Shooting Shooting Press and hold MODE button. The current function appears on the LCD screen. Press MEMORY/EQ(A-B) button to take a picture. Press A-B button to flip a picture to flip a picture. to flip <Original> <to flip>...
  • Page 23 Digital camera Digital camera Camera settings Camera settings Press and hold NAVI/MENU/VOL Press NAVI/MENU/VOL button. P ush NAVI/MENU/VOL to the direction to select value. buttonbutton to view the available The camera settings appear on the LCD Select settings. screen. " Brightness : 0 ~ 100 % (10% step/default 50%) "...
  • Page 24 Viewing a picture(Album) Viewing a picture(Album) Viewing a picture Viewing a picture P ush MEMORY/EQ/(A-B) button to enlarge or to reduce a picture.(x1.5/x2.0/x3.0/x1.0) Press and hold MODE/REC button. The Push NAVI/MENU/VOL to the Push MENU/NAVI button to the VOL+, VOL- or direction to shift the enlarged current function appears on the LCD direction to select My Album.

  • Page 25: Convenient Functions

    Viewing a picture(Album) Convenient functions Deleting a picture Contents Press and hold NAVI/MENU button after Push MENU/NAVI button to the selecting the picture to delete. direction to select “Yes” or “No”. Push MENU/NAVI button to confirm. Delete Searching the music files(Navigation) Yes/No Enjoying the sound equalizer(EQ) Playback Mode...
  • Page 26 Scroll up Scroll down Note According to file type displayed as follows : " " IRM (iRiver Rights Management) iRiver Rights Management is a digital music format. Scroll down Please visit our web site for details about this music format.
  • Page 27 Searching the music files(Navigation) Enjoying the sound equalizer(EQ) Deleting a folder or file EQ Mode Press the NAVI/MENU button wile the stop mode. You can select EQ mode in accordance to the playing music genre. Push the NAVI/MENU button to the direction to select a folder or file.

  • Page 28: Playback Mode

    Playback Mode Playback Mode Playback mode(Mode) Intro You can set various Repeat and Shuffle options INTRO: Plays the beginning 10 seconds of each track in sequential order. by choosing these selections under Mode. INTRO HIGHLIGHT: Plays 10 seconds from 1 minute into each track in Change the Repeat or Shuffle mode by pressing sequential order.
  • Page 29 Playing in a favorite order(Program) Playing in a favorite order(Program) Activiting program mode Activiting program mode Program mode: Create your own playlist. Press the NAVI/MENU button, then select the music to program by using the VOL+, VOL - Click the MEMORY/EQ button at Stop playback. The program list is displayed. switch.
  • Page 30 Playing in a favorite order(Program) Playing in a favorite order(Program) Program play To cancel program mode After programming, press PLAY/STOP button to play the tracks in sequential order. Push MENU/NAVI button to the VOL direction at stop mode. Program playback is cancelled and normal playback is started. The program mode icon appears Exit...
  • Page 31 Customizing the function settings(Menu) Customizing the function settings(Menu) Configuration Configuration Note " Functions are subject to change with different firmware versions. Users can configure their own settings. " 5-11 5-12...
  • Page 32 Menu-Basic operation Menu-Basic operation Basic operation Enter Sub Menu Push MENU/NAVI button to the direction to select sub menu. Press and hold the NAVI/MENU button to display the menu system. " Push MENU/NAVI button to confirm. The MENU system is composed of 6 main menus with sub-menus. "...
  • Page 33 Menu-General Menu-General Gerenal Loard Default Initialize menus to the original factory settings. The button’s operation order is as below. Click NAVI/MENU (select default menu) or VOL+ (select YES) Press NAVI/MENU (select YES : Initialization) Resume ON : Playback resumes from the previous location in a song when the player is stopped or powered off.
  • Page 34 Menu-Display Menu-Display Display Scroll Speed Adjust scroll speed by 1x / 2 x / 4x / Vertical / Horizontal. Vertical : The scroll goes up and down Horizontal : The scroll goes from the left to the right. Tag Information Back Light On : Display track with ID3 tag information You can adjust the time that the Backlight stays on.
  • Page 35 Menu-Timer Menu-Timer Timer Set Time Set the current time. Push the NAVI/MENU switch toward to select the item and toward VOL + or VOL - to set the clock. Use the switch to adjust time. Alarm/Record Select Sleep Power Off OFF: The Alarm and Tuner Record functions are disabled and Automatically turns the power off after a fixed time.
  • Page 36 Menu-Timer Menu-Control Tuner Rec. Reservation Control Set the time and station to be recorded. Push the NAVI/MENU switch toward to select the item and toward VOL + or VOL - to set the recording time. FF/RW Skip OFF : Skip doesn’t activate. 10 : Skip 10 tracks at time.
  • Page 37 Menu-Control Menu-Mode Voice Recording Mode Mode You can adjust recording quality when recording voice. ON : When recording voice, the recording level is automatically controlled and recordings from long distances are enhanced. OFF : AGC(Automatic Gain Control) not activated. Voice Auto Detection The voice recording mode will automatically pause during Repeat/Shuffle silence.
  • Page 38 Menu-Mode Menu-Mode Intro Name Intro: Plays the beginning 10 seconds of each track. You can input your name or custom text. Intro Highlight : Plays 10 seconds from 1 minute into each Charactor track in sequential order. " Select the character by using switch and press Navi/Menu button to input the character.
  • Page 39 Menu-Sound Menu-Sound Sound Xtreme 3D You can adjust the level of 3D sound(minimum, Natural, and Maximum). You can extend 3D sound by selecting Bass Boost or 3D EQ. You can also adjust the level of 3D sound with the lever. Select DBE or 3D EQ with the Navi/Menu button.
  • Page 40 Menu-Sound Menu-Sound Beep Volume Sound Balance Balance your sound to the right or left or keep it in the center Set beep volume level. according to your preference. When Sound Balance bar is moved to L Set to "0" for OFF. (Left, 20),the sound outputs at the left earphone.

  • Page 41: Additional Information

    Additional Information Contents Trouble shooting Precautions Accessories Specifications 5-31...

  • Page 42: Trouble Shooting

    Precautions Trouble Shooting Should any problem persist after you have checked these symptoms, consult your iRiver Safety dealer or contact support at www.iRiver.com. Avoid dropping or impacting the player. " The player is designed to operate while walking or running, but dropping or excessively impacting "...

  • Page 43: Specifications

    Accessories Specifications Memory 256MB 512MB Earphone/ Earphone cover USB cable Installation CD Model No iFP-1090 iFP-1095 Memory is not expandable. Category Item Specifications FM Frequency rang 87.5 MHz ~ 108 MHz (L)18 mW + (R)18 mW (16 Ohm) max. Volume...
