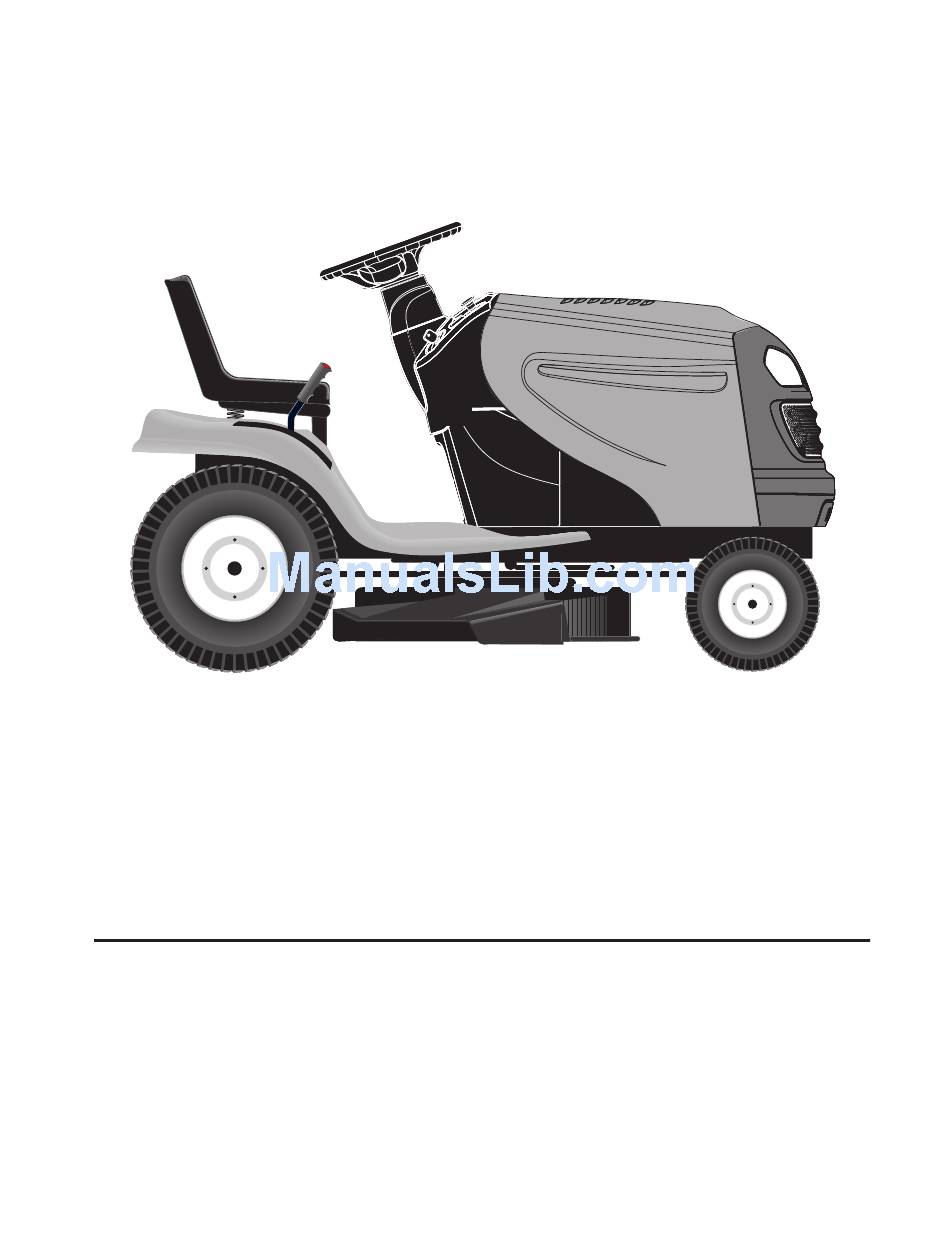

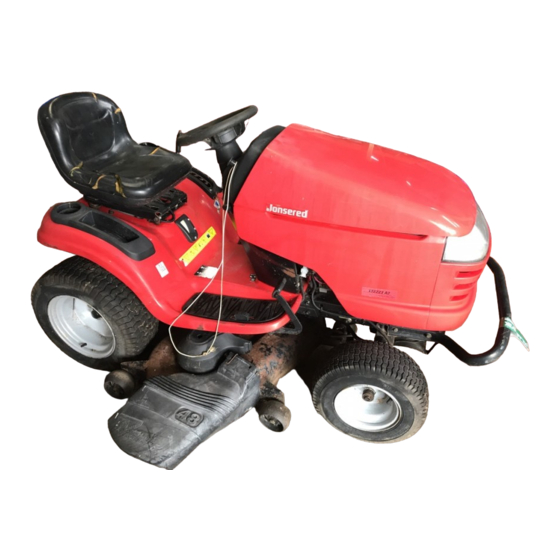

J O N S E R E D
S E R V I C E
03076
LT2223A2
Operator's Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the LT2223A2 and is the answer not in the manual?

Questions and answers

Related Manuals for Jonsered LT2223A2

Summary of Contents for Jonsered LT2223A2

  • Page 1 J O N S E R E D S E R V I C E 03076 LT2223A2 Operator's Manual...

  • Page 2: Safety Rules

    SAFETY RULES Safe Operation Practices for Ride-On Mowers DANGER: THIS CUTTING MACHINE IS CAPABLE OF AMPUTATING HANDS AND FEET AND THROW ING OBJECTS. FAILURE TO OBSERVE THE FOLLOWING SAFETY INSTRUCTIONS COULD RESULT IN SERIOUS INJURY OR DEATH. • Do not operate machine without the entire grass catcher, discharge guard, or other safety devices in place and WARNING: In order to prevent ac ci - working.
  • Page 3 SAFETY RULES Safe Operation Practices for Ride-On Mowers III. CHILDREN GENERAL SERVICE • Never operate machine in a closed area. Tragic accidents can occur if the operator is not alert to • Keep all nuts and bolts tight to be sure the equipment the presence of children.

  • Page 4: Table Of Contents

    PRODUCT SPECIFICATIONS CONGRATULATIONS on your purchase of a new tractor. It has been designed, engineered and manu fac tured to give you the best possible dependability and performance. Gasoline Capacity 3.0 Gallons and Type: Unleaded Regular Should you experience any problem you cannot easily rem- Oil Type (API-SG-SL): SAE 30 (above 32°F) edy, please contact your nearest authorized service center/...

  • Page 5: Unassembled Parts

    UNASSEMBLED PARTS Slope Sheet Slope Sheet (1) Oil Drain Tube (1) Oil Drain Tube (2) Keys (2) Keys Steering Extension Shaft (1) Hex Bolt Steering Wheel Insert Adapter Steering Steering Wheel Boot Washer Lock Washer (1) Seat (1) Washer (1) Hex Bolt...

  • Page 6: Assembly

    ASSEMBLY Your new tractor has been assembled at the factory with exception of those parts left unassembled for shipping purposes. To ensure safe and proper operation of your tractor all parts and hardware you assemble must be tightened securely. Use the correct tools as necessary to insure proper tightness.
  • Page 7 ASSEMBLY INSTALL SEAT (See Figs. 2 and 3) CONNECT BATTERY (See Fig. 4) • Remove bolt and flat washer se cur ing seat to cardboard CAUTION: Do not short battery terminals by packing and set aside for as sem bly of seat to tractor. allowing a wrench or any other object to con- Remove the cardboard packing and discard.
  • Page 8 ASSEMBLY CHECK TIRE PRESSURE ✓ CHECKLIST The tires on your tractor were overinflated at the factory for shipping purposes. Correct tire pressure is important BEFORE YOU OPERATE YOUR NEW TRAC TOR, WE for best cutting performance. WISH TO ASSURE THAT YOU RECEIVE THE BEST PER- •...

  • Page 9: Operation

    OPERATION These symbols may appear on your tractor or in literature supplied with the product. Learn and understand their meaning. FAST SLOW REVERSE HIGH NEUTRAL CHOKE IGNITION SWITCH ENGINE START REVERSE ENGINE ON PARKING BRAKE PARKING BRAKE PARKING BRAKE ENGINE OFF OPERATION LOCKED UNLOCKED...
  • Page 10 OPERATION KNOW YOUR TRACTOR READ THIS OWNER'S MANUAL AND SAFETY RULES BEFORE OPERATING YOUR TRACTOR Compare the illustrations with your tractor to familiarize yourself with the locations of various controls and ad just ments. Save this manual for future reference. LIGHT LIGHT SERVICE REMINDER/...

  • Page 11: How To Use Your Tractor

    OPERATION The operation of any tractor can result in foreign objects thrown into the eyes, which can result in severe eye dam age. Always wear safety glass es or eye shields while operating your tractor or per form ing any adjustments or repairs. We rec om mend a wide vision safety mask over spectacles or stan dard safety glasses.
  • Page 12 OPERATION TO ADJUST MOWER CUT TING HEIGHT TO OPERATE MOWER (See Fig. 10) (See Fig. 9) Your tractor is equipped with an operator presence sensing switch. Any attempt by the operator to leave the seat with The po si tion of the at tach ment lift le ver (A) de ter mines the the engine running and the attachment clutch engaged will cut ting height.

  • Page 13: Before Starting The Engine

    OPERATION TO TRANSPORT ADD GASOLINE • Fill fuel tank to bottom of filler neck. Do not overfill. When pushing or towing your tractor, be sure to disengage Use fresh, clean, regular un lead ed gasoline with a transmission by placing freewheel control in free wheel ing minimum of 87 octane.

  • Page 14: Operation

    OPERATION COLD WEATHER STARTING (50° F and below) 6. Engage transmission by placing freewheel control in • When engine starts, slowly push choke control in until engaged position (See “TO TRANSPORT” in this sec- the engine begins to run smoothly. Continue to push tion of manual).

  • Page 15: Maintenance Schedule

    MAINTENANCE BEFORE EVERY EVERY EVERY EVERY EVERY BEFORE MAINTENANCE EACH SEASON STORAGE SCHEDULE HOURS HOURS HOURS HOURS Check Brake Operation Check Tire Pressure Check Operator Presence & ROS Systems Check for Loose Fasteners Check/Replace Mower Blades Lubrication Chart Check Battery Level Clean Battery and Terminals Check Transaxle Cooling Check Mower Levelness...

  • Page 16: Maintenance

    MAINTENANCE TRACTOR BLADE CARE For best results mower blades must be kept sharp. Re place Always observe safety rules when per form ing any main- bent or damaged blades. te nance. BRAKE OPERATION CAUTION: Use only a replacement blade approved by the manufacturer of your If tractor requires more than five (5) feet to stop at highest tractor.

  • Page 17: Clean Air Screen

    MAINTENANCE TO CLEAN BATTERY AND TERMINALS OIL DRAIN VALVE Corrosion and dirt on the battery and terminals can cause the battery to “leak” power. • Disconnect BLACK battery cable first then RED bat- CLOSED tery cable and remove battery from tractor. LOCKED •...
  • Page 18 MAINTENANCE IN-LINE FUEL FILTER (See Fig. 16) The fuel filter should be replaced once each season. If fuel filter becomes clogged, ob struct ing fuel flow to car bu re tor, re place ment is re quired. • With engine cool, remove filter and plug fuel line sec- tions.

  • Page 19: Service And Adjustments

    SERVICE AND ADJUSTMENTS WARNING: TO AVOID SE RI OUS IN JU RY, BEFORE PERFORMING ANY SERVICE OR ADJUSTMENTS: • Depress brake pedal fully and set parking brake. • Place motion control lever in neutral position. • Place attachment clutch in “DISENGAGED” position. •...

  • Page 20: Service And Adjustments

    SERVICE AND ADJUSTMENTS • ATTACH MOWER SIDE SUSPENSION ARMS (A) TO • Insert end of link (E) into hole in front mower bracket CHASSIS - Position hole in arm over pin (B) on outside and secure with washer and retainer spring (J). of tractor chassis and secure with retainer spring.
  • Page 21 SERVICE AND ADJUSTMENTS TO LEVEL MOWER • If adjustment is necessary, see step in Visual Adjust- ment instructions above. Make sure tires are properly inflated to the PSI shown on • Recheck measurements, adjust if necessary until both tires. If tires are over or under inflated, it may affect the sides are equal.

  • Page 22: To Replace Mower Blade Drive Belt

    SERVICE AND ADJUSTMENTS TO REPLACE MOTION BELT DRIVE TO REPLACE MOWER BLADE DRIVE BELT (See Fig. 28) (See Fig. 27) Park the tractor on level surface. En gage parking brake. The mower blade drive belt may be replaced without tools. For as sis tance, there is a belt installation guide decal on Park the tractor on level surface.
  • Page 23 SERVICE AND ADJUSTMENTS TRANSAXLE MOTION CONTROL LEVER NEU- • On rear wheels only: align grooves in rear wheel hub and axle. Insert square key. TRAL ADJUSTMENT (See Fig. 29) • Replace washers and snap retaining ring securely in The motion control lever has been pre set at the factory axle groove.
  • Page 24 SERVICE AND ADJUSTMENTS INTERLOCKS AND RELAYS TO ADJUST STEERING WHEEL ALIGNMENT Loose or damaged wiring may cause your tractor to run If steering wheel crossbars are not horizontal (left to right) poorly, stop running, or prevent it from starting. when wheels are positioned straight forward, remove steer- ing wheel and reassemble per instructions in the Assembly •...

  • Page 25: Storage

    STORAGE ENGINE Immediately prepare your tractor for storage at the end of the season or if the tractor will not be used for 30 days or more. FUEL SYSTEM IMPORTANT: IT IS IMPORTANT TO PREVENT GUM DEPOSITS WARNING: Never store the trac tor with FROM FORMING IN ES SEN TIAL FUEL SYSTEM PARTS SUCH gas o line in the tank inside a building AS CARBURETOR, FUEL FIL TER, FUEL HOSE, OR TANK...

  • Page 26: Trou Ble Shoot Ing

    TROUBLESHOOTING POINTS PROBLEM CAUSE CORRECTION Will not start Out of fuel. Fill fuel tank. Engine not “CHOKED” properly. See “TO START ENGINE” in Operation section. Engine flooded. Wait several minutes before attempting to start. Bad spark plug. Replace spark plug. Dirty air filter.

  • Page 27: Trou Ble Shoot Ing

    TROUBLESHOOTING POINTS PROBLEM CAUSE CORRECTION Engine dies when Reverse operation system Turn ignition key to tractor is shifted (ROS) is not "ON" while ROS "ON" position. into reverse mower or other attachment See Operation section. is engaged. Engine continues to run Faulty operator-safety presence control system.
  • Page 28 SERVICE NOTES...
  • Page 29 SERVICE NOTES...
  • Page 30 SERVICE NOTES...
  • Page 32 532 41 93-15 Rev. 1 06.23.08 SBW Jonsered Motor AB, S-433 81 Partille, Sweden. Printed in the U.S.A.
