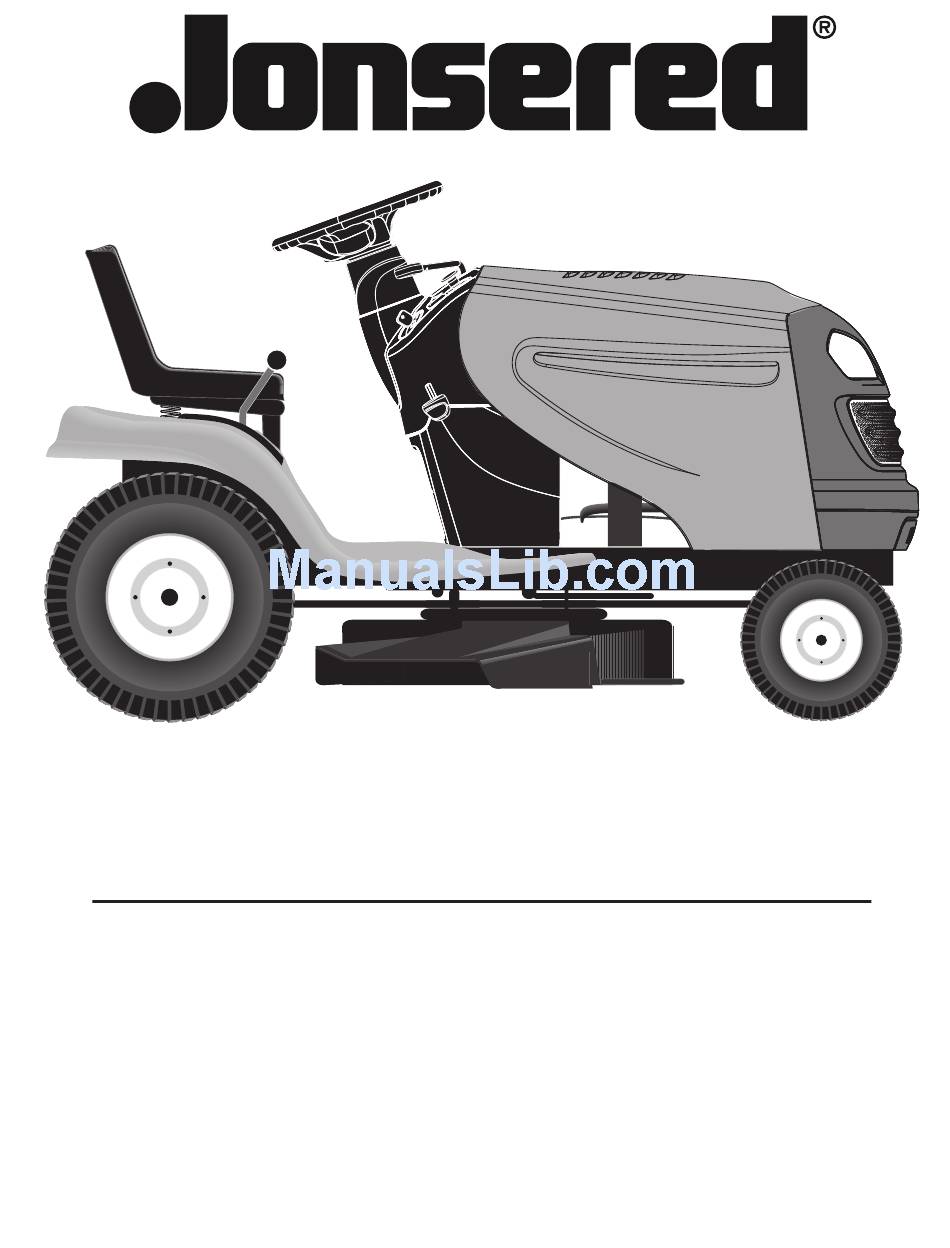

  • Page 1 LT2223 A2 Operator's Manual 532 43 46-32...
  • Page 2: Safety Rules

    SAFETY RULES Safe Operation Practices for Ride-On Mowers DANGER: THIS CUTTING MACHINE IS CAPABLE OF AMPUTATING HANDS AND FEET AND THROW ING OBJECTS. FAILURE TO OBSERVE THE FOLLOWING SAFETY INSTRUCTIONS COULD RESULT IN SERIOUS INJURY OR DEATH. • Do not operate the machine while under the influence WARNING: In order to prevent ac ci den tal of alcohol or drugs.
  • Page 3 SAFETY RULES Safe Operation Practices for Ride-On Mowers III. CHILDREN GENERAL SERVICE • Never operate machine in a closed area. Tragic accidents can occur if the operator is not alert to • Keep all nuts and bolts tight to be sure the equipment the presence of children.
  • Page 4: Table Of Contents

    PRODUCT SPECIFICATIONS CONGRATULATIONS on your purchase of a new tractor. It has been designed, engineered and manu fac tured to give you the best possible dependability and performance. Gasoline Capacity 3 Gallons and Type: Unleaded Regular Should you experience any problem you cannot easily remedy, please contact your nearest authorized service Oil Type (API-SG-SL): SAE 30 (above 32°F) center/department.
  • Page 5: Unassembled Parts

    UNASSEMBLED PARTS Steering Wheel (1) Lock Steering Washer Wheel Insert (1) Large Flat Washer Steering Wheel (1) Hex Bolt Steering Steering Wheel Extension Adapter Shaft Steering Boot Seat (1) Washer (1) Seat (1) Bolt Slope Sheet (1) Oil Drain Tube For Future Use Key(s)
  • Page 6: Assembly

    ASSEMBLY Your new tractor has been assembled at the factory with exception of those parts left unassembled for shipping purposes. To ensure safe and proper operation of your tractor all parts and hardware you assemble must be tightened securely. Use the correct tools as necessary to ensure proper tightness.
  • Page 7: Check Tire Pressure

    ASSEMBLY NOTE: You may now roll your tractor off the skid. Follow the instructions below to remove the tractor from the skid. SEAT WARNING: Before start ing, read, un der stand and fol low SWITCH all in struc tions in the Op er a tion section of this man u al. Be sure tractor is in a well-ventilated area.
  • Page 8 ASSEMBLY ✓ CHECKLIST BEFORE YOU OPERATE YOUR NEW TRAC TOR, WE WISH TO ASSURE THAT YOU RECEIVE THE BEST PERFORMANCE AND SATISFACTION FROM THIS QUALITY PRODUCT. PLEASE REVIEW THE FOLLOWING CHECKLIST: ✓ All assembly instructions have been com plet ed. ✓...
  • Page 9: Operation

    OPERATION These symbols may appear on your tractor or in literature supplied with the product. Learn and understand their meaning. FAST SLOW REVERSE HIGH NEUTRAL CHOKE IGNITION SWITCH ENGINE ON ENGINE START PARKING BRAKE REVERSE PARKING BRAKE PARKING BRAKE ENGINE OFF OPERATION LOCKED UNLOCKED...
  • Page 10 OPERATION KNOW YOUR TRACTOR READ THIS OWNER'S MANUAL AND SAFETY RULES BEFORE OPERATING YOUR TRACTOR Compare the illustrations with your tractor to familiarize yourself with the locations of various controls and ad just ments. Save this manual for future reference. THROTTLE THROTTLE HOURMETER...
  • Page 11: How To Use Your Tractor

    OPERATION The operation of any tractor can result in foreign objects thrown into the eyes, which can result in severe eye dam age. Always wear safety glass es or eye shields while operating your tractor or per form ing any adjustments or repairs. We rec om mend a wide vision safety mask over spec- tacles or stan dard safety glasses.
  • Page 12 OPERATION TO ADJUST MOWER CUT TING HEIGHT REVERSE OPERATION SYSTEM (ROS) (See Fig. 10) Your tractor is equipped with a Reverse Operation System (ROS). Any attempt by the operator to travel in the reverse The po si tion of the at tach ment lift le ver (A) de ter mines the direction with the attachment clutch engaged will shut off the cut ting height.
  • Page 13: Before Starting The Engine

    OPERATION TO OPERATE ON HILLS SERVICE REMINDER/HOUR METER Service reminder shows the total number of hours the engine CAUTION: Do not drive up or down has run and flashes to indicate that the engine or mower hills with slopes greater than 15° and needs servicing.
  • Page 14 OPERATION TO START ENGINE (See Fig. 5) PURGE TRANSMISSION When starting the engine for the first time or if the engine has run out of fuel, it will take extra cranking time to move CAUTION: Never engage or disengage the fuel from the tank to the engine.
  • Page 15: Mowing Tips

    OPERATION MOWING TIPS • Mower should be properly leveled for best mowing per for mance. See "TO LEVEL MOWER HOUSING" in the Service and Adjustments section of this manual. • The left hand side of mower should be used for trim ming. •...
  • Page 16: Maintenance Schedule

    MAINTENANCE BEFORE EVERY EVERY EVERY EVERY EVERY BEFORE MAINTENANCE EACH SEASON STORAGE SCHEDULE HOURS HOURS HOURS HOURS Check Brake Operation Check Tire Pressure Check Operator Presence & ROS Systems Check for Loose Fasteners Check/Replace Mower Blades Lubrication Chart Check Battery Level Clean Battery and Terminals Clean Debris Off Steering Plate ck Transaxle Cooling...
  • Page 17: Maintenance

    MAINTENANCE TRACTOR BLADE CARE For best results mower blades must be kept sharp. Re place Always observe safety rules when per form ing any main- bent or damaged blades. te nance. BRAKE OPERATION CAUTION: Use only a replacement blade ap- proved by the manufacturer of your tractor.
  • Page 18: Clean Air Screen

    MAINTENANCE V-BELTS • Remove yellow cap from end of drain valve and install Check V-belts for deterioration and wear after 100 hours the drain tube onto the fitting. of operation and replace if necessary. The belts are not • Unlock drain valve by pushing inward and turning ad just able.
  • Page 19 MAINTENANCE MUFFLER DECK WASHOUT PORT (See Fig. 22) Inspect and replace corroded muffler and spark arrester (if Your tractor’s deck is equipped with a washout port on its surface as part of its deck wash system. It should be equipped) as it could create a fire hazard and/or damage. utilized after each use.
  • Page 20: Service And Adjustments

    SERVICE AND ADJUSTMENTS WARNING: TO AVOID SE RI OUS IN JU RY, BEFORE PERFORMING ANY SERVICE OR ADJUSTMENTS: • Depress brake pedal fully and set parking brake. • Place motion control lever in neutral position. • Place attachment clutch in “DISENGAGED” position. •...
  • Page 21 SERVICE AND ADJUSTMENTS • ATTACH MOWER SIDE SUSPENSION ARMS (A) TO • Insert end of link (E) into hole in front mower bracket CHASSIS - Position hole in arm over pin (B) on outside and secure with washer and retainer spring (J). of tractor chassis and secure with retainer spring.
  • Page 22 SERVICE AND ADJUSTMENTS TO LEVEL MOWER • If adjustment is necessary, see step in Visual Adjust- ment instructions above. Make sure tires are properly inflated to the PSI shown on • Recheck measurements, adjust if necessary until both tires. If tires are over or under inflated, it may affect the sides are equal.
  • Page 23: To Replace Mower Blade Drive Belt

    SERVICE AND ADJUSTMENTS TO REPLACE MOTION DRIVE BELT TO REPLACE MOWER BLADE DRIVE BELT (See Fig. 34) (See Fig. 33) Park the tractor on level surface. En gage parking brake. The mower blade drive belt may be replaced without tools. For as sis tance, there is a belt installation guide decal on Park the tractor on level surface.
  • Page 24 SERVICE AND ADJUSTMENTS TRANSAXLE MOTION CONTROL LEVER NEUTRAL ADJUSTMENT (See Fig. 35) WASH ERS RE TAIN ING RING The motion control lever has been pre set at the factory and adjustment should not be necessary. AXLE COVER • Loosen adjustment bolt in front of the right rear wheel, and lightly tighten.
  • Page 25: Interlocks And Relays

    SERVICE AND ADJUSTMENTS REPLACING BATTERY ( See Fig. 38 TO REMOVE HOOD AND GRILL ASSEMBLY (See Fig. 39) WARNING: Do not short battery ter mi- • Raise hood. nals by allowing a wrench or any other • Unsnap headlight wire connector. object to contact both terminals at the •...
  • Page 26: Storage

    STORAGE ENGINE Immediately prepare your tractor for storage at the end of the season or if the tractor will not be used for 30 days or more. FUEL SYSTEM IMPORTANT: IT IS IMPORTANT TO PREVENT GUM DEPOSITS WARNING: Never store the trac tor with FROM FORMING IN ES SEN TIAL FUEL SYSTEM PARTS SUCH gas o line in the tank inside a building AS CARBURETOR, FUEL FIL TER, FUEL HOSE, OR TANK...
  • Page 27: Troubleshooting

    TROUBLESHOOTING PROBLEM CAUSE CORRECTION 1. Out of fuel. 1. Fill fuel tank. Will not start 2. Engine not “CHOKED” properly. 2. See “TO START ENGINE” in Operation section. 3. Engine flooded. 3. Wait several minutes before attempting to start. 4. Bad spark plug. 4.
  • Page 28: Troubleshooting Points

    TROUBLESHOOTING POINTS PROBLEM CAUSE CORRECTION Engine continues 1. Faulty operator-safety presence control 1. Check wiring, switches and connections. If not system. corrected, contact an authorized service center/ to run when oper- department. ator leaves seat with attachment clutch engaged 1. Worn, bent or loose blade. 1.
  • Page 29 SERVICE NOTES...
  • Page 30 SERVICE NOTES...
  • Page 32 Jonsered Motor AB, 01.29.10 JA S-433 81 Partille, Sweden. Printed in the U.S.A.
