LT2218A
Operator's Manual

Advertisement

Table of Contents
loading

Related Manuals for Jonsered LT2218A

Summary of Contents for Jonsered LT2218A

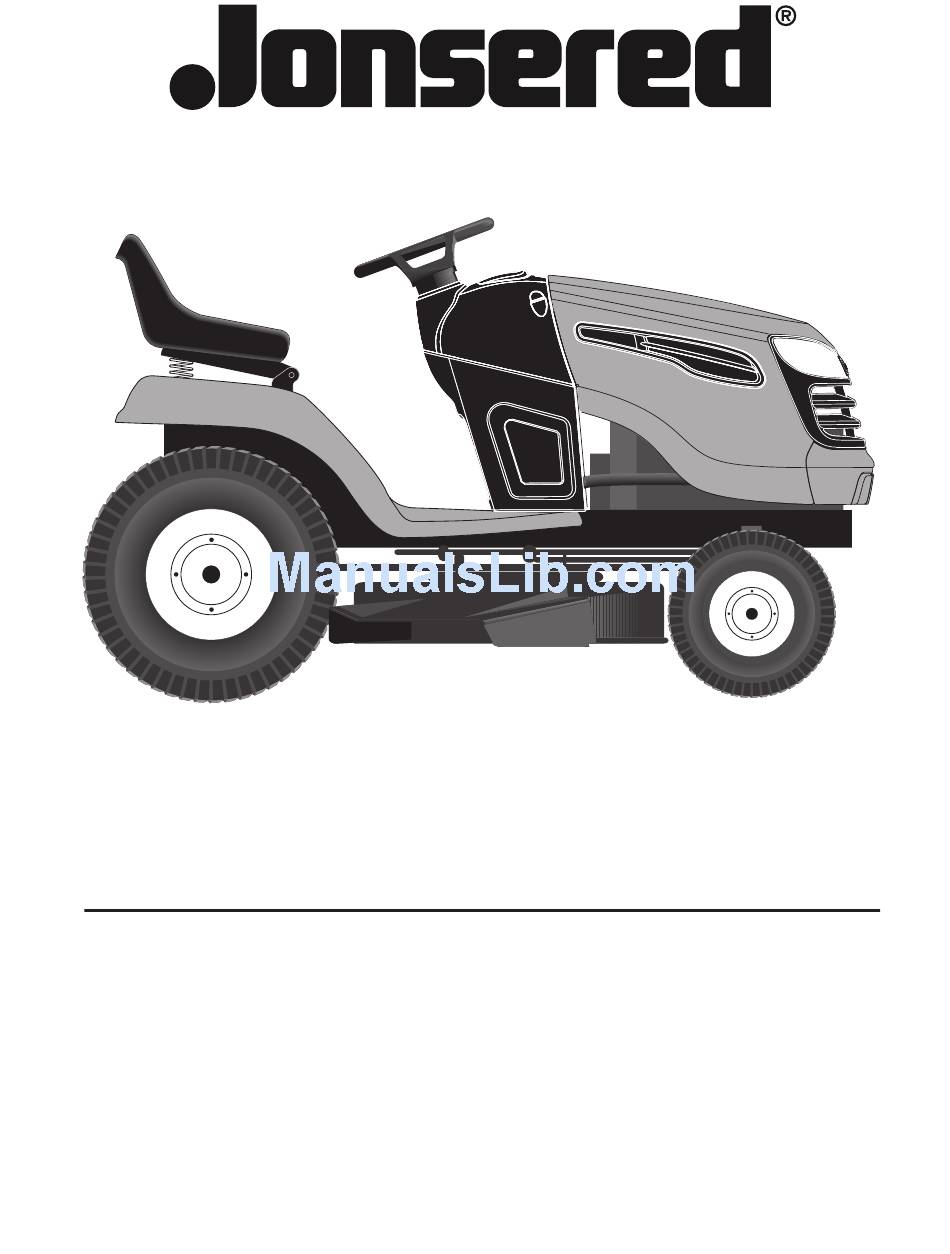

  • Page 1 LT2218A Operator's Manual...

  • Page 2: Safety Rules

    Safe Operation Practices for Ride-On Mowers DANGER: THIS CUTTING MACHINE IS CAPABLE OF AMPUTATING HANDS AND FEET AND THROW ING OBJECTS. FAILURE TO OBSERVE THE FOLLOWING SAFETY INSTRUCTIONS COULD RESULT IN SERIOUS INJURY OR DEATH. WARNING: In order to prevent ac- ci den tal starting when setting up, trans port ing, ad just ing or making re- pairs, al ways dis con nect spark plug...
  • Page 3 Safe Operation Practices for Ride-On Mowers III. CHILDREN Tragic accidents can occur if the operator is not alert to the presence of children. Children are often attracted to the ma chine and the mowing activity. Never assume that children will remain where you last saw them. •...

  • Page 4: Table Of Contents

    Gasoline Capacity 1.5 Gallons (5,68 L) and type: Unleaded Regular Oil Type (API-SG-SL): SAE 30 (above 32°F/0°C) SAE 5W-30 (below 32°F/0°C) Oil Capacity: W/Filter: W/O Filter: 48 oz. Spark Plug: Champion RC12YC (Gap: .030") Ground Speed (MPH): Forward: Reverse: Charging System: 15 Amps Battery: AMP/HR:...

  • Page 5: Unassembled Parts

    UNASSEMBLED PARTS Steering Wheel Steering Wheel Insert Steering Wheel Adapter Steering Boot (1) Seat (1) Oil Drain Tube For Future Use Key(s) (1) Large Flat Washer Steering Wheel (1) Hex Bolt Steering Extension Shaft Seat (1) Washer (1) Hex Bolt Slope Sheet (1) Lock Washer...

  • Page 6: Assembly

    Your new tractor has been assembled at the factory with exception of those parts left unassembled for shipping purposes. To ensure safe and proper operation of your tractor all parts and hardware you assemble must be tightened securely. Use the correct tools as necessary to insure proper tightness. TOOLS REQUIRED FOR ASSEMBLY A socket wrench set will make assembly easier.

  • Page 7: Check Tire Pressure

    SLOT FLAT WASHER SEAT PAN BOLT Fig. 3 TO CHECK BATTERY (See Fig. 4) • Lift seat to raised position. NOTE: If this battery is put into service after month and year indicated on label (label is located between terminals) charge battery for minimum of one hour at 6-10 amps.
  • Page 8 ✓CHECKLIST BEFORE YOU OPERATE YOUR NEW TRAC TOR, WE WISH TO ASSURE THAT YOU RECEIVE THE BEST PER- FORMANCE AND SATISFACTION FROM THIS QUALITY PRODUCT. PLEASE REVIEW THE FOLLOWING CHECKLIST: ✓ All assembly instructions have been com plet ed. ✓ No remaining loose parts in carton. ✓...

  • Page 9: Operation

    These symbols may appear on your tractor or in literature supplied with the product. Learn and understand their meaning. REVERSE NEUTRAL REVERSE ENGINE OFF OPERATION SYSTEM (ROS) LIGHTS ON BATTERY FUEL ATTACHMENT ATTACHMENT CLUTCH DISENGAGED CLUTCH ENGAGED FREE WHEEL (Automatic Models only) Failure to follow instructions could result in serious injury or death.
  • Page 10 KNOW YOUR TRACTOR READ THIS OWNER'S MANUAL AND SAFETY RULES BEFORE OPERATING YOUR TRACTOR Compare the illustrations with your tractor to familiarize yourself with the locations of various controls and ad just ments. Save this manual for future reference. Our tractors conform to the safety standards of the American National Standards Institute. (A) ATTACHMENT LIFT LEVER - Used to raise, lower, and adjust the mower deck or other attachments mounted to your tractor.

  • Page 11: How To Use Your Tractor

    The operation of any tractor can result in foreign objects thrown into the eyes, which can result in severe eye dam age. Always wear safety glass es or eye shields while op- erating your tractor or per form ing any adjustments or repairs. We rec om mend a wide vision safety mask over spectacles or stan dard safety glasses.
  • Page 12 TO ADJUST MOWER CUTTING HEIGHT (See Fig. 10) The position of the attachment lift lever (A) determines the cutting height. Fig. 10 • Put attachment lift lever in desired cutting height slot. The cutting height range is ap prox i mate ly 1" to 4". The heights are measured from the ground to the blade tip with the engine not running.

  • Page 13: Before Starting The Engine

    USING THE REVERSE OPERATION SYSTEM - Only use if you are certain no children or other bystanders will enter the mowing area. • Depress brake pedal all the way down. • With engine running, turn ignition key counterclockwise to ROS "ON" position. •...
  • Page 14 TO START ENGINE (See Fig. 5) When starting the engine for the first time or if the engine has run out of fuel, it will take extra cranking time to move fuel from the tank to the engine. • Be sure freewheel control is in the transmission en gaged position.
  • Page 15 MOWING TIPS • Tire chains cannot be used when the mower hous ing is attached to tractor. • Mower should be properly leveled for best mowing performance. See “TO LEVEL MOWER HOUSING” in the Service and Adjustments section of this manual. •...

  • Page 16: Maintenance Schedule

    MAINTENANCE SCHEDULE Check Brake Operation Check Tire Pressure Check Operator Presence & ROS Systems Check for Loose Fasteners Check/Replace Mower Blades Lubrication Chart Check Battery Level Clean Battery and Terminals Check Transaxle Cooling Check Mower Levelness ck V-Belts Check Engine Oil Level Change Engine Oil (with oil filter) Change Engine Oil (without oil filter) Clean Air Filter...

  • Page 17: Maintenance

    TRACTOR Always observe safety rules when per form ing any main te nance. BRAKE OPERATION If tractor requires more than five (5) feet to stop at highest speed in high est gear on a level, dry concrete or paved surface, then brake must be checked and ad just ed. (See “TO CHECK BRAKE”...
  • Page 18 TRANSAXLE MAINTENANCE The transmission fan and cooling fins should be kept clean to assure proper cooling. Do not attempt to clean fan or transmission while engine is running or while the transmission is hot. To prevent pos - si ble damage to seals, do not use high pressure water or steam to clean transmission.
  • Page 19 ENGINE COOLING SYSTEM (See Fig. 18) Debris may clog the engine's air cooling system. Remove blower housing and clean the area shown to prevent over- heating and engine damage. AIR SCREEN CLEAN OUT CHAFF AND DEBRIS Fig. 18 AIR FILTER Your engine will not run properly using a dirty air filter.

  • Page 20: Service And Adjustments

    SERVICE AND ADJUSTMENTS WARNING: TO AVOID SERIOUS INJURY, BEFORE PERFORMING ANY SER VICE OR AD JUST MENTS: • Depress brake pedal fully and set parking brake. • Place attachment clutch in “DISENGAGED” position. • Turn ignition key to “STOP” and remove key. •...

  • Page 21: Service And Adjustments

    SERVICE AND ADJUSTMENTS • ATTACH MOWER SIDE SUSPENSION ARMS (A) TO CHASSIS - Position hole in arm over pin (B) on outside of tractor chassis and secure with retainer spring. • Repeat on opposite side of tractor. Fig. 21 • ATTACH REAR LIFT LINKS (C) - Lift rear corner of mower and position slot in link assembly over pin on rear mower bracket (D) and secure with washer and...
  • Page 22 SERVICE AND ADJUSTMENTS TO LEVEL MOWER Make sure tires are properly inflated to the PSI shown on tires. If tires are over or under inflated, it may affect the appearance of your lawn and lead you to think the mower is not adjusted properly.
  • Page 23 SERVICE AND ADJUSTMENTS TO REPLACE MOWER BLADE DRIVE BELT (See Fig. 30) MOWER DRIVE BELT REMOVAL • Park tractor on a level surface. En gage parking brake. • Lower attachment lift lever to its lowest position. • Remove any dirt or grass clippings which may have accumulated around mandrels and entire upper deck surface.
  • Page 24 SERVICE AND ADJUSTMENTS 4. Install belt through stationary idler (C) and clutch ing idler (D). 5. Reinstall anti-rotation link (B) on right side of tractor. Tighten securely. 6. Reconnect clutch harness (A). 7. Make sure belt is in all pulley grooves and in side all belt guides and keep ers.
  • Page 25 SERVICE AND ADJUSTMENTS SEAT PAN 02602 TERMINAL COVER POSITIVE (RED) CABLE 02603 Fig. 34 • First connect RED battery cable to positive (+) terminal with bolt and nut as shown. Tighten securely. Slide terminal cover over terminal. • Connect BLACK grounding cable to negative (-) ter - mi nal with remaining bolt and nut.

  • Page 26: Storage

    Immediately prepare your tractor for storage at the end of the season or if the tractor will not be used for 30 days or more. WARNING: Never store the trac tor with gas o line in the tank inside a building where fumes may reach an open flame or spark.

  • Page 27: Trou Ble Shoot Ing

    TROUBLESHOOTING POINTS PROBLEM CAUSE Will not start Out of fuel. Engine not “CHOKED” properly. Engine flooded. Bad spark plug. Dirty air filter. Dirty fuel filter. Water in fuel. Loose or damaged wiring. Carburetor out of adjustment. Engine valves out of adjustment. Hard to start Dirty air filter.

  • Page 28: Trou Ble Shoot Ing

    TROUBLESHOOTING POINTS PROBLEM CAUSE Engine continues to run Faulty operator-safety presence control system. when operator leaves seat with attachment clutch engaged Poor cut - uneven Worn, bent or loose blade. Mower deck not level. Buildup of grass, leaves, and trash under mower. Bent blade mandrel.
  • Page 30 SERVICE NOTES...
  • Page 31 SERVICE NOTES...
  • Page 32 Jonsered Motor AB, 532 42 71-56 02.12.09 BAD S-433 81 Partille, Sweden. Printed in the U.S.A.
