9

CONNECTIONS AND EMC PRECAUTIONS

9.1

CONNECTOR DETAILS

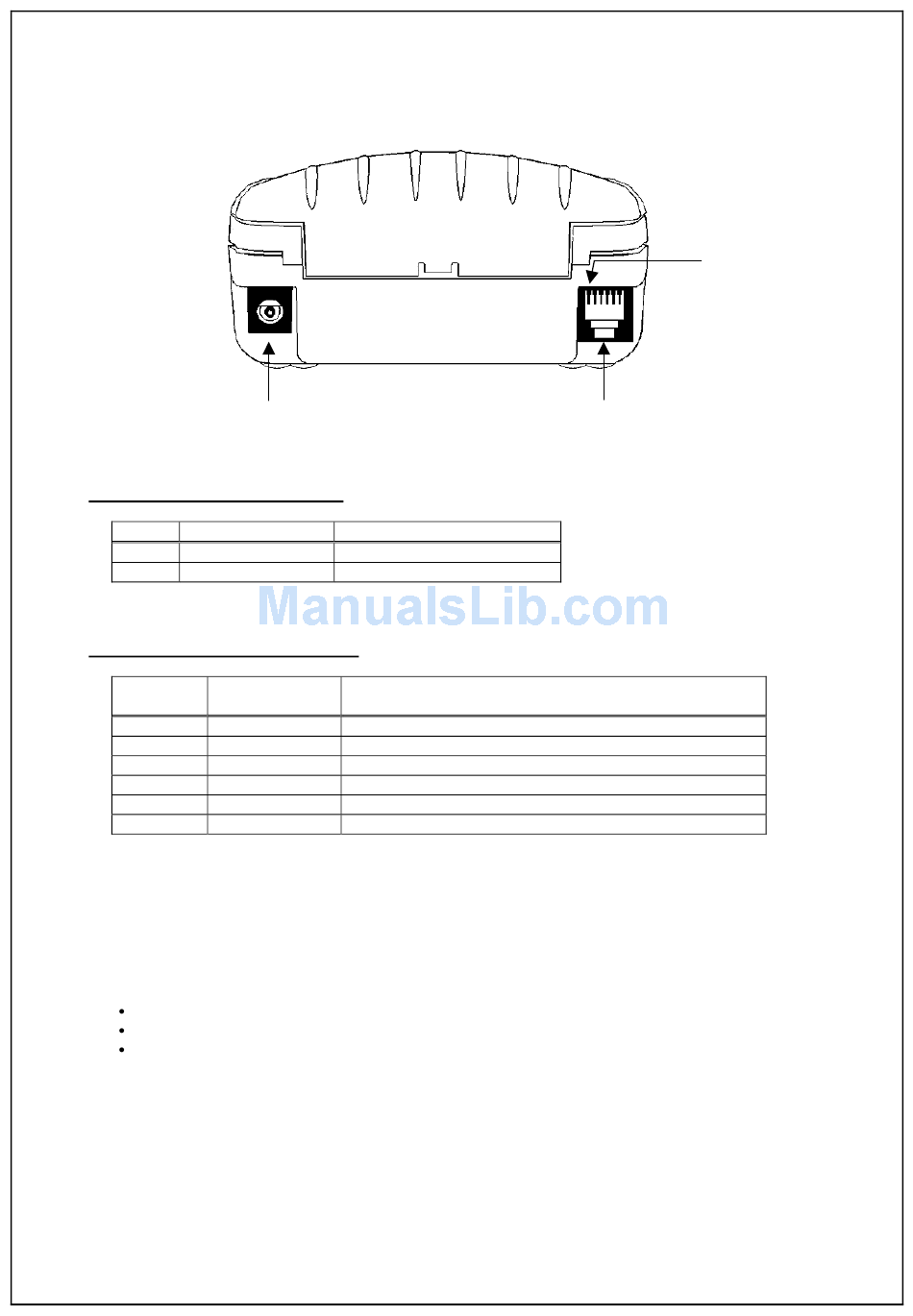

The Ap1300 has two user connectors shown below:
Charger Input Jack Socket
9.2

CONNECTOR PINOUTS

Charger Input Jack Socket Detail
Pin Dimension (mm)
Inner Inside Ø 2.5
Outer Outside Ø 5.5
The maximum insertion length is 12 mm.
RJ12 Combined Data Socket Detail
Input / Output
RJ12 Pin
(Ap1300)
1
2
3
4
5
6
9.3

BATTERY CHARGER DETAILS

The Ap1300 monitors charge current into the printer, but does not regulate it in anyway. In order to
fully and safely charge the batteries a suitable current-regulated charger must be connected. This
may be a simple current source for trickle charging, or a more complex intelligent fast charger with
automatic fast charge termination.
The following mains powered battery chargers are available:
UK trickle charger
'Universal' trickle charger
'Universal' intelligent fast charger
(Note: The 'Universal' intelligent fast charger also features a nominal 12-32Vdc input with a cigar lighter plug for vehicle use)
Alternatively, the user may make their own charger arrangements. The recommended battery trickle
charge supply current is 250mA +/- 25mA, at between 6V and 8V. An external charger supply must
have an output current which remains within this range between these voltage extremes.
N.B. This connection is for a current-regulated battery charger only. Do not connect a
standard voltage power supply. Serious damage may result from inappropriate connections.
(Please contact the factory if you are unsure about this).
Function
Positive / Charger Input
Negative / 0V Common
Ap1300 Function
i/p Optional Charger Input
i/p Wake-up Input
i/p RS-232 Rx data
o/p RS-232 Tx data
o/p RS-232 Busy
--- 0V Common (RS-232 signal return and Charger return)
Ap1300 User Guide Page 12 of 16
RJ12 Combined Data Socket
(ASL Product Code BC1300B
(ASL Product Code BC1300
(ASL Product Code BC1300FC
Pin 1
)
)
)
