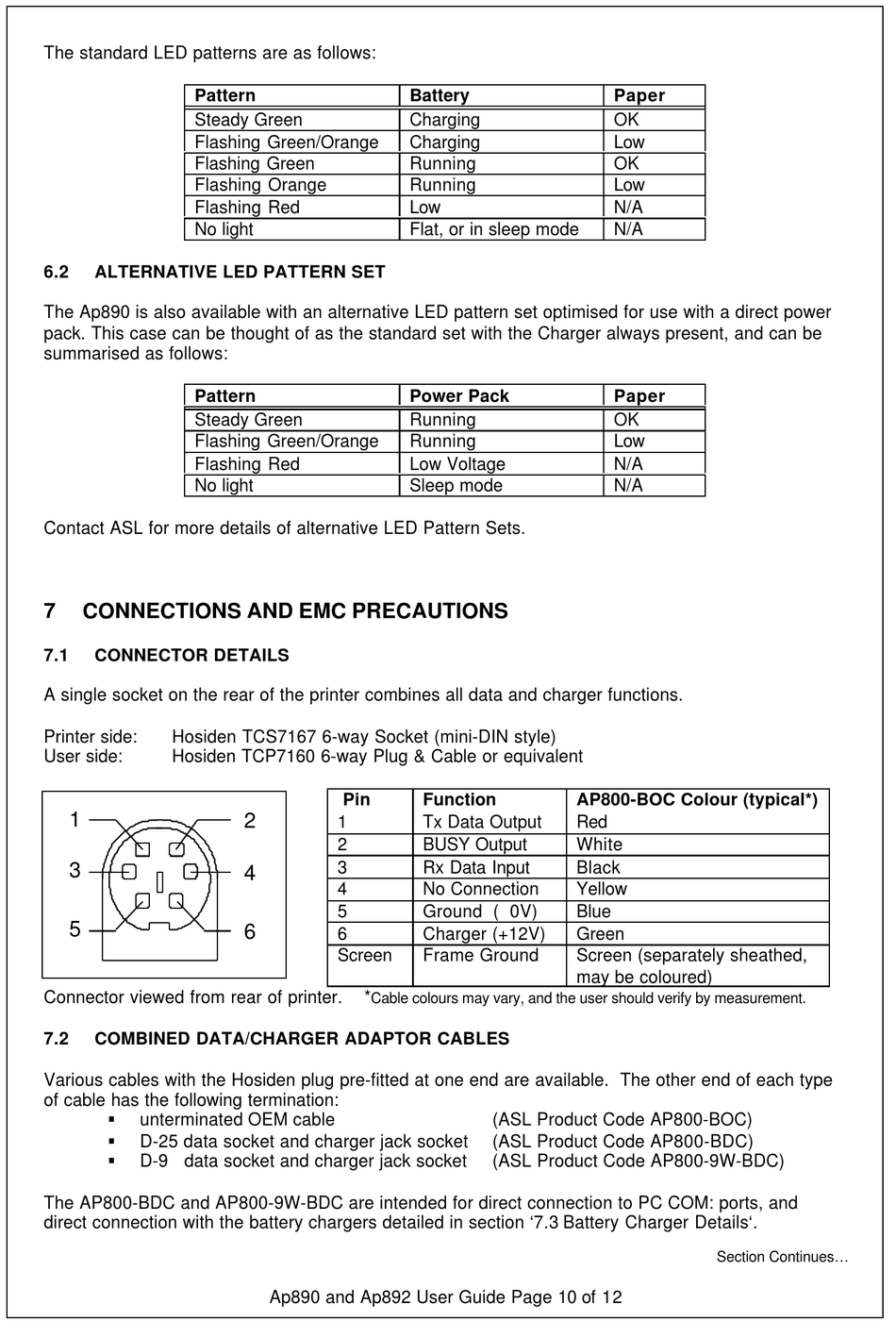

The standard LED patterns are as follows:
Pattern
Steady Green
Flashing Green/Orange
Flashing Green
Flashing Orange
Flashing Red
No light
6.2

ALTERNATIVE LED PATTERN SET

The Ap890 is also available with an alternative LED pattern set optimised for use with a direct power
pack. This case can be thought of as the standard set with the Charger always present, and can be
summarised as follows:
Pattern
Steady Green
Flashing Green/Orange
Flashing Red
No light
Contact ASL for more details of alternative LED Pattern Sets.
7

CONNECTIONS AND EMC PRECAUTIONS

7.1

CONNECTOR DETAILS

A single socket on the rear of the printer combines all data and charger functions.
Printer side: Hosiden TCS7167 6-way Socket (mini-DIN style)
User side: Hosiden TCP7160 6-way Plug & Cable or equivalent
1
3
5
Connector viewed from rear of printer.
7.2

COMBINED DATA/CHARGER ADAPTOR CABLES

Various cables with the Hosiden plug pre-fitted at one end are available. The other end of each type
of cable has the following termination:
§
unterminated OEM cable
§
D-25 data socket and charger jack socket
§
D-9 data socket and charger jack socket
The AP800-BDC and AP800-9W-BDC are intended for direct connection to PC COM: ports, and
direct connection with the battery chargers detailed in section '7.3 Battery Charger Details'.
Battery
Charging
Charging
Running
Running
Low
Flat, or in sleep mode
Power Pack
Running
Running
Low Voltage
Sleep mode
Pin
2
1
2
3
4
4
5
6
6
Screen
*
Cable colours may vary, and the user should verify by measurement.
Ap890 and Ap892 User Guide Page 10 of 12
Function AP800-BOC Colour (typical*)
Tx Data Output Red
BUSY Output White
Rx Data Input Black
No Connection Yellow
Ground ( 0V) Blue
Charger (+12V) Green
Frame Ground Screen (separately sheathed,
may be coloured)
(ASL Product Code AP800-BOC)
(ASL Product Code AP800-BDC)
(ASL Product Code AP800-9W-BDC)
Paper
OK
Low
OK
Low
N/A
N/A
Paper
OK
Low
N/A
N/A
Section Continues...
