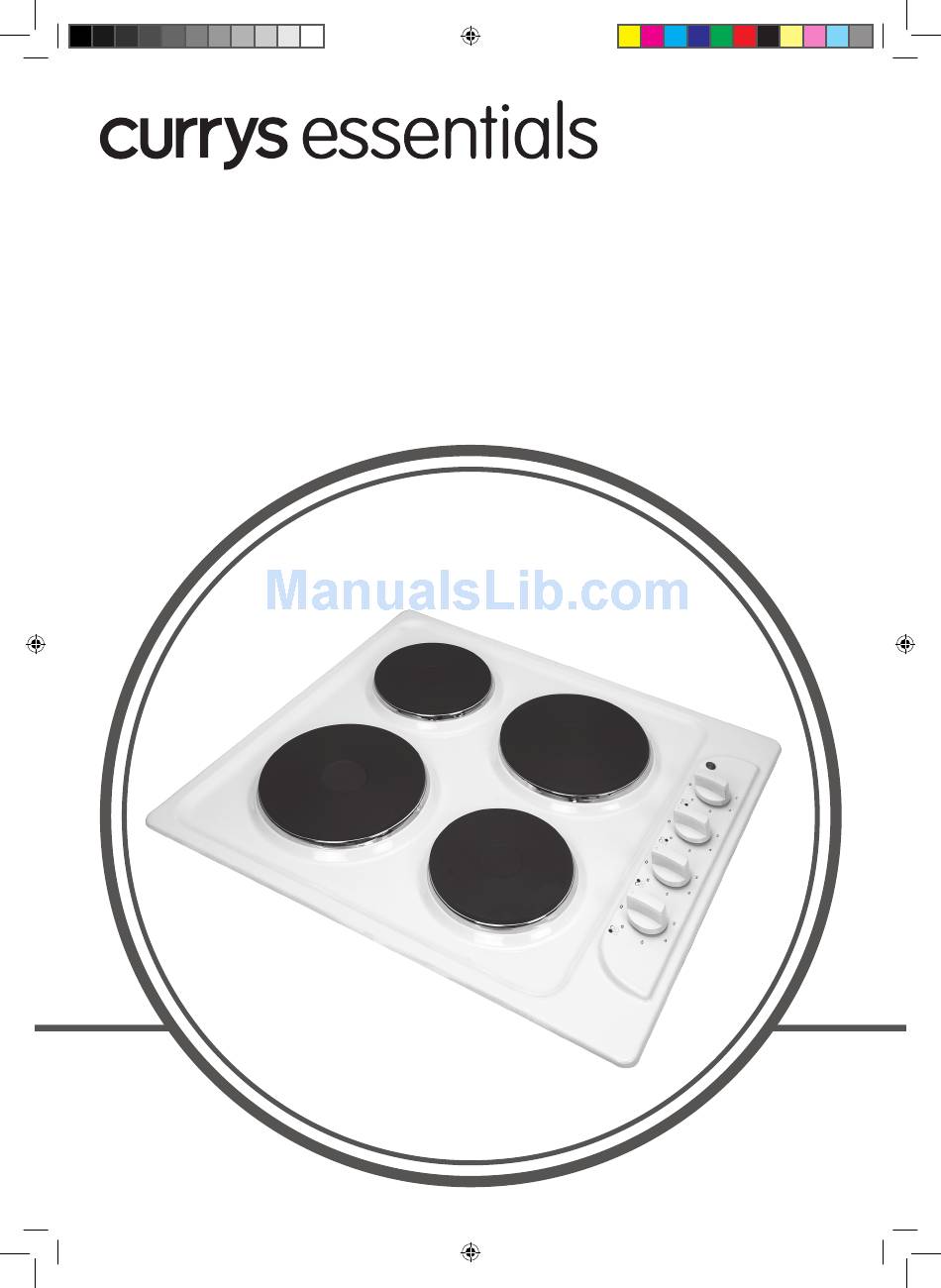

- Page 1 BUILT -IN ELEC TRIC HOB I N S T RUC T I O N M A NU A L C S P H O B W 10 CSPHOBW10_IB_final110415.indd 1 15/04/2011 1:54 PM...
- Page 2 CSPHOBW10_IB_final110415.indd 2 15/04/2011 1:54 PM...
-
Page 3: Table Of Contents
Contents Unpacking ............................. 4 Product Overview ......................... 5 Top View ..................................5 Control Panel ................................5 Before using your New Electric Hob .................... 6 Choosing the Right Cookware ..................... 6 Using Your Electric Hob ........................ 7 To Start Cooking ...............................7 When You Have Finished Cooking ........................7 Cooking Guidelines ........................ -
Page 4: Unpacking
Thank you on the purchase of your new Currys Essentials Built-in Electric Hob. We recommend that you spend some time to read this manual in order to fully understand how to install and operate it correctly. Read all the safety warnings carefully before use and keep this manual for future reference. -
Page 5: Product Overview
Product Overview Top View max.1000 W zone max.1500 W zone Control Panel Control Panel Power Indicator Light Power Regulating Controls CSPHOBW10_IB_final110415.indd 5 15/04/2011 1:54 PM... -
Page 6: Before Using Your New Electric Hob
Before using your New Electric Hob • Read this guide, taking special note of the ‘Safety Warnings’ section. • Remove any protective film that may still be on your electric hob. Choosing the Right Cookware Do not use cookware with jagged edges or a curved base. Make sure that the base of your pan is smooth, sits flat against the surface, and is the same size as the cooking zone. -
Page 7: Using Your Electric Hob
Using Your Electric Hob To Start Cooking Place a suitable pan on the cooking zone you wish to use. • Make sure the bottom of the pan and the surface of the cooking zone are clean and dry. Adjust the power regulating control to the desired level to turn on the control. -
Page 8: Cooking Guidelines
Cooking Guidelines Take care when frying as oil and fat heat up very quickly. At extremely high temperatures oil and fat will ignite spontaneously and this presents a serious fire risk. Cooking Tips • When food comes to the boil, reduce the temperature setting. • Using a lid will reduce cooking times and save energy by retaining the heat. -
Page 9: Cleaning And Maintenance
Cleaning and Maintenance The settings below are guidelines only. The exact setting will depend on several factors, including your cookware and the amount you are cooking. Experiment with the electric hob to find the settings that best suit you. What? How? Important! Everyday soiling on... -
Page 10: Specification
Specification Model CSPHOBW10 Power (W) 5000 – 5440W Voltage (V) 230 - 240 V~ Frequency (Hz) Features and specifications are subject to change without prior notice. CSPHOBW10_IB_final110415.indd 10 15/04/2011 1:54 PM... -
Page 11: Installation
Installation Preparing the Worktop Cut out the work surface following the dimensions shown in the drawing below. For the purpose of installation and use, a minimum distance of 5cm space must be left around the cut out. Be sure the thickness of the work surface is at least 20mm. Use a heat-resistant work surface material to avoid deformation caused by the heat from the hob. -
Page 12: Fastening The Fixing Brackets
Fastening the Fixing Brackets The unit should be placed on a stable, smooth surface (use the packaging). Turn the hob upside down, place it on a soft surface and fasten the brackets to the appropriate holes. DO NOT tighten the screws at this stage. Apply sealing strips around the edge of the hob. -
Page 13: Connecting The Hob To The Mains Power Supply
Connecting the Hob to the Mains Power Supply The socket should be connected in compliance with the relevant standard,or a single-pole circuit breaker. The method of connection is shown below. 3 × 6mm / 3 × 2.5mm • This appliance must be earthed. • For this connection a power lead of wire type H05VV-F should be used. -
Page 14: Safety Warnings
Safety Warnings Operation and Maintenance Your safety is important to us. Please read this information before using your electric hob. Electrical Shock Hazard Installation • Do not cook on a broken or cracked electric hob. If the electric hob surface should break or crack, Electrical Shock Hazard switch the appliance off immediately at the mains power supply (wall switch) and contact a qualified... - Page 15 Important Safety Instructions • Do not stand on your electric hob. • Never leave the appliance unattended when in use. • Do not use pans with jagged edges or drag pans Boilover causes smoking and greasy spillovers that across the ceramic electric hob as this can scratch may ignite.
- Page 16 If you require a replacement for any of the items listed below, please quote their corresponding part numbers: Replacement Part Part Number Screw ST4.2x22 Brackets SBD-55AM4AA.FJ-01 Visit Partmaster.co.uk today for the easiest way to buy electrical spares and accessories. With over 1 million spares and accessories available we can deliver direct to your door the very next day.
